Maytag
Bottom-Mount Refrigerator

Model # MBR1953YES3 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MBR1953YES3 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

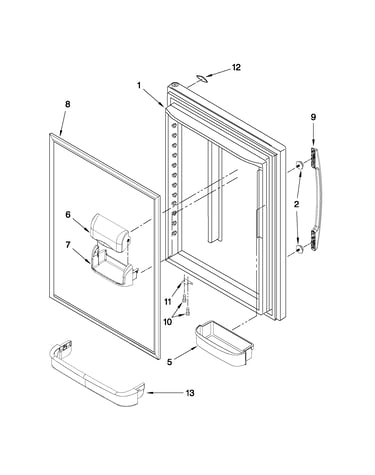

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

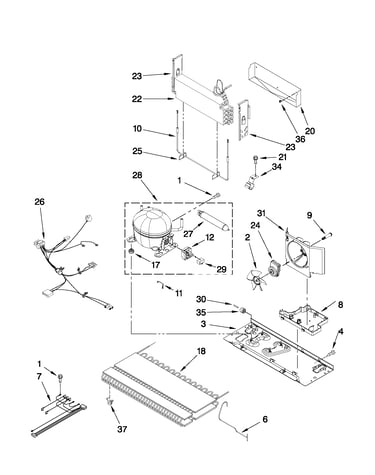

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker W10190978
#100

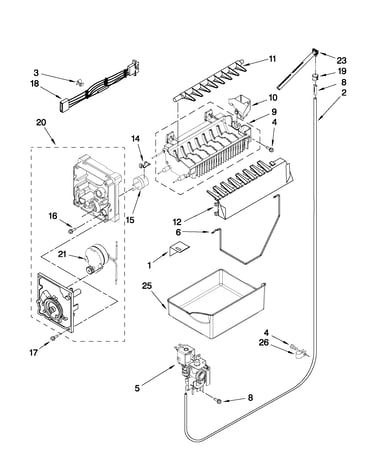

Icemaker parts diagram

Refrigerator ice maker

Part #W10190978

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces W10190978. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb W10311505N
#9

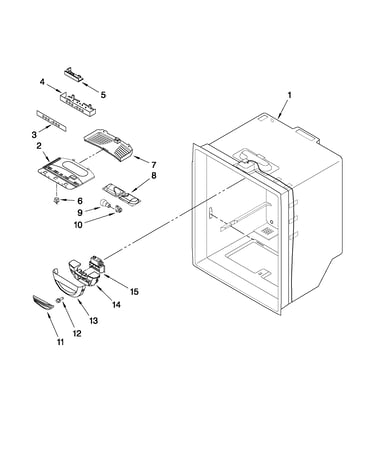

Refrigerator liner parts diagram

Refrigerator light bulb

Part #W10311505N

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Electronic Control 12784415V
#5

Refrigerator liner parts diagram

Refrigerator electronic control

Part #12784415V

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12784415V. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Switch C3680310V
#6

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Central Rail 12530701N
#1

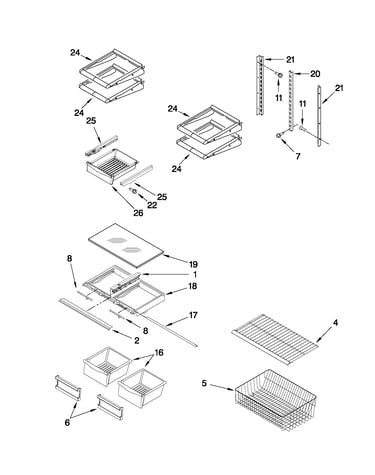

Shelf parts diagram

Refrigerator central rail

Part #12530701N

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701N. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Water Inlet Valve Assembly W10219716
#5

Icemaker parts diagram

Refrigerator water inlet valve assembly

Part #W10219716

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces W10219716. Substitute parts can look different from the original.
BEST SELLER
$46.01 |
12% OFF Phone Price : $52.01
In Stock
Light Swit 12466105
#16

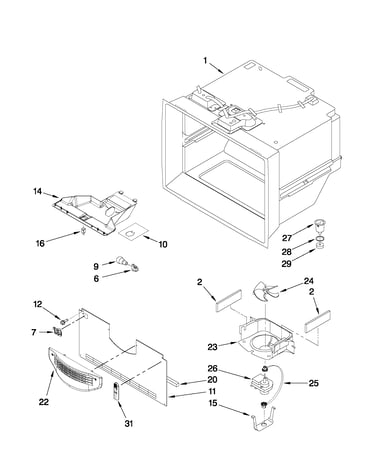

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Evaporator Fan Motor W10128551
#26

Freezer liner parts diagram

Refrigerator evaporator fan motor

Part #W10128551

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces W10128551. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Refrigerator Drain Tube W10210987
#30

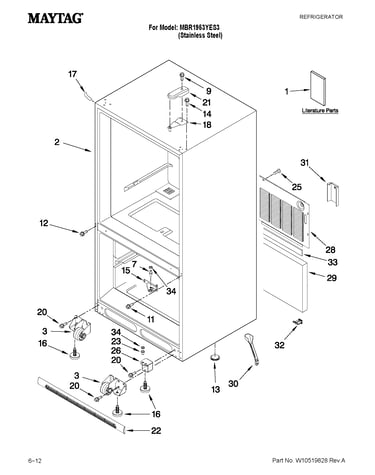

Cabinet parts diagram

Refrigerator drain tube

Part #W10210987

Replaced by #W10619951

?
Manufacturer substitution
This part replaces W10210987. Substitute parts can look different from the original.
BEST SELLER
$26.33 |
19% OFF Phone Price : $32.33
In Stock
