Jenn-Air
Electric Wall Oven

Model # WW30430B Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air WW30430B electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Door Switch 71001129
#3

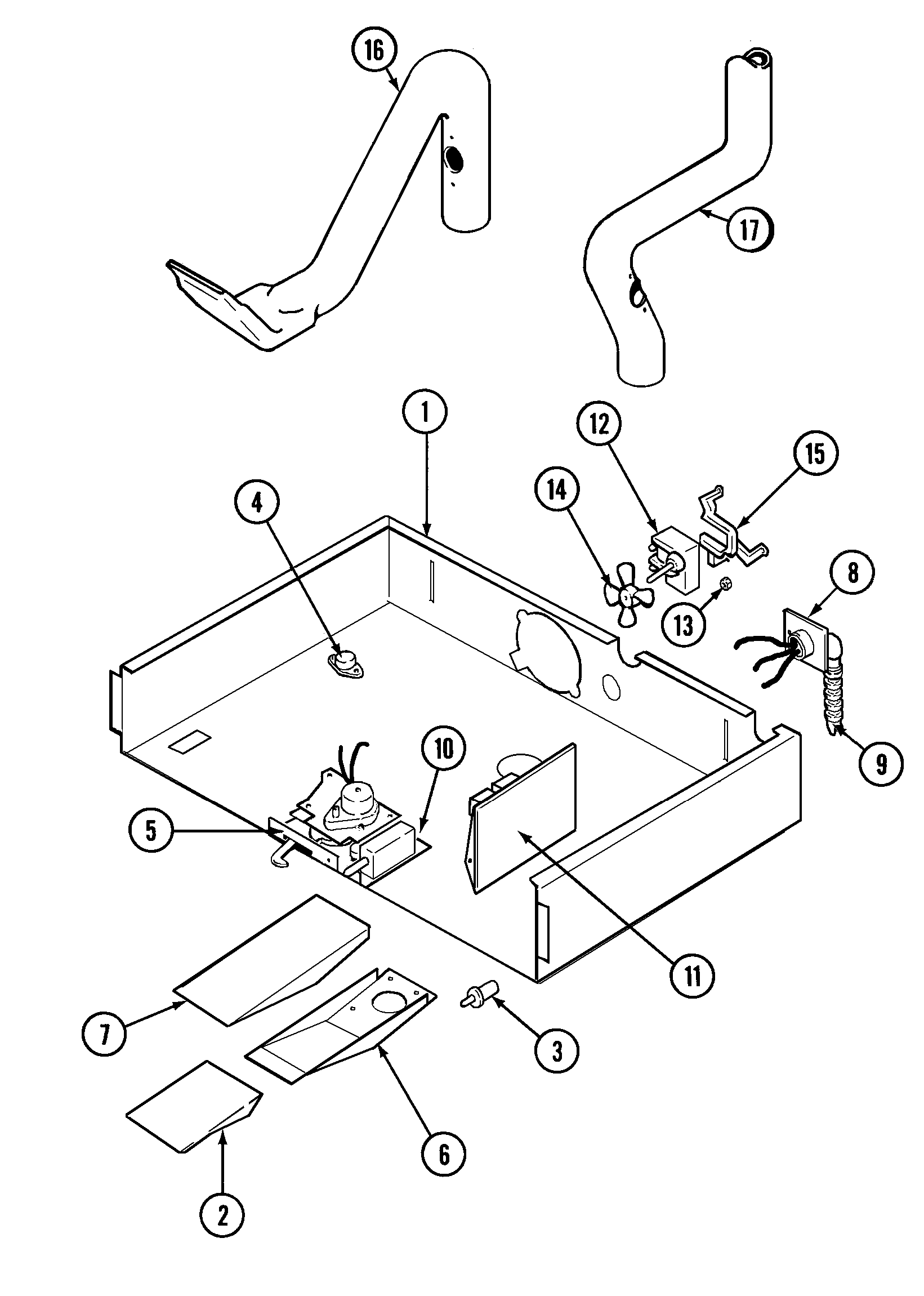

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Screw (#8ab) 71001183
#7B

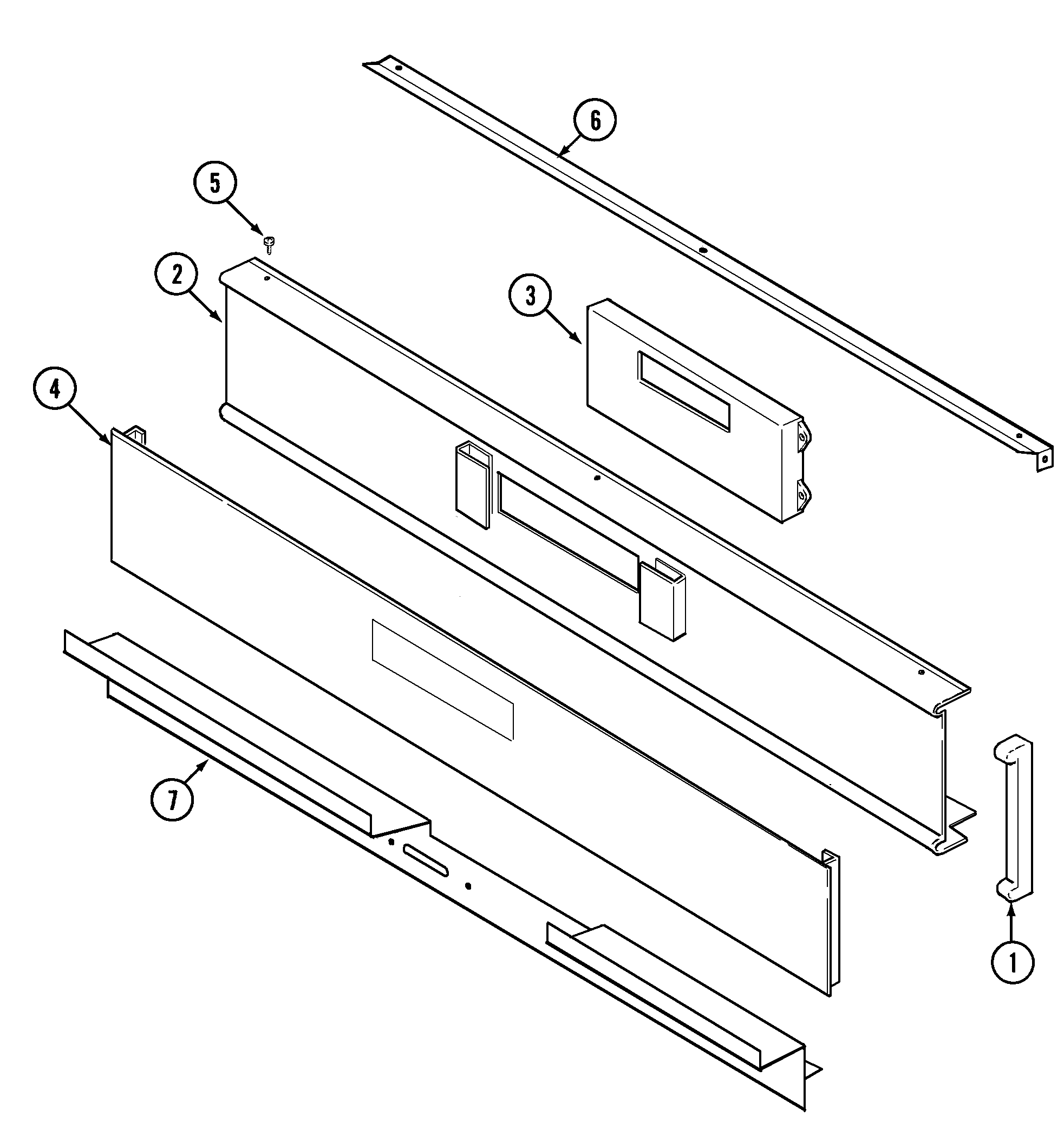

Control panel diagram

Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Oven Control Board And Clock 71001872
#3

Control panel diagram

Range oven control board and clock

Part #71001872

Replaced by #WP71001872

?
Manufacturer substitution
This part replaces 71001872. Substitute parts can look different from the original.
$287.50 |
$12.00 OFF Phone Price : $299.50
In Stock
Broiler Element 71001637
#6

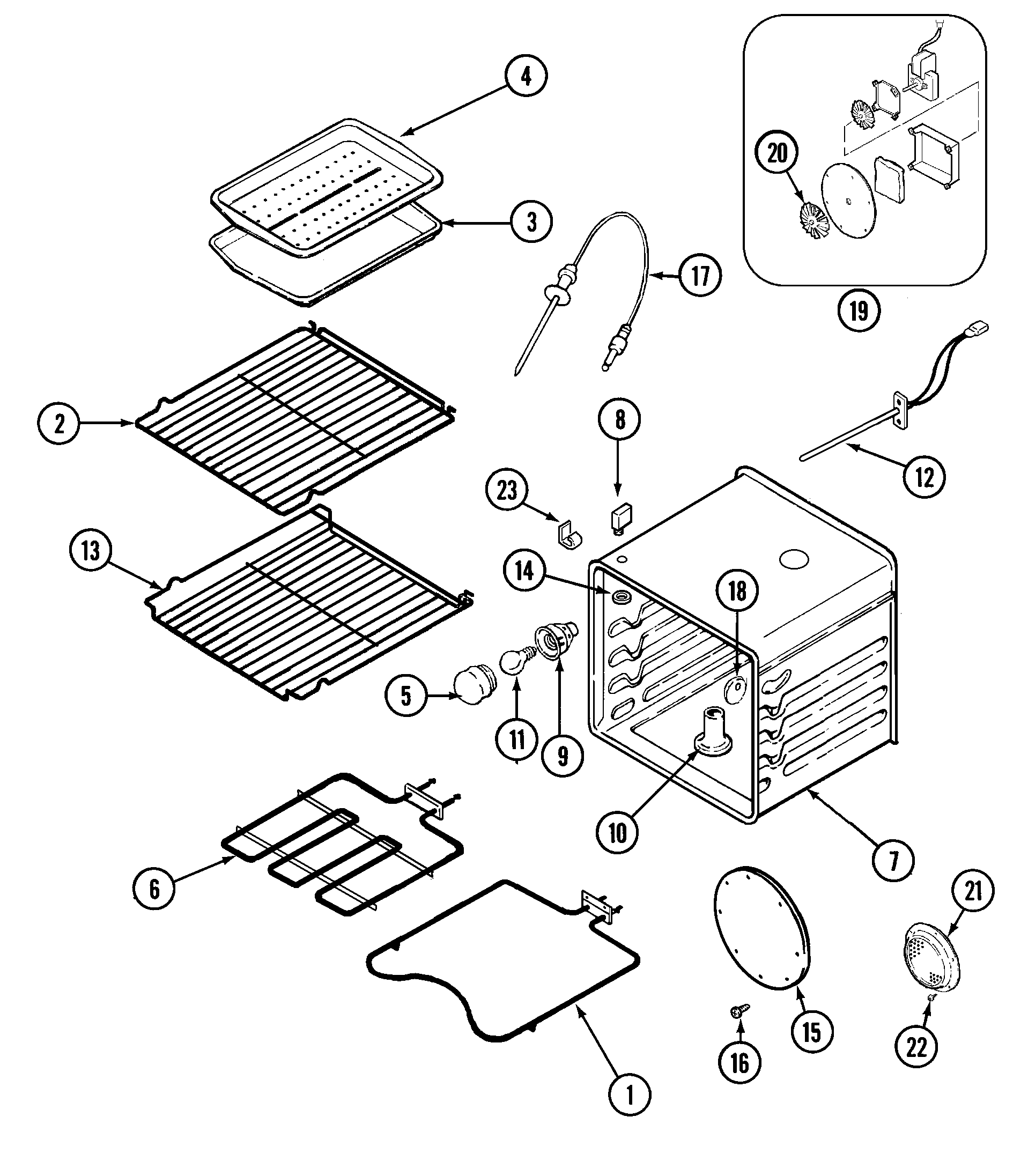

Oven diagram

Broiler element

Part #71001637

Replaced by #WPW10310260

?
Manufacturer substitution
This part replaces 71001637. Substitute parts can look different from the original.
$95.40 |
11% OFF Phone Price : $107.40
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Wall Oven Door Seal 71001841
#6

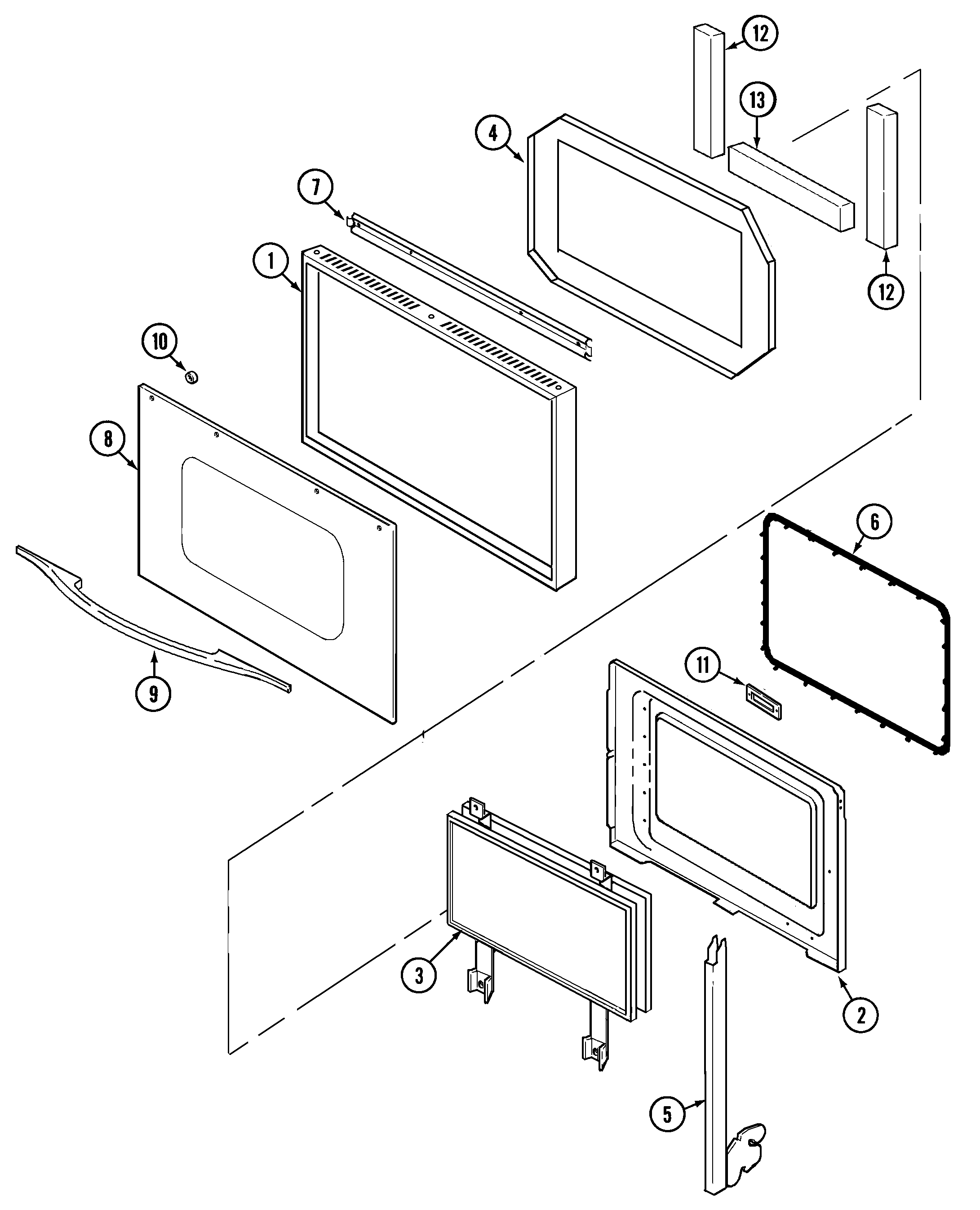

Door diagram

Wall oven door seal

Part #71001841

Replaced by #WP71001841

?
Manufacturer substitution
This part replaces 71001841. Substitute parts can look different from the original.
$76.09 |
7% OFF Phone Price : $82.09
In Stock
Receptacle 71001828
#7

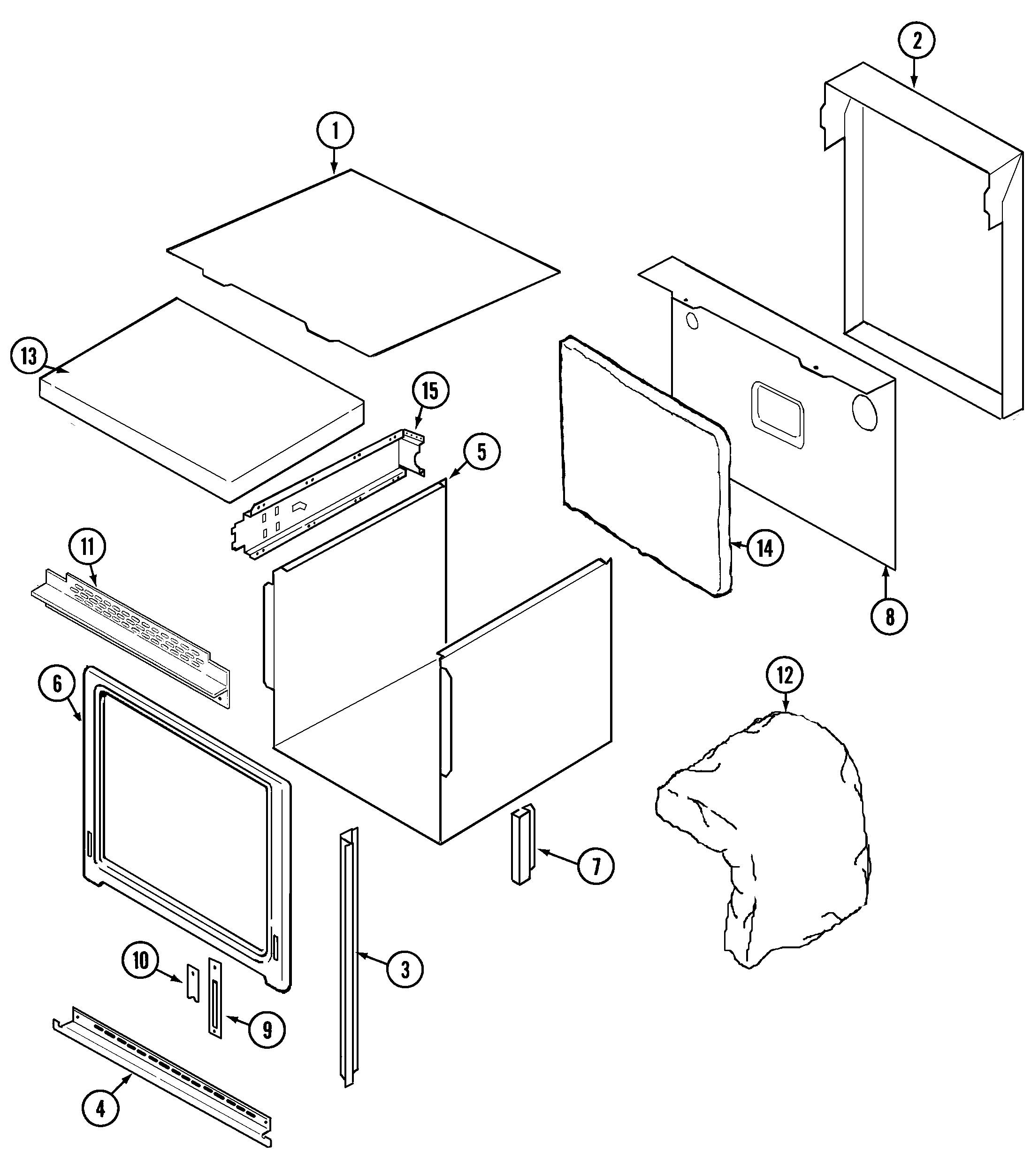

Body diagram

Receptacle

Part #71001828

Replaced by #WP74008015

?
Manufacturer substitution
This part replaces 71001828. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Lens Bulb 71001867
#5

Oven diagram

Lens bulb

Part #71001867

Replaced by #WP9781049

?
Manufacturer substitution
This part replaces 71001867. Substitute parts can look different from the original.
$45.89 |
12% OFF Phone Price : $51.89
In Stock
Rivet 701662
#2B

Door diagram

Rivet

Part #701662

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 701662. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Insert 703165
#4

Oven diagram

Broiler insert

Part #703165

Replaced by #4396923

?
Manufacturer substitution
This part replaces 703165. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more
