GE
Bottom-Mount Refrigerator

Model # GDE21EGKPRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GDE21EGKPRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

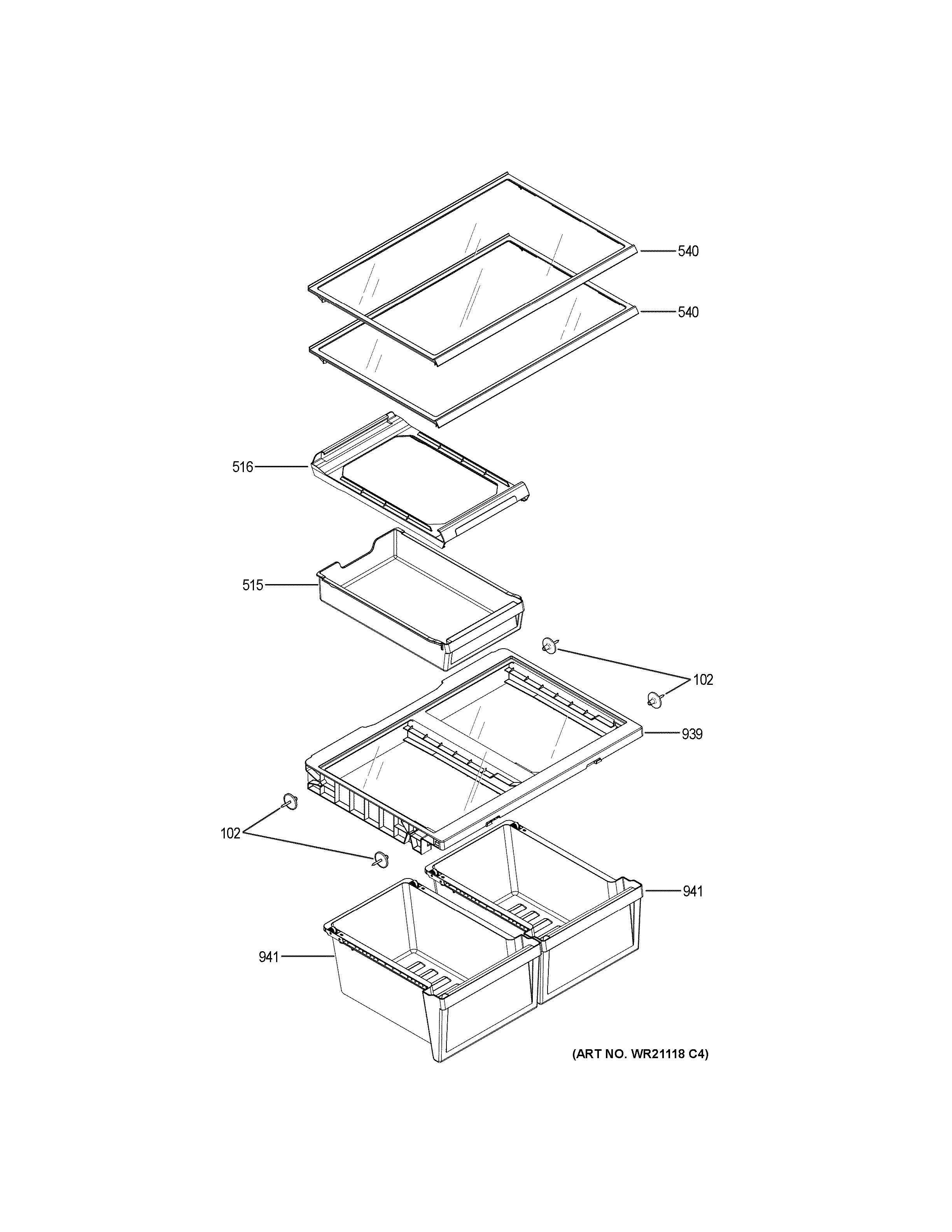

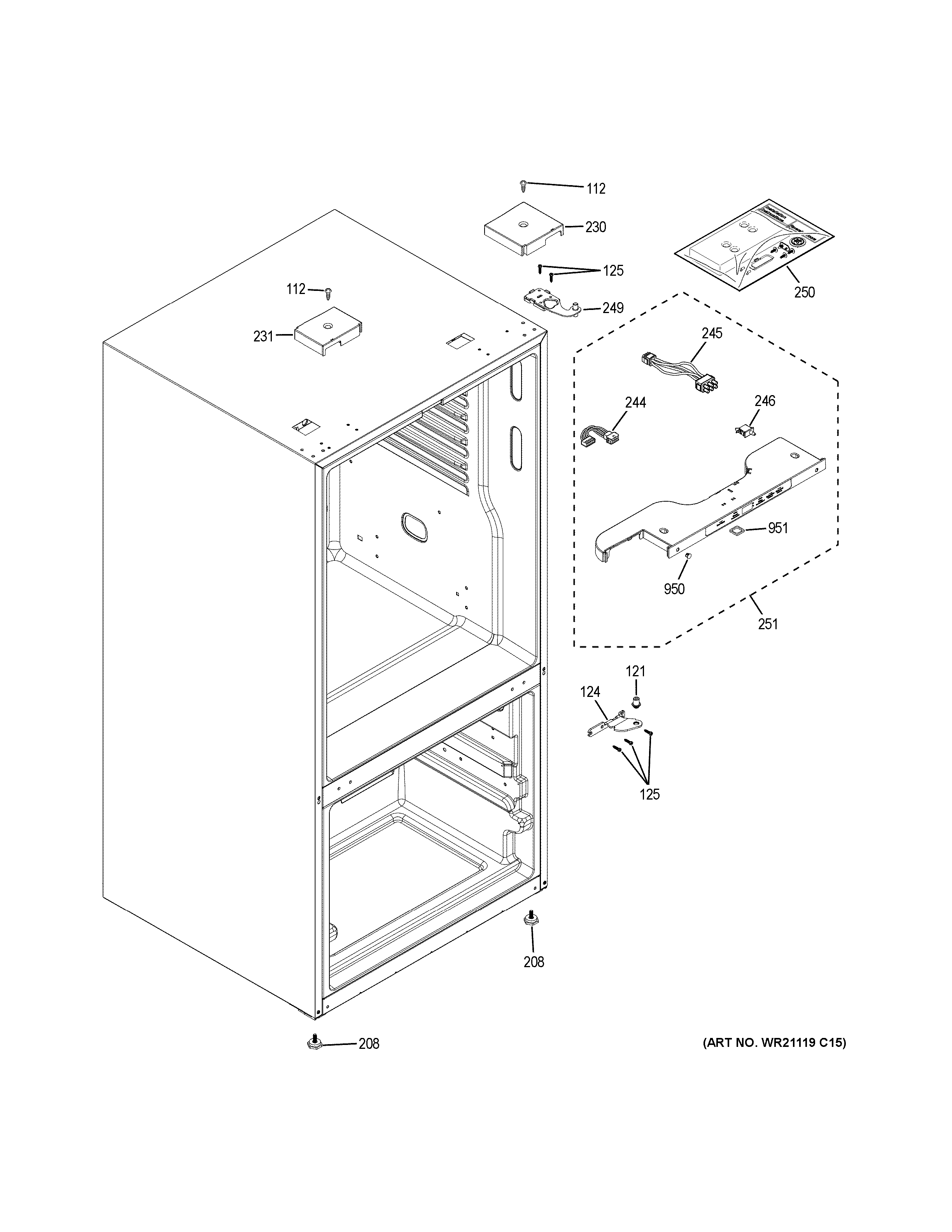

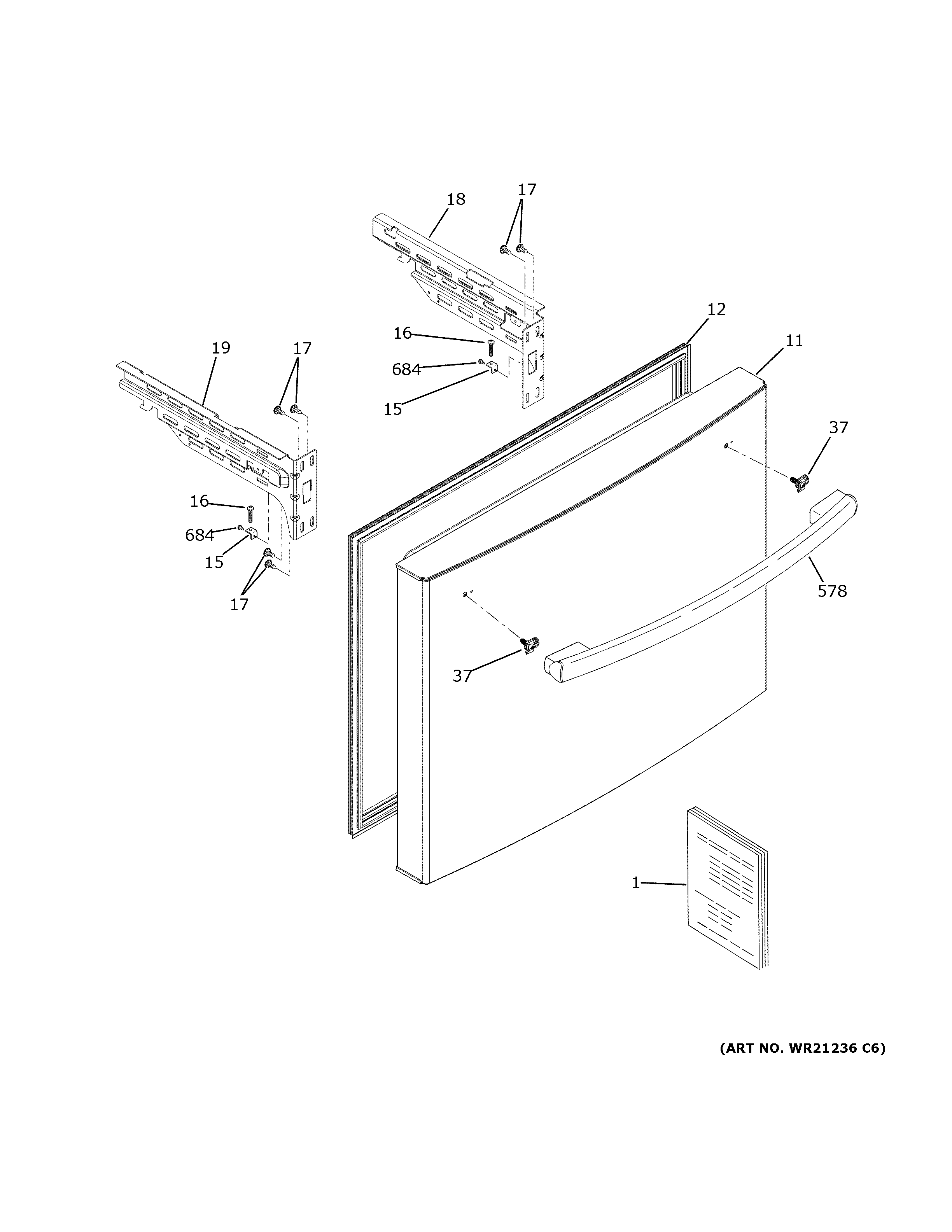

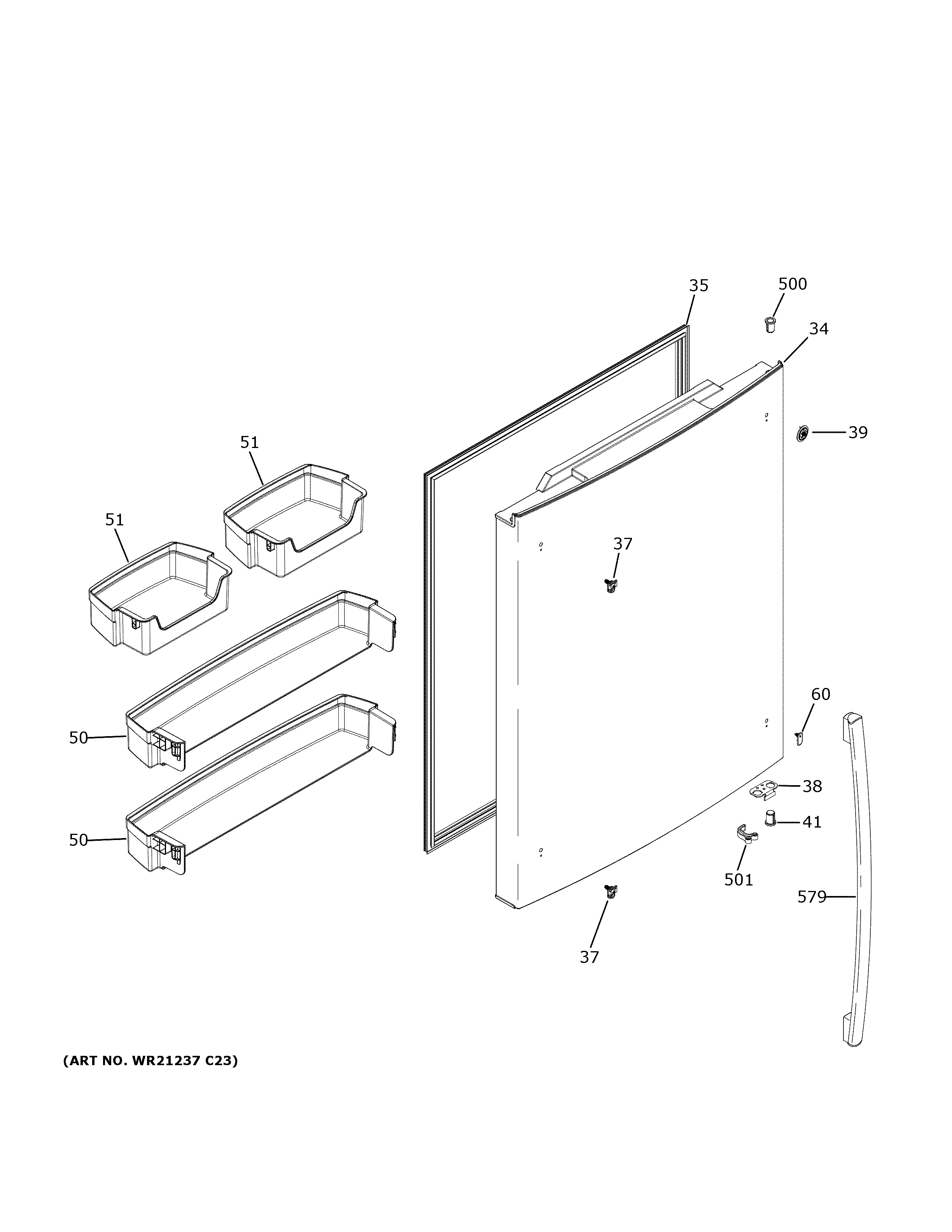

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

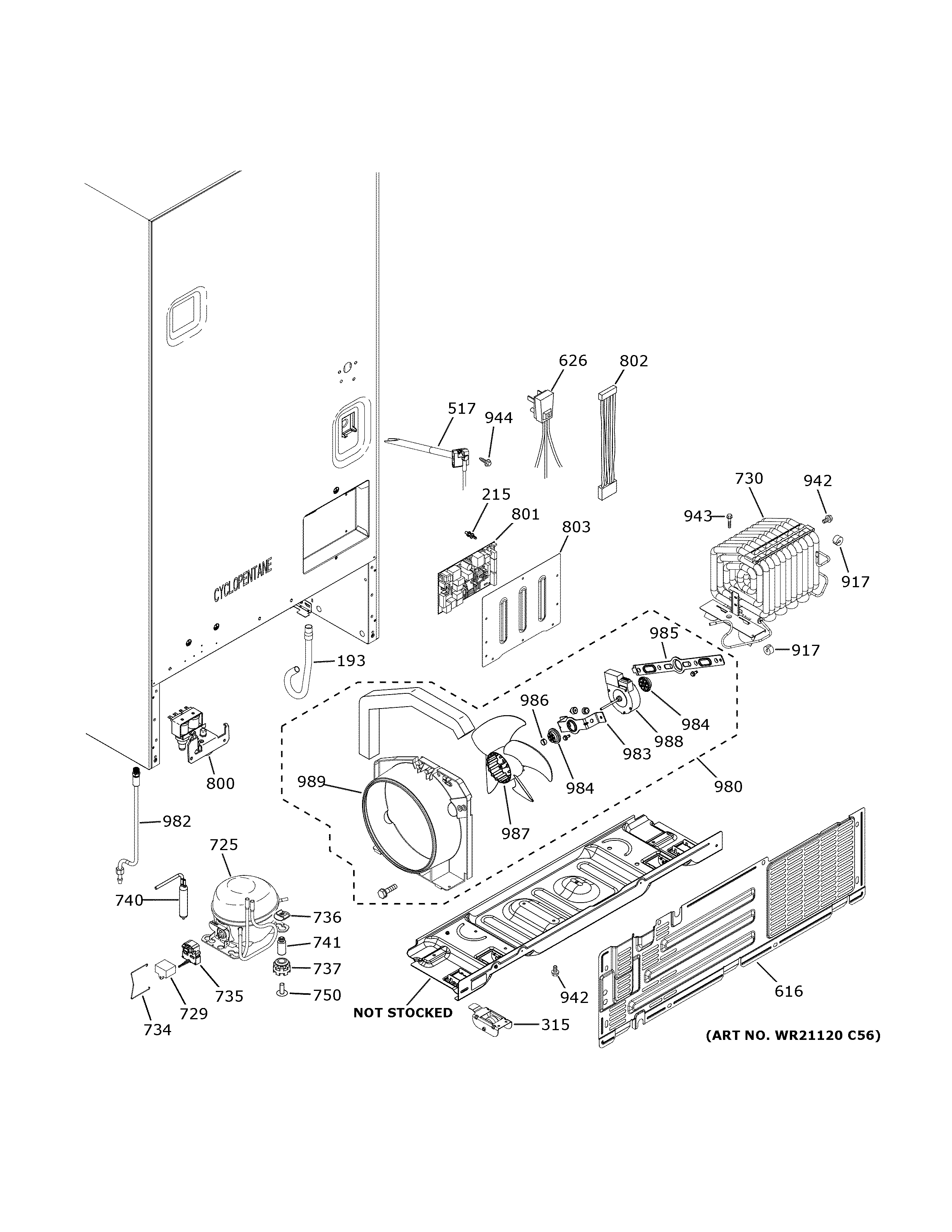

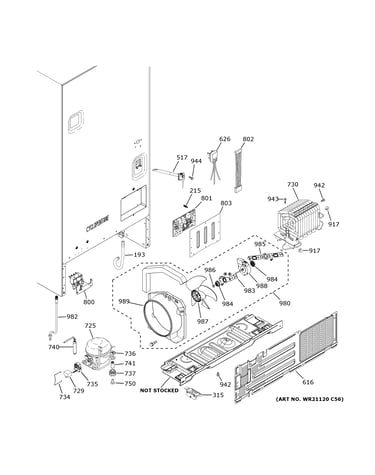

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Hotpoint Ge Refrigerator Water Filter (replaces Xwf) XWFE
#281

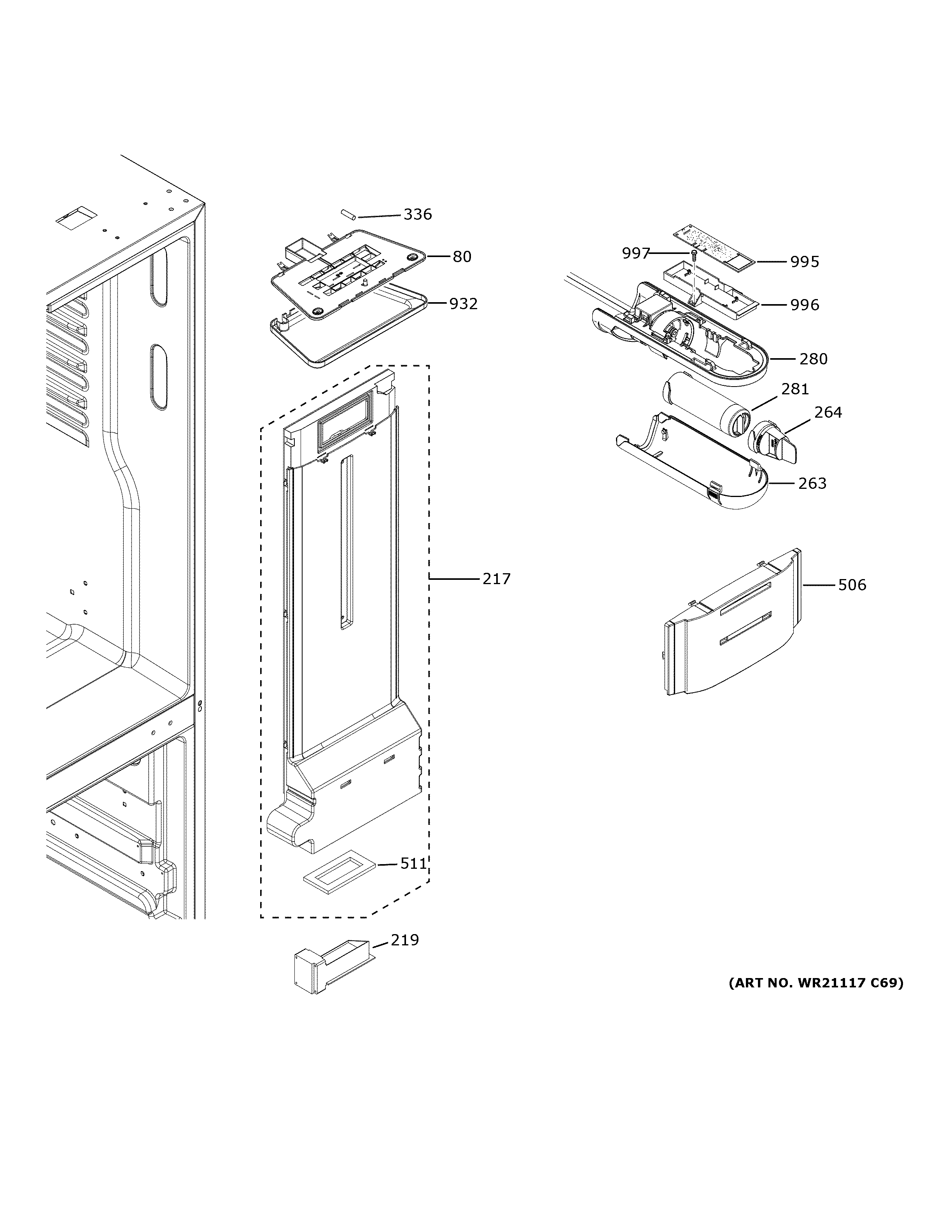

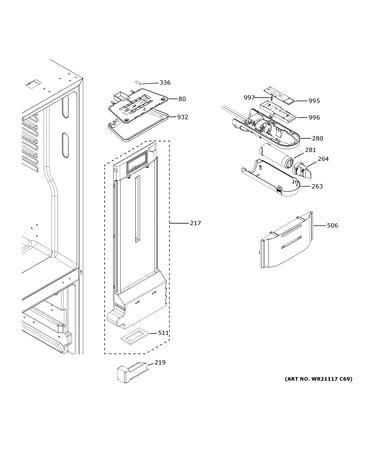

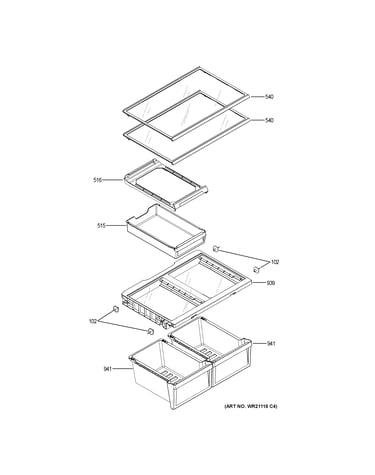

Fresh food section diagram

Hotpoint ge refrigerator water filter (replaces xwf)

Part #XWFE

BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10069
#241

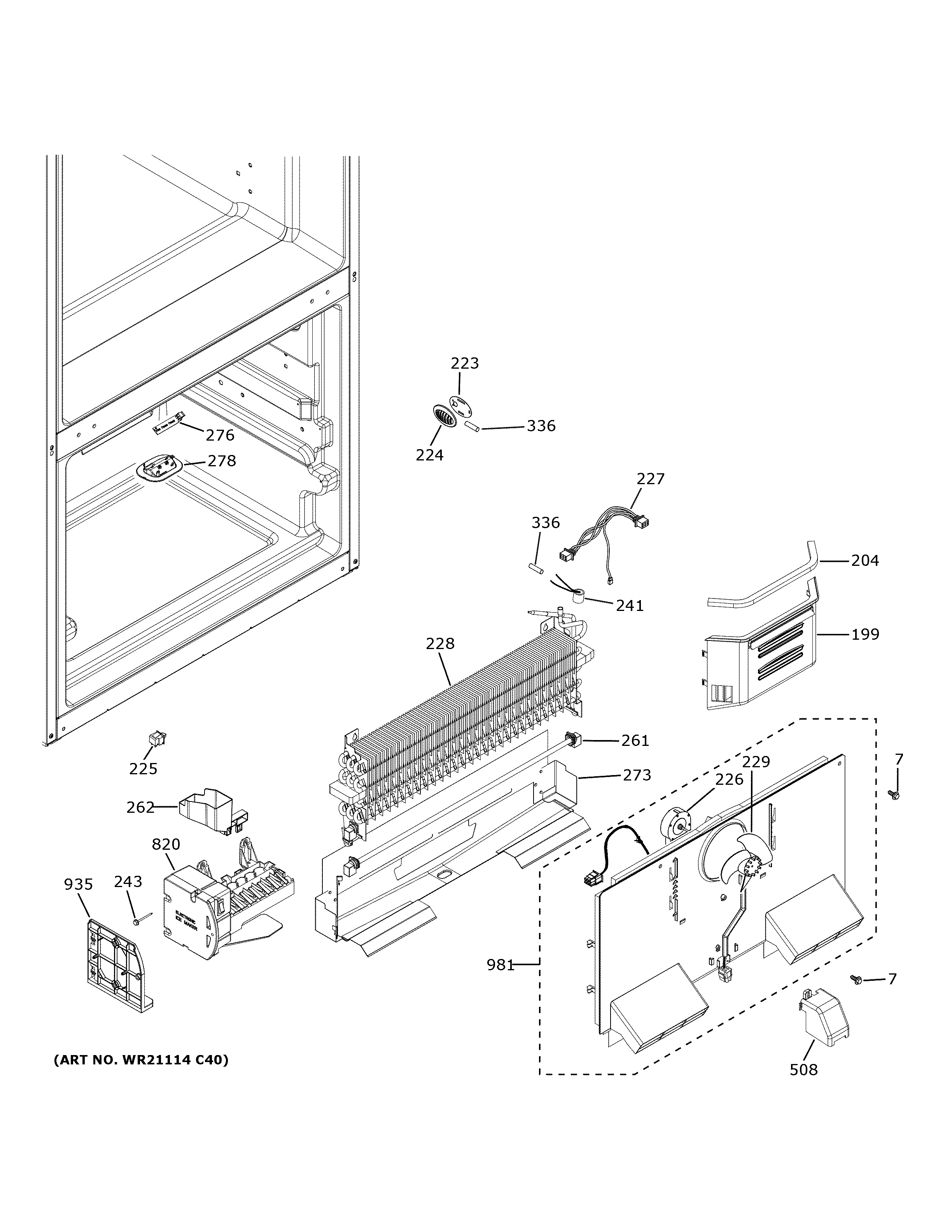

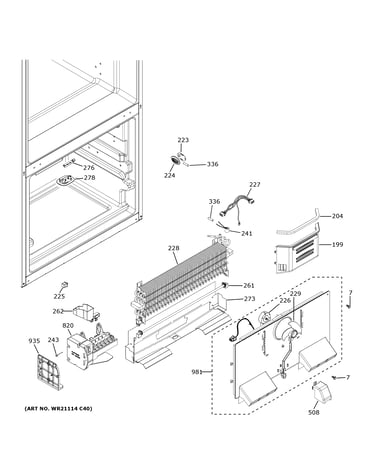

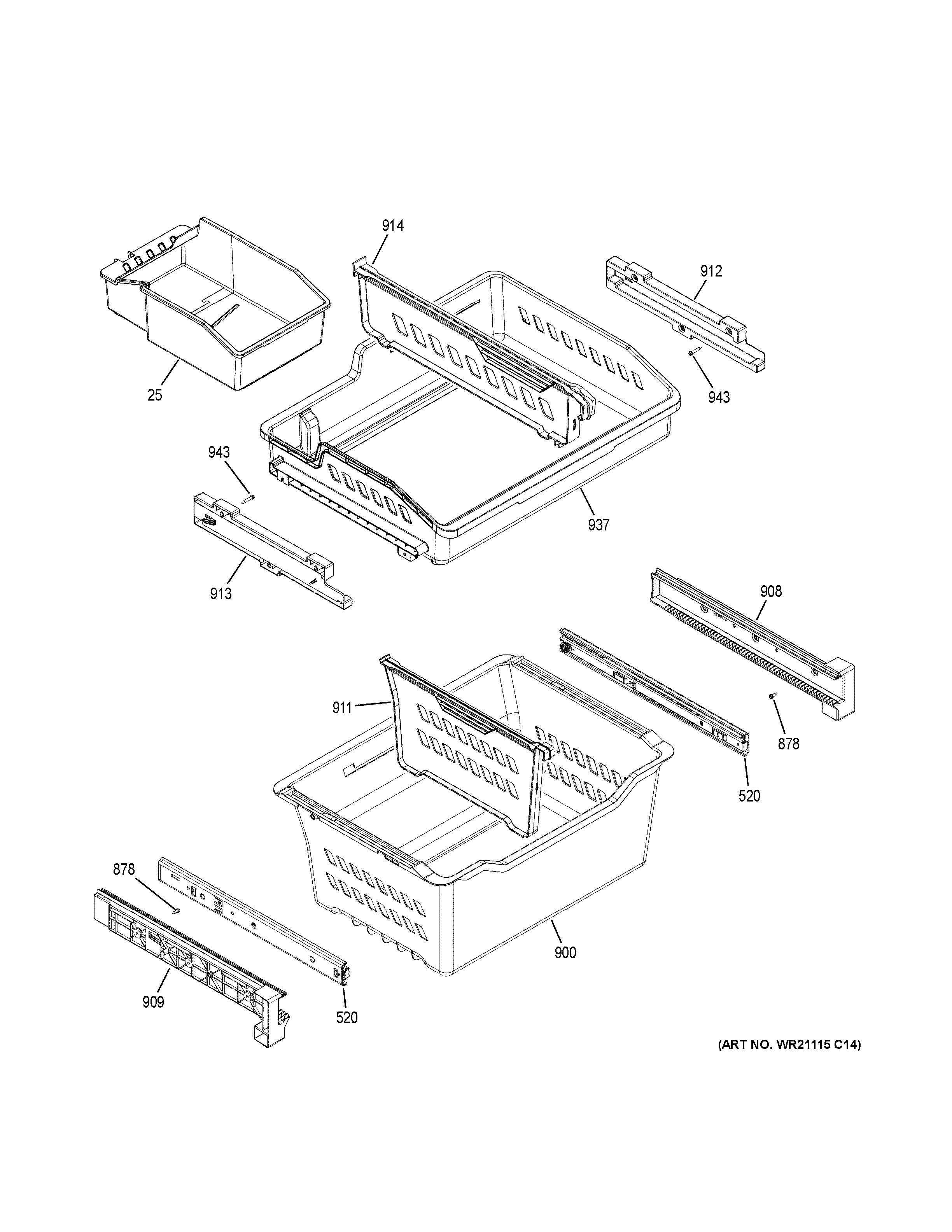

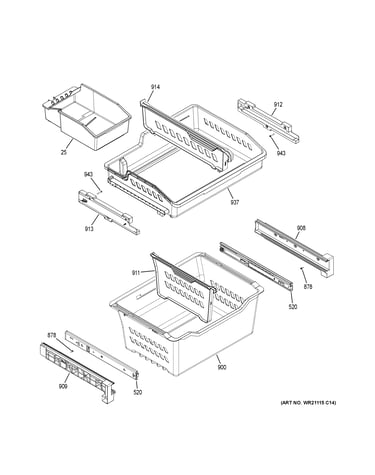

Freezer section diagram
