Craftsman
Gas Line Trimmer

Model # 944512550 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 944512550 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

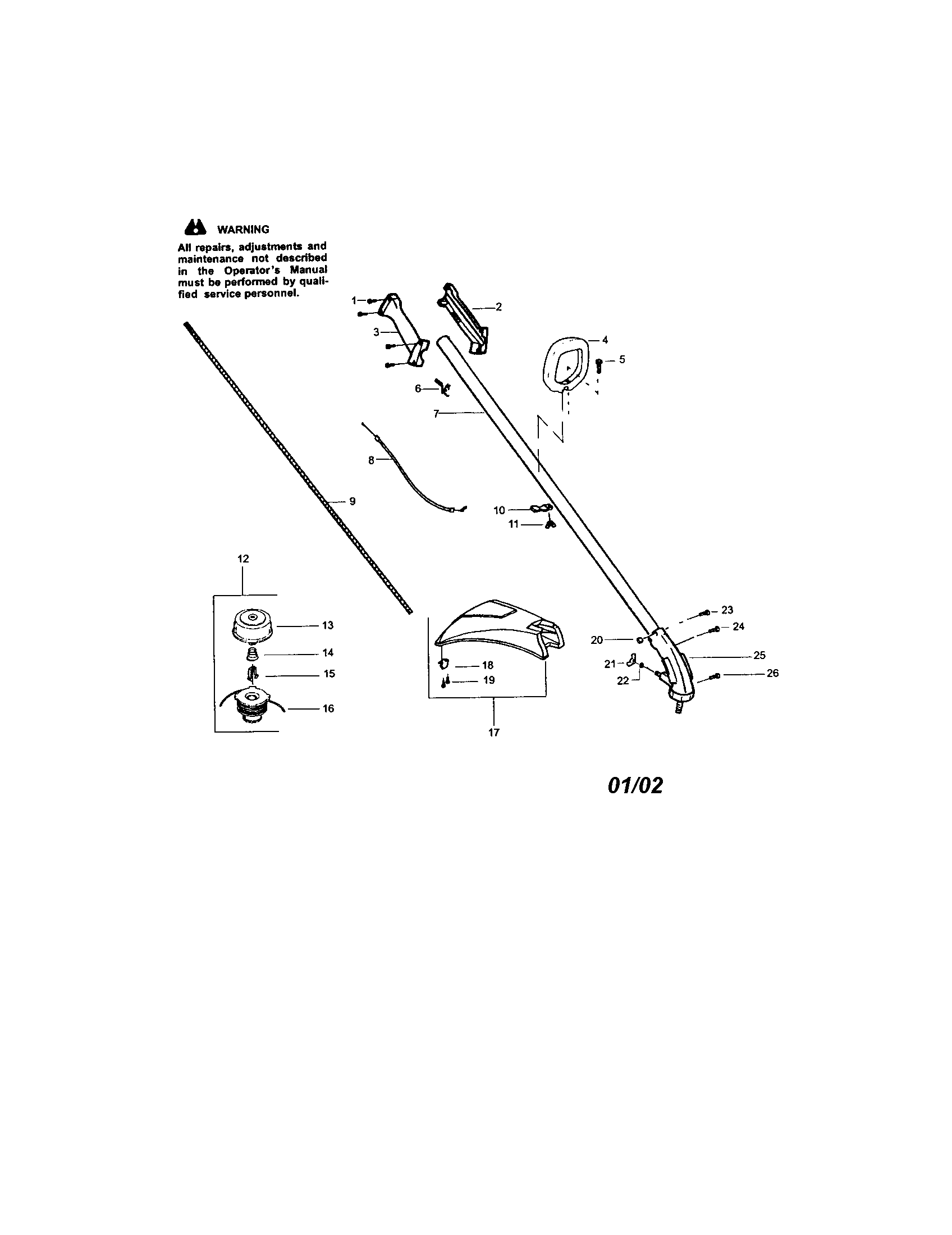

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#53

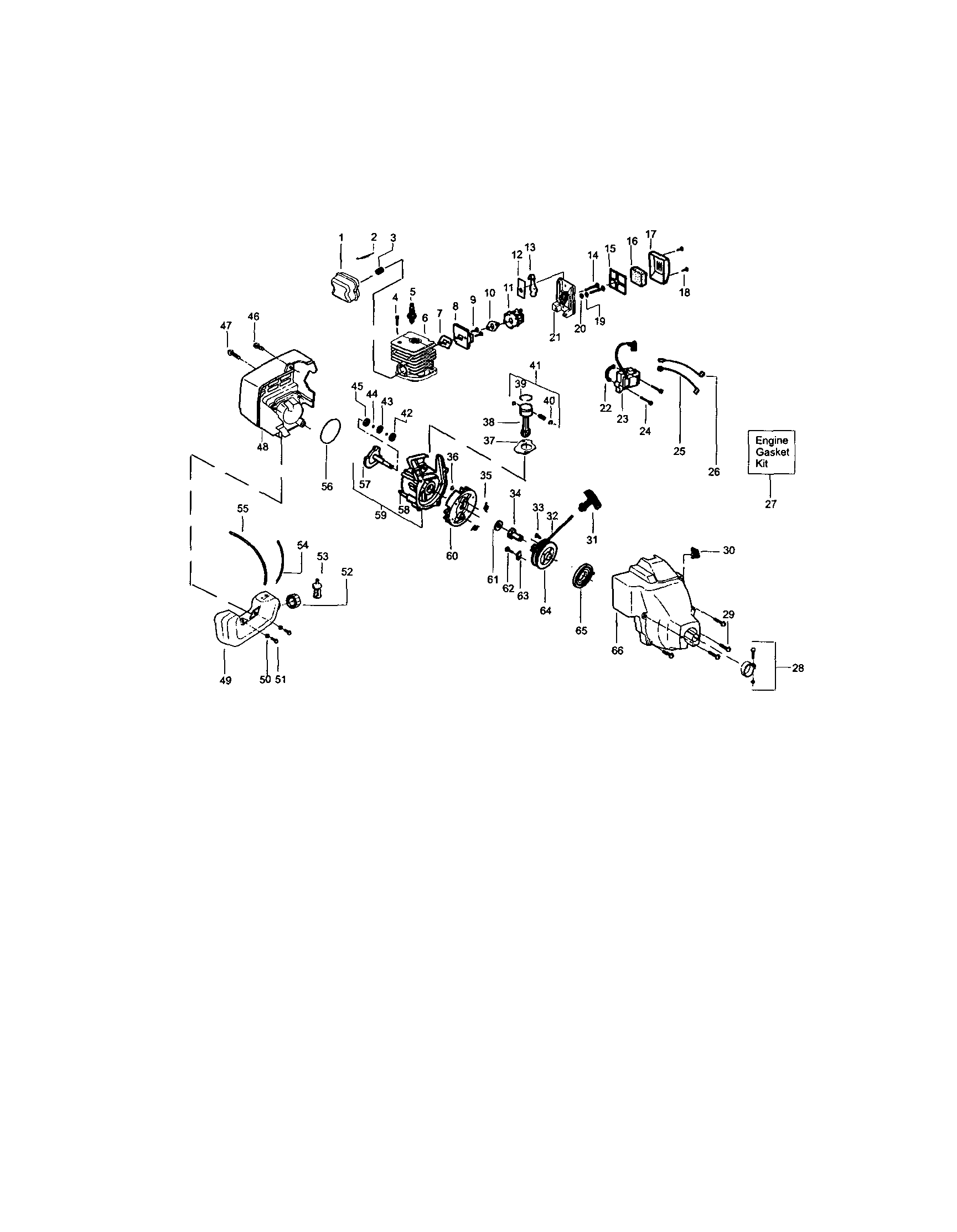

Crankcase diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#54

Crankcase diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#55

Crankcase diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Line Trimmer Fuel Tank Cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370) 530014347
#52

Crankcase diagram

Line trimmer fuel tank cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370)

Part #530014347

BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Husqvarna Lawn & Garden Equipment Engine Carburetor Diaphragm And Gasket Kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937) 530069844
#3

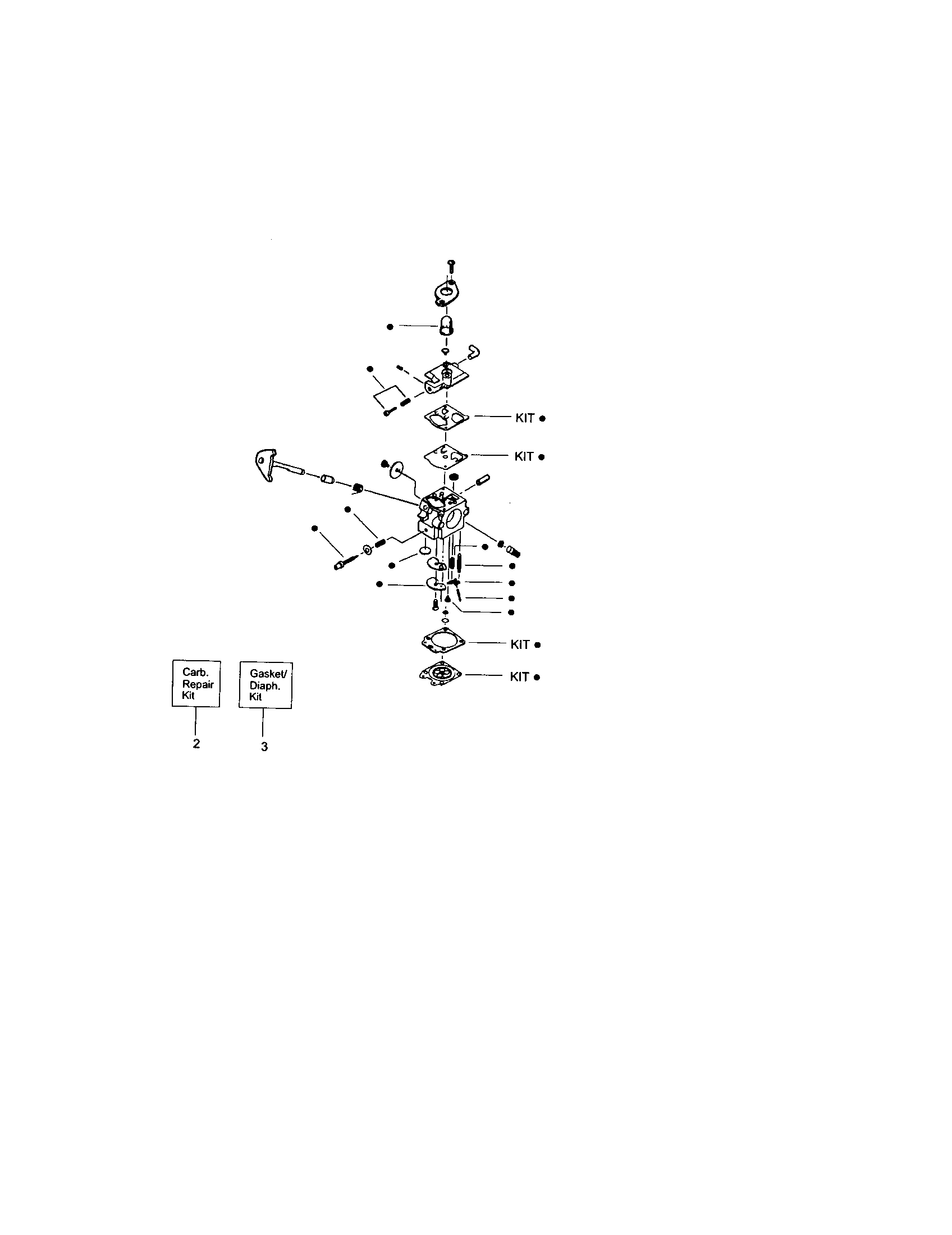

Carburetor #530069754-wa226 diagram

Husqvarna lawn & garden equipment engine carburetor diaphragm and gasket kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937)

Part #530069844

BEST SELLER
This item is not returnable
$26.00 |
19% OFF Phone Price : $32.00
In Stock
Piston Ring 530055120
#39

Crankcase diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Flywheel Assembly 530069886
#60

Crankcase diagram

Flywheel assembly

Part #530069886

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530069886. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Lawn & Garden Equipment Screw 530016080
#33

Crankcase diagram

Lawn & garden equipment screw

Part #530016080

This item is not returnable
$5.54
In Stock
Seal Crankcase 530019179
#43

Crankcase diagram

Seal crankcase

Part #530019179

This item is not returnable
$8.54
In Stock
Lawn & Garden Equipment Screw 530015886
#51

Crankcase diagram

Lawn & garden equipment screw

Part #530015886

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
