Electric Cooktop

Model # ZHU30RSM1SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE ZHU30RSM1SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Cooktop Electronic Filter Board WB27X10996
#2

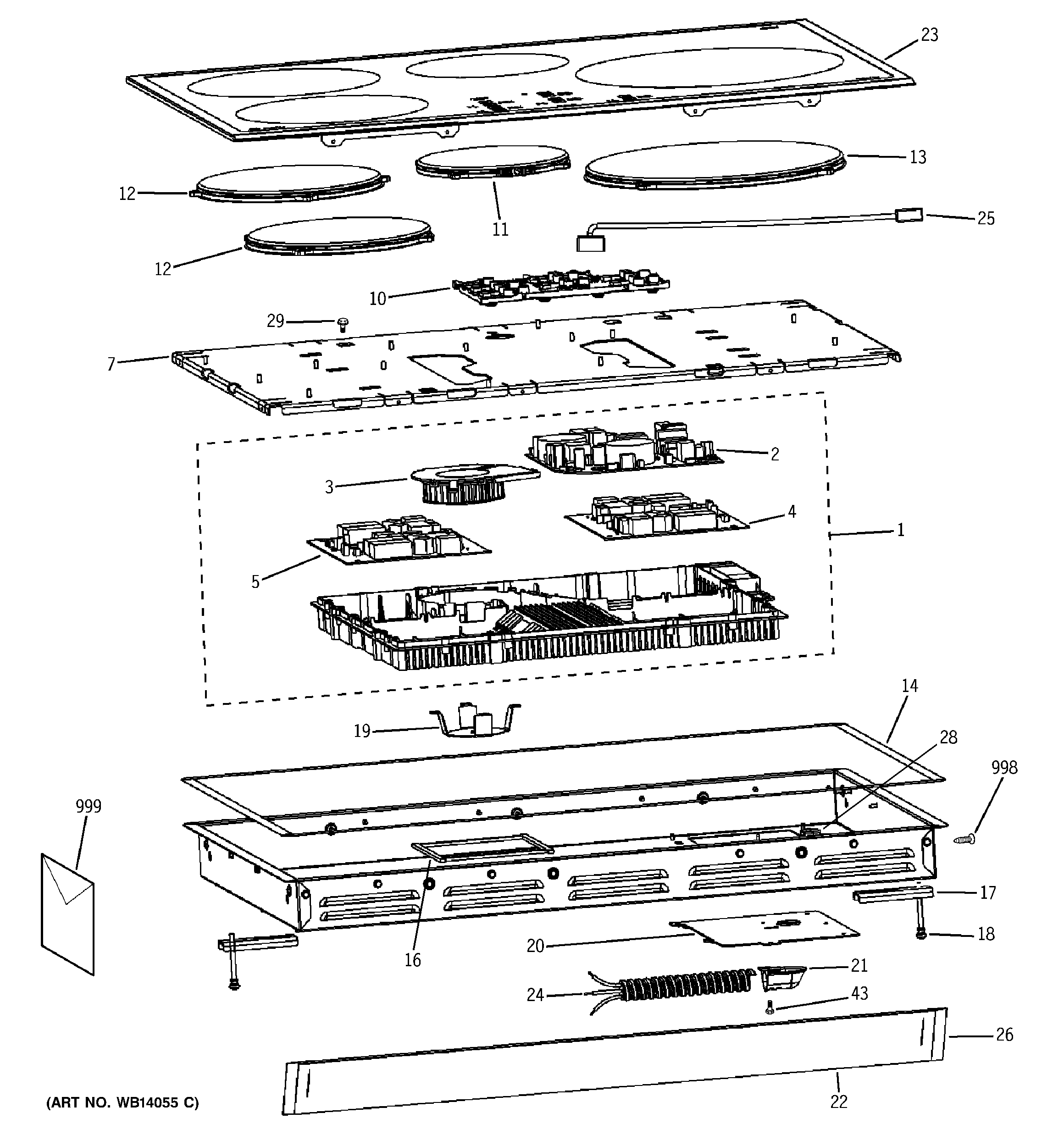

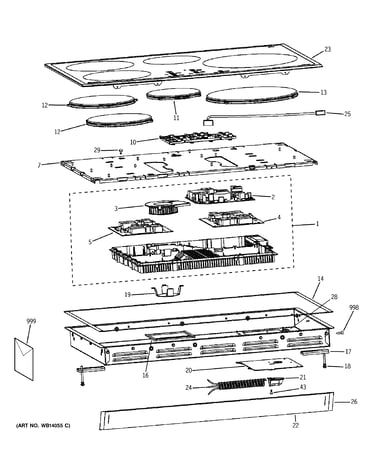

Cooktop diagram

Cooktop electronic filter board

Part #WB27X10996

This item is not returnable
$772.89 |
$12.00 OFF Phone Price : $784.89
In Stock
Cooktop Induction Element, 10-in WB30X10030
#13

Cooktop diagram

Cooktop induction element, 10-in

Part #WB30X10030

$379.36 |
$12.00 OFF Phone Price : $391.36
In Stock
Cooktop Touch Control Board WB27X10999
#10

Cooktop diagram

Cooktop touch control board

Part #WB27X10999

$519.37 |
17% OFF Was : $628.15
In Stock
Screw WB01X10356
#28

Cooktop diagram

Screw

Part #WB01X10356

This item is not returnable
$5.00
In Stock
Conduit Clamp WB02X11336
#21

Cooktop diagram

Conduit clamp

Part #WB02X11336

This item is not returnable
$4.91
In Stock
Heat Baffle WB02X11332
#22

Cooktop diagram

Heat baffle

Part #WB02X11332

$30.11
In Stock
Cooktop Power Supply Wiring With Conduit WB18X10394
#24

Cooktop diagram

Cooktop power supply wiring with conduit

Part #WB18X10394

$50.55
In Stock
Cooktop Installation Bracket WB02X11331
#17

Cooktop diagram

Cooktop installation bracket

Part #WB02X11331

This item is not returnable
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Element WB30X10028
#11

Cooktop diagram

Element

Part #WB30X10028

$308.14
In Stock
Range Induction Surface Element, 8-in WB30X10029
#12

Cooktop diagram

Range induction surface element, 8-in

Part #WB30X10029

$382.05 |
$12.00 OFF Phone Price : $394.05
In Stock
