Dacor
Built-In Microwave

Model # DMT2420R Official Dacor microwave

Here are the diagrams and repair parts for Official Dacor DMT2420R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Microwave Electronic Control Board 101871
#32

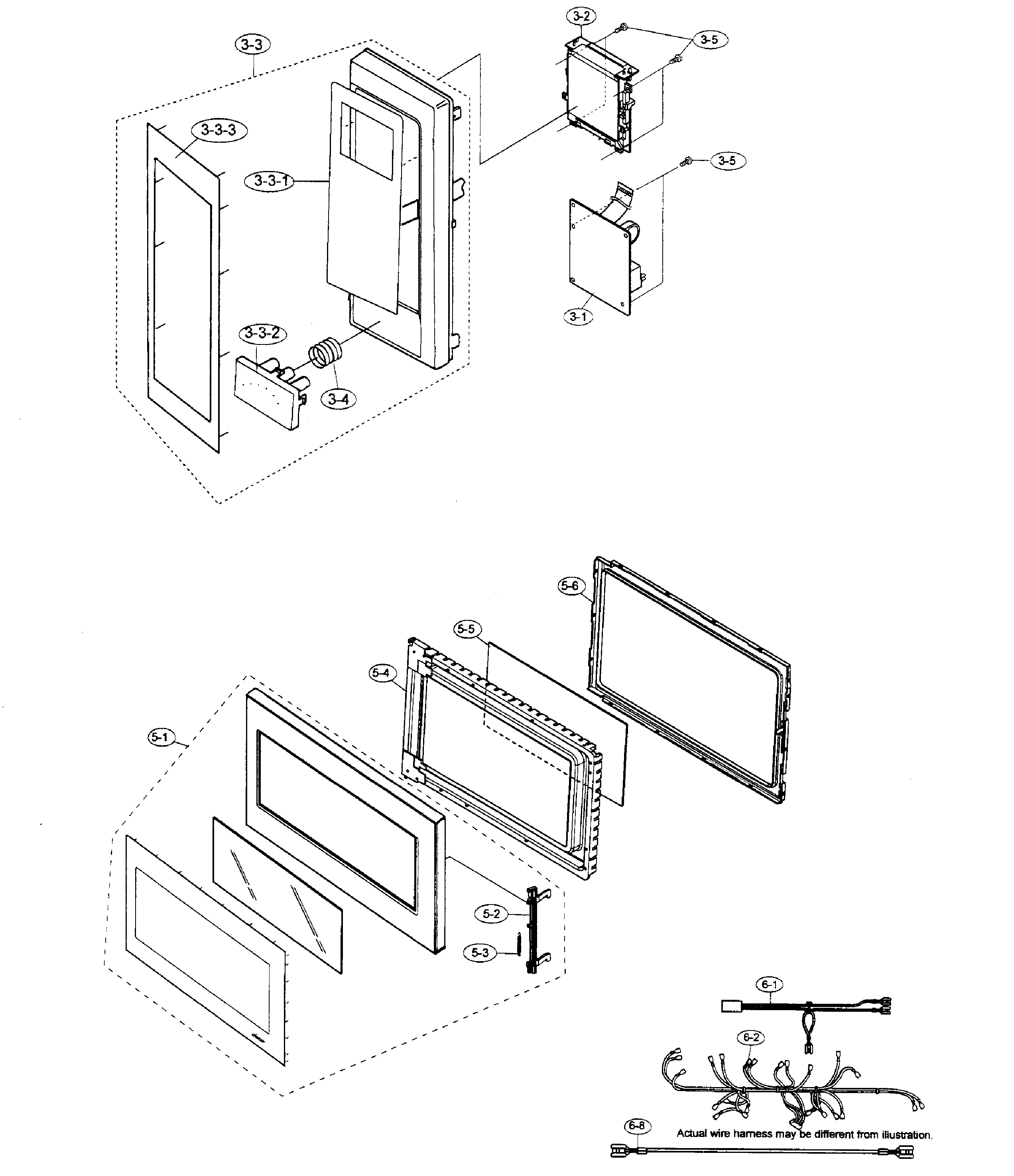

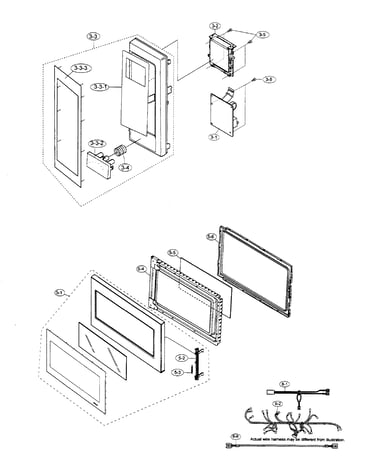

Door-panel diagram

Microwave electronic control board

Part #101871

$335.90
In Stock
Microwave Door Release Lever 86824
#44

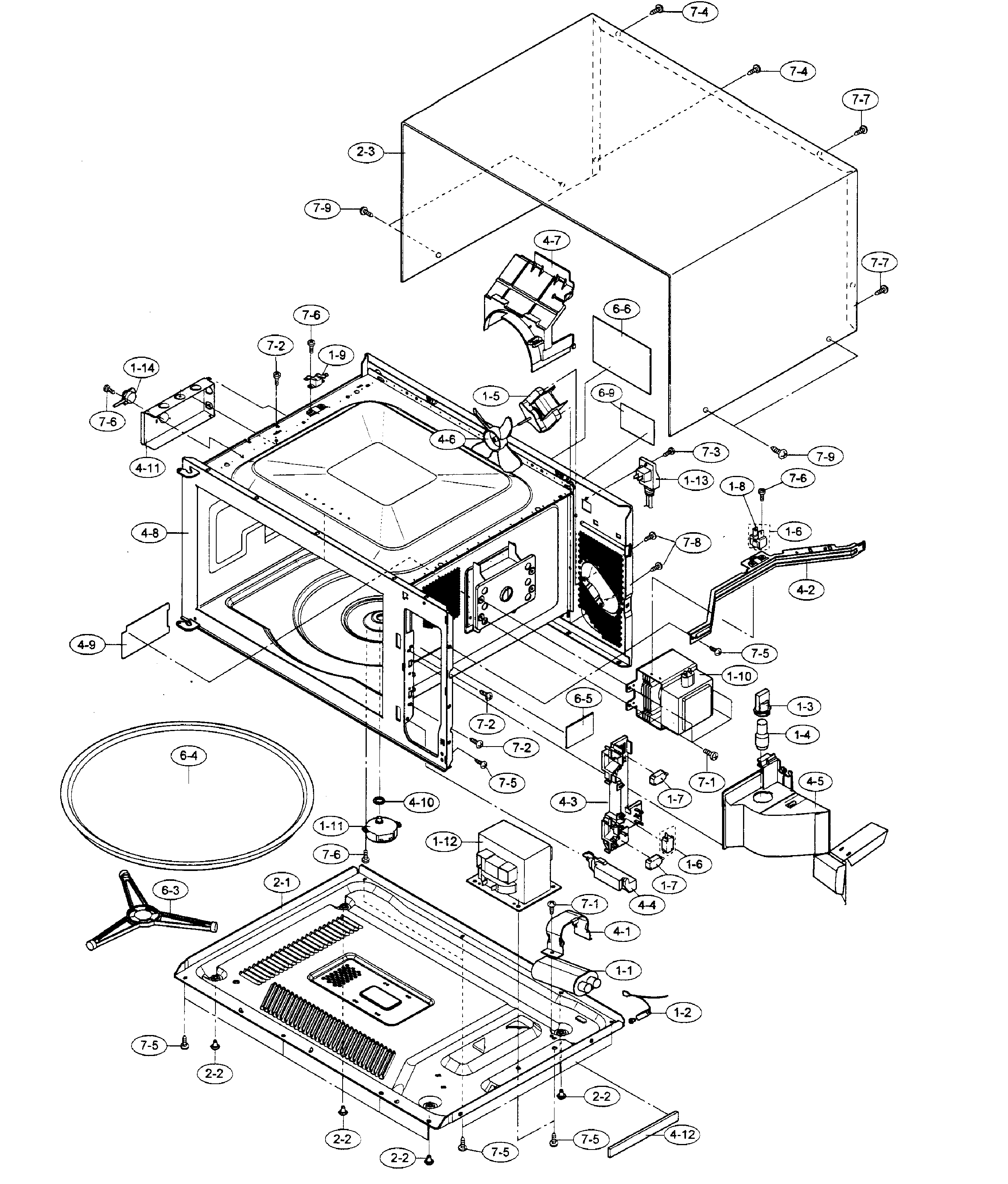

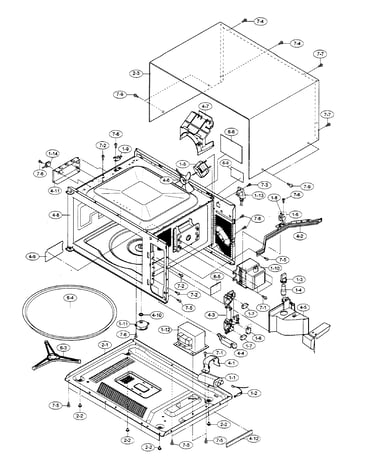

Cabinet parts diagram

Microwave door release lever

Part #86824

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring 86786
#53

Door-panel diagram

Microwave door latch spring

Part #86786

This item is not returnable
$2.16
Back Order
Pwr/lsi As 66852
#31

Door-panel diagram

Pwr/lsi as

Part #66852

Replaced by #101871

?
Manufacturer substitution
This part replaces 66852. Substitute parts can look different from the original.
$335.90
In Stock
Latch Hook 66871
#43

Cabinet parts diagram

Latch hook

Part #66871

The manufacturer no longer makes this part, and there's no substitute part

Spring 86779
#34

Door-panel diagram

Spring

Part #86779

Replaced by #76170

?
Manufacturer substitution
This part replaces 86779. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Wave Cover 66345
#49

Cabinet parts diagram

Wave cover

Part #66345

Replaced by #66345

?
Manufacturer substitution
This part replaces 66345. Substitute parts can look different from the original.
$18.31
In Stock
H/v Wire 86799
#68

Door-panel diagram

H/v wire

Part #86799

This item is not returnable
$2.49
In Stock
Choke Cover 86784
#56

Door-panel diagram

Choke cover

Part #86784

$9.99
In Stock
High-voltage Capacitor Band 86817
#41

Cabinet parts diagram

High-voltage capacitor band

Part #86817

This item is not returnable
$2.16
In Stock
