MTD
Gas Walk-Behind Mower

Model # 11A-410A270 THRU 11A-428A270 Official MTD lawn mower

Here are the diagrams and repair parts for Official MTD 11A-410A270-THRU-11A-428A270 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

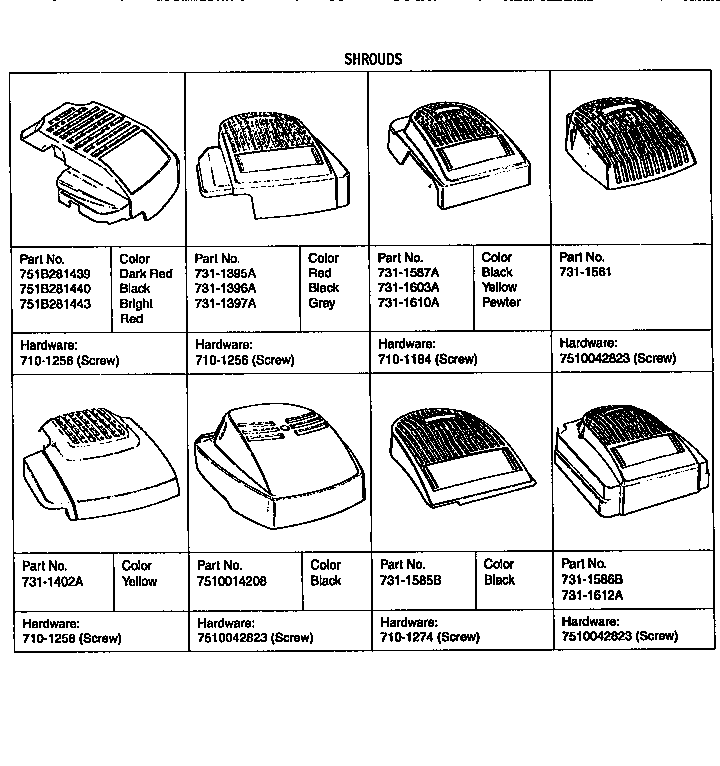

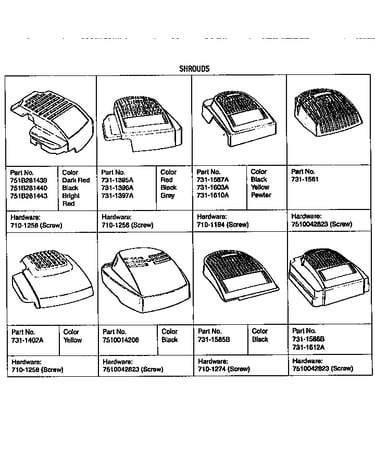

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Blade-21" Mu 742-0741
#36B

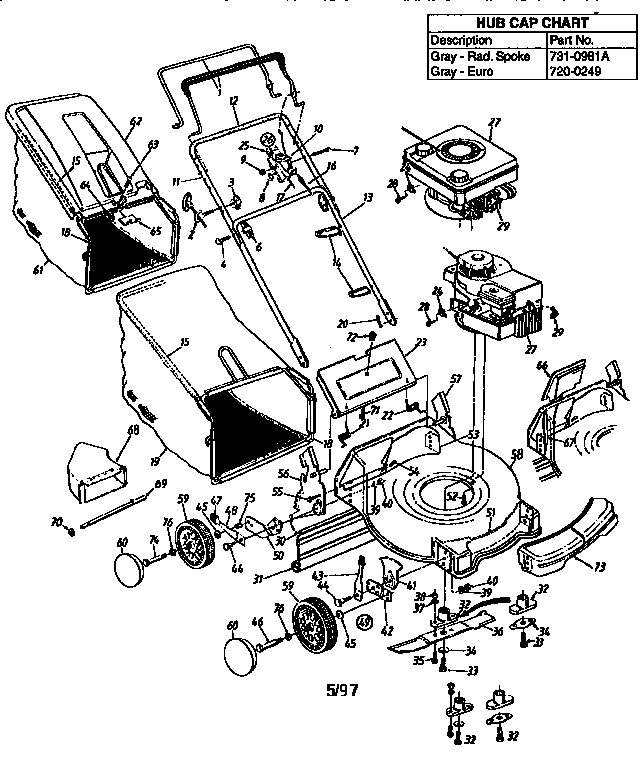

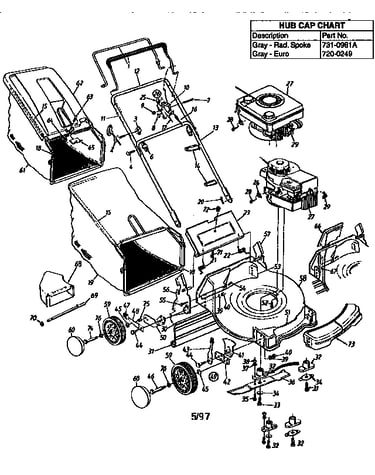

Replacement parts diagram

Blade-21" mu

Part #742-0741

Replaced by #942-0741A

?
Manufacturer substitution
This part replaces 742-0741. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.71 |
18% OFF Phone Price : $33.71
In Stock
Cable Tie 726-0240
#14

Replacement parts diagram

Cable tie

Part #726-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 726-0240. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Aircap Lawn & Garden Equipment Hex Screw 710-0896
#55

Replacement parts diagram

Aircap lawn & garden equipment hex screw

Part #710-0896

This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Yard Machines Lawn Mower Throttle Control Housing 746-0883
#26A

Replacement parts diagram

Yard machines lawn mower throttle control housing

Part #746-0883

This item is not returnable
$21.96 |
21% OFF Phone Price : $27.96
In Stock
Throttle Cable 746-0842
#17

Replacement parts diagram

Throttle cable

Part #746-0842

Replaced by #946-0671A

?
Manufacturer substitution
This part replaces 746-0842. Substitute parts can look different from the original.
$18.37 |
10% OFF Phone Price : $20.37
In Stock
Kill Cable 746-0843
#17B

Replacement parts diagram

Kill cable

Part #746-0843

Replaced by #946-0671A

?
Manufacturer substitution
This part replaces 746-0843. Substitute parts can look different from the original.
$18.37 |
10% OFF Phone Price : $20.37
In Stock
Lawn & Garden Equipment Machine Screw (replaces 753-04430, 910-0605) 710-0605
#7

Replacement parts diagram

Lawn & garden equipment machine screw (replaces 753-04430, 910-0605)

Part #710-0605

This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Unknown Brand Name #689 Lawn & Garden Equipment Nut 712-0241
#38

Replacement parts diagram

Unknown brand name #689 lawn & garden equipment nut

Part #712-0241

This item is not returnable
$7.63
In Stock
Ace Lawn Tractor Hex Screw 710-0654A
#52

Replacement parts diagram

Ace lawn tractor hex screw

Part #710-0654A

This item is not returnable
$6.57 |
13% OFF Phone Price : $7.57
In Stock
Control Cable 746-0553
#16B

Replacement parts diagram

Control cable

Part #746-0553

Replaced by #946-0553

?
Manufacturer substitution
This part replaces 746-0553. Substitute parts can look different from the original.
This item is not returnable
$27.89 |
18% OFF Phone Price : $33.89
In Stock
