Model # 11658712791 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11658712791 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Vacuum Foam Filter 4370713
#8

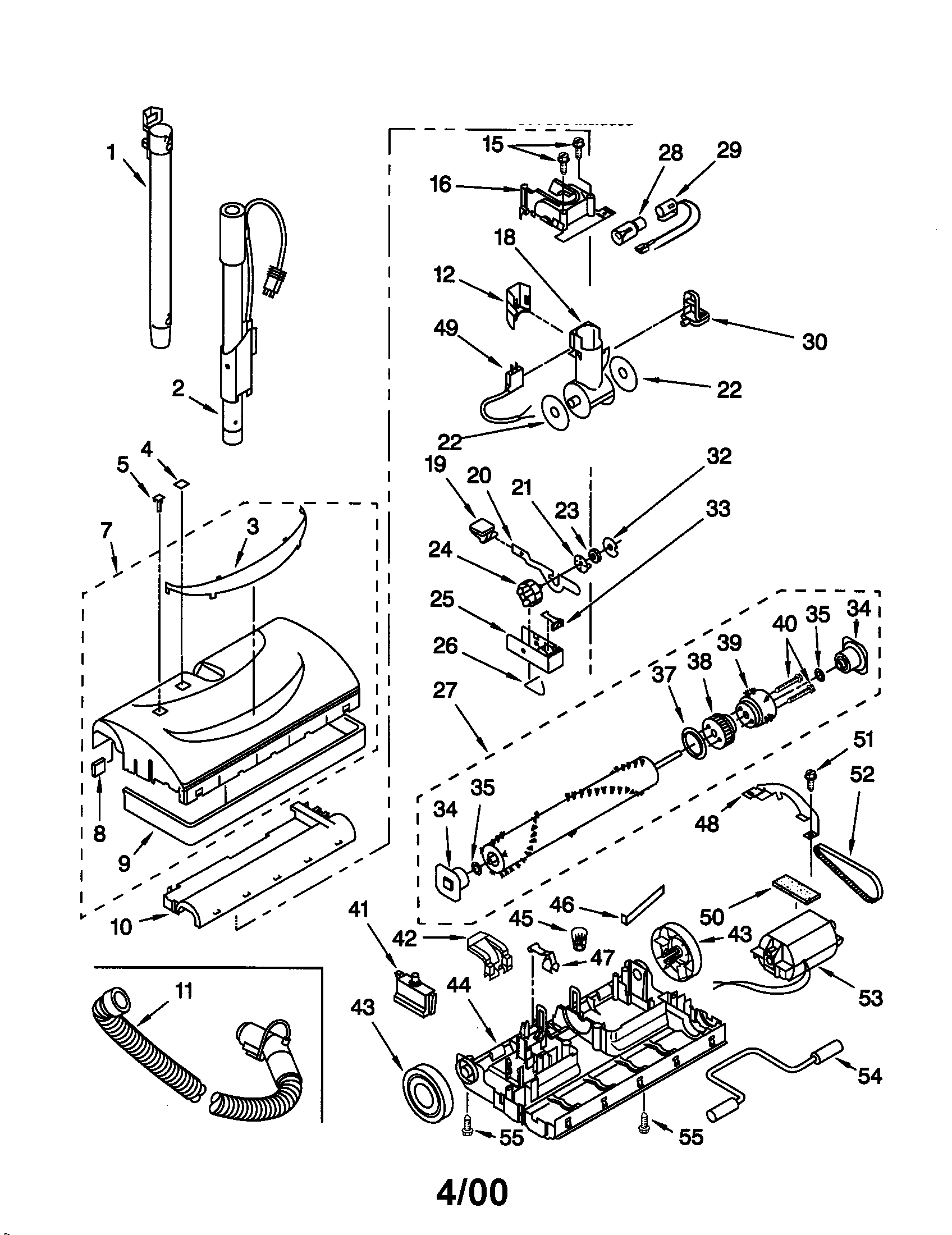

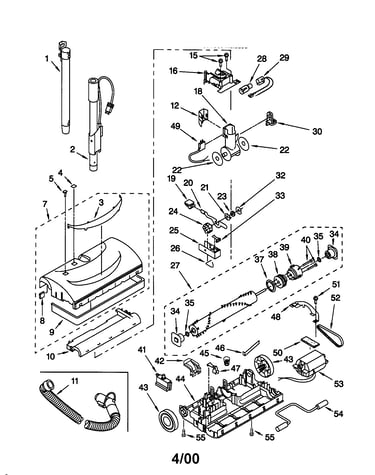

Power-mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79
17% OFF Phone Price : $5.79
In Stock
Protector 742332
#41

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Motor 4369501
#53

Power-mate diagram

Motor

Part #4369501

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#20

Power-mate diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#38

Power-mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#35

Power-mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

Spring 725775
#26

Power-mate diagram

Spring

Part #725775

The manufacturer no longer makes this part, and there's no substitute part
