Model # AWNE92SP113TW01-START-S#1501 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AWNE92SP113TW01-START-S1501 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

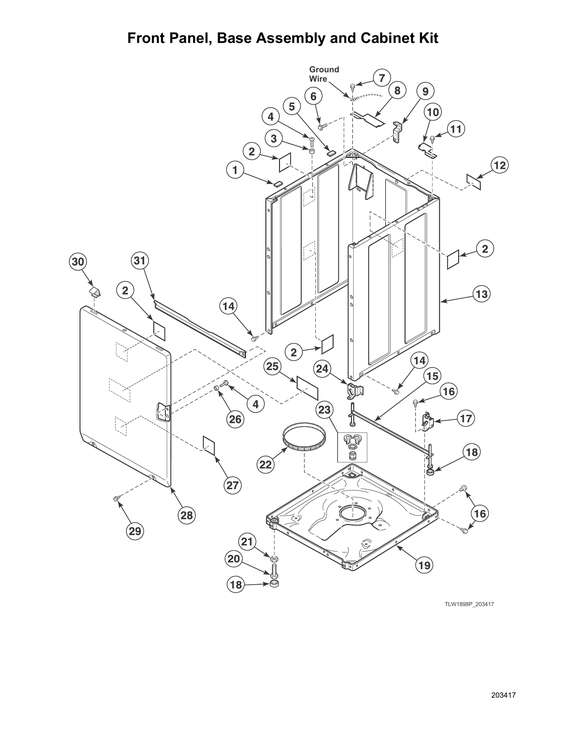

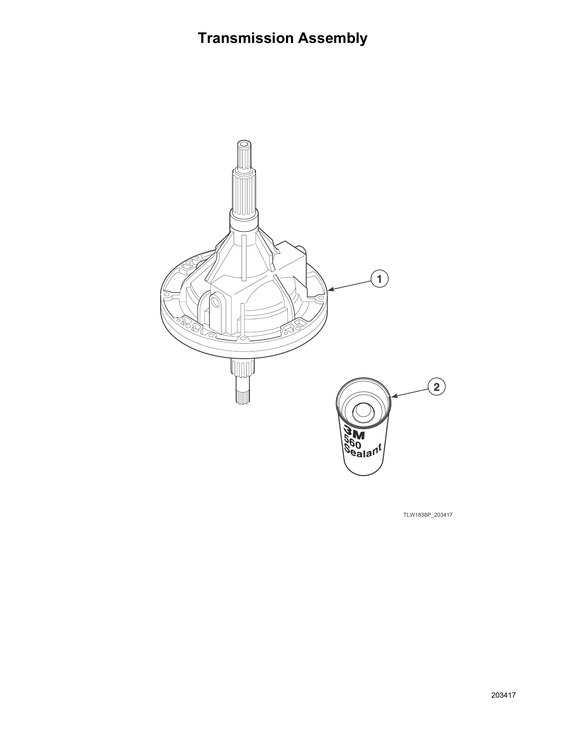

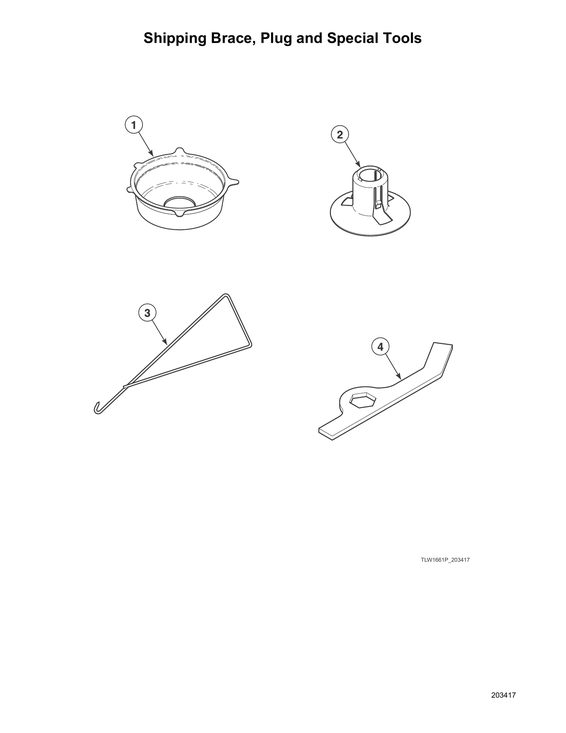

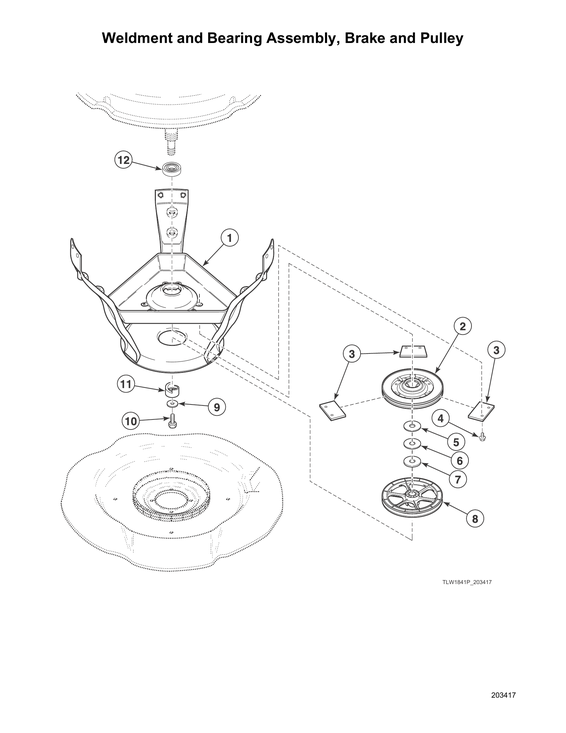

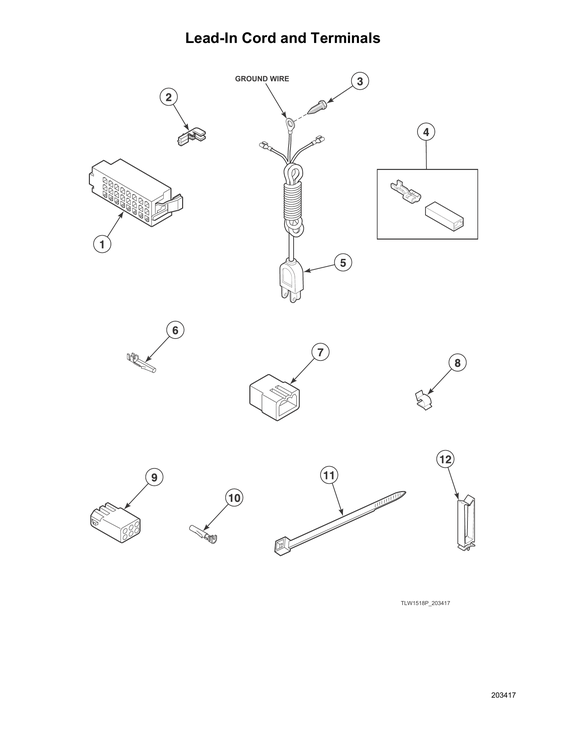

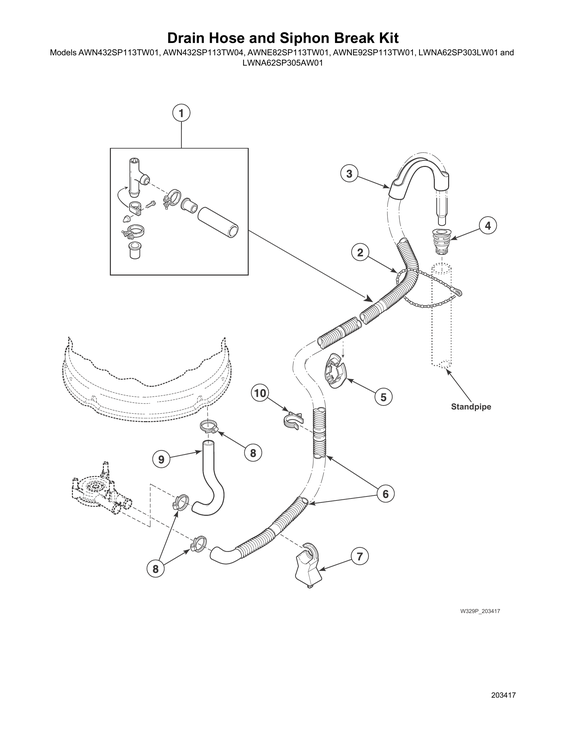

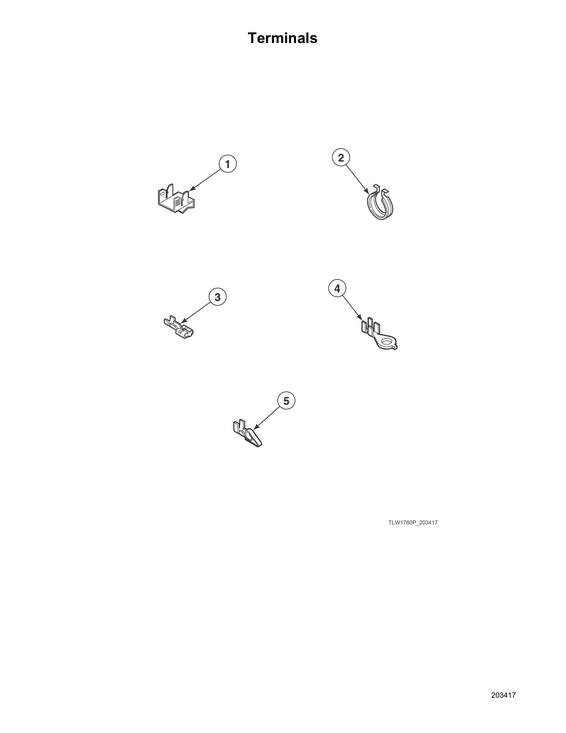

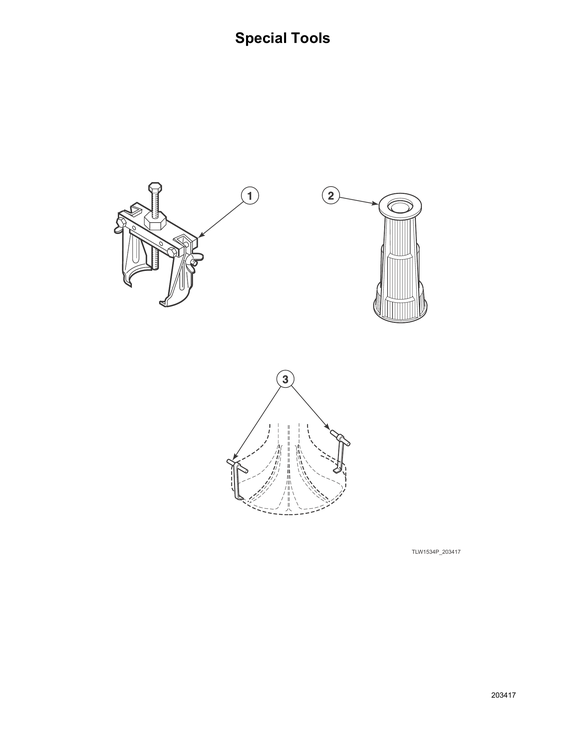

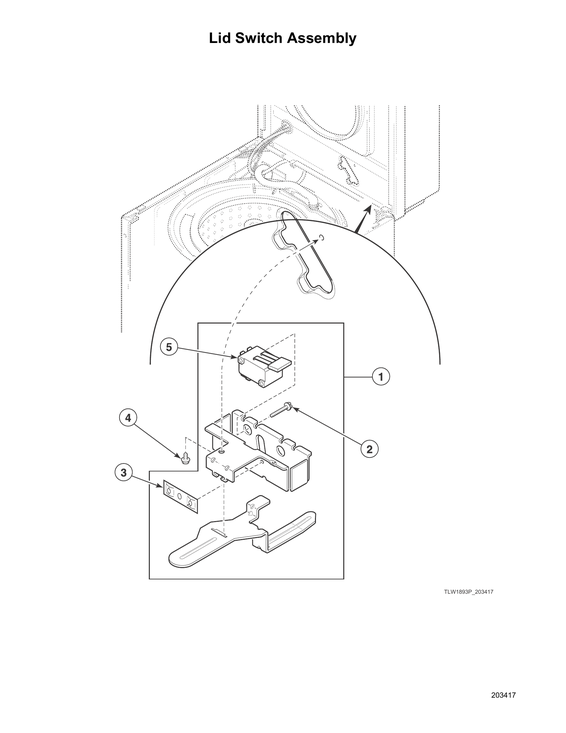

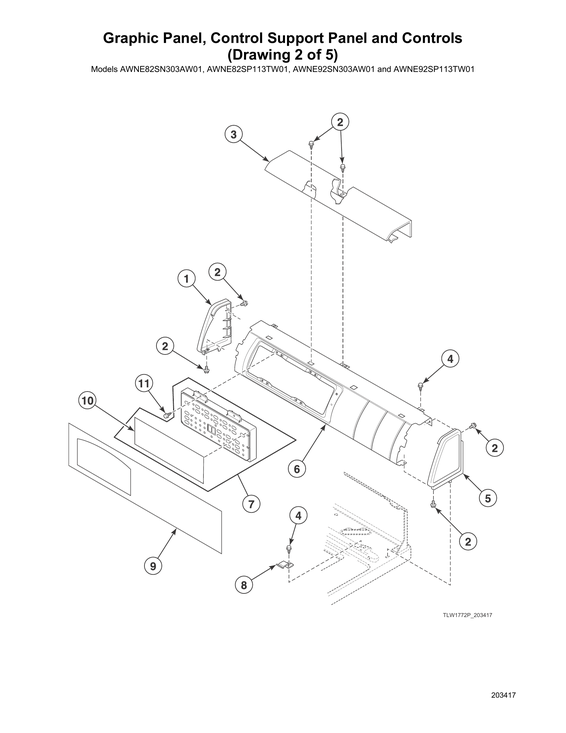

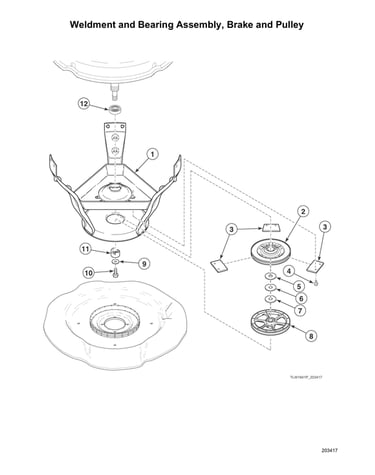

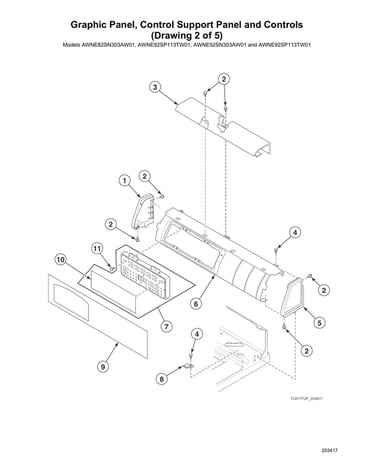

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |

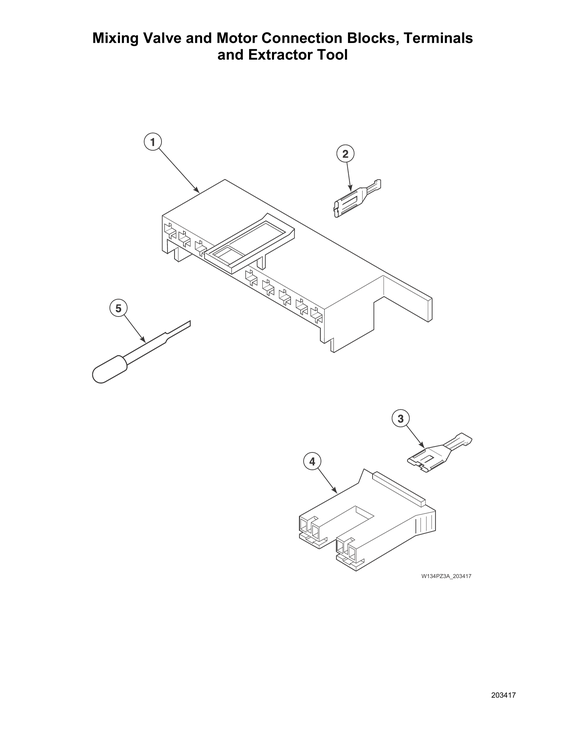

Mixing Valve (models Starting Serial No. 1812016077) 203741
#10

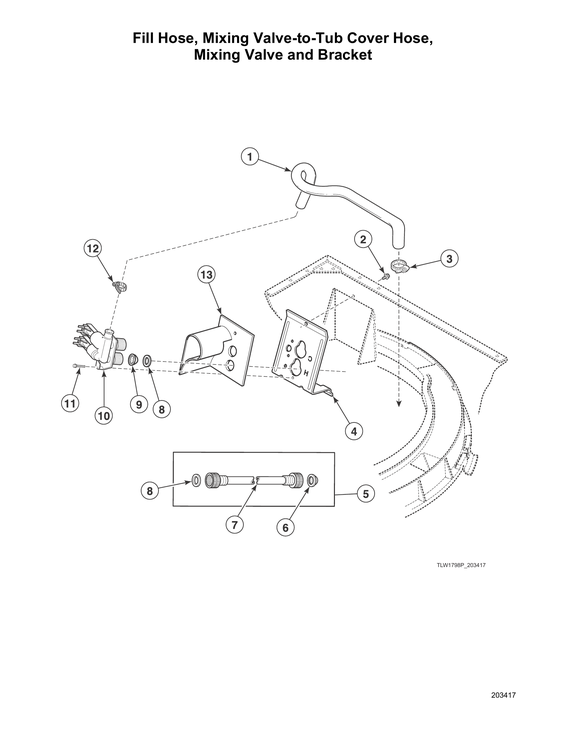

Fill hose/mixing valve-to-tub cover hose/mixing valve/bracket diagram

Mixing valve (models starting serial no. 1812016077)

Part #203741

$45.27
In Stock
Pressure Sensor 203843
#2

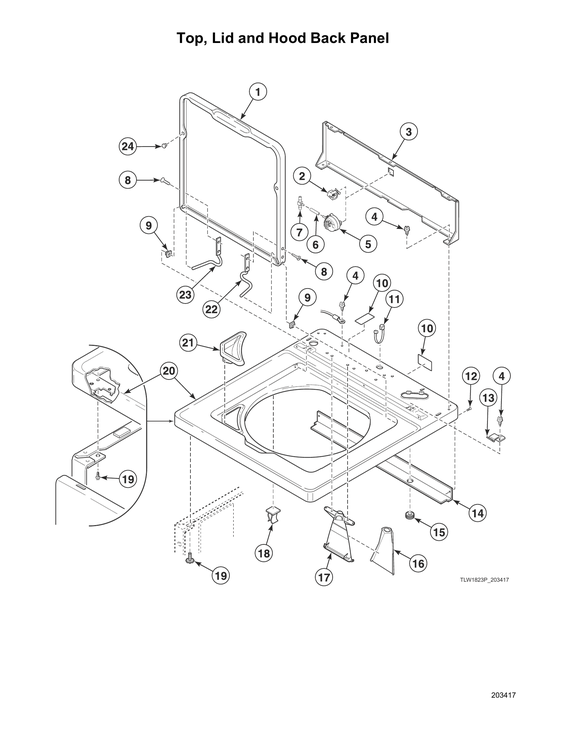

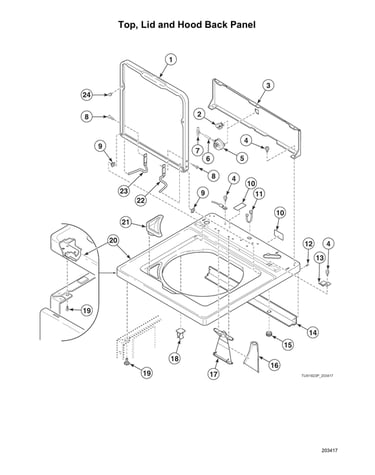

Top/lid/hood back panel diagram

Pressure sensor

Part #203843

$20.71
In Stock
Washer Counterweight Spring 37575
#6

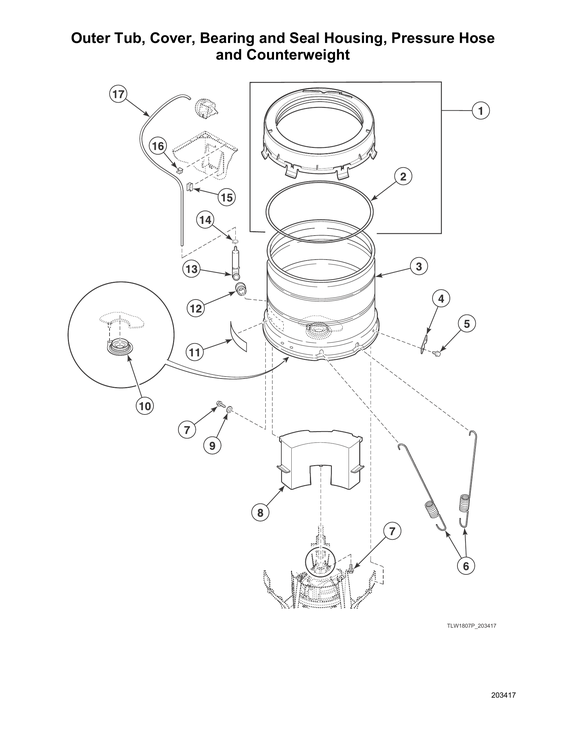

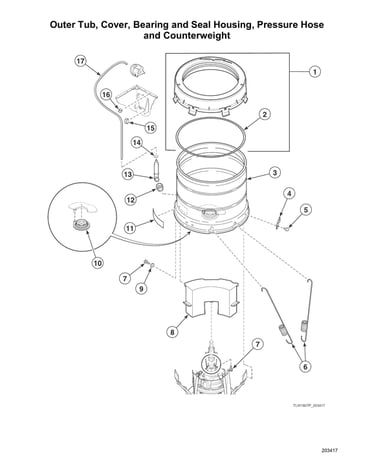

Outer tub/cover/bearing/seal housing/pressure hose/counterweight diagram

Washer counterweight spring

Part #37575

The manufacturer no longer makes this part, and there's no substitute part

Output Board Control Assembly 204783
#7

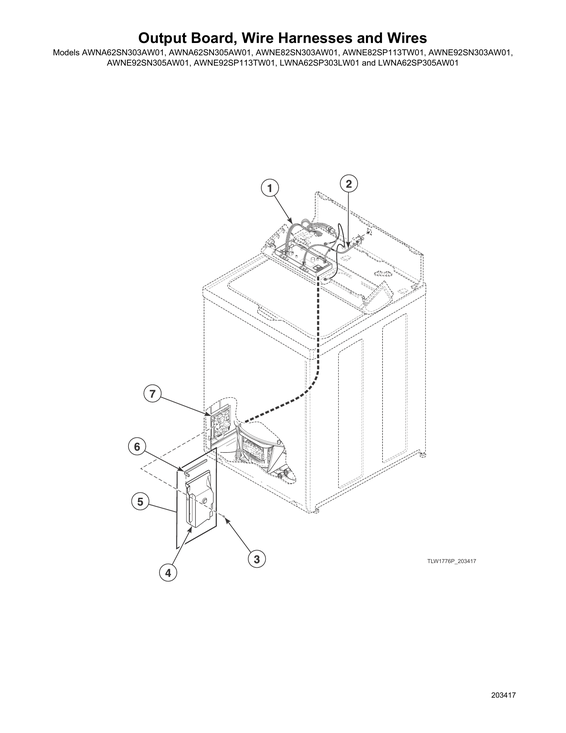

Output board/wire harnesses & wires diagram

Output board control assembly

Part #204783

$184.11
In Stock

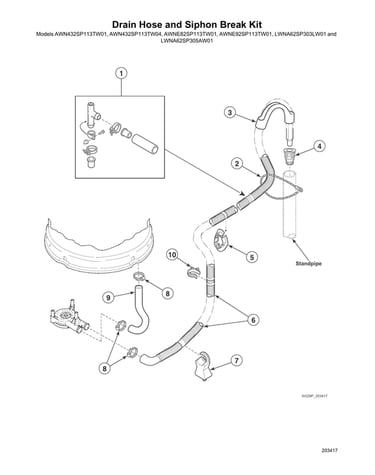

Washer Drain Pump 201566P
#18

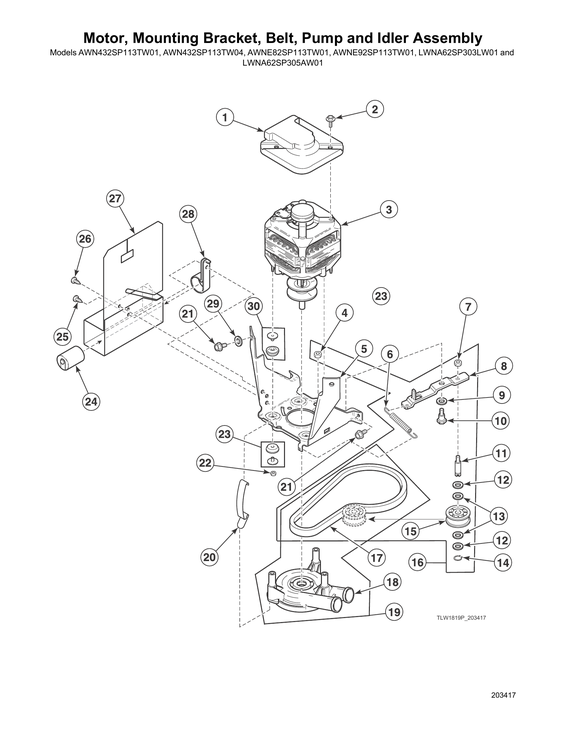

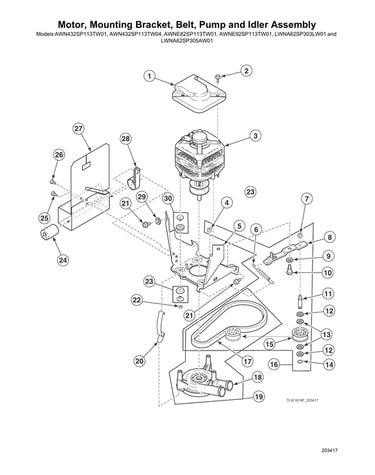

Motor/mounting bracket/belt/pump/idler assy diagram

Washer drain pump

Part #201566P

$57.42
In Stock
Belt And Pump Kit - Includes Items 16 And 18 (38174 Belt) RB150003
#19

Motor/mounting bracket/belt/pump/idler assy diagram

Belt and pump kit - includes items 16 and 18 (38174 belt)

Part #RB150003

$89.00
In Stock
Alliance Output Board Control Assembly 202508P
#7

Output board/wire harnesses & wires diagram

Alliance output board control assembly

Part #202508P

$393.60 |
$12.00 OFF Phone Price : $405.60
In Stock
Agitator 36507
#13

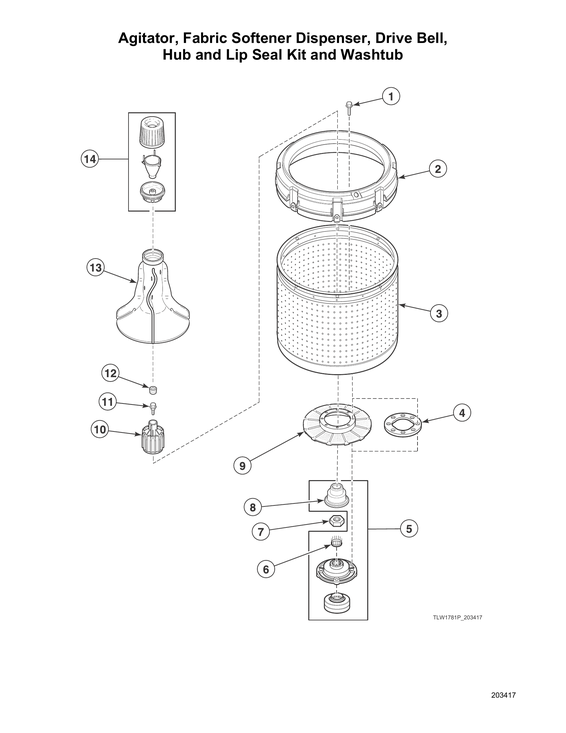

Agitator/fabric softener dispenser/drive bell/hub/lip seal kit/washtub diagram

Agitator

Part #36507

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Motor 38034P
#3

Motor/mounting bracket/belt/pump/idler assy diagram

Washer drive motor

Part #38034P

The manufacturer no longer makes this part, and there's no substitute part

Ring Assembly 39837
#2

Agitator/fabric softener dispenser/drive bell/hub/lip seal kit/washtub diagram

Ring assembly

Part #39837

The manufacturer no longer makes this part, and there's no substitute part
