Modern Maid
Electric Cooktop

Model # FET170 Official Modern Maid electric cooktop

Here are the diagrams and repair parts for Official Modern Maid FET170 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

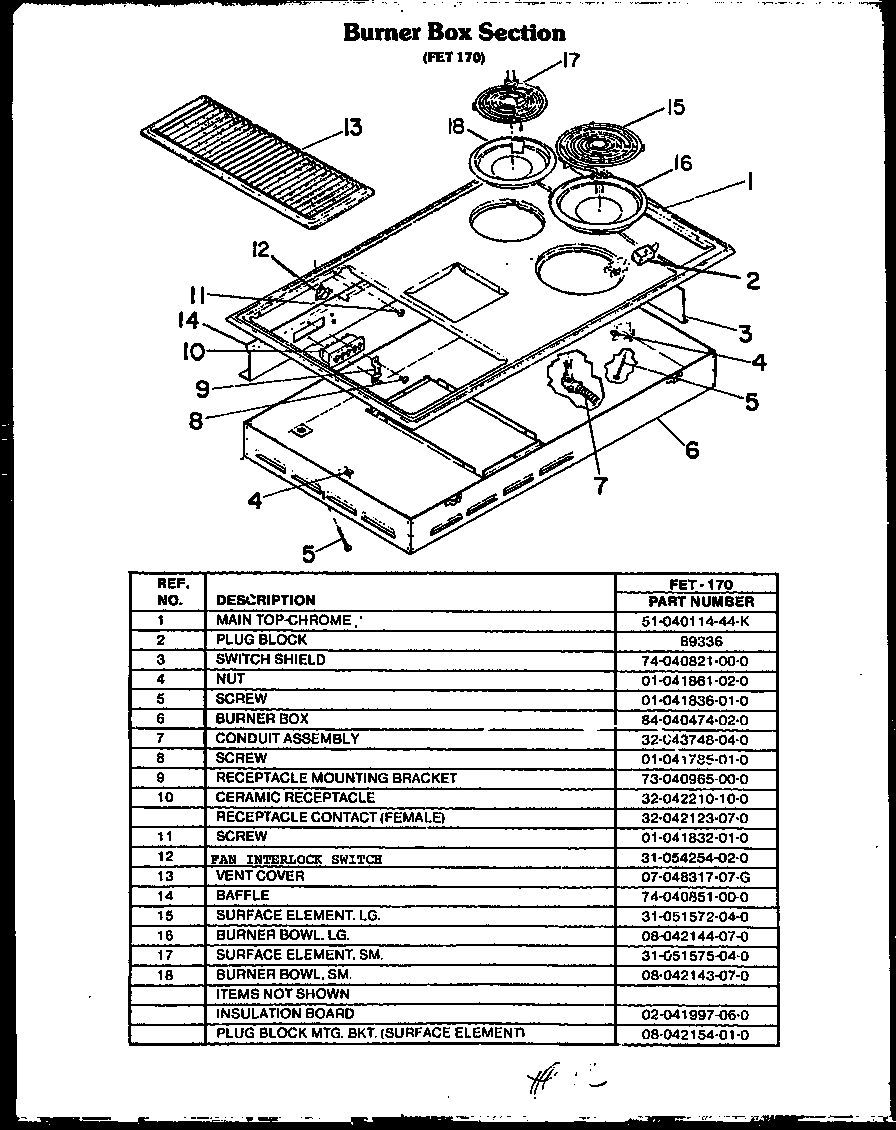

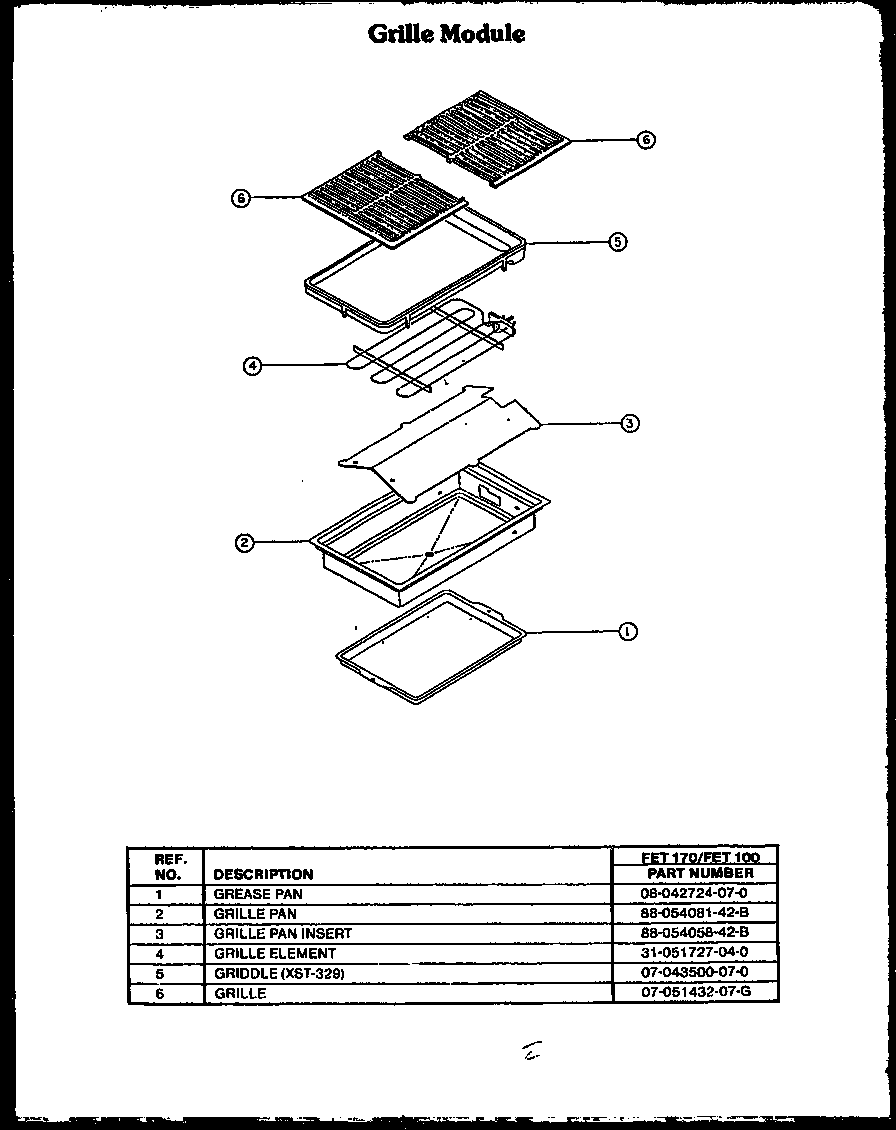

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Ceramic Plug 32-042211-10-0
#10

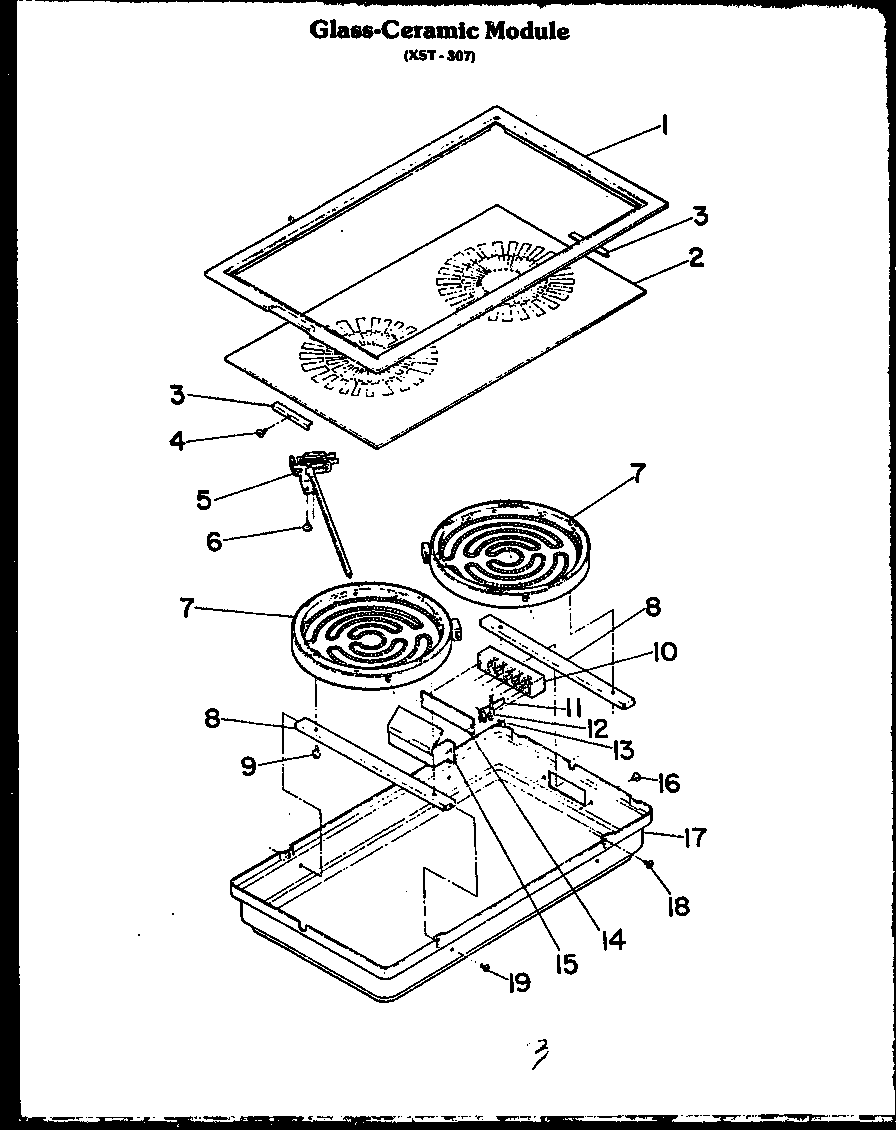

Glass ceramic module (xst-307) diagram

Ceramic plug

Part #32-042211-10-0

The manufacturer no longer makes this part, and there's no substitute part

Fan Scroll 76-041093-41-G
#4

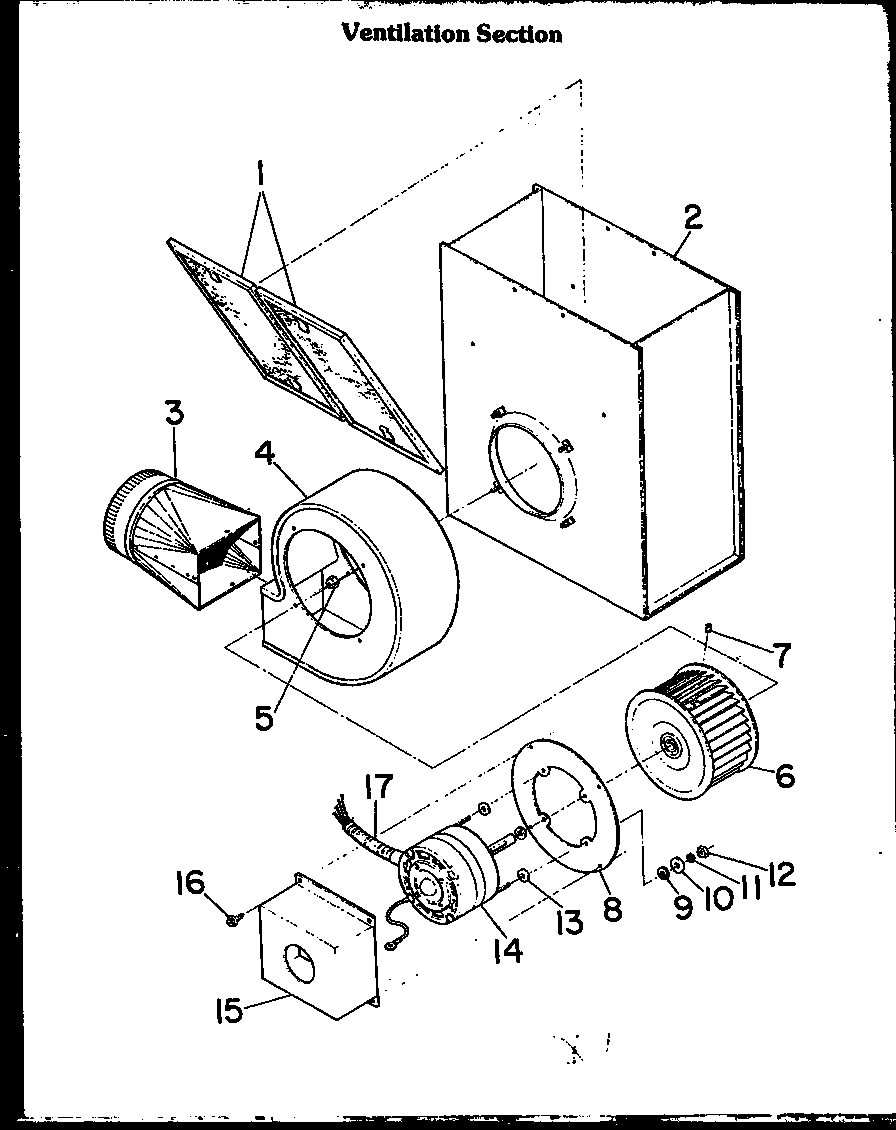

Ventilation section diagram

Fan scroll

Part #76-041093-41-G

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire Harness 32-043666-03-0
#12

Glass ceramic module (xst-307) diagram

Ground wire harness

Part #32-043666-03-0

The manufacturer no longer makes this part, and there's no substitute part

Screw, Retainer Mounting 01-041819-01-0
#7

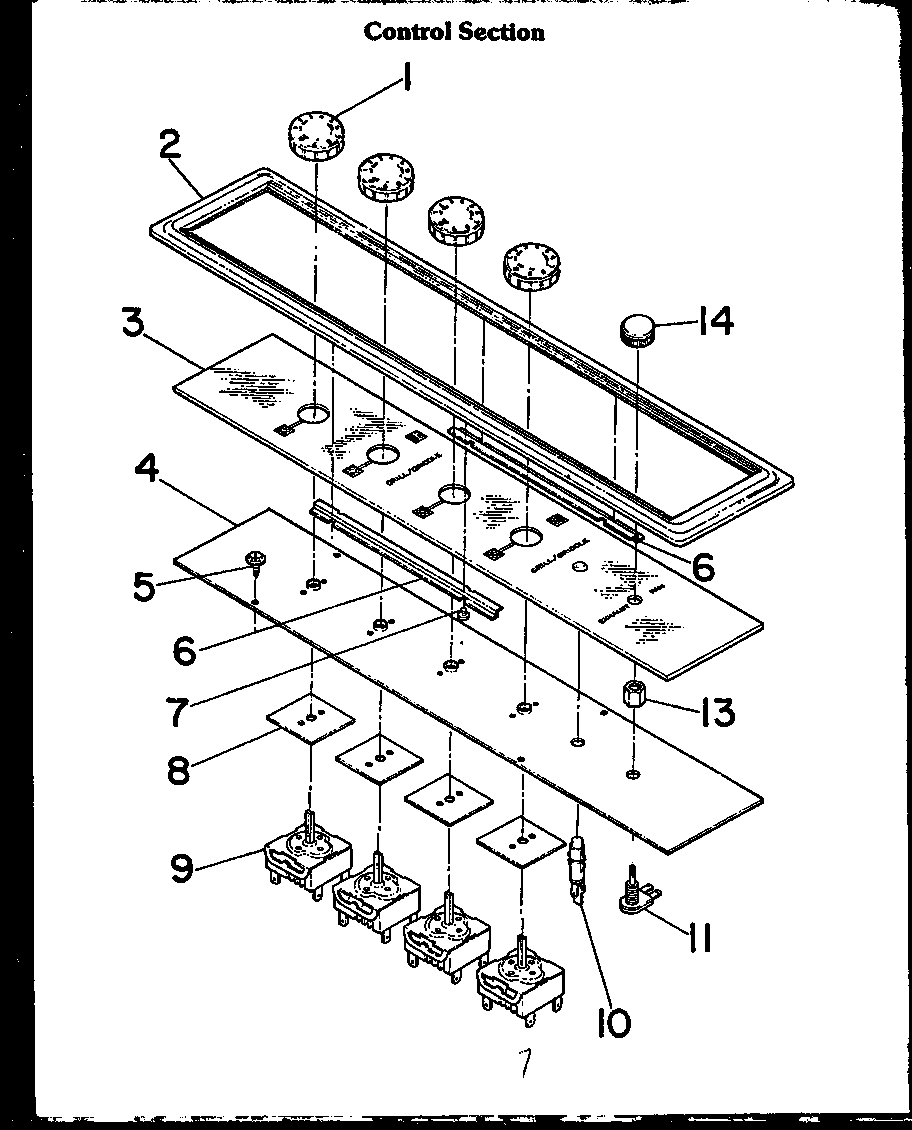

Control section diagram

Screw, retainer mounting

Part #01-041819-01-0

The manufacturer no longer makes this part, and there's no substitute part

Contact, Spade - Power (4) 67-052040-44-J
#11B

Glass ceramic module (xst-307) diagram

Contact, spade - power (4)

Part #67-052040-44-J

The manufacturer no longer makes this part, and there's no substitute part

Handle 07-042748-01-0
#7

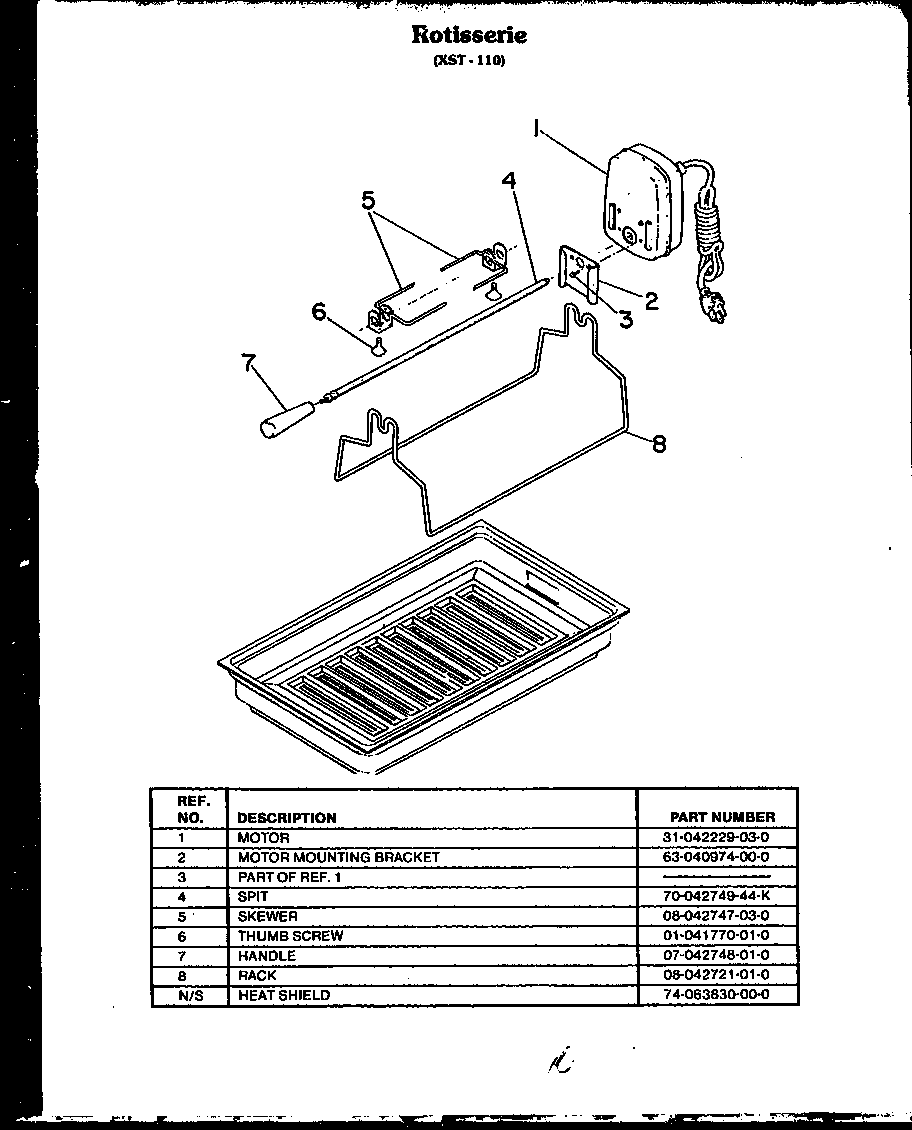

Rotisserie (xst-110) diagram

Handle

Part #07-042748-01-0

The manufacturer no longer makes this part, and there's no substitute part

Element Mounting Bracket 73-040970-00-0
#8

Glass ceramic module (xst-307) diagram

Element mounting bracket

Part #73-040970-00-0

The manufacturer no longer makes this part, and there's no substitute part

Insulation Board 02-041997-06-0

#NI

All parts diagram

Insulation board

Part #02-041997-06-0

The manufacturer no longer makes this part, and there's no substitute part

Motor Mounting Bracket 63-040974-00-0
#2

Rotisserie (xst-110) diagram

Motor mounting bracket

Part #63-040974-00-0

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 01-041937-04-0
#11

Ventilation section diagram

Lock washer

Part #01-041937-04-0

The manufacturer no longer makes this part, and there's no substitute part
