Model # SC-BTT490P Official Panasonic dvd system

Here are the diagrams and repair parts for Official Panasonic SC-BTT490P dvd system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Spring RMCX1008
#30

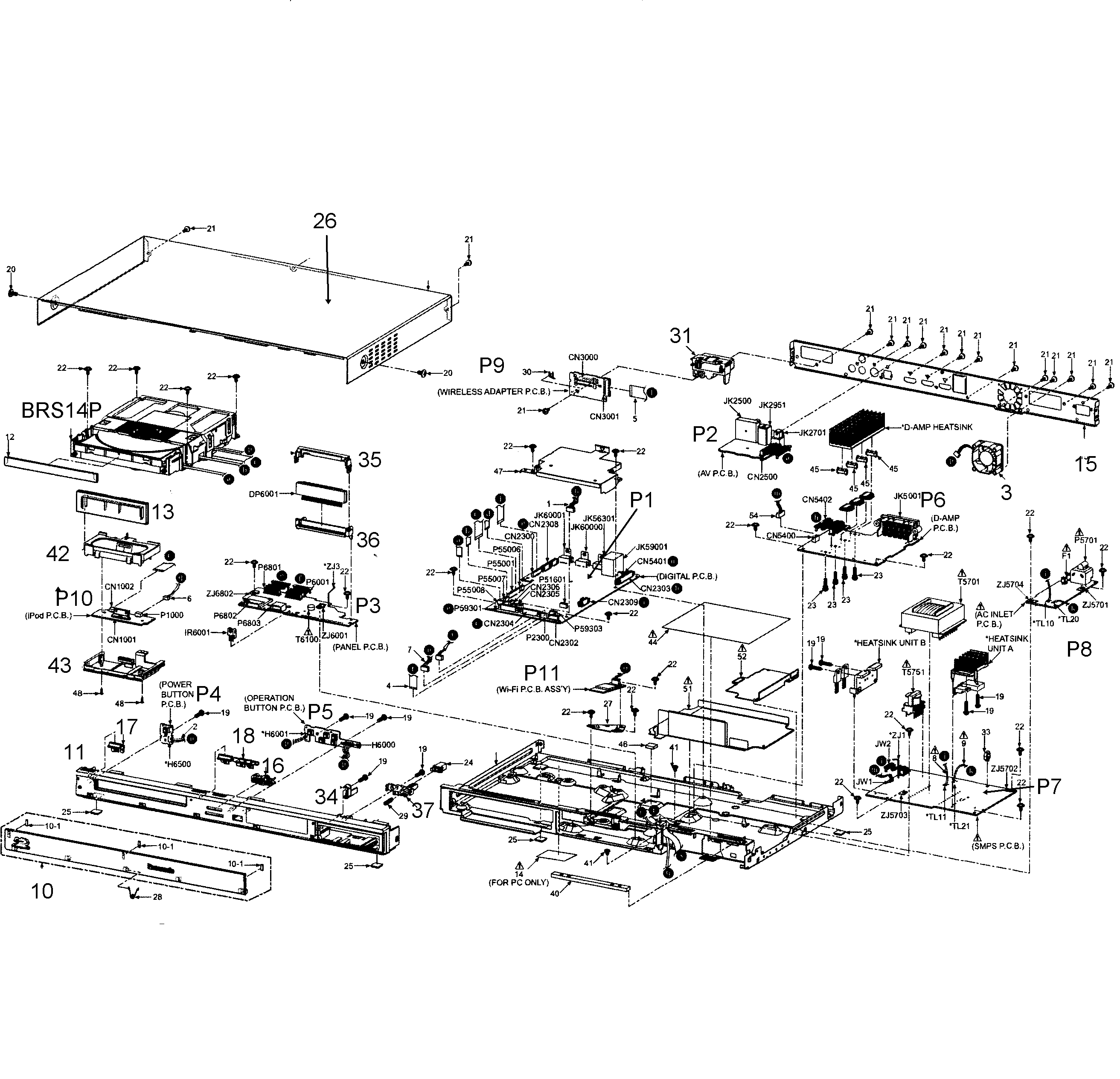

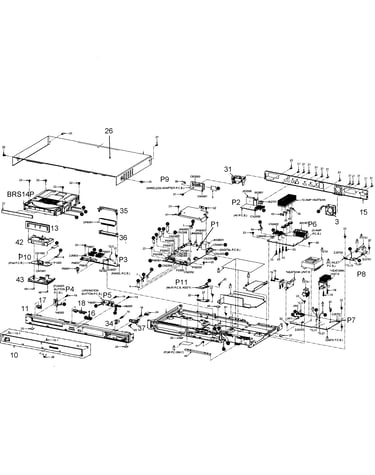

Dvd system diagram

Spring

Part #RMCX1008

The manufacturer no longer makes this part, and there's no substitute part

Cradle Gui RMVX1027-K
#43

Dvd system diagram

Cradle gui

Part #RMVX1027-K

The manufacturer no longer makes this part, and there's no substitute part

Leg RKAX0033-K
#9-1

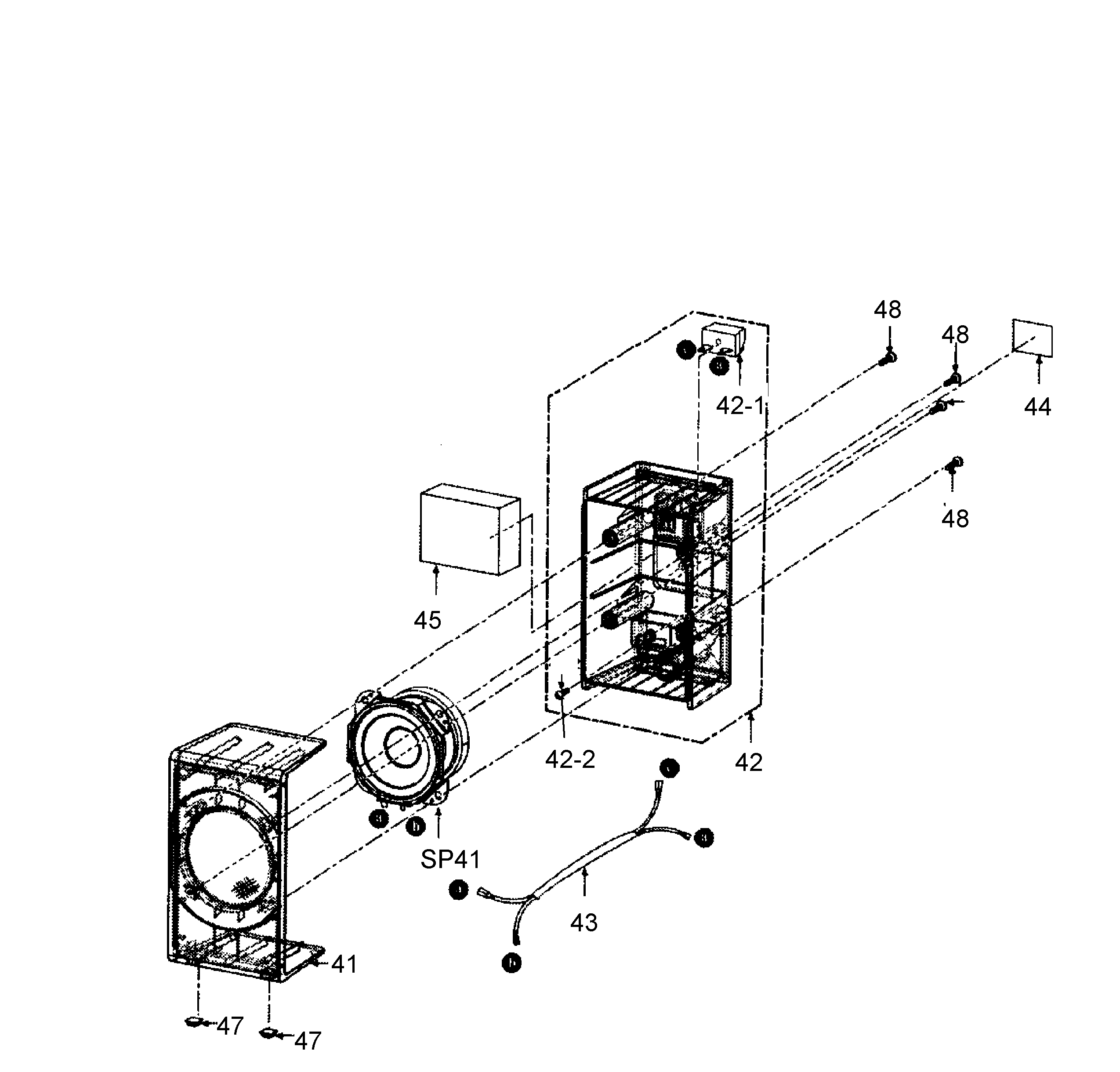

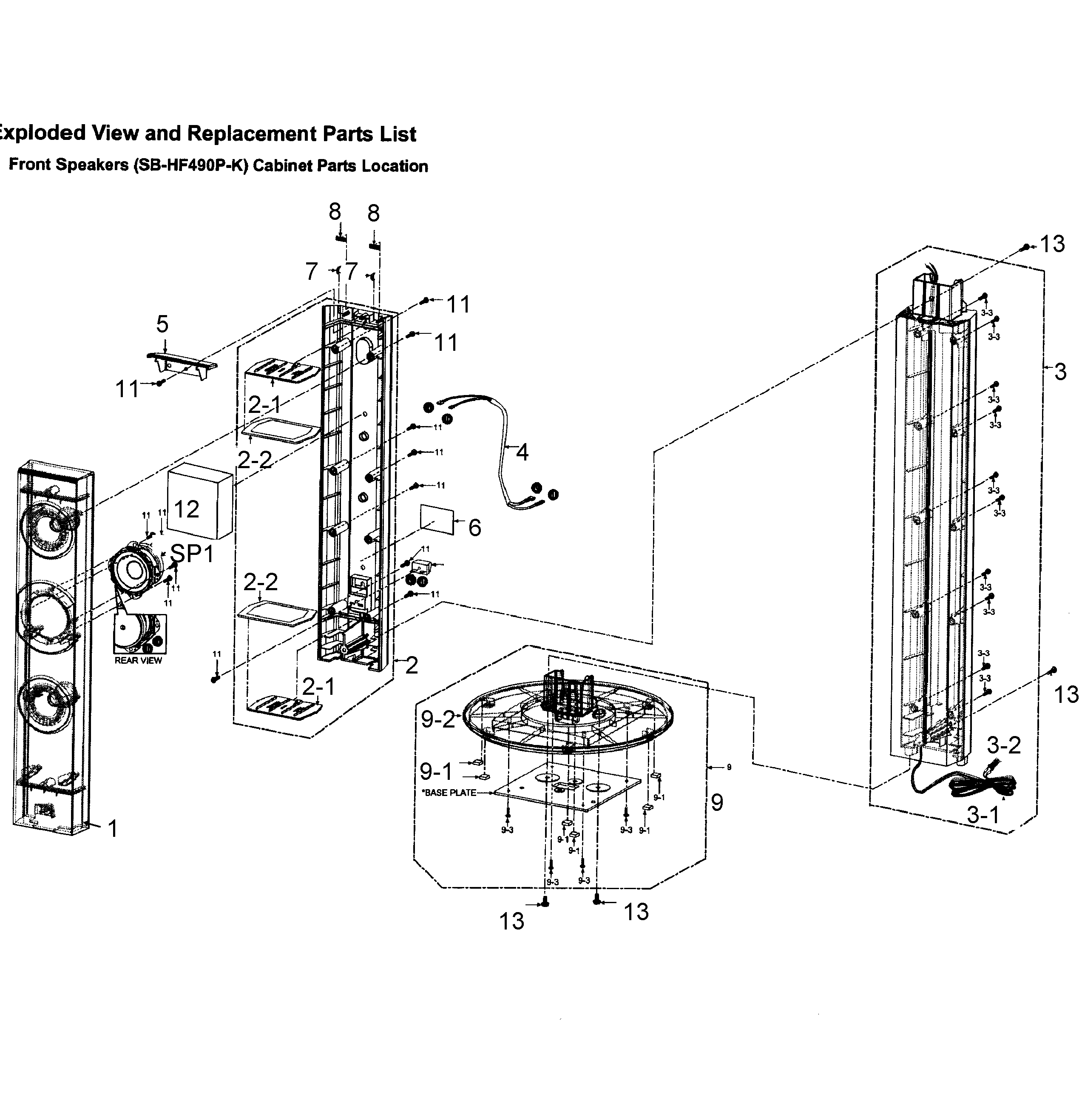

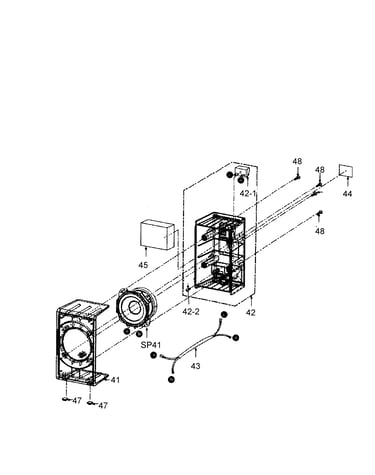

Speaker diagram

Leg

Part #RKAX0033-K

The manufacturer no longer makes this part, and there's no substitute part

Upper Cabi RYP1764-K
#21

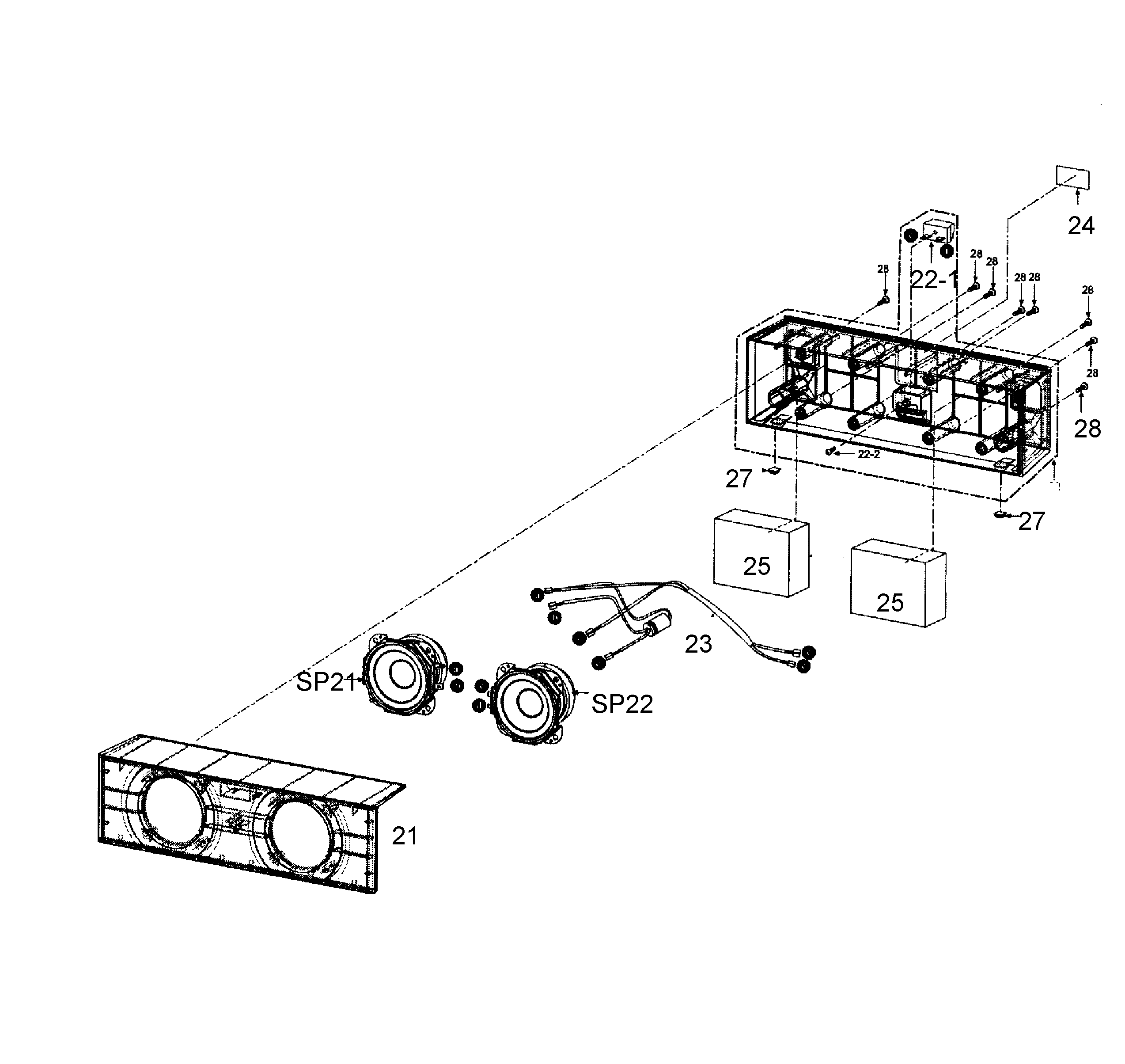

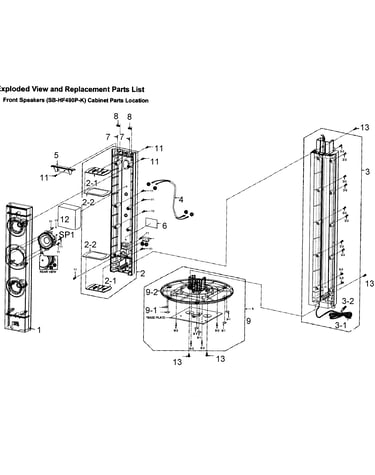

Speaker diagram

Upper cabi

Part #RYP1764-K

The manufacturer no longer makes this part, and there's no substitute part

Sound Abso RMF0517
Sound abso

Part #RMF0517

The manufacturer no longer makes this part, and there's no substitute part

Traverse VXA9006
#144

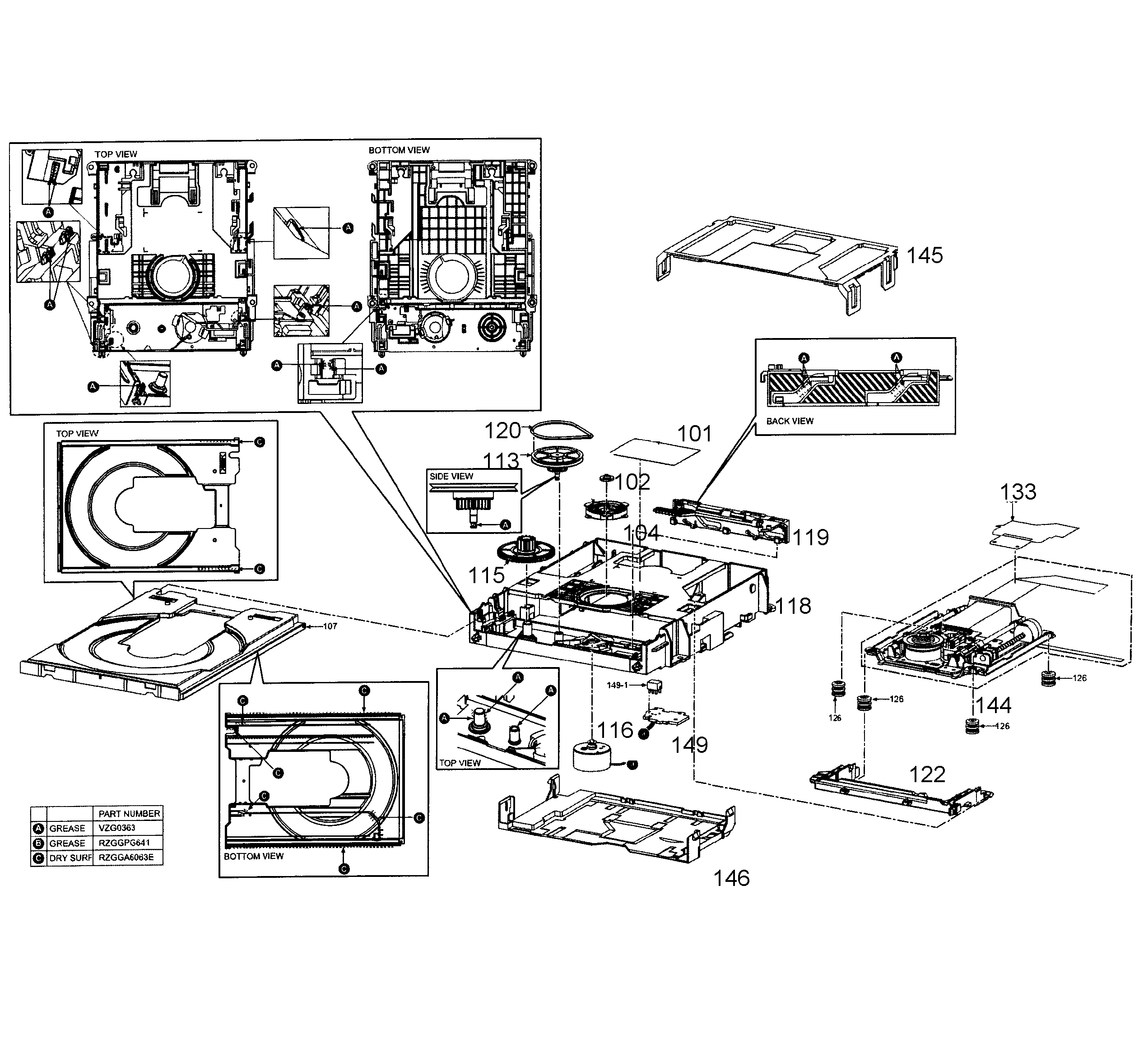

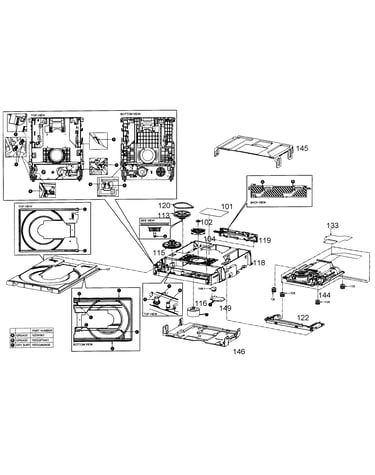

Dvd mechanism diagram

Traverse

Part #VXA9006

The manufacturer no longer makes this part, and there's no substitute part

Pcb Ipod REPX0895A
#P10

Dvd system diagram

Pcb ipod

Part #REPX0895A

The manufacturer no longer makes this part, and there's no substitute part

Screw XTB416AFJK
#62

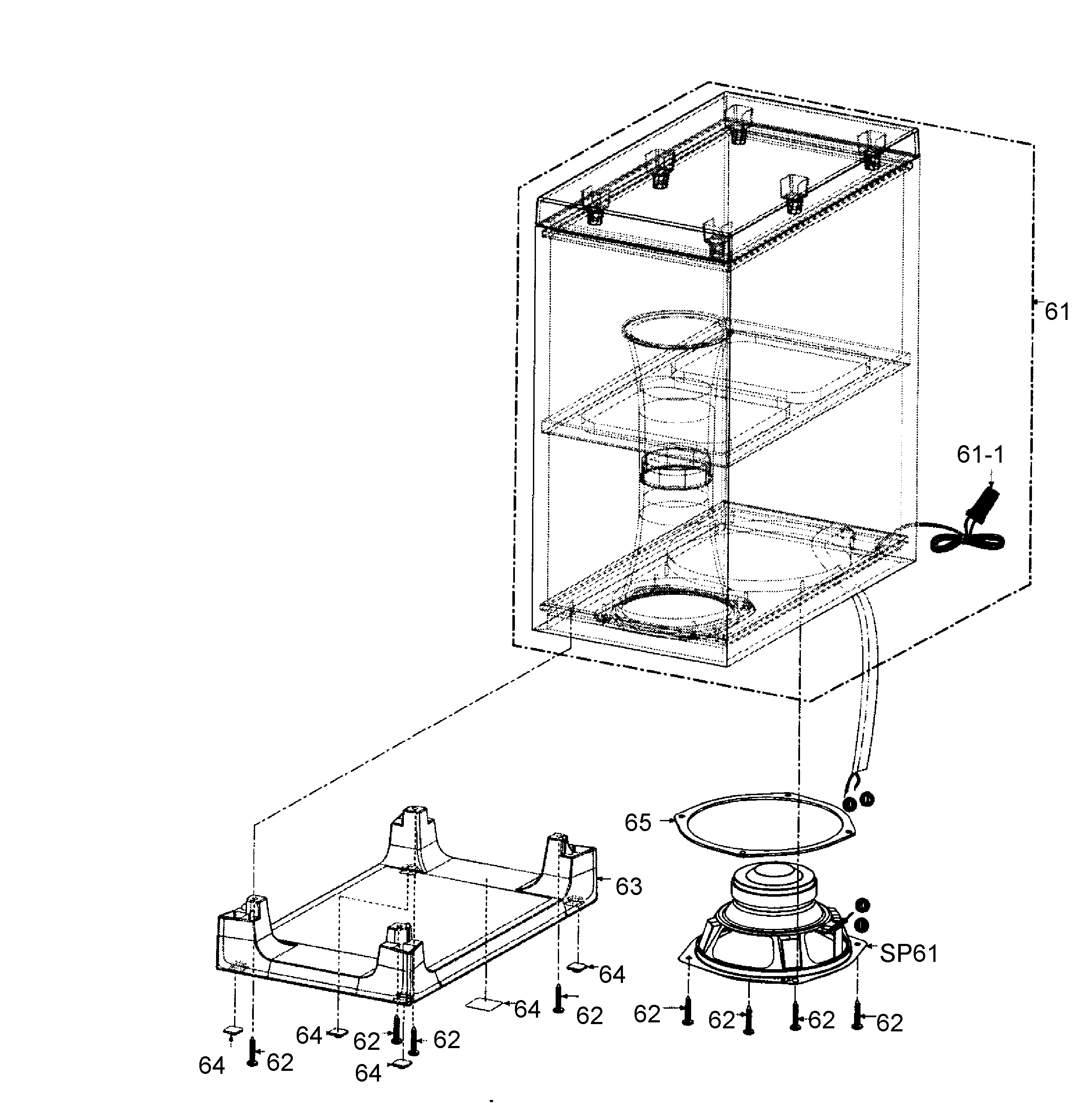

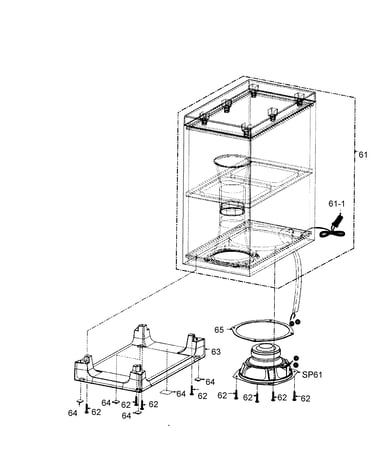

Woofer diagram

Screw

Part #XTB416AFJK

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAZ003068
#NI

Dvd system diagram

Integrated circuit

Part #C0JBAZ003068

The manufacturer no longer makes this part, and there's no substitute part

Laser Caut VQL2P54
#101

Dvd mechanism diagram

Laser caut

Part #VQL2P54

The manufacturer no longer makes this part, and there's no substitute part
