Superior
Gas Water Heater

Model # 5-40-NKRT8-2 Official Superior gas water heater

Here are the diagrams and repair parts for Official Superior 5-40-NKRT8-2 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Water Heater Thermocouple 9000283
#14

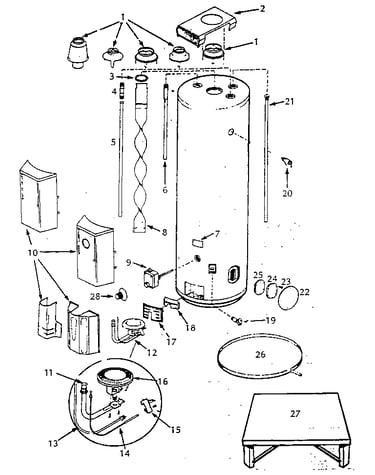

Round gas diagram

Water heater thermocouple

Part #9000283

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 9000283. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Thermostat 9000249
#9

Round gas diagram

Thermostat

Part #9000249

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Manifold Inner Door 9000281
#18

Round gas diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Anode Rod 9000705
#6

Round gas diagram

Anode rod

Part #9000705

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9000705. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Rexel Pan Base 9001609
#26A

Round gas diagram

Rexel pan base

Part #9001609

Replaced by #100108616

?
Manufacturer substitution
This part replaces 9001609. Substitute parts can look different from the original.
$64.44
In Stock
Wheelers Water Heater Temperature And Pressure Relief Valve 9000728
#20

Round gas diagram

Wheelers water heater temperature and pressure relief valve

Part #9000728

Replaced by #100108455

?
Manufacturer substitution
This part replaces 9000728. Substitute parts can look different from the original.
$35.56
In Stock
Heater Stand 9001422
#27A

Round gas diagram

Heater stand

Part #9001422

Replaced by #9005744005

?
Manufacturer substitution
This part replaces 9001422. Substitute parts can look different from the original.
$115.49
In Stock
Water Heater Burner 9000390
#16A

Round gas diagram

Water heater burner

Part #9000390

Replaced by #100108399

?
Manufacturer substitution
This part replaces 9000390. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#13

Round gas diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Pilot 9000284
#15

Round gas diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
