Model # CH7548QKA2 Official ICP heat pump outdoor section
Here are the diagrams and repair parts for Official ICP CH7548QKA2 heat pump outdoor section, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

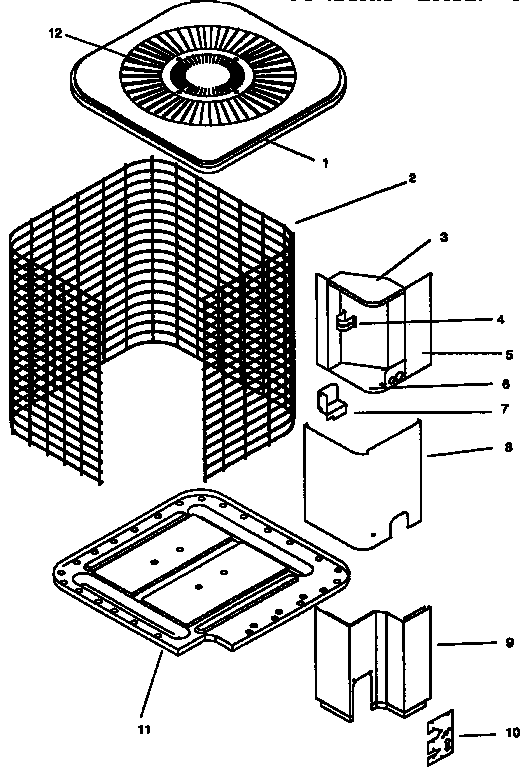

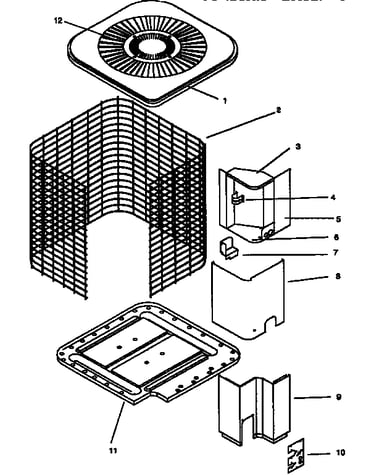

Browse Parts for
CH7548QKA2 Heat Pump Outdoor Section
#9

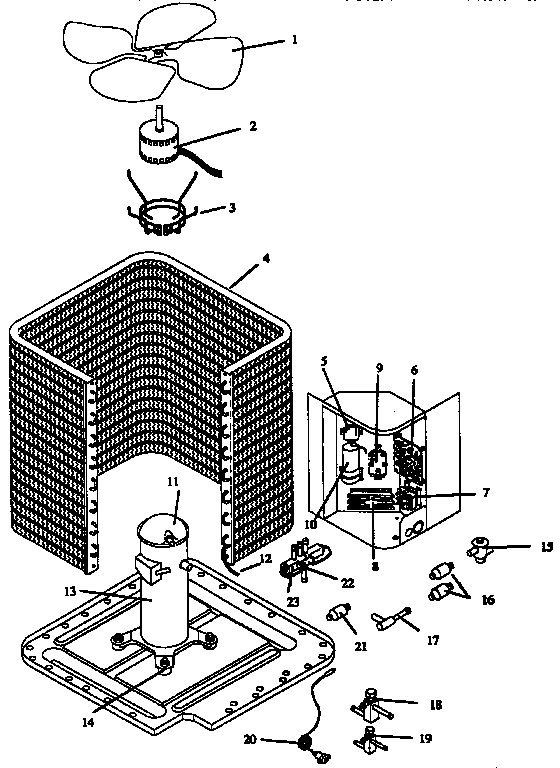

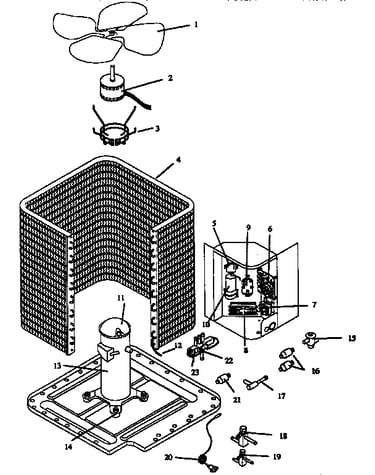

Functional parts diagram
Spst relay
Part #1053004
The manufacturer no longer makes this part, and there's no substitute part
#17
Functional parts diagram
Check valve
Part #1052910
$84.67
In Stock
#26
Functional parts diagram
Sound jacket
Part #1060834
$214.58
In Stock
#2
Functional parts diagram
Fan motor
Part #1052820
$521.22
In Stock
#20
Functional parts diagram
Press switch
Part #1053017
$11.23
In Stock
#21
Functional parts diagram
Muffler
Part #1059730
Replaced by #1174688
?
Manufacturer substitution
This part replaces 1059730. Substitute parts can look different from the original.
$47.30 |
11% OFF Phone Price : $53.30
In Stock
#NI
All parts diagram
Harness rev
Part #1067013
Replaced by #1066711
?
Manufacturer substitution
This part replaces 1067013. Substitute parts can look different from the original.
$105.16
In Stock
#3
Functional parts diagram
Motor mount
Part #1052968
Replaced by #1081813
?
Manufacturer substitution
This part replaces 1052968. Substitute parts can look different from the original.
$474.22
In Stock
#23
Functional parts diagram
Valve rev
Part #1067009
Replaced by #1095224
?
Manufacturer substitution
This part replaces 1067009. Substitute parts can look different from the original.
$362.44
In Stock
#NI
All parts diagram
Cont lo pres
Part #1064449
Replaced by #1071713
?
Manufacturer substitution
This part replaces 1064449. Substitute parts can look different from the original.
$57.87
In Stock
