Craftsman
Gas Walk-Behind Mower

Model # 917388860 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388860 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#56

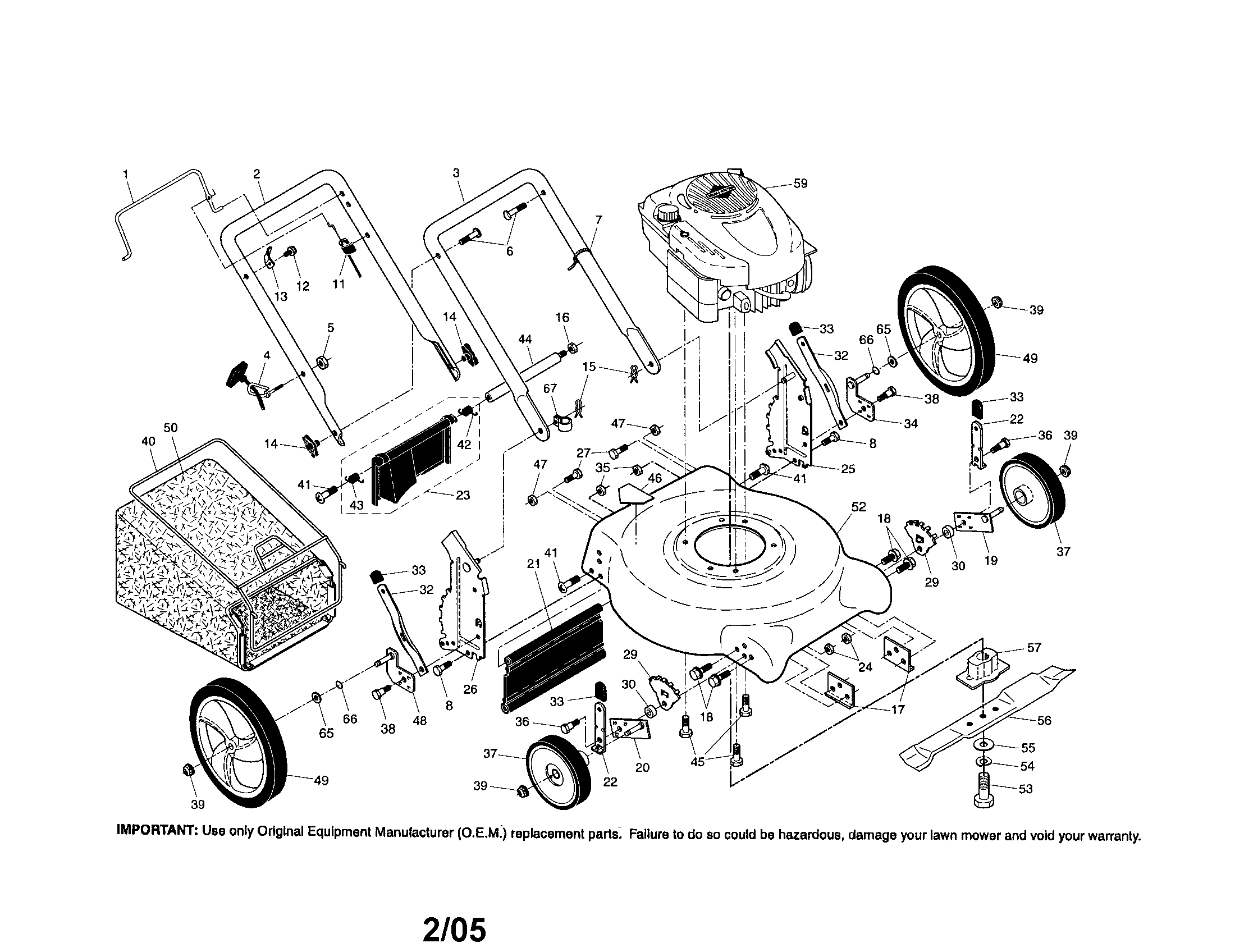

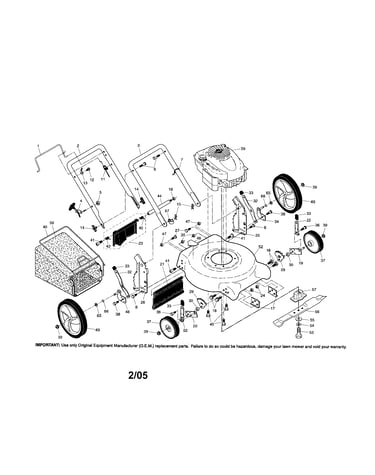

Engine/housing/bag/wheels/handle diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$11.41 |
15% OFF Phone Price : $13.41
In Stock
Hex Flange Lock Nut 145212
#39

Engine/housing/bag/wheels/handle diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#14

Engine/housing/bag/wheels/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 191574
#6

Engine/housing/bag/wheels/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Walk-behind Lawn Mower Engine Cable 176556
#11

Engine/housing/bag/wheels/handle diagram

Walk-behind lawn mower engine cable

Part #176556

Replaced by #532176556

?
Manufacturer substitution
This part replaces 176556. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Bagger 188812
#50

Engine/housing/bag/wheels/handle diagram

Bagger

Part #188812

Replaced by #532410666

?
Manufacturer substitution
This part replaces 188812. Substitute parts can look different from the original.
BEST SELLER
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Nut 132004
#5

Engine/housing/bag/wheels/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/bag/wheels/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 179585
#4

Engine/housing/bag/wheels/handle diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/bag/wheels/handle diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
