Model # WTW4915EW2 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW4915EW2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#9

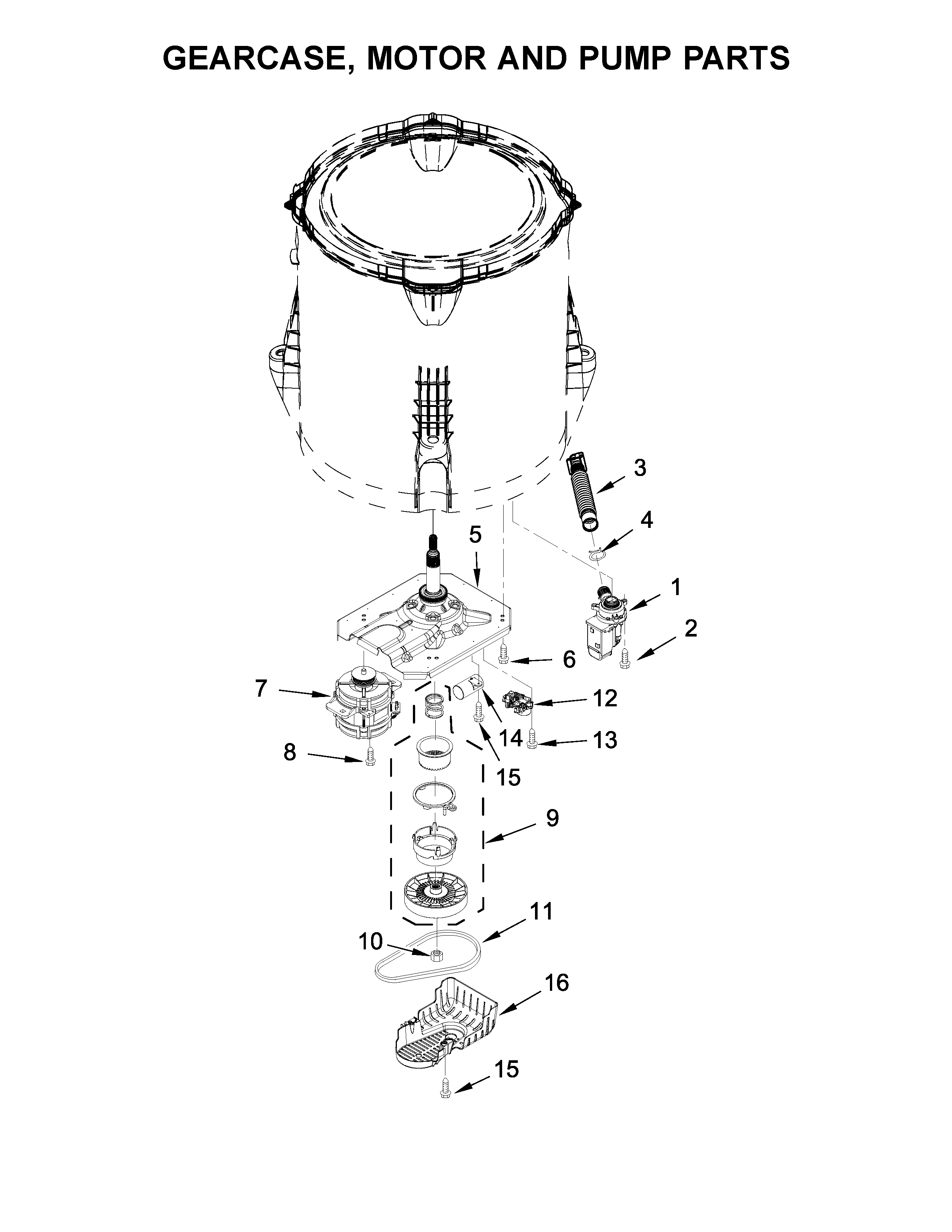

Gearcase, motor and pump parts diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Actuator W10815026
#12

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Driveblock - W10396887
#8

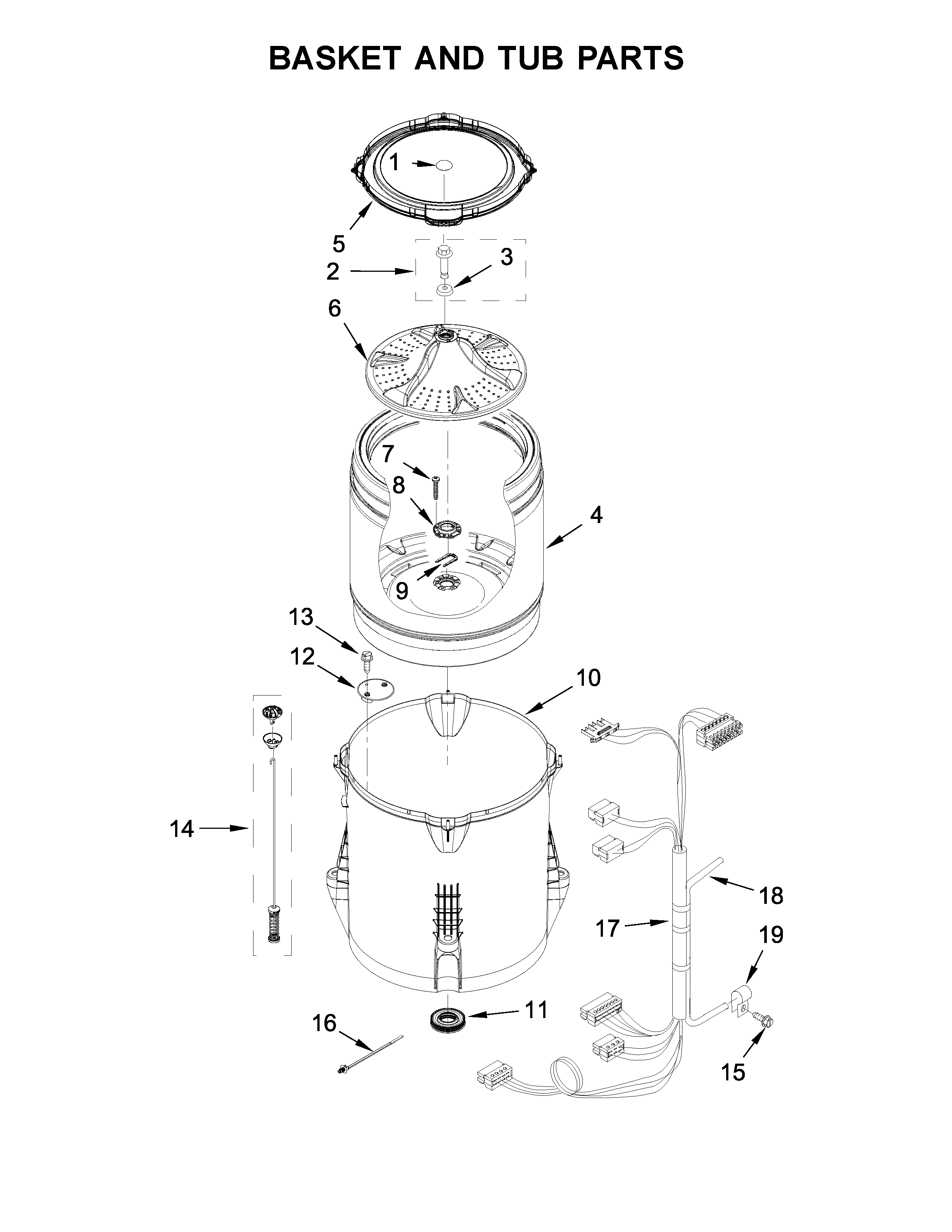

Basket and tub parts diagram

Driveblock -

Part #W10396887

Replaced by #W10528947

?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
BEST SELLER
$33.22 |
15% OFF Phone Price : $39.22
In Stock
Washer Lid Lock W10682535
#14

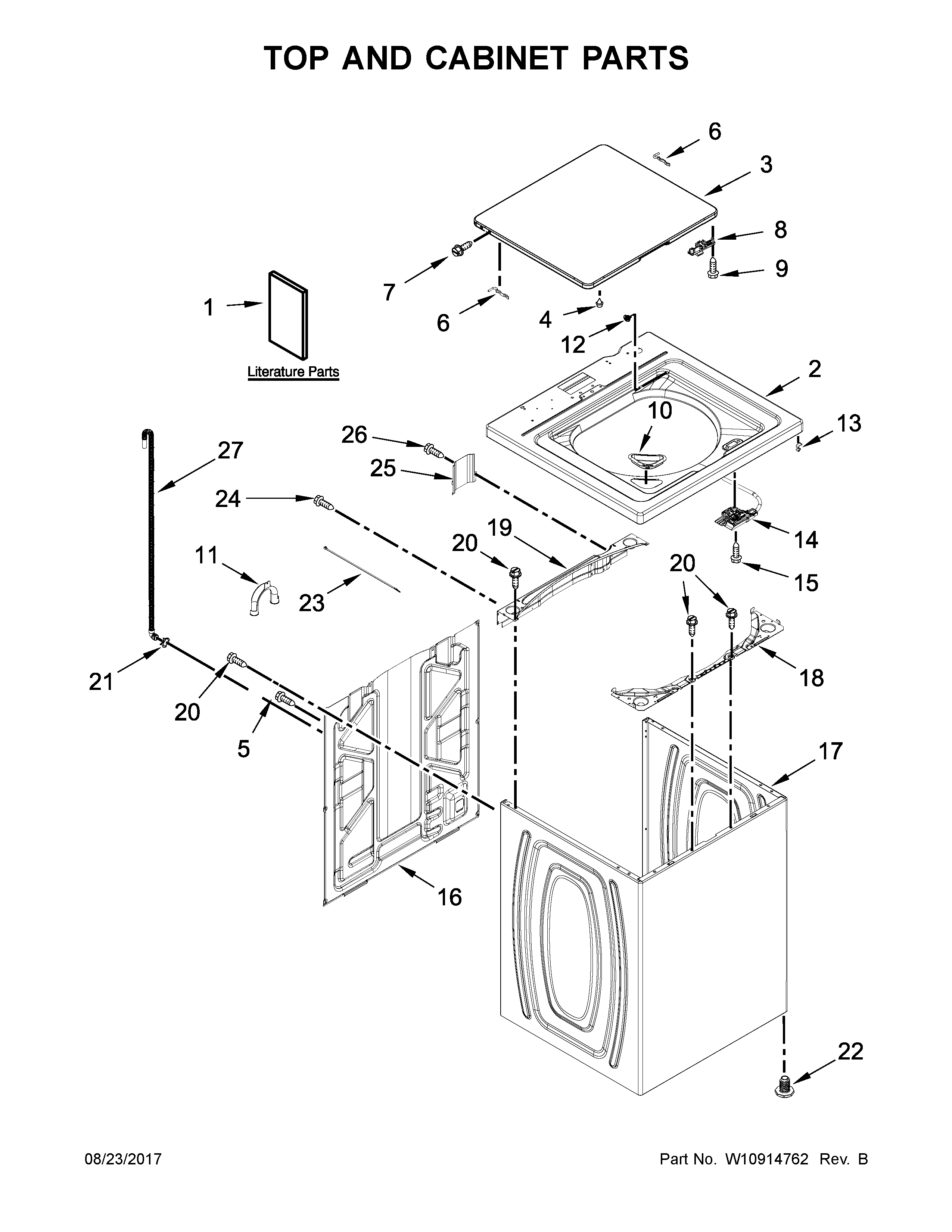

Top and cabinet parts diagram

Washer lid lock

Part #W10682535

Replaced by #W11307244

?
Manufacturer substitution
This part replaces W10682535. Substitute parts can look different from the original.
BEST SELLER
$104.27 |
10% OFF Phone Price : $116.27
In Stock
Water Inlet Valve Assembly W10869799
#17

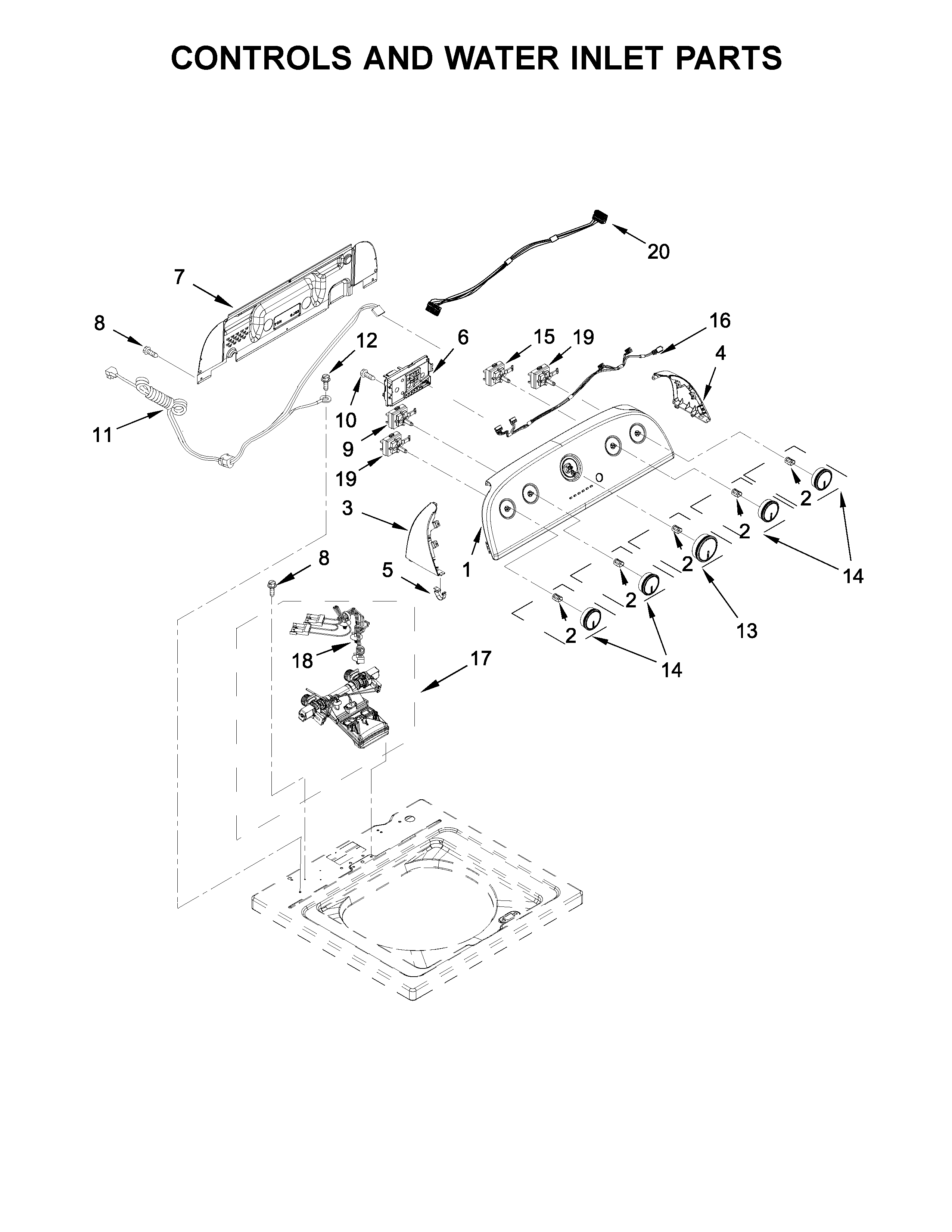

Controls and water inlet parts diagram

Water inlet valve assembly

Part #W10869799

Replaced by #W11210459

?
Manufacturer substitution
This part replaces W10869799. Substitute parts can look different from the original.
BEST SELLER
$52.87 |
10% OFF Phone Price : $58.87
In Stock
Drive Belt W10808317
#11

Gearcase, motor and pump parts diagram

Drive belt

Part #W10808317

Replaced by #W11239857

?
Manufacturer substitution
This part replaces W10808317. Substitute parts can look different from the original.
BEST SELLER
$33.43 |
15% OFF Phone Price : $39.43
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Capacitor/in W10866250
#14

Gearcase, motor and pump parts diagram

Capacitor/in

Part #W10866250

Replaced by #W11395618

?
Manufacturer substitution
This part replaces W10866250. Substitute parts can look different from the original.
BEST SELLER
$59.95 |
9% OFF Phone Price : $65.95
In Stock
Main Support W10870912
#5

Gearcase, motor and pump parts diagram

Main support

Part #W10870912

Replaced by #W11454372

?
Manufacturer substitution
This part replaces W10870912. Substitute parts can look different from the original.
BEST SELLER
$199.75 |
6% OFF Phone Price : $211.75
In Stock
Washer Screw W10003790
#2

Basket and tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
