Model # OKIMATE 10 Official OKI Data printer

Here are the diagrams and repair parts for Official OKI Data OKIMATE-10 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 19 parts |

Space Motor 56503901

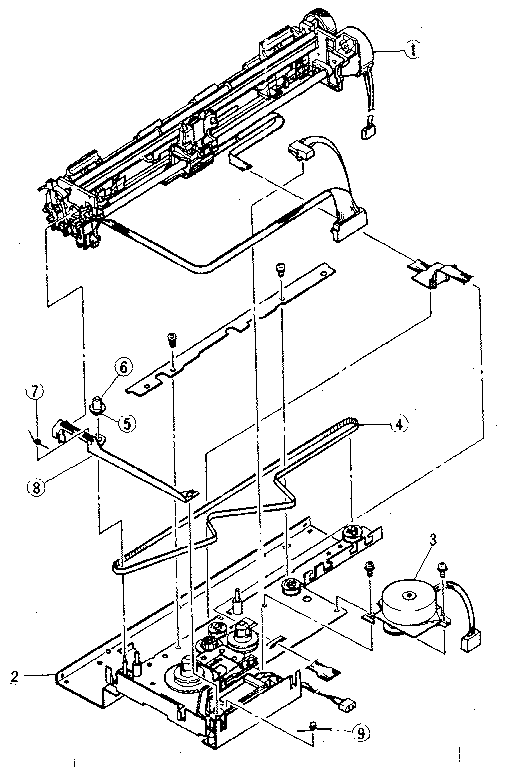

Printer unit diagram

Space motor

Part #56503901

The manufacturer no longer makes this part, and there's no substitute part

Lever 50604501

Lever

Part #50604501

The manufacturer no longer makes this part, and there's no substitute part

Select Button 53448901

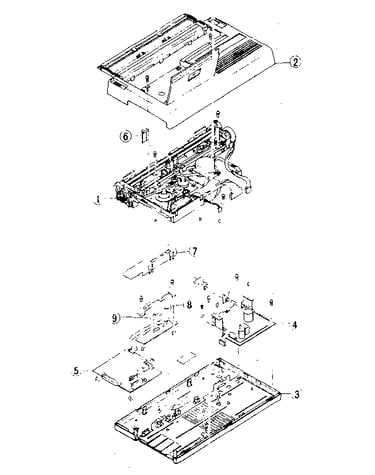

Unit diagram

Select button

Part #53448901

The manufacturer no longer makes this part, and there's no substitute part

Solenoid 56503801

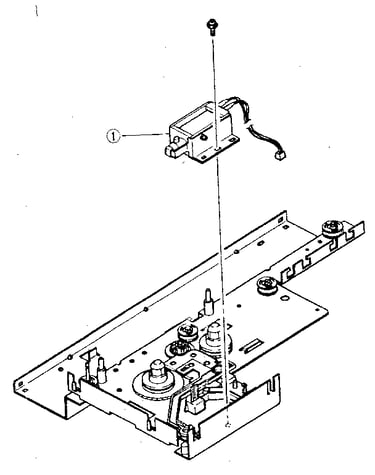

Ribbon feed unit diagram

Solenoid

Part #56503801

The manufacturer no longer makes this part, and there's no substitute part

Belt 54111208

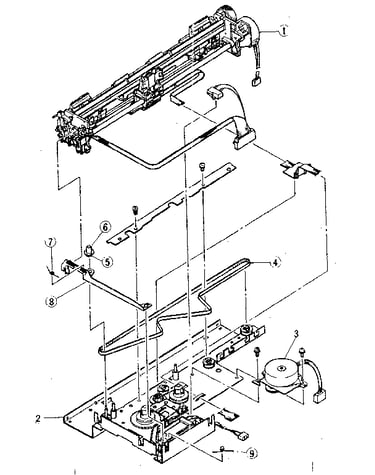

Printer unit diagram

Belt

Part #54111208

The manufacturer no longer makes this part, and there's no substitute part

Spring 50905401

Printer unit diagram

Spring

Part #50905401

The manufacturer no longer makes this part, and there's no substitute part

Operation Cover 54338801

Unit diagram

Operation cover

Part #54338801

The manufacturer no longer makes this part, and there's no substitute part

Link 53050801

Printer unit diagram

Link

Part #53050801

The manufacturer no longer makes this part, and there's no substitute part

Printhead 55015001

Unit diagram

Printhead

Part #55015001

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb 55015501

Unit diagram

Main pcb

Part #55015501

The manufacturer no longer makes this part, and there's no substitute part
