DeWalt
Power Drill

Model # DW222 TYPE 2 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW222-TYPE-2 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Gasket 176655-00
#46

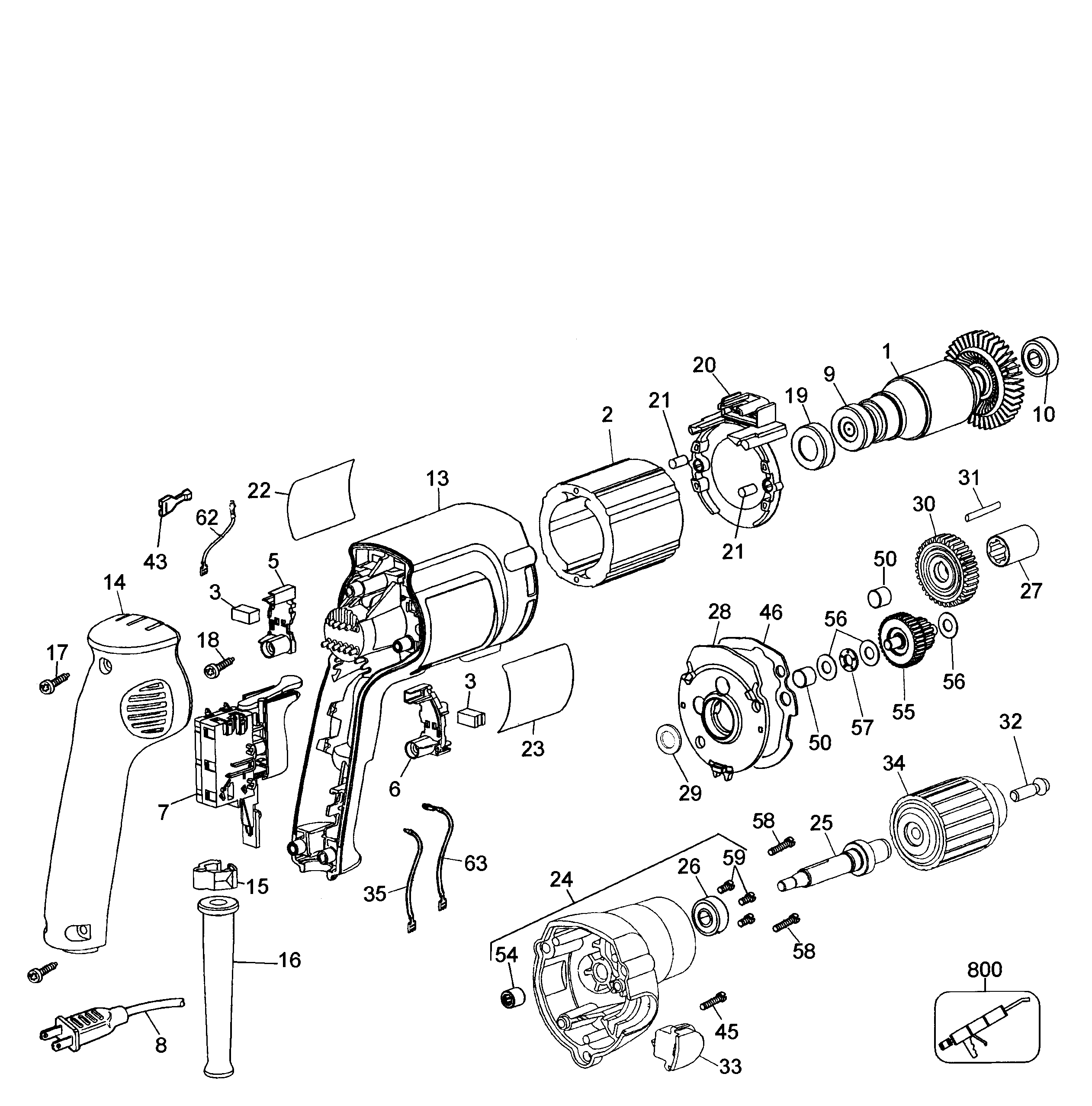

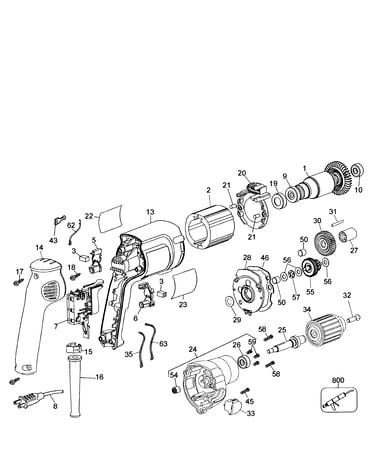

Drll assy diagram

Gasket

Part #176655-00

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Motor Brush 176846-04
#3

Drll assy diagram

Drill/driver motor brush

Part #176846-04

The manufacturer no longer makes this part, and there's no substitute part

Ndl Bearin 330004-00
#54

Drll assy diagram

Ndl bearin

Part #330004-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 091817-00
#56

Drll assy diagram

Washer

Part #091817-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#26

Drll assy diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-14
#45

Drll assy diagram

Screw

Part #330019-14

The manufacturer no longer makes this part, and there's no substitute part

Pin 099227-05
#31

Drll assy diagram

Pin

Part #099227-05

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Sleeve 949721-03
#19

Drll assy diagram

Black & decker sleeve

Part #949721-03

The manufacturer no longer makes this part, and there's no substitute part

Keyless Chuck 330075-68
#34

Drll assy diagram

Keyless chuck

Part #330075-68

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate 659209-00
#23

Drll assy diagram

Dewalt nameplate

Part #659209-00

The manufacturer no longer makes this part, and there's no substitute part
