Model # JB735SP4SS Official GE electric range

Here are the diagrams and repair parts for Official GE JB735SP4SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

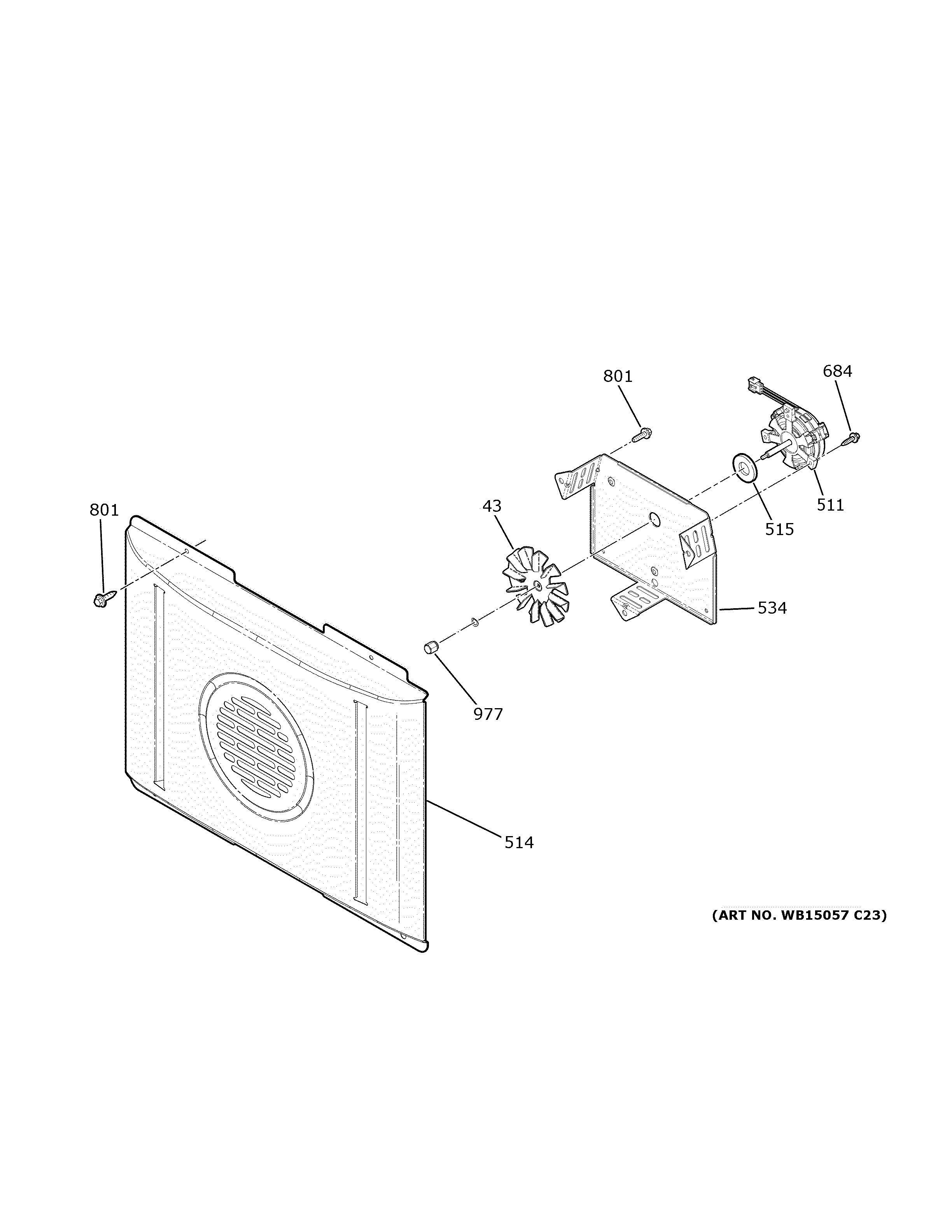

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Range Surface Element Control Switch WB24X25013
#24

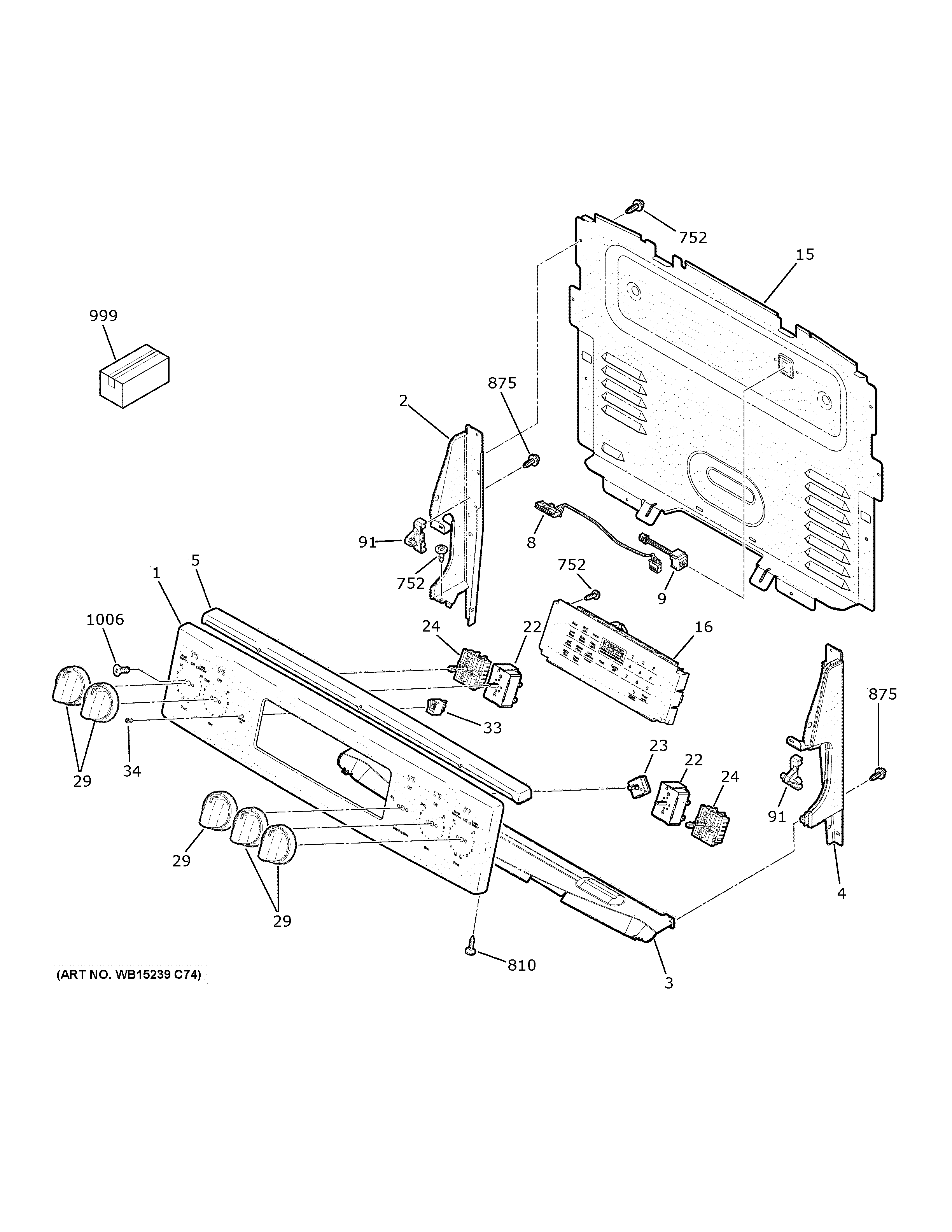

Control panel diagram

Range surface element control switch

Part #WB24X25013

BEST SELLER
$41.32 |
13% OFF Phone Price : $47.32
In Stock
G.e. Range Dual Radiant Surface Element, 6 To 9-in WB30X24111
#57

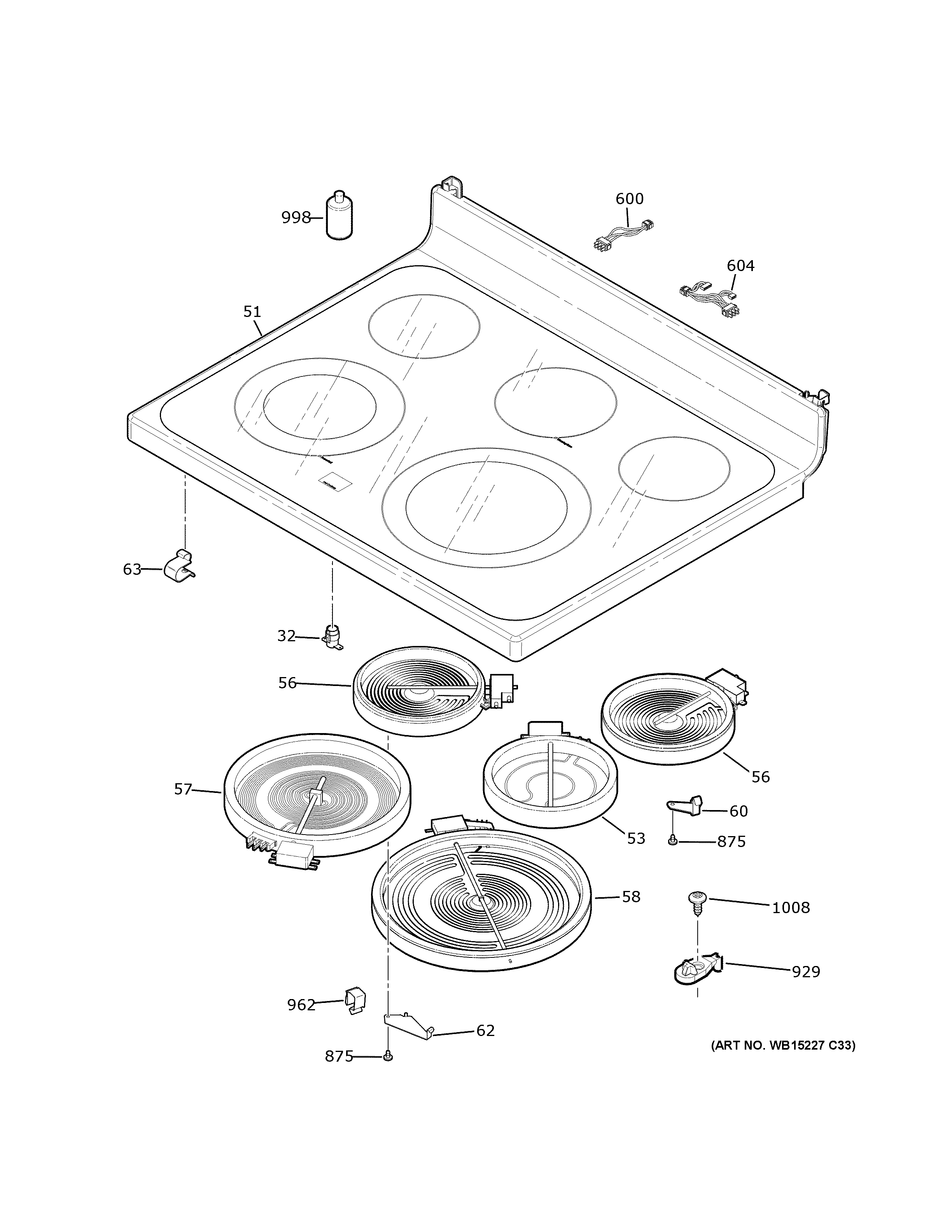

Cooktop diagram

G.e. range dual radiant surface element, 6 to 9-in

Part #WB30X24111

BEST SELLER
$94.70 |
6% OFF Phone Price : $100.70
In Stock
Range Halogen Surface Element WB30T10130
#58

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$143.90 |
8% OFF Phone Price : $155.90
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

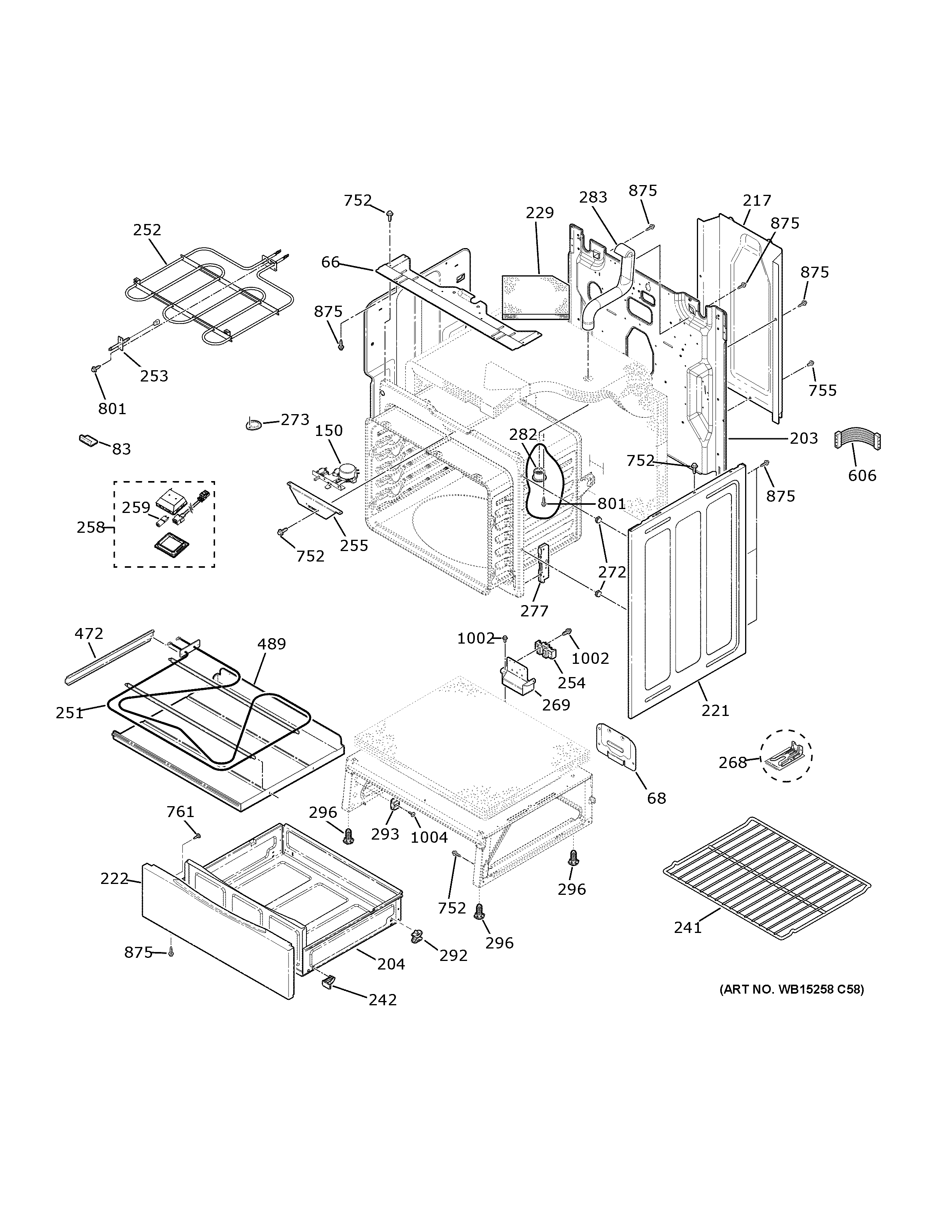

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$85.47 |
7% OFF Phone Price : $91.47
In Stock
Range Surface Element Control Switch, 1,250-watt WB24T10022
#22

Control panel diagram

Range surface element control switch, 1,250-watt

Part #WB24T10022

BEST SELLER
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Range Main Top Assembly (replaces Wb62x20857) WB62X25972
#51

Cooktop diagram

Range main top assembly (replaces wb62x20857)

Part #WB62X25972

BEST SELLER
$782.19 |
$12.00 OFF Phone Price : $794.19
Back Order
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

Door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Control And Faceplate WB27X41350
#16

Control panel diagram

Control and faceplate

Part #WB27X41350

Replaced by #WB27X47672

?
Manufacturer substitution
This part replaces WB27X41350. Substitute parts can look different from the original.
BEST SELLER
$191.10
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
