Model # JUCFP242HM11 Official Jenn-Air double refrigerator drawer

Here are the diagrams and repair parts for Official Jenn-Air JUCFP242HM11 double refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Wine Cooler Leveling Leg 4344763
#18

Cabinet parts diagram

Wine cooler leveling leg

Part #4344763

Replaced by #W11106296

?
Manufacturer substitution
This part replaces 4344763. Substitute parts can look different from the original.
This item is not returnable
$11.28 |
15% OFF Phone Price : $13.28
In Stock
Main Pcb W11568810
#5

Unit parts diagram

Main pcb

Part #W11568810

$281.20
In Stock
Wrap, Stainless Steel W11594164
Wrap, stainless steel

Part #W11594164

$507.28
In Stock
Switch, Case W11568783
#8

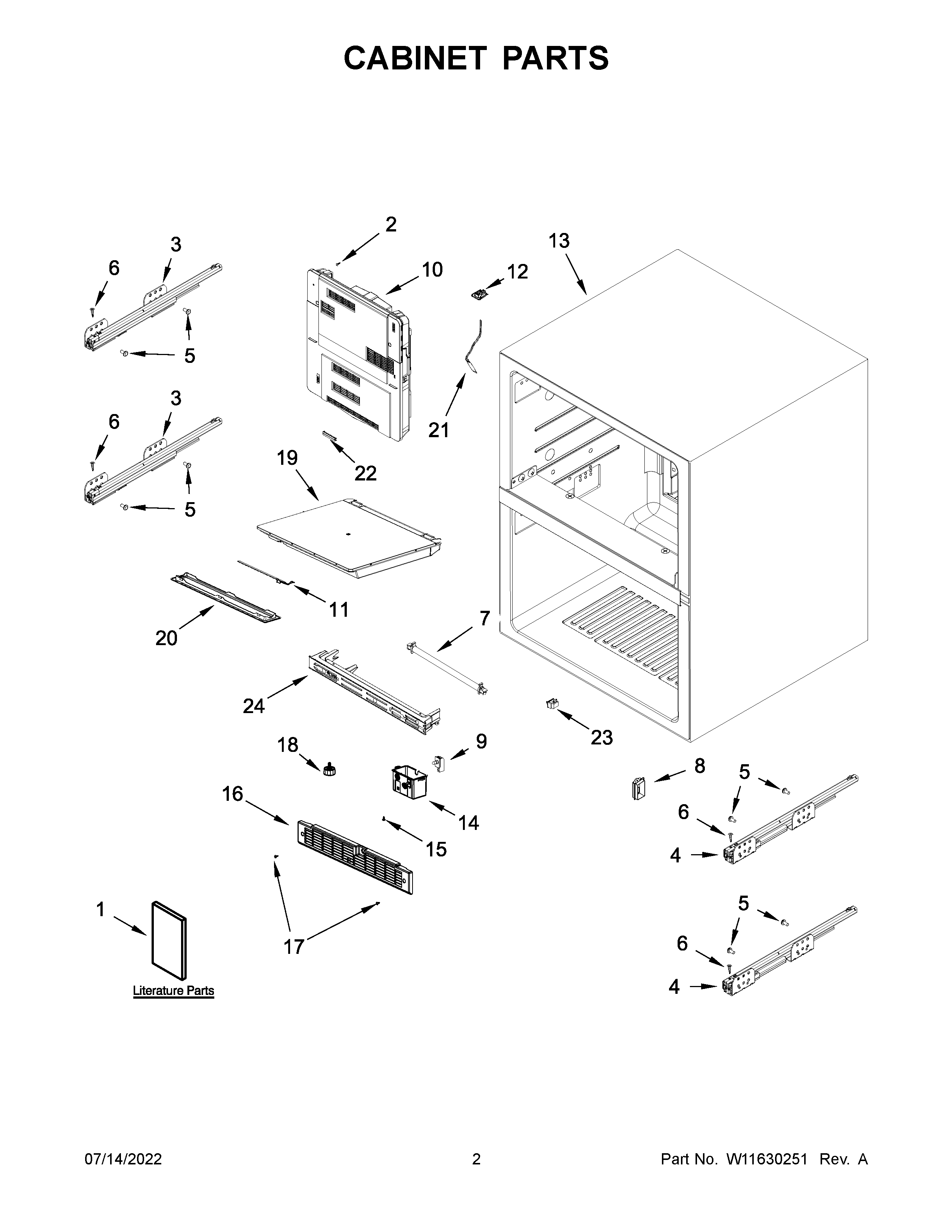

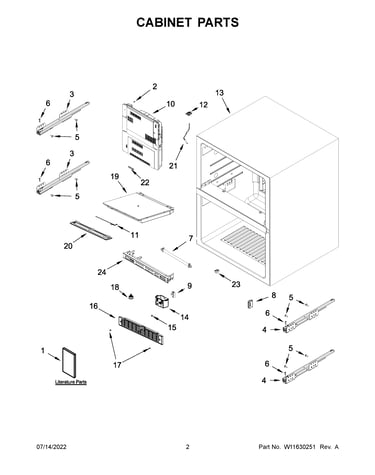

Cabinet parts diagram

Switch, case

Part #W11568783

$13.22
In Stock
Gasket W11568947
#5

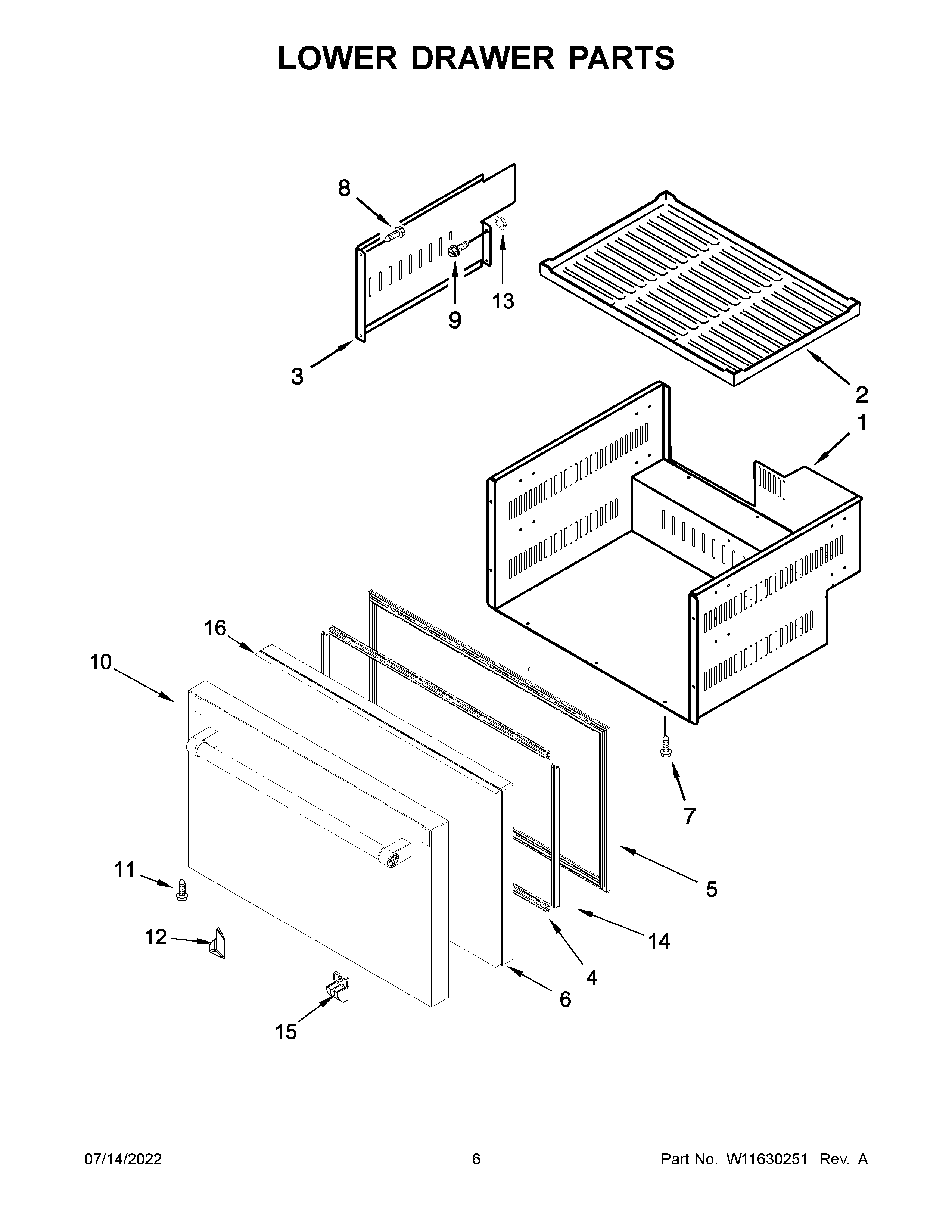

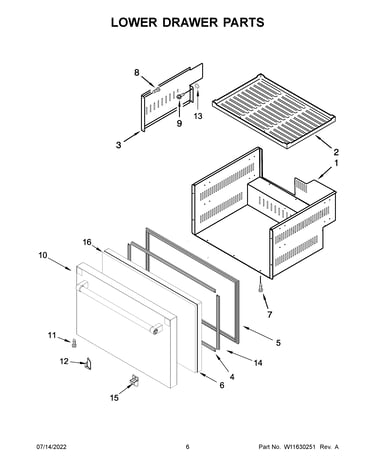

Lower drawer parts diagram

Gasket

Part #W11568947

$44.26
In Stock
Connector, Cover W11568787
#12

Cabinet parts diagram

Connector, cover

Part #W11568787

$13.12
In Stock
Rail Assembly, Right Hand W11599890
#4

Cabinet parts diagram

Rail assembly, right hand

Part #W11599890

$99.53
In Stock
Drawer Box Assembly, Lower W11630379
#1

Lower drawer parts diagram

Drawer box assembly, lower

Part #W11630379

$349.70
In Stock
Side Cover W11360590
#16

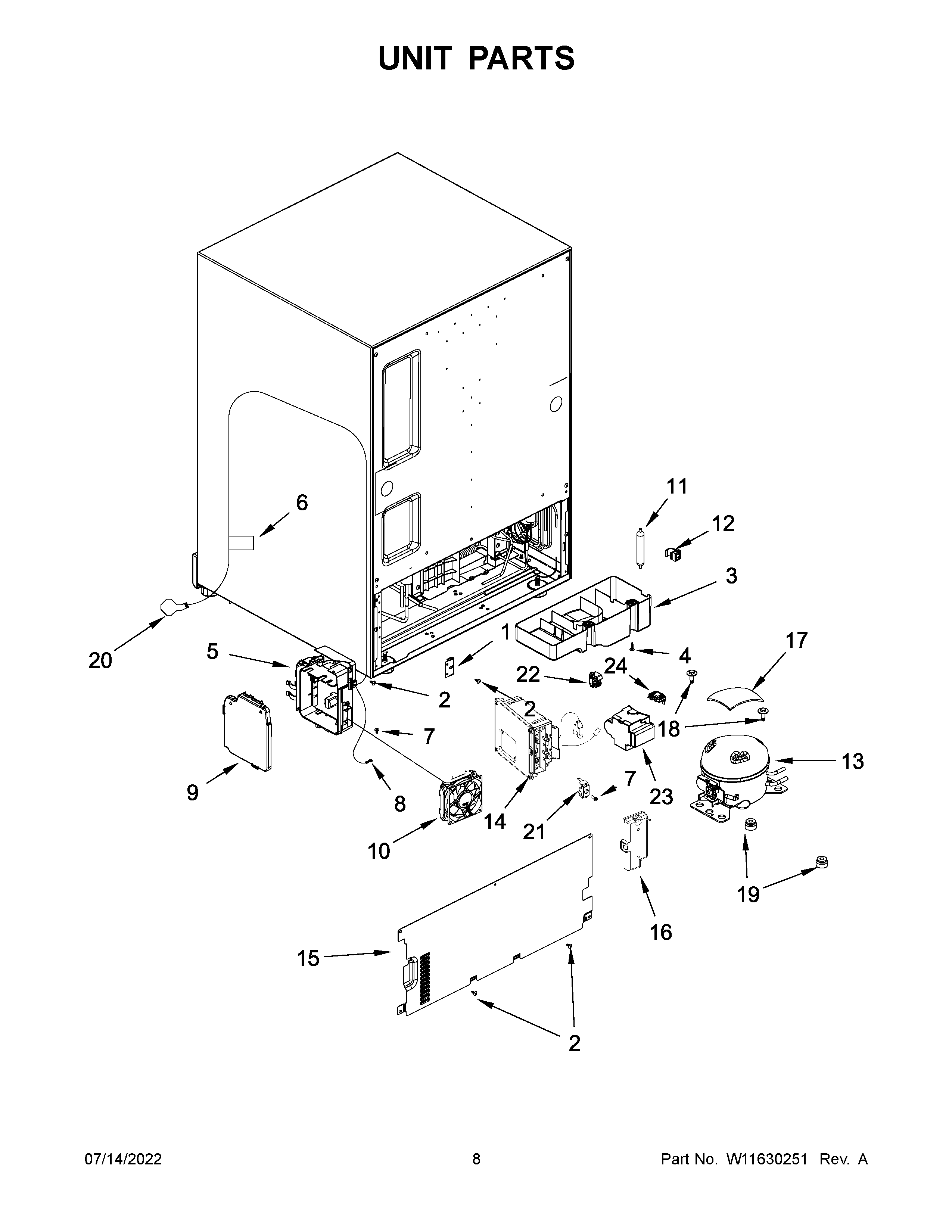

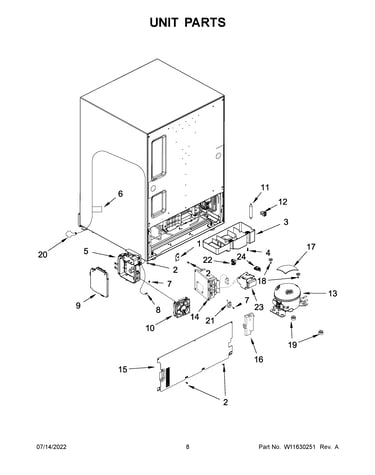

Unit parts diagram

Side cover

Part #W11360590

$42.98
In Stock
Lamp Cover W11568841
#19

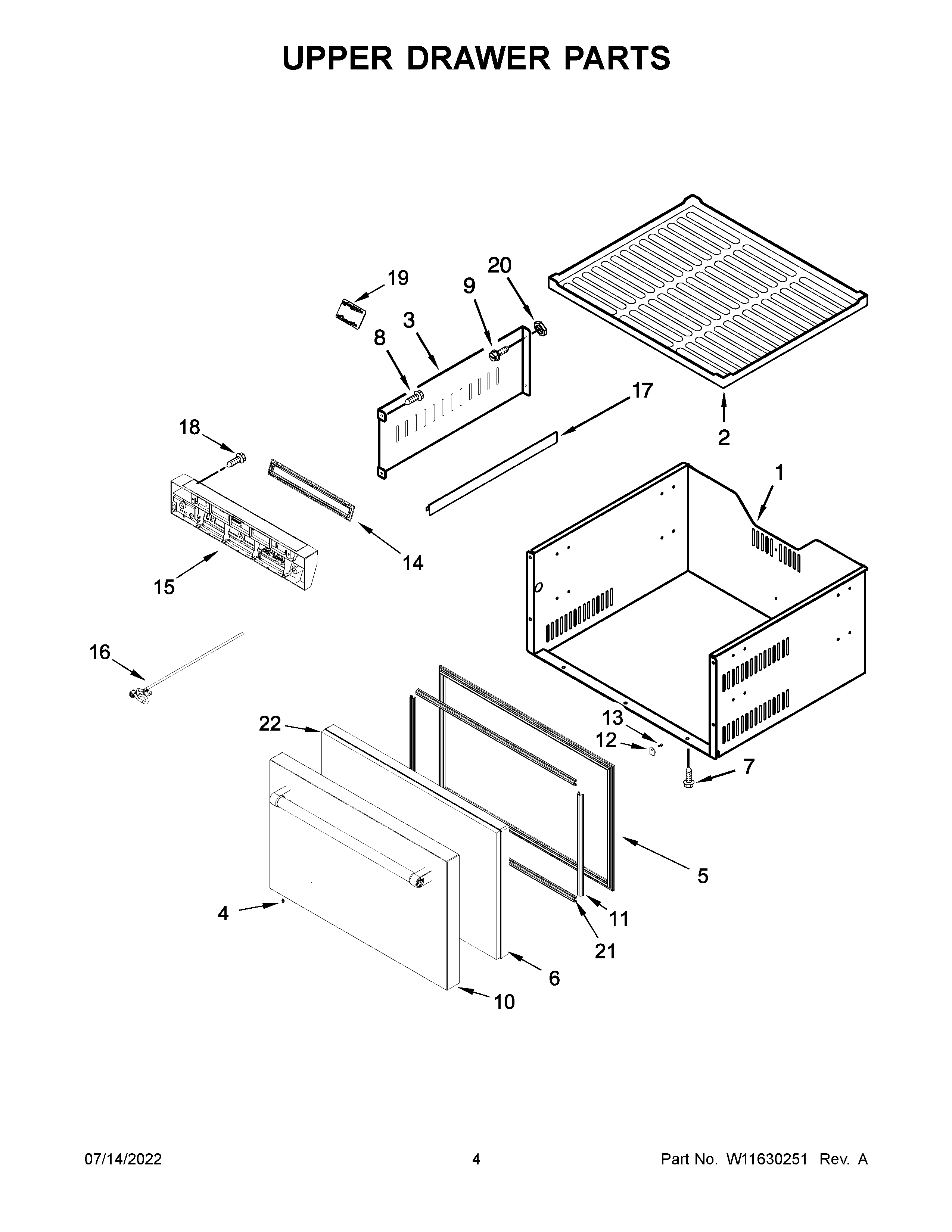

Upper drawer parts diagram

Lamp cover

Part #W11568841

$15.70
In Stock
