Model # SHV46C13UC/21 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHV46C13UC-21 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

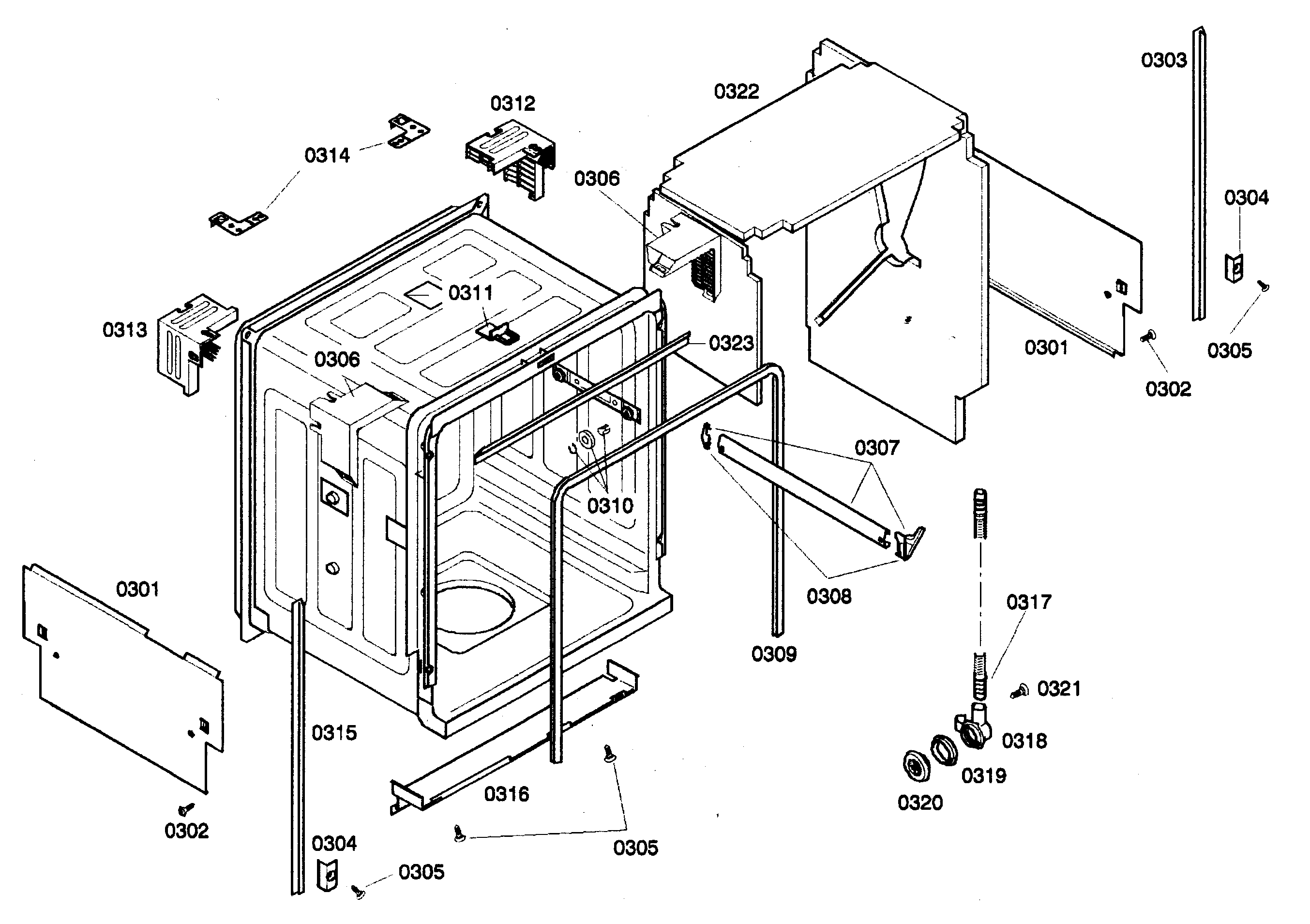

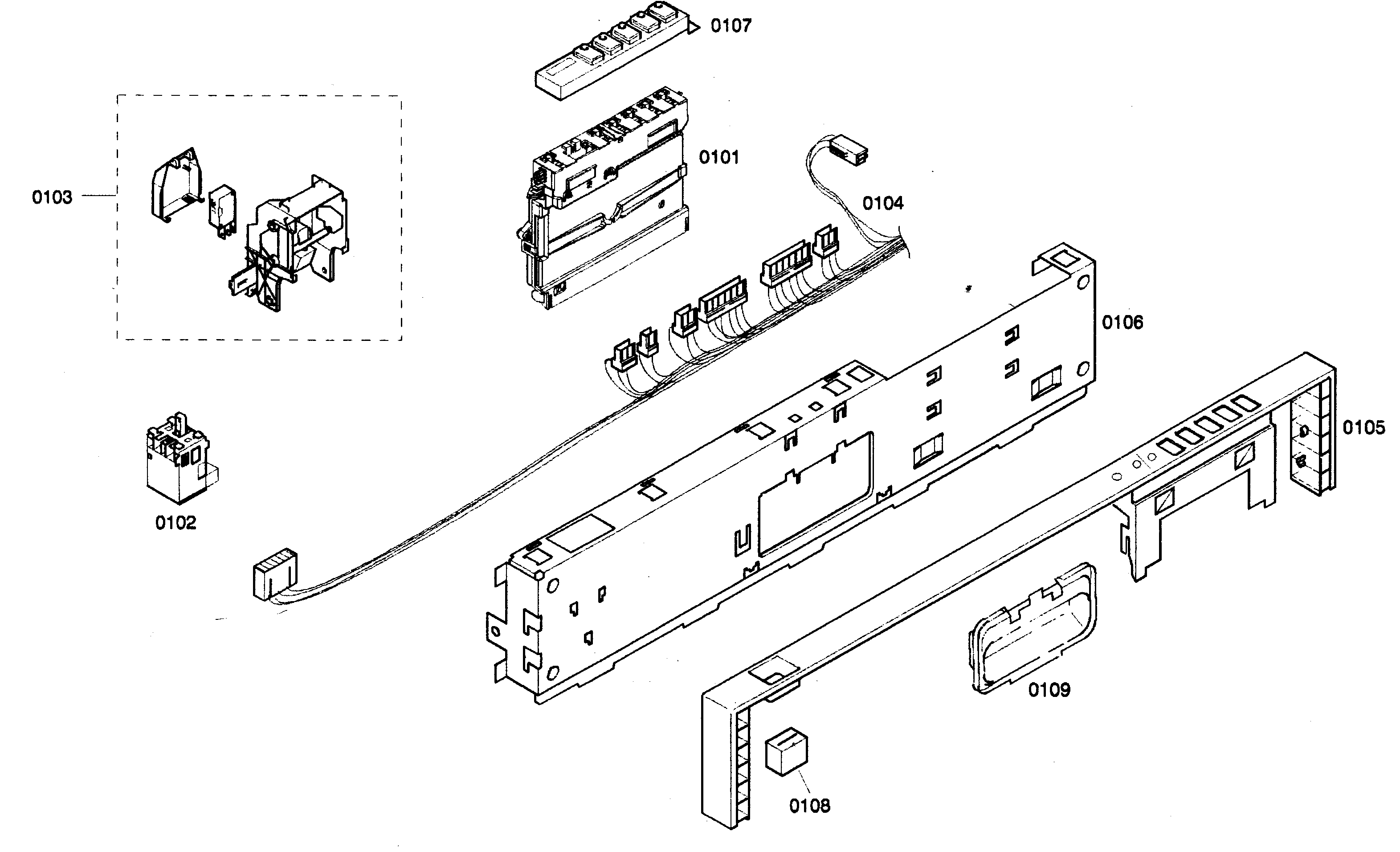

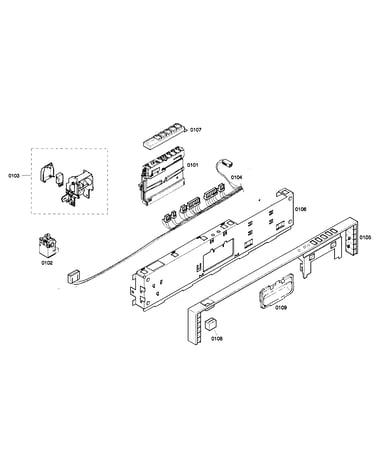

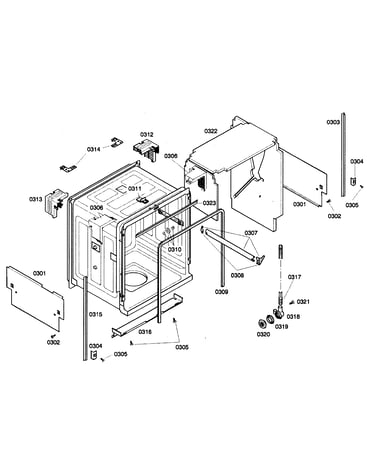

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Motor 167082
#419

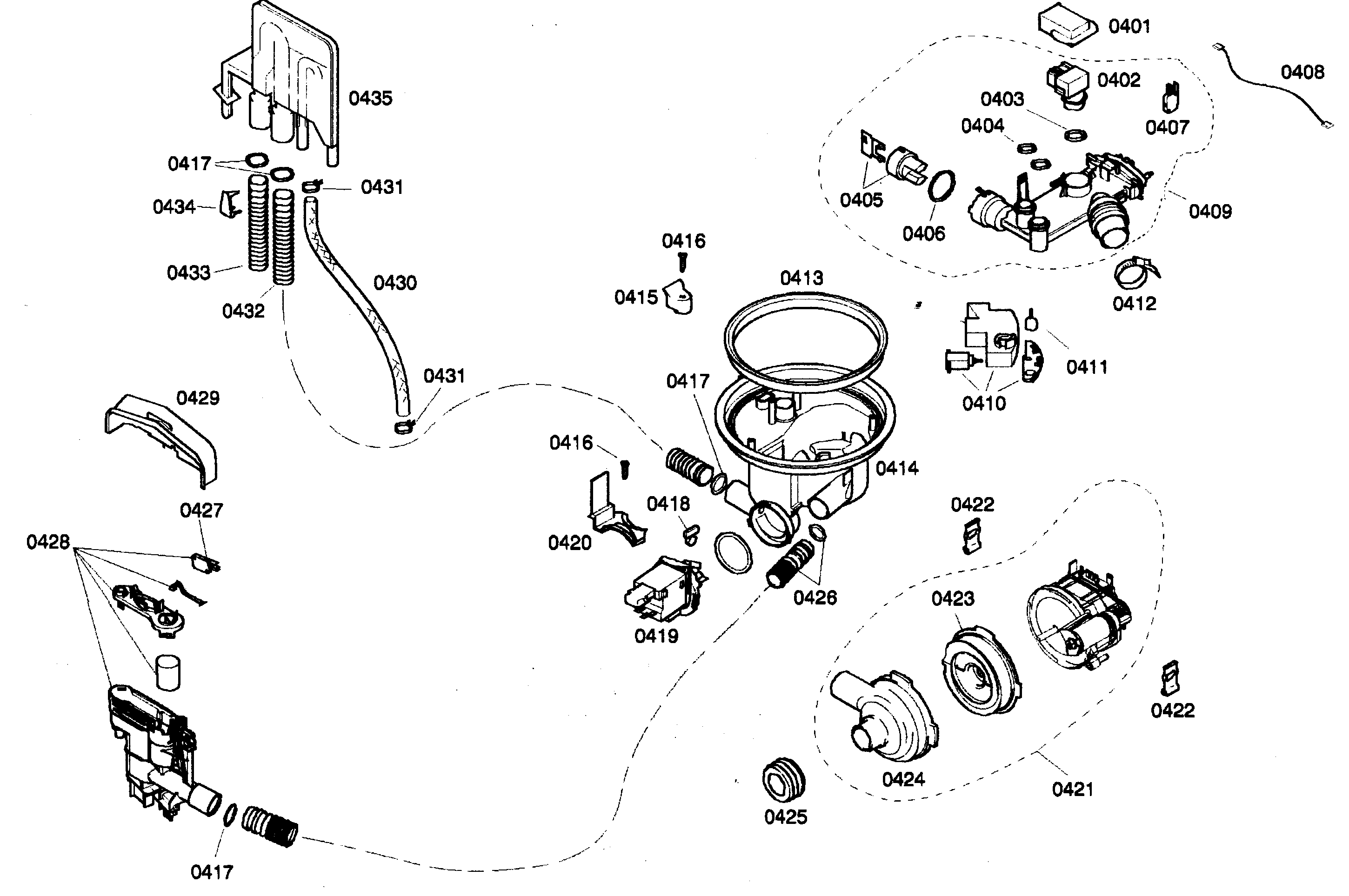

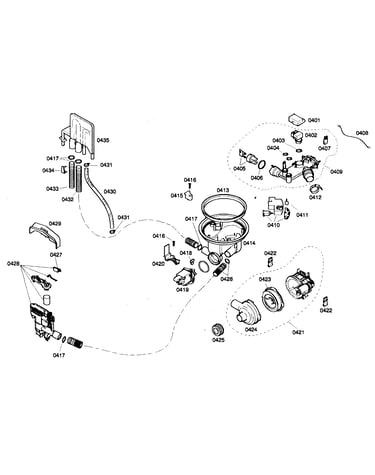

Pump assy diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Recirculation Pump Assembly 442548
#421

Pump assy diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Door Seal 432490

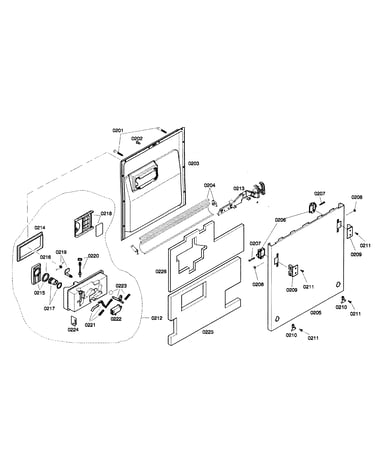

#204

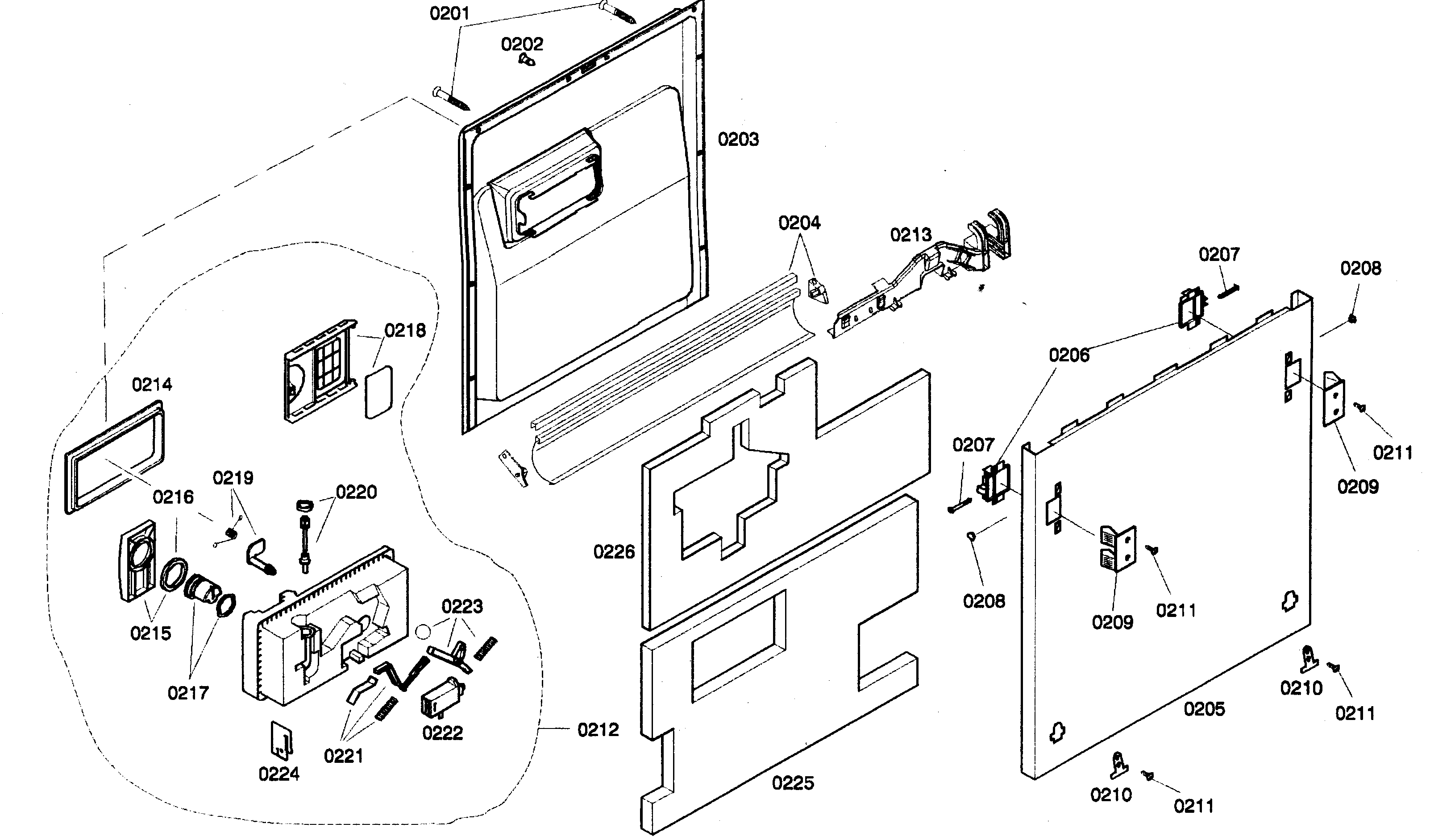

Door panel diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock

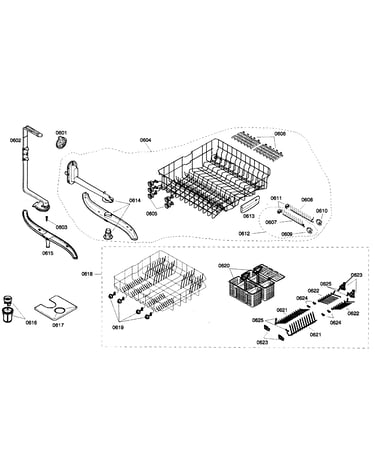

Lower Rack 434644
#618

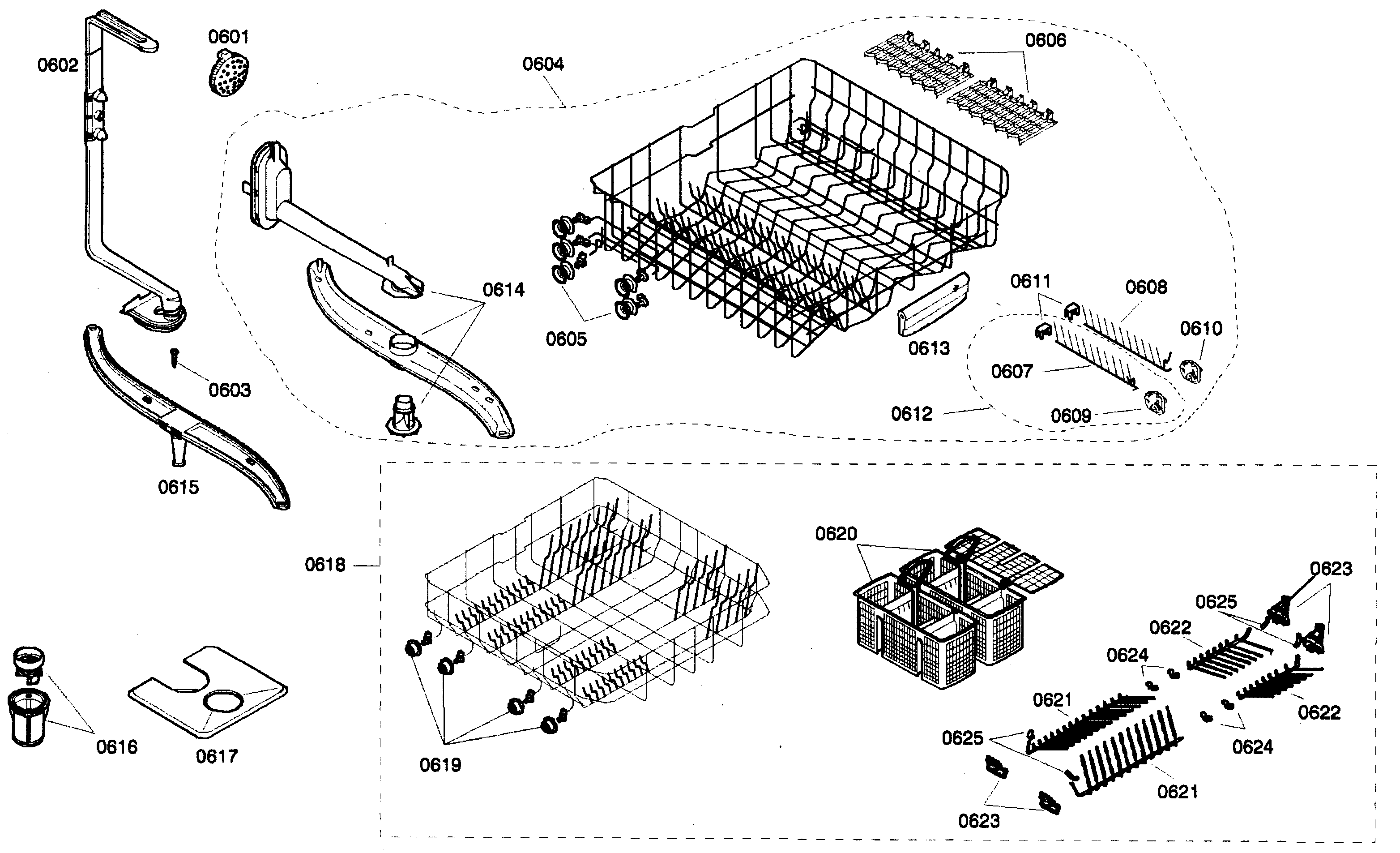

Accessory diagram

Lower rack

Part #434644

Replaced by #00249276

?
Manufacturer substitution
This part replaces 434644. Substitute parts can look different from the original.
$278.54 |
$12.00 OFF Phone Price : $290.54
Back Order
Dishwasher Drain Hose 298564
Dishwasher drain hose

Part #298564

Replaced by #00298564

?
Manufacturer substitution
This part replaces 298564. Substitute parts can look different from the original.
$31.39 |
16% OFF Phone Price : $37.39
In Stock
Dishwasher Water Inlet Valve 263833
#435

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Tine Latch 418498
#624

Accessory diagram

Tine latch

Part #418498

Replaced by #00418498

?
Manufacturer substitution
This part replaces 418498. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dishwasher Spray Arm Assembly, Upper 359976
#614

Accessory diagram

Dishwasher spray arm assembly, upper

Part #359976

Replaced by #00359976

?
Manufacturer substitution
This part replaces 359976. Substitute parts can look different from the original.
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Bearing 165296
#504

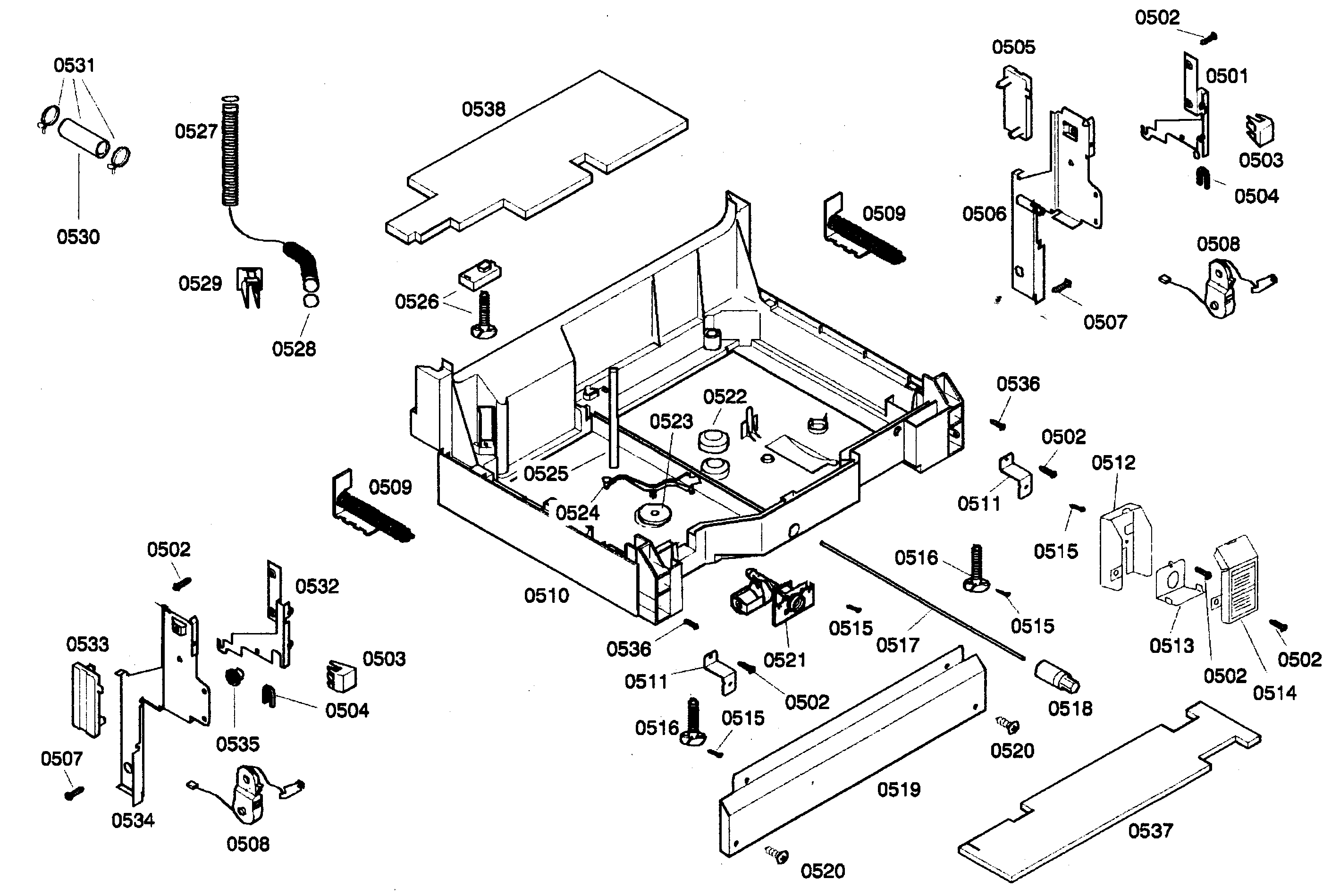

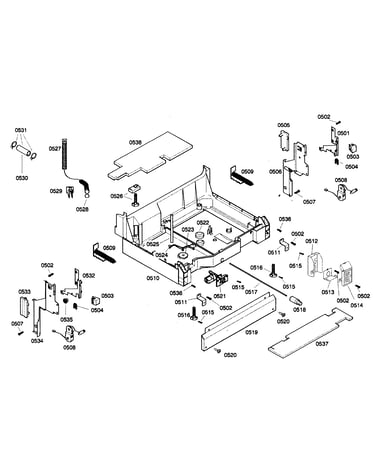

Base assy diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Gasket 263102
#413

Pump assy diagram

Gasket

Part #263102

Replaced by #00263102

?
Manufacturer substitution
This part replaces 263102. Substitute parts can look different from the original.
This item is not returnable
$26.59 |
18% OFF Phone Price : $32.59
In Stock
