Model # BBA48A2A/P1206403C Official Amana blower technical information

Here are the diagrams and repair parts for Official Amana BBA48A2A/P1206403C blower technical information, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
BBA48A2A/P1206403C Blower Technical Information
Screw M0267144
Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
Grommet M0282015
Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw M0211021
#411

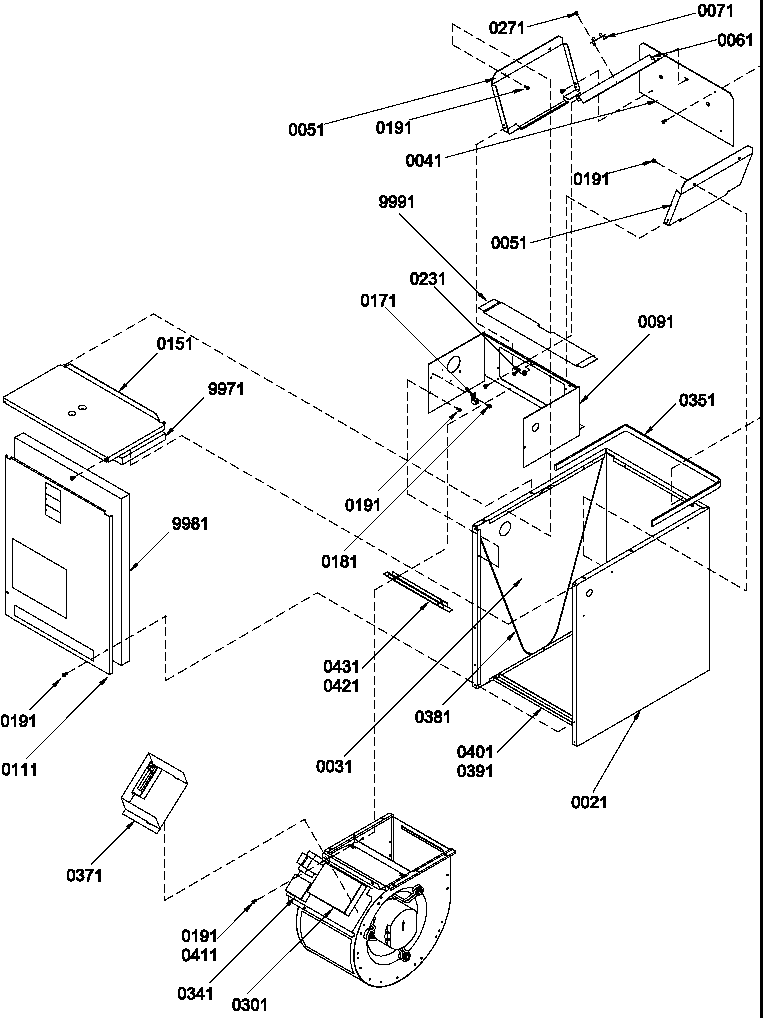

Cabinet assembly diagram

Screw

Part #M0211021

Replaced by #WP489474

?
Manufacturer substitution
This part replaces M0211021. Substitute parts can look different from the original.
This item is not returnable
$4.86
17% OFF Phone Price : $5.86
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Motor-blower 10843304
#41

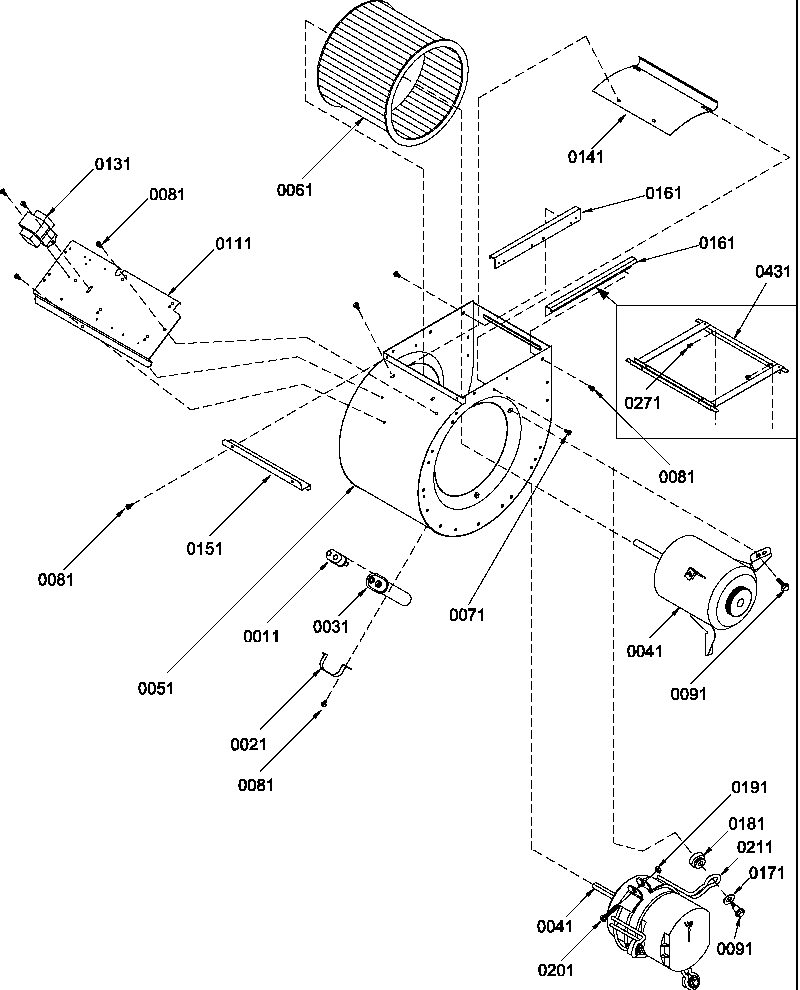

Blower assembly - 24m, 36m, 48m btu models diagram

Motor-blower

Part #10843304

The manufacturer no longer makes this part, and there's no substitute part

Cut-off C6121803
#141

Blower assembly - 24m, 36m, 48m btu models diagram

Cut-off

Part #C6121803

The manufacturer no longer makes this part, and there's no substitute part

Strength Rail 20233802
Strength rail

Part #20233802

The manufacturer no longer makes this part, and there's no substitute part

Rail-blower 9-7 11080701
#161

Blower assembly - 24m, 36m, 48m btu models diagram

Rail-blower 9-7

Part #11080701

The manufacturer no longer makes this part, and there's no substitute part

Cut-off C6121811
#141

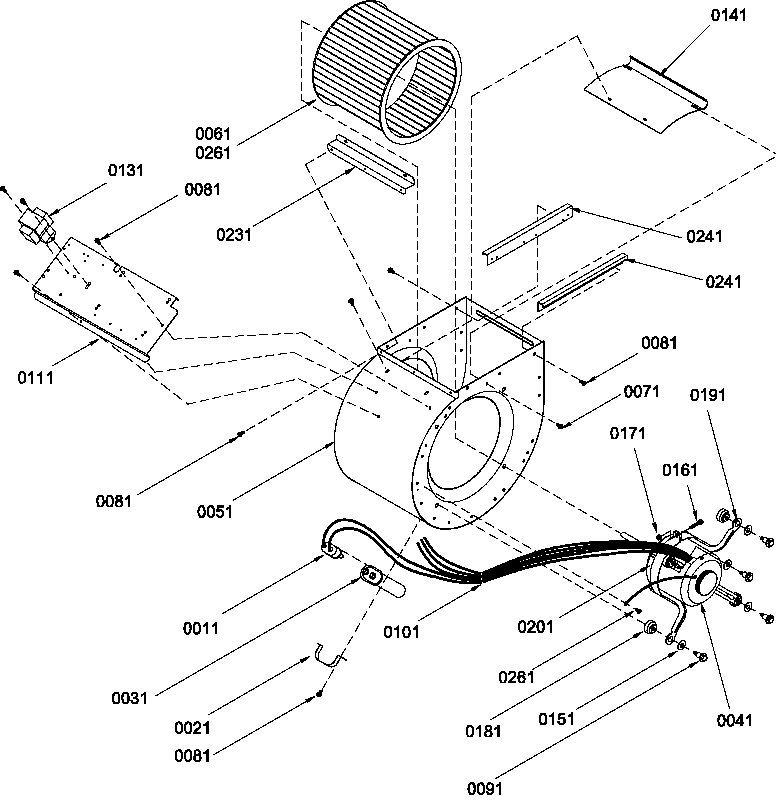

Blower assembly - 60m btu models (bba60a2a/p1206404c) (bbc36a2a/p1206405c) (bbc48a2a/p1206407c) (bbc60a2a/p1206406c) diagram

Cut-off

Part #C6121811

The manufacturer no longer makes this part, and there's no substitute part
