Model # 1068555681 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 1068555681 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

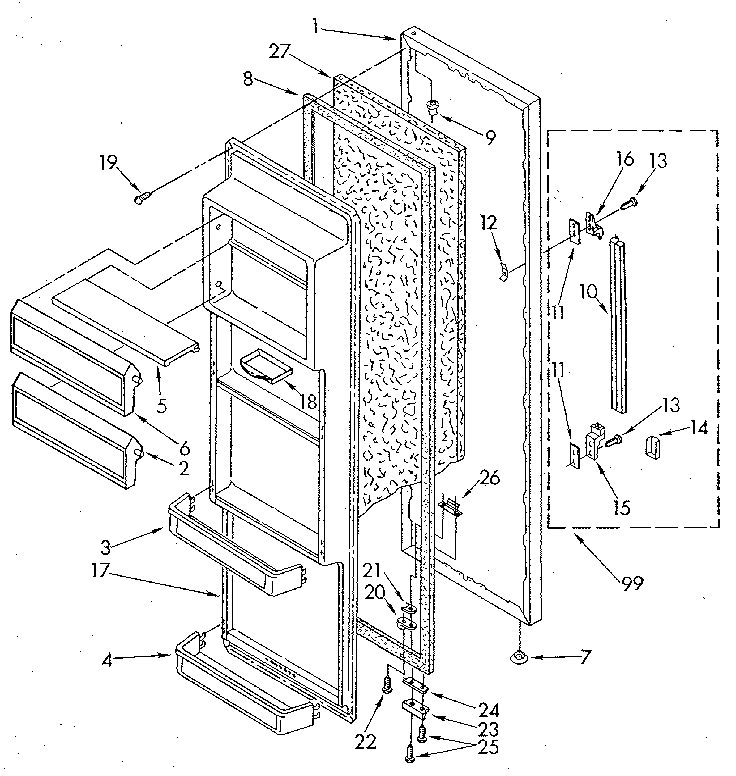

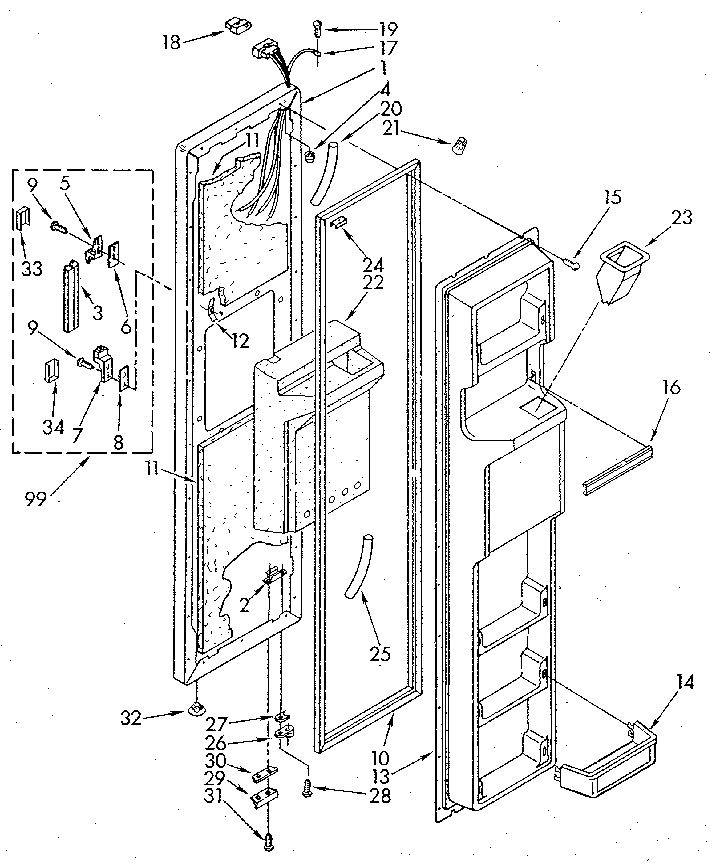

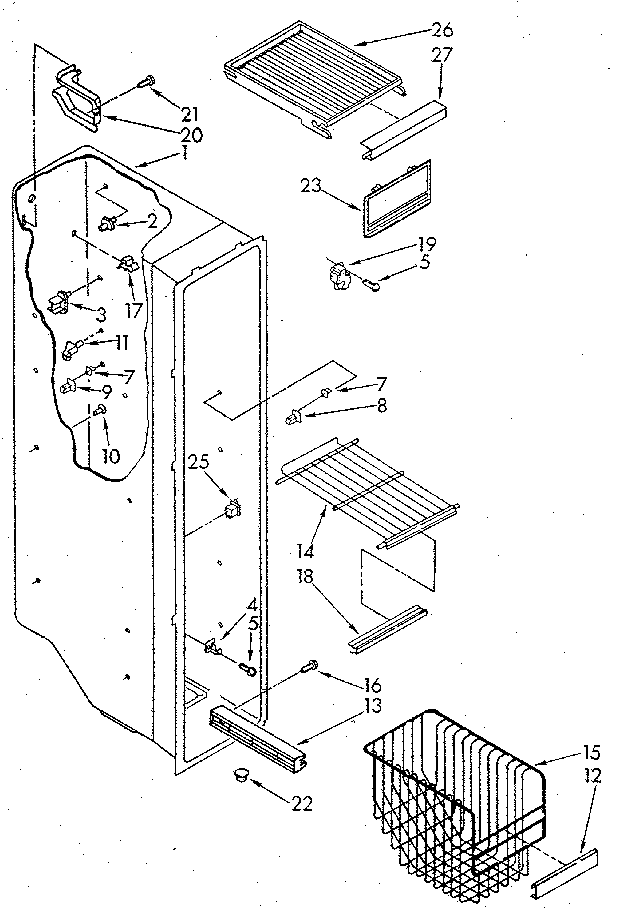

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 409 parts  |
Refrigerator Ice Maker 4210317
#100

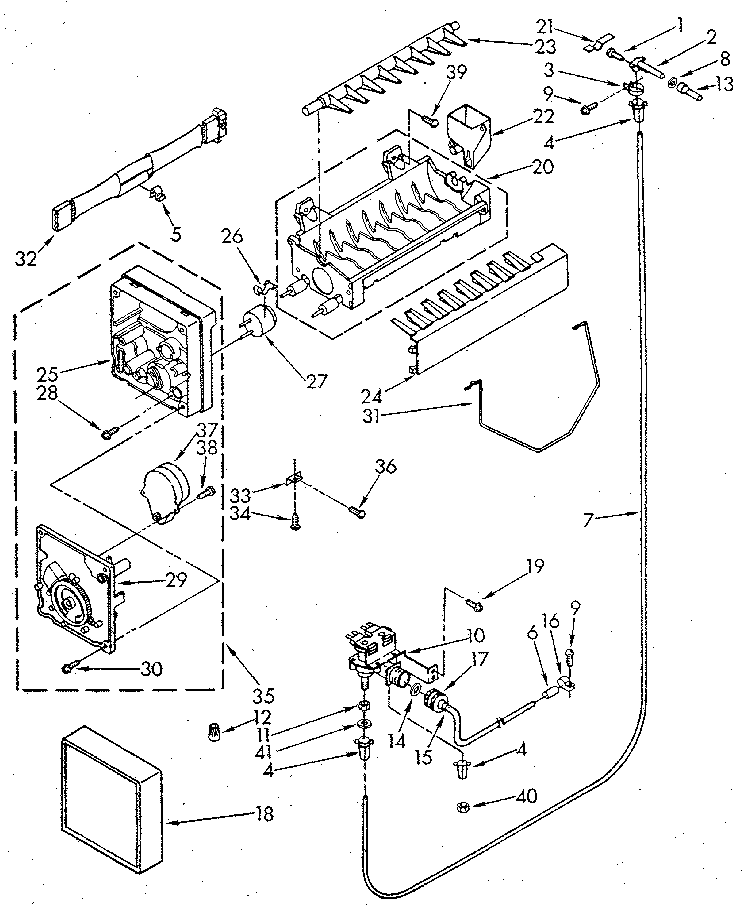

Icemaker diagram

Refrigerator ice maker

Part #4210317

Replaced by #4317943

?
Manufacturer substitution
This part replaces 4210317. Substitute parts can look different from the original.
BEST SELLER
$96.71 |
11% OFF Phone Price : $108.71
In Stock
Refrigerator Thermostat 1115244
#9

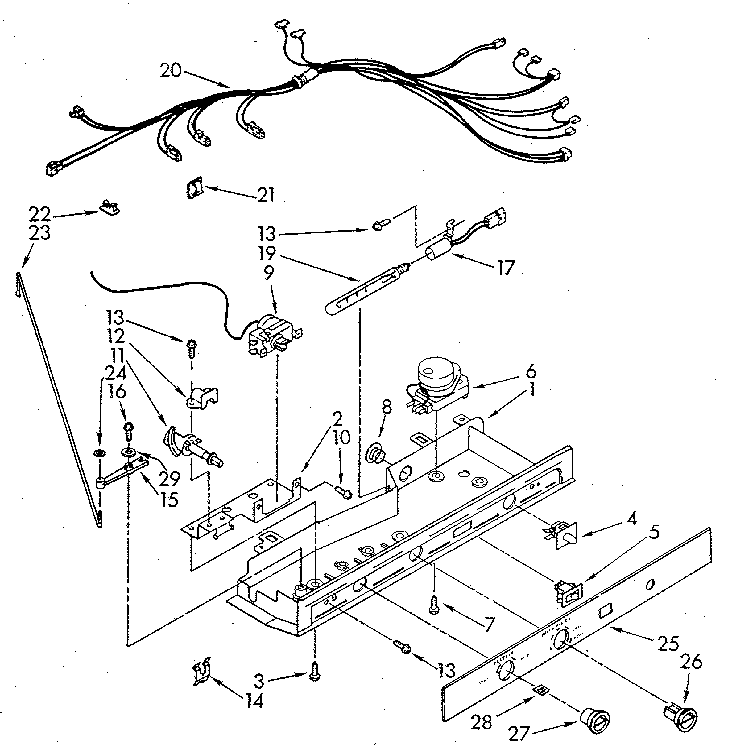

Control diagram

Refrigerator thermostat

Part #1115244

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 1115244. Substitute parts can look different from the original.
BEST SELLER
$73.25 |
8% OFF Phone Price : $79.25
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Refrigerator Door Cam (black) 1115901
#54

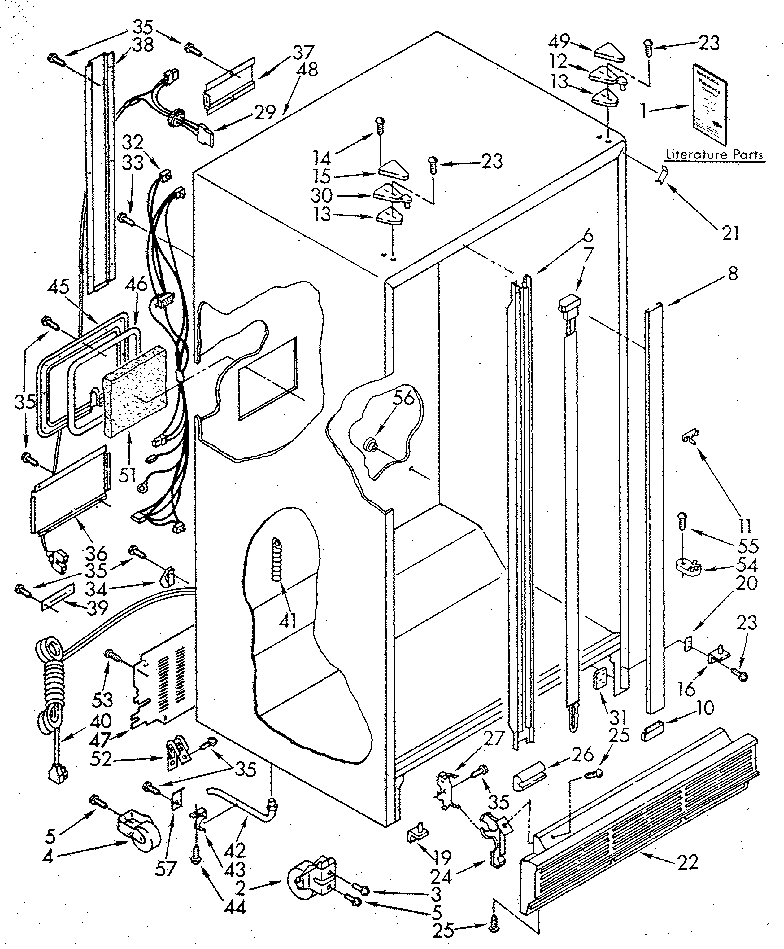

Cabinet diagram

Refrigerator door cam (black)

Part #1115901

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 1115901. Substitute parts can look different from the original.
BEST SELLER
$10.86 |
16% OFF Phone Price : $12.86
In Stock
Defrost Timer 1127570
#6

Control diagram

Defrost timer

Part #1127570

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 1127570. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Refrigerator Container 1115342
#9

Freezer interior diagram

Refrigerator container

Part #1115342

Replaced by #WPW10670845

?
Manufacturer substitution
This part replaces 1115342. Substitute parts can look different from the original.
BEST SELLER
$78.52 |
7% OFF Phone Price : $84.52
In Stock
Run Capacitor 1114291
#17

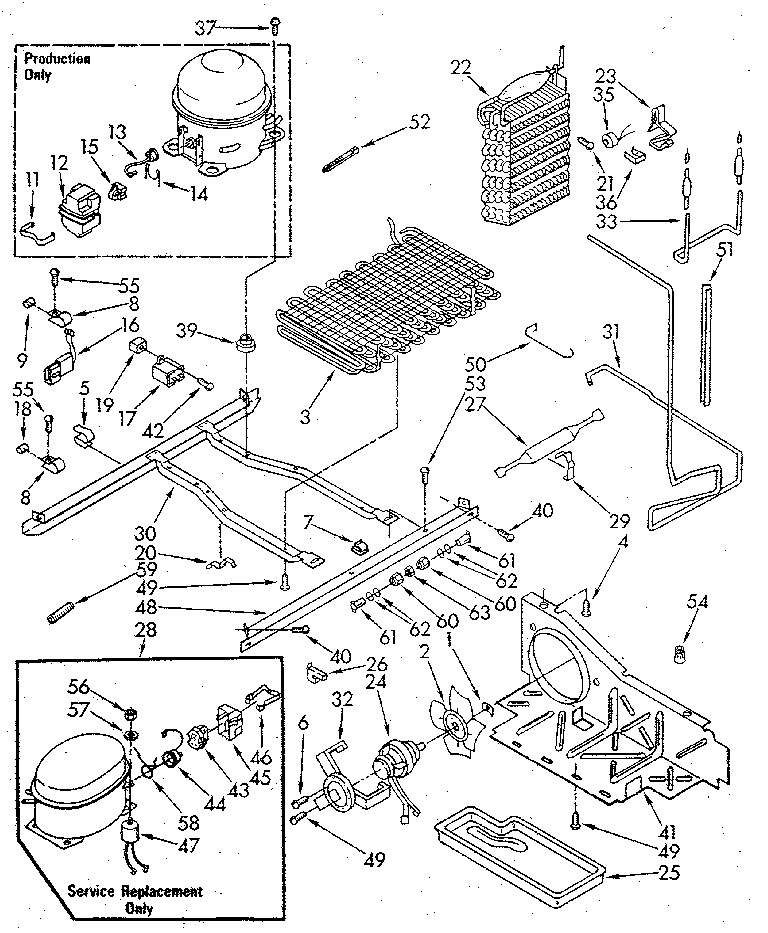

Unit diagram

Run capacitor

Part #1114291

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 1114291. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Water Tube 1119096
#44

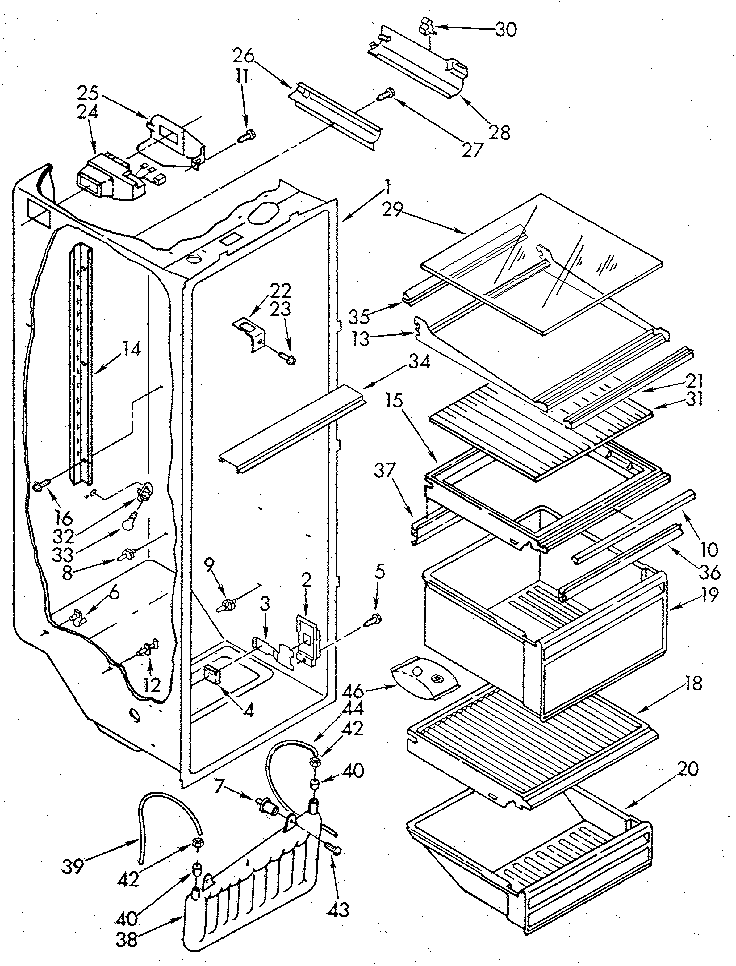

Refrigerator liner diagram

Refrigerator water tube

Part #1119096

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 1119096. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
Refrigerator Water Tube 840860
#6

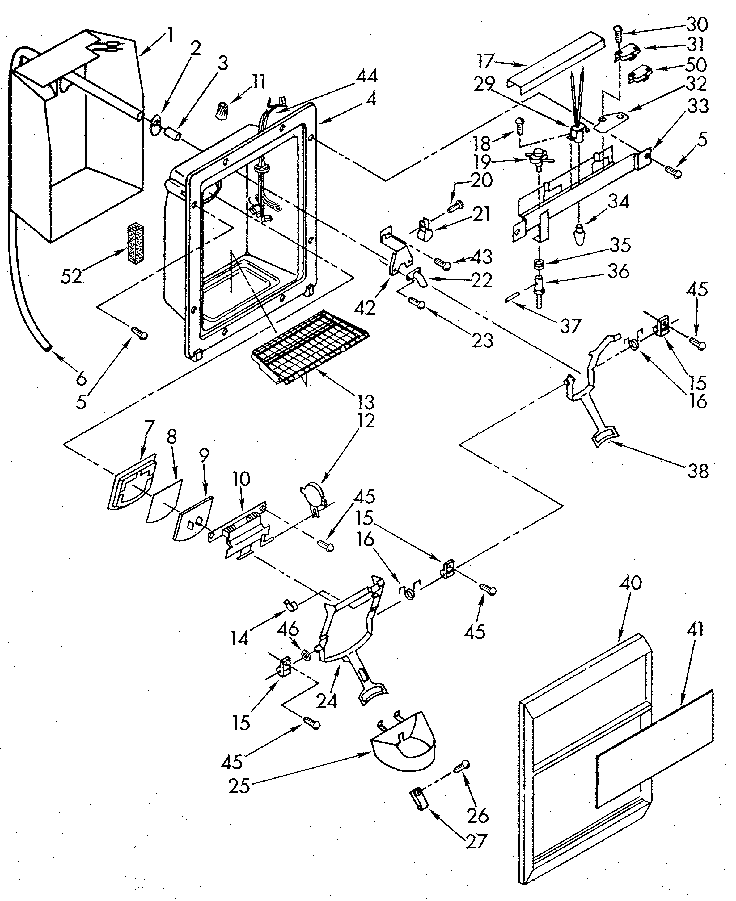

Dispenser front diagram

Refrigerator water tube

Part #840860

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 840860. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
Refrigerator Tube 653415
#7

Icemaker diagram

Refrigerator tube

Part #653415

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 653415. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
