Model # PRD366EHC/07 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRD366EHC-07 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

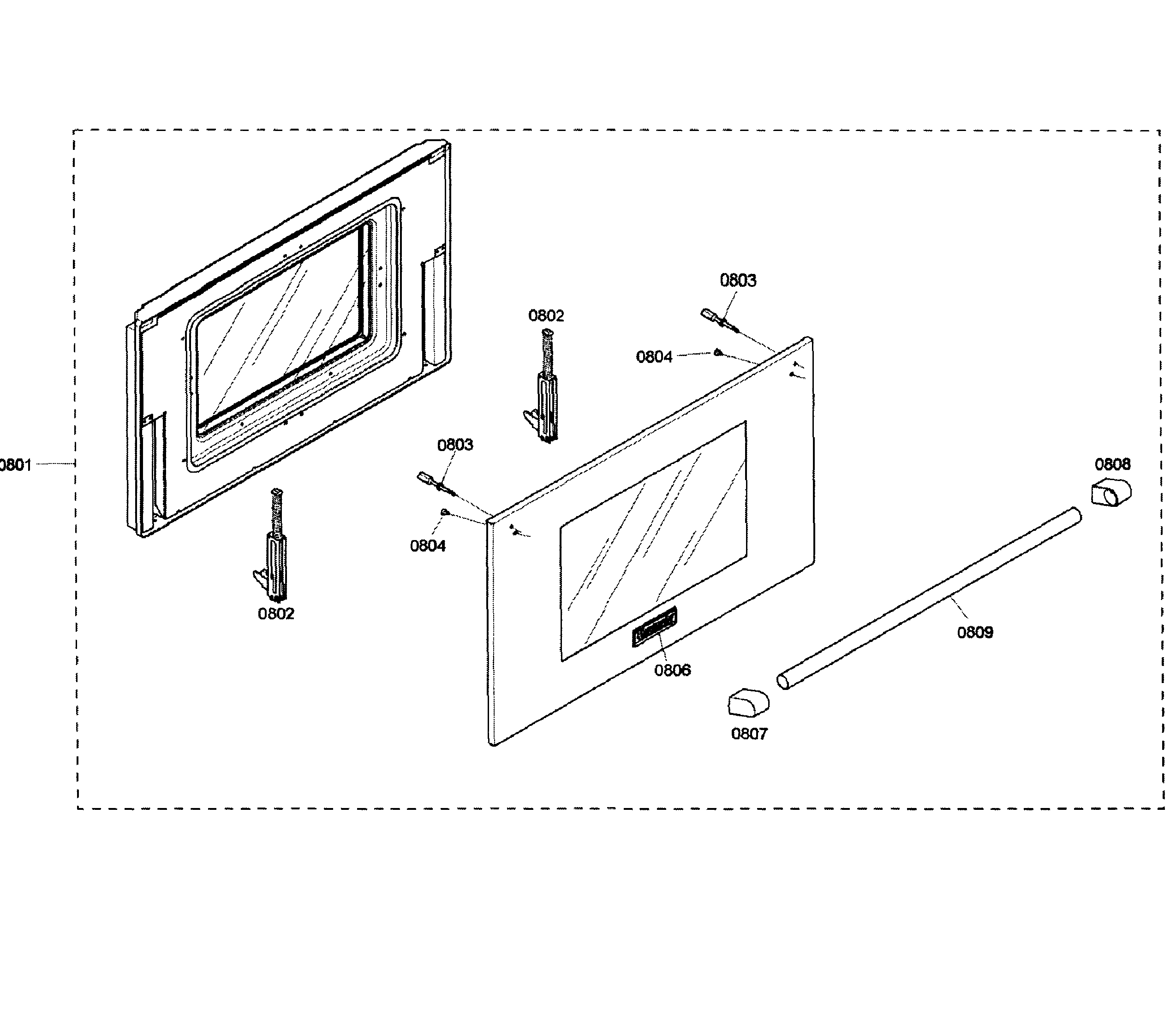

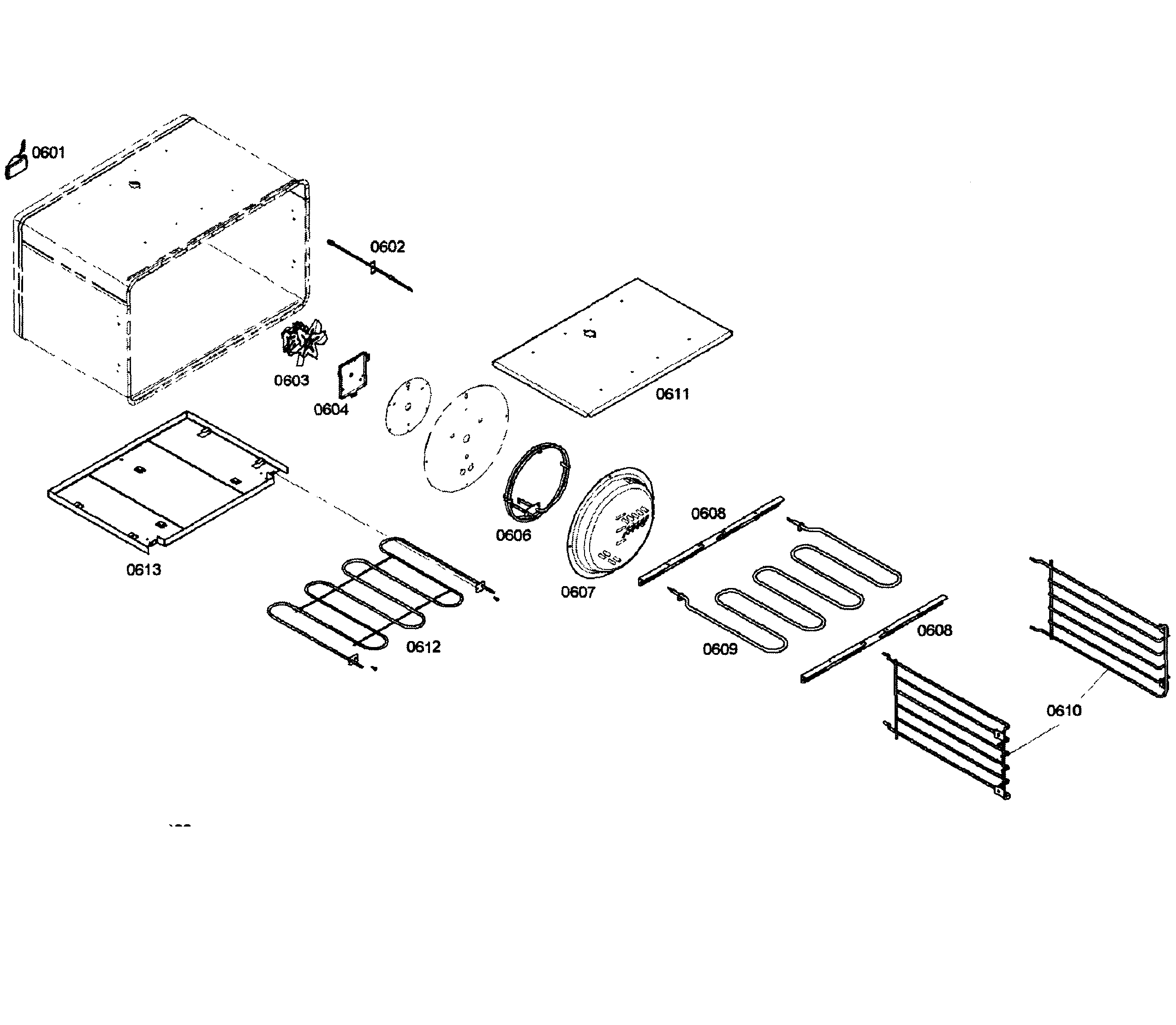

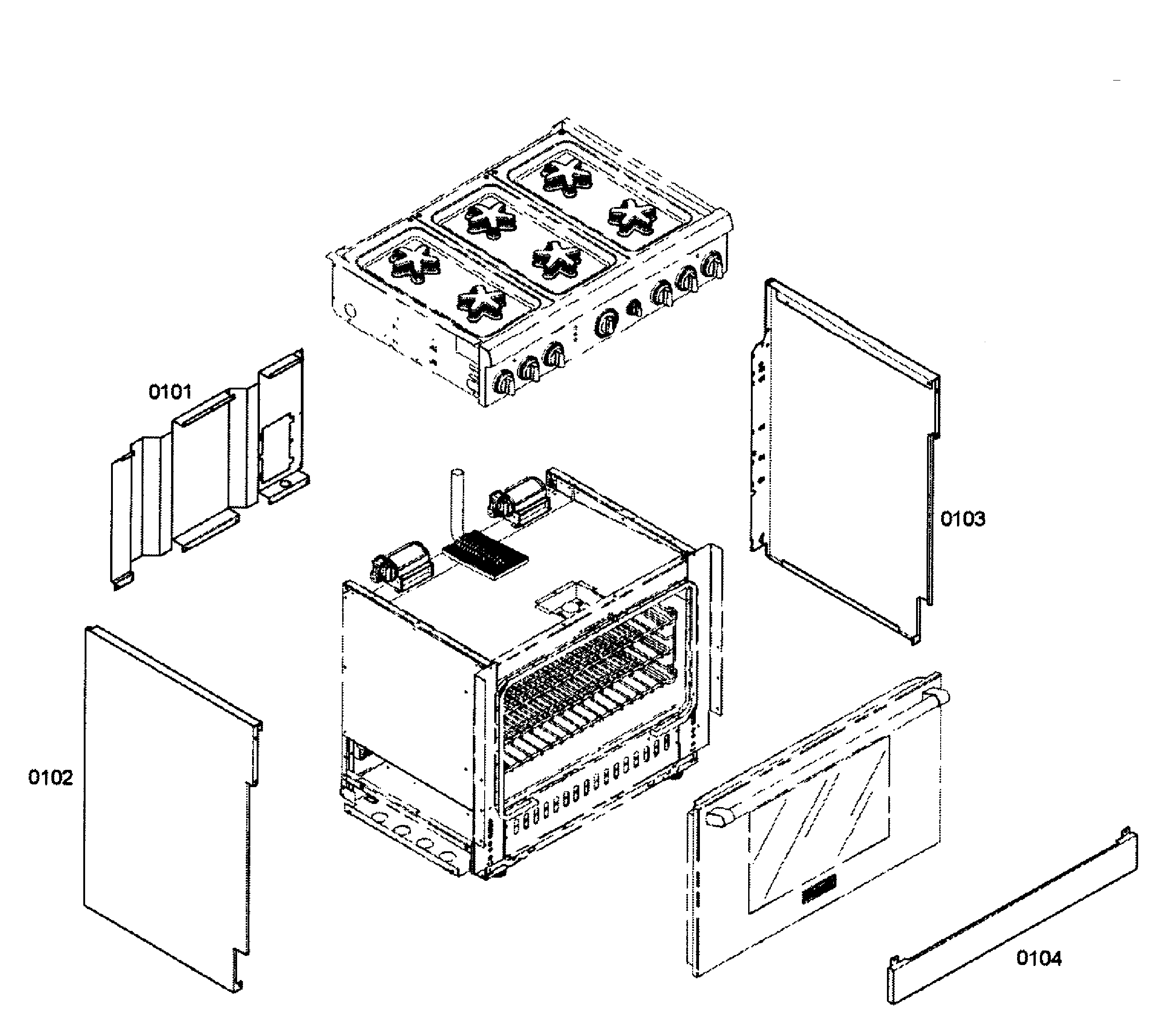

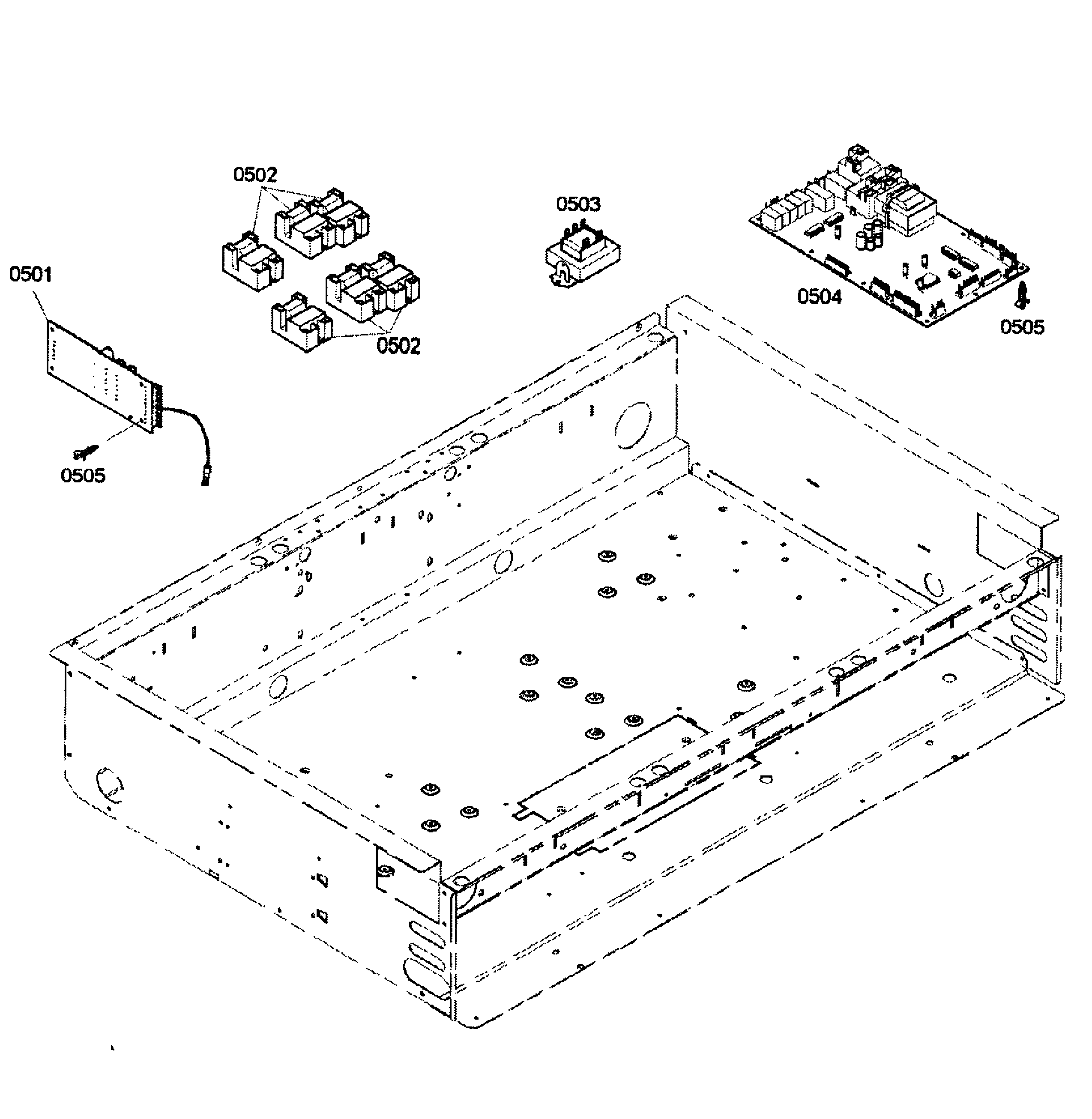

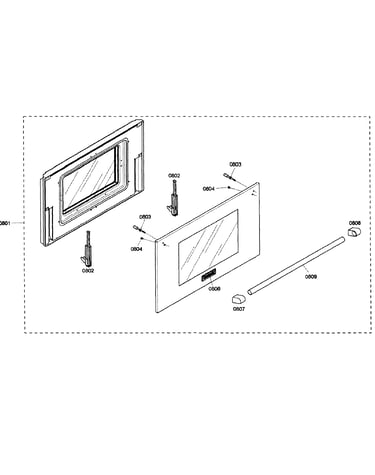

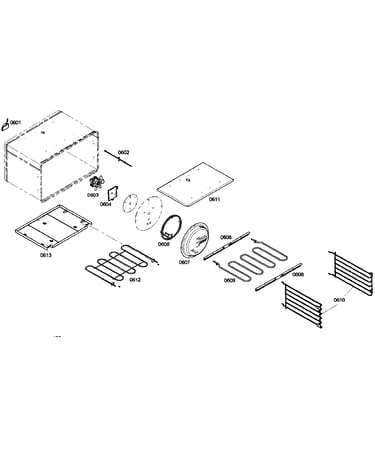

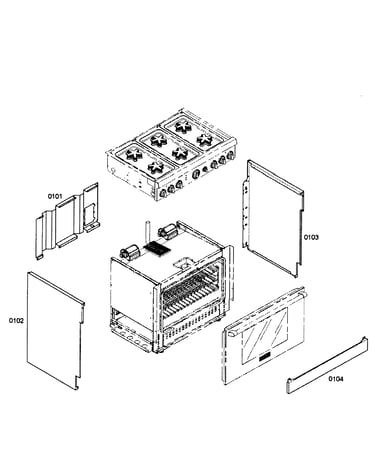

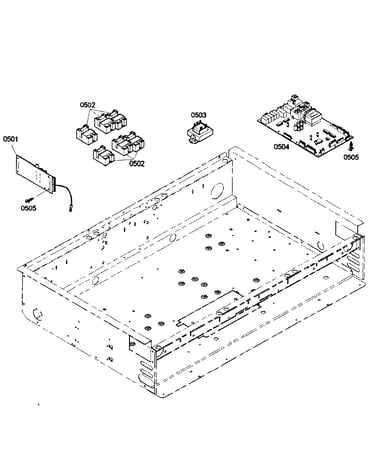

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Holder 600607
#310

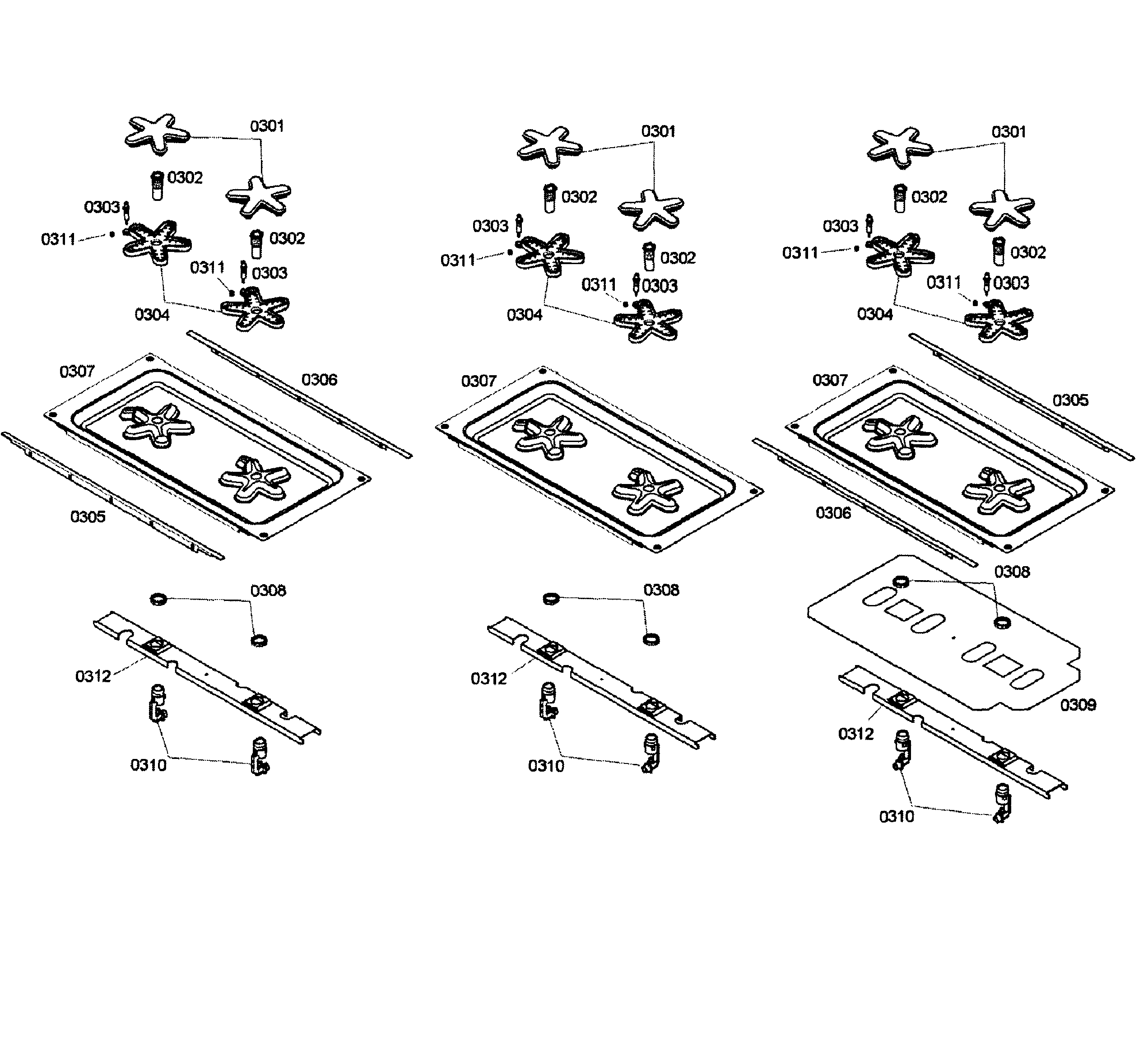

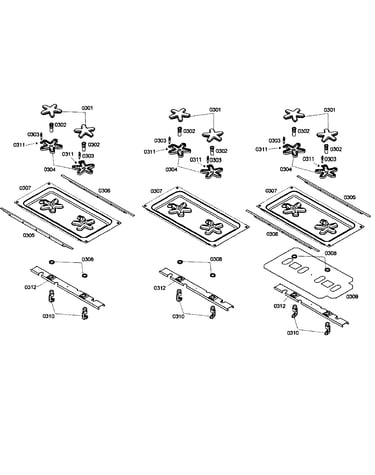

Burner assy diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Range Surface Burner Grate Pad Set 413552
#NI

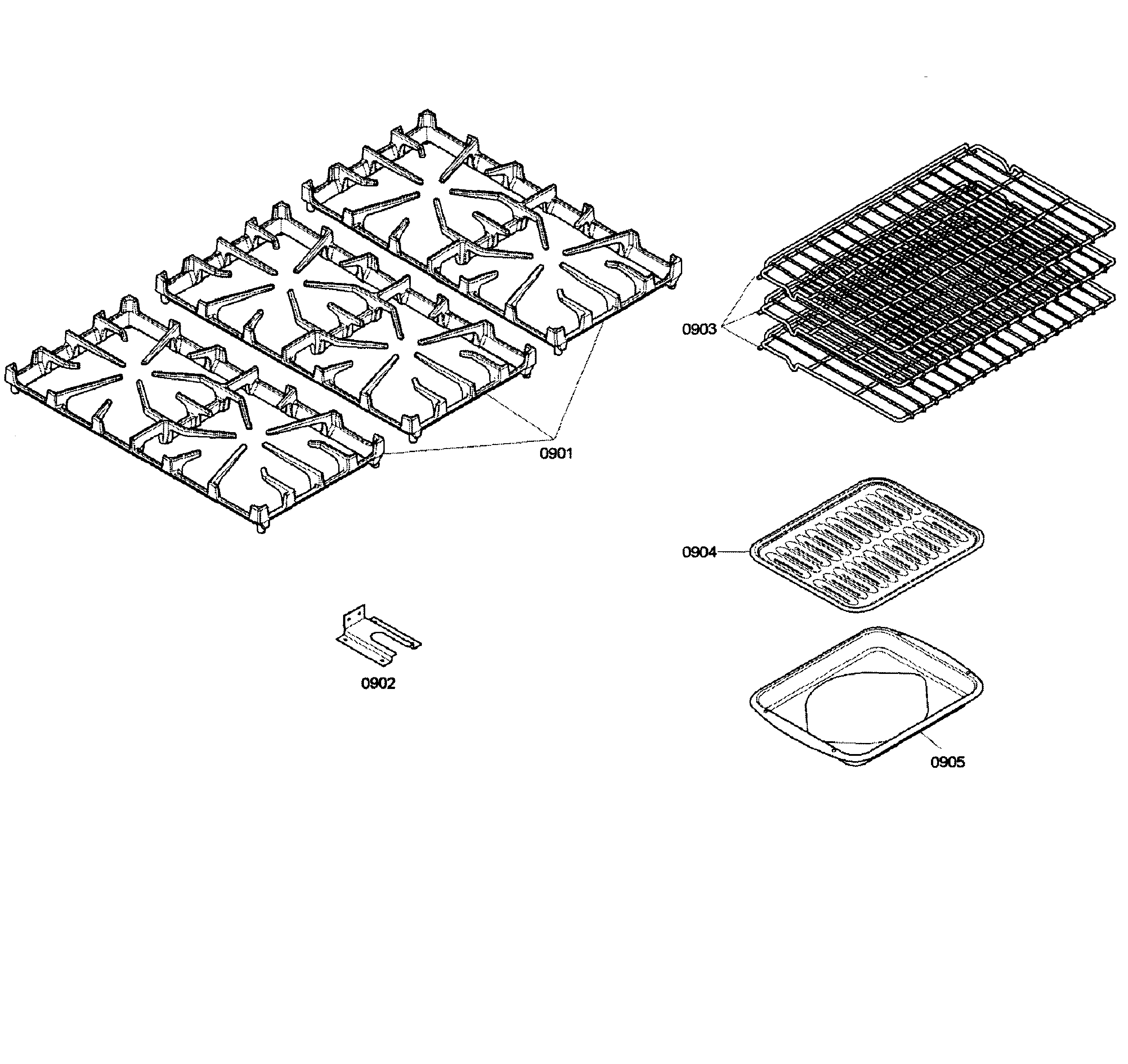

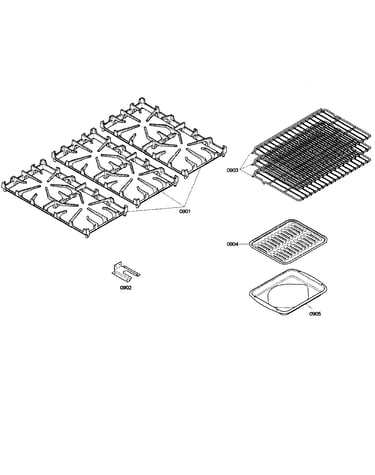

Grate assy diagram

Range surface burner grate pad set

Part #413552

Replaced by #00413552

?
Manufacturer substitution
This part replaces 413552. Substitute parts can look different from the original.
This item is not returnable
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Range Surface Burner Tube 189023
#302

Burner assy diagram

Range surface burner tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Potentiometer 611346
#208

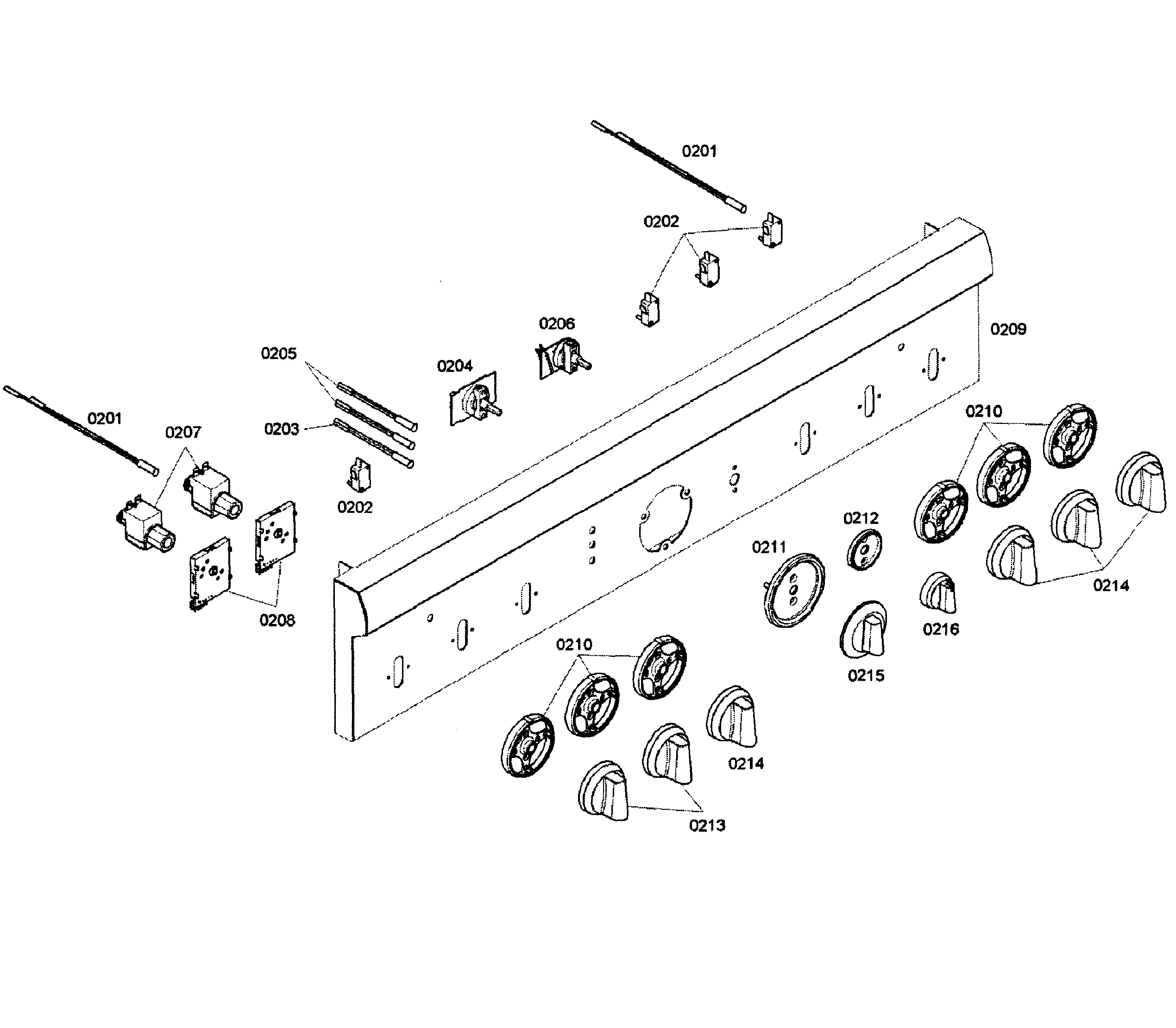

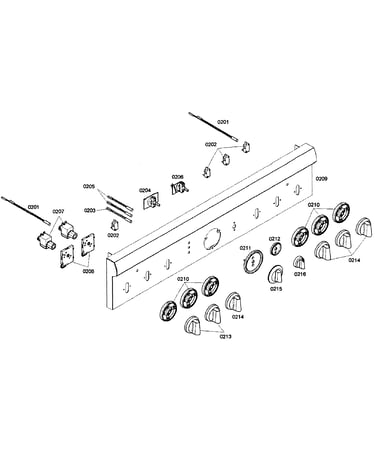

Control panel diagram

Potentiometer

Part #611346

Replaced by #00629722

?
Manufacturer substitution
This part replaces 611346. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Drive Switch 489370
#705

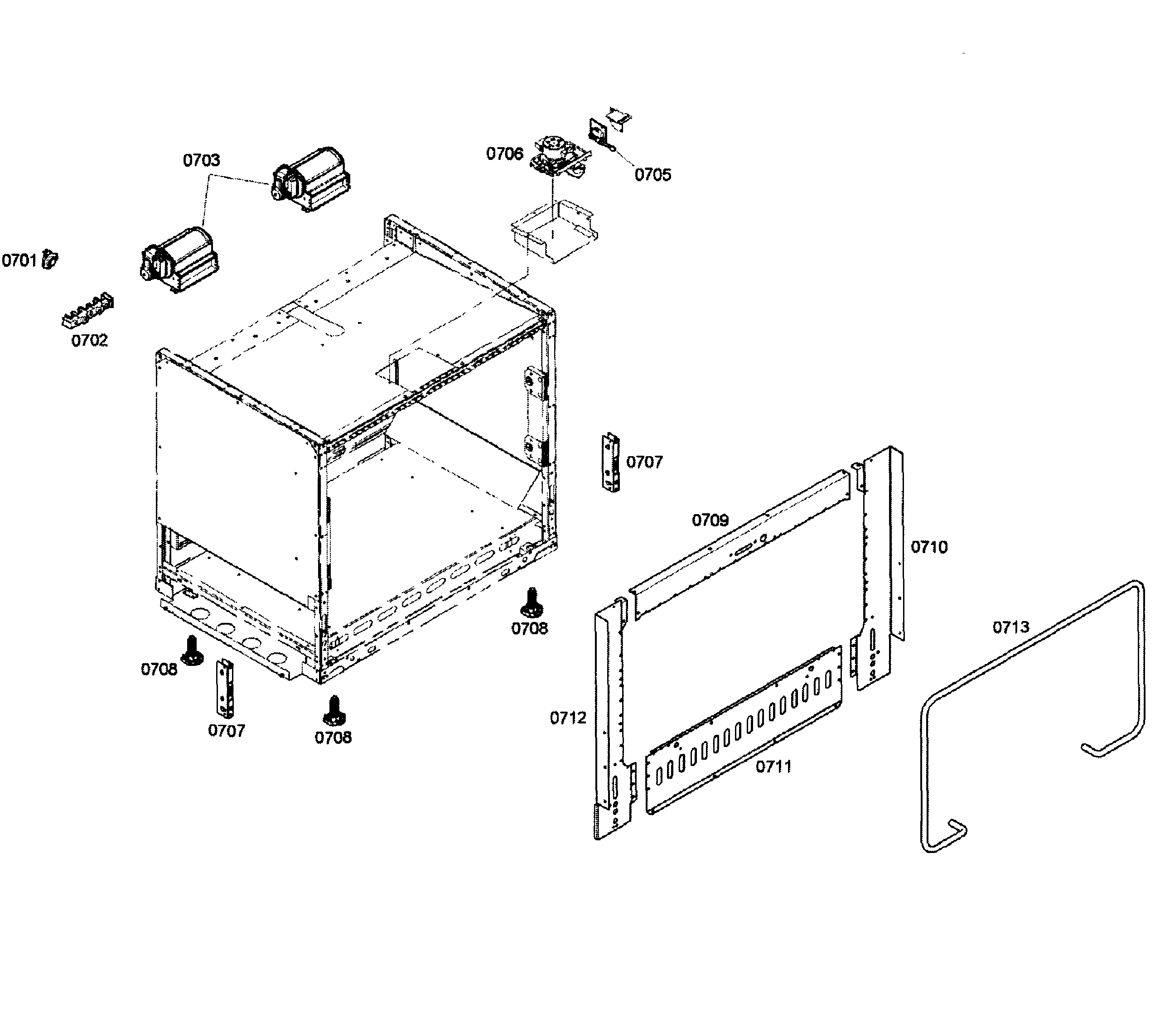

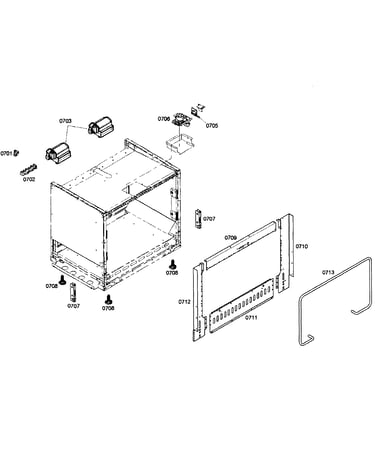

Cabinet 2 diagram

Drive switch

Part #489370

$49.89
In Stock
Range Surface Burner Cap 494133
#301

Burner assy diagram

Range surface burner cap

Part #494133

$68.24
In Stock
Sw Oven-7p 610592
#206

Control panel diagram

Sw oven-7p

Part #610592

Replaced by #00619078

?
Manufacturer substitution
This part replaces 610592. Substitute parts can look different from the original.
$88.29 |
6% OFF Phone Price : $94.29
In Stock
Micro-switch 428049
#202

Control panel diagram

Micro-switch

Part #428049

The manufacturer no longer makes this part, and there's no substitute part

Screw 420807
#415

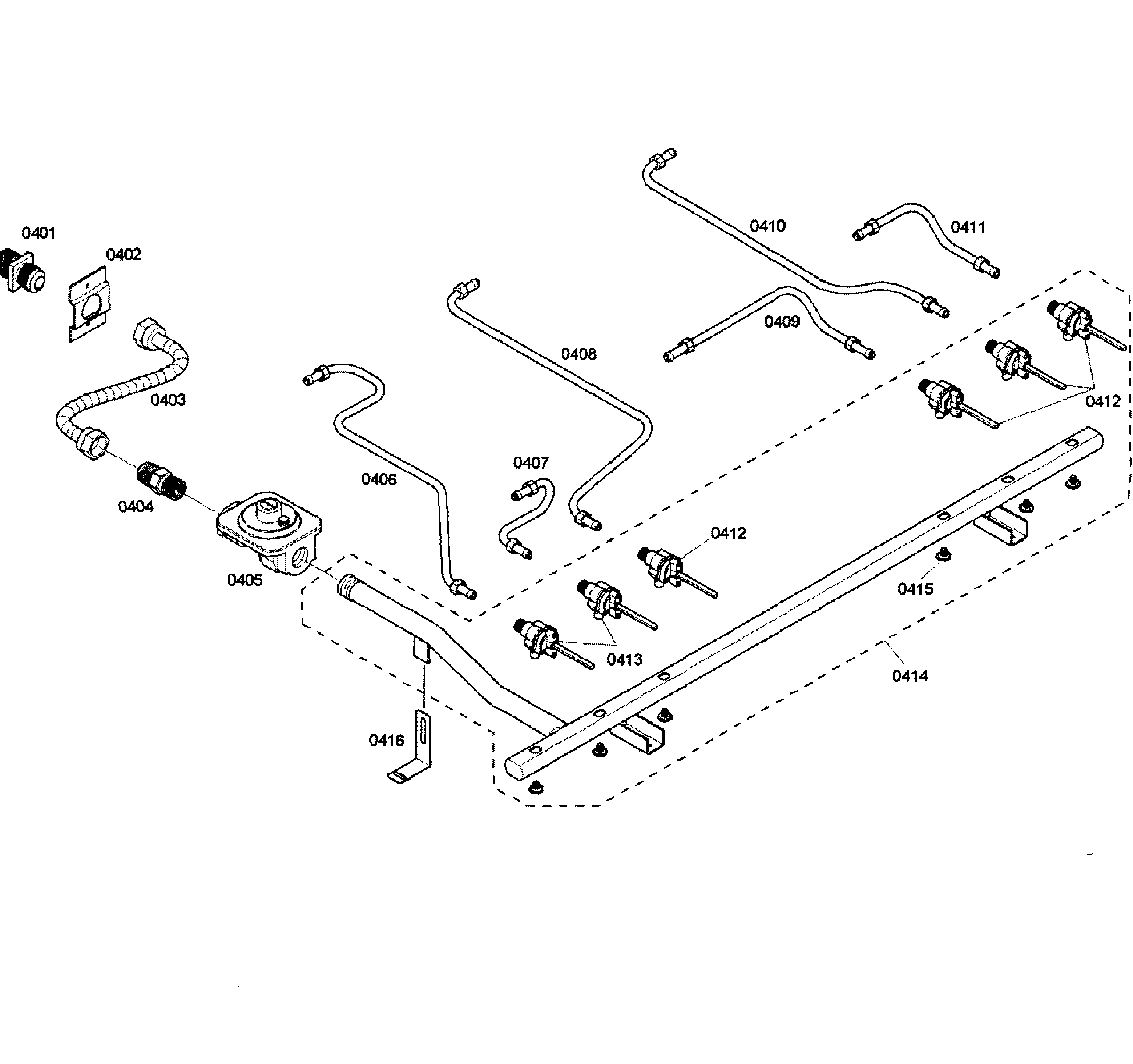

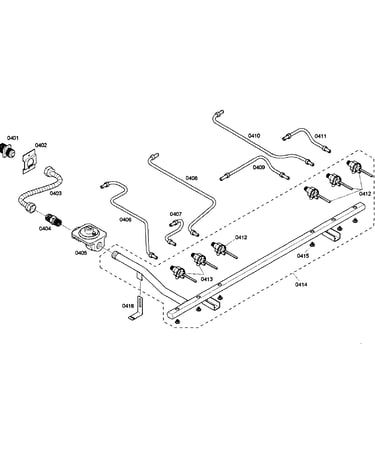

Valve assy diagram

Screw

Part #420807

Replaced by #00420807

?
Manufacturer substitution
This part replaces 420807. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
