Model # 2380/2381 Official IBM printer

Here are the diagrams and repair parts for Official IBM 2380-2381 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

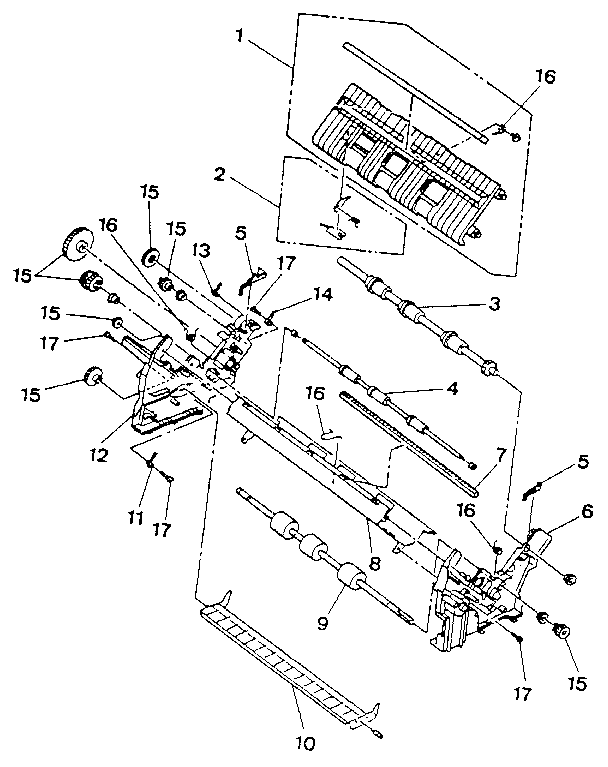

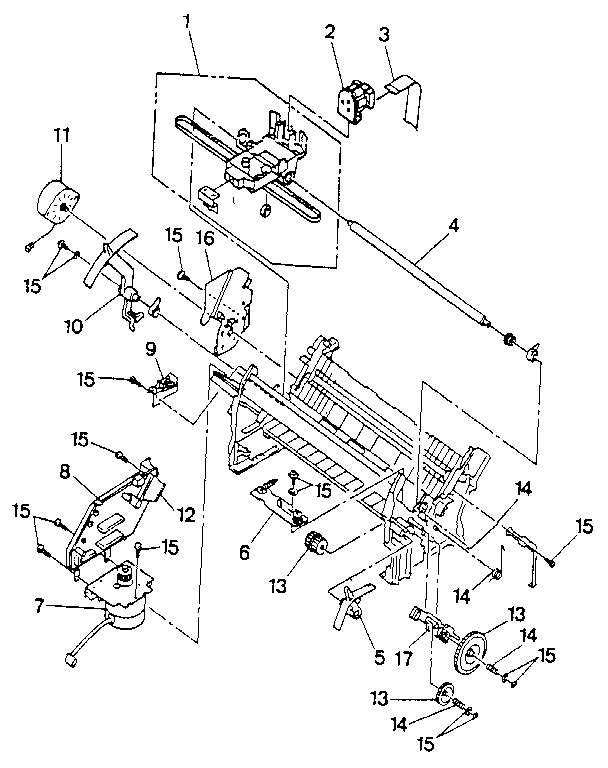

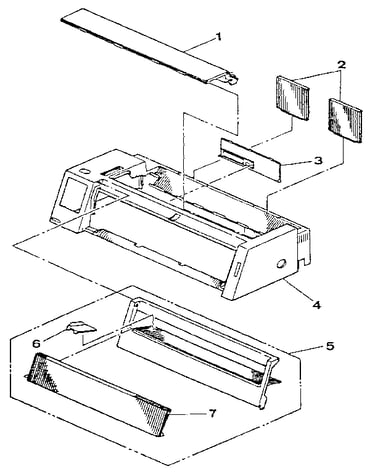

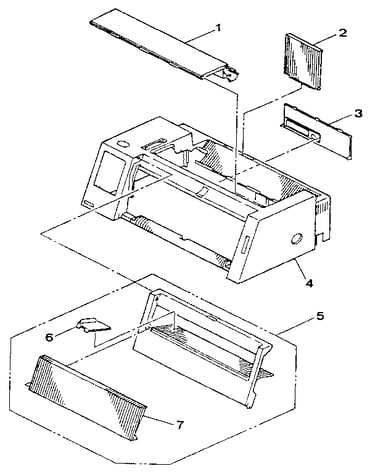

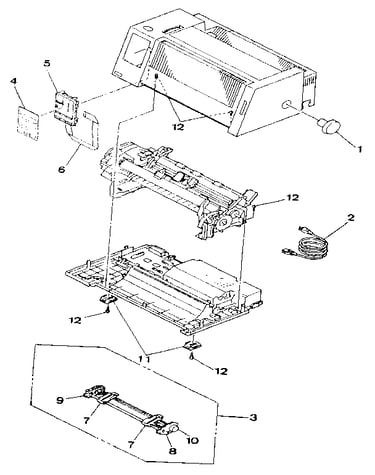

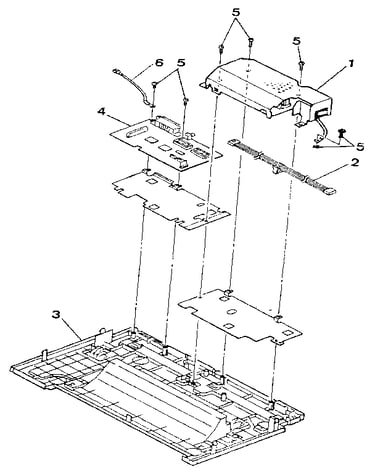

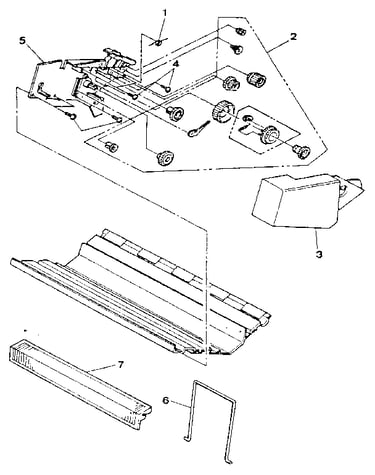

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Tractor Side Frame (r) 79F4837
Tractor side frame (r)

Part #79F4837

The manufacturer no longer makes this part, and there's no substitute part

Tractor Belt (l And R) 79F4838
#7

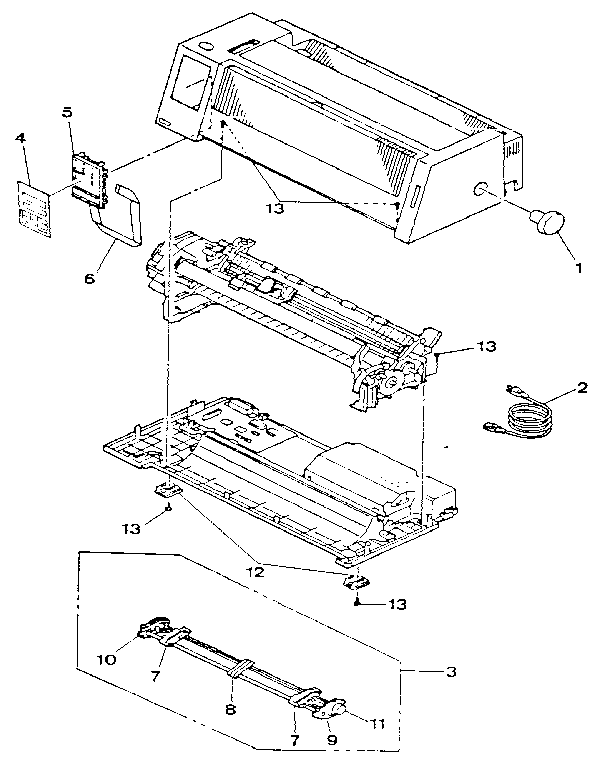

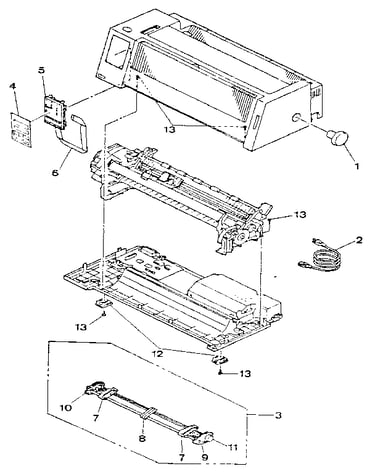

Figure 8-6. 2381 printer assembly 1 diagram

Tractor belt (l and r)

Part #79F4838

The manufacturer no longer makes this part, and there's no substitute part

Carrier Plate 79F4849
#8

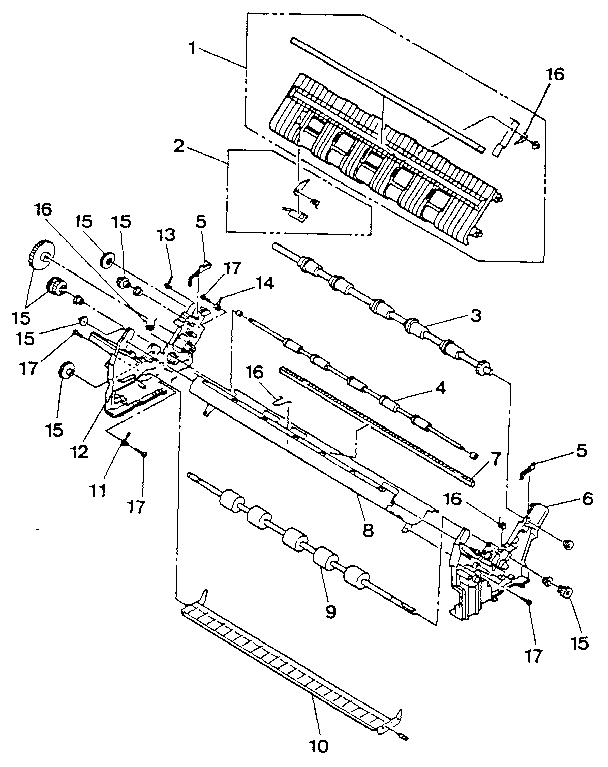

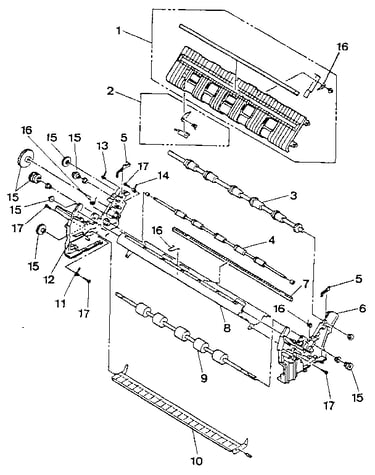

Figure 8-9. 2381 printer assembly 4 diagram

Carrier plate

Part #79F4849

The manufacturer no longer makes this part, and there's no substitute part

Paper Guide 79F4783
Paper guide

Part #79F4783

The manufacturer no longer makes this part, and there's no substitute part

Paper Select Sensor 79F4788
Paper select sensor

Part #79F4788

The manufacturer no longer makes this part, and there's no substitute part

Main Logic Card (u.s And Canada) 79F4767
#4

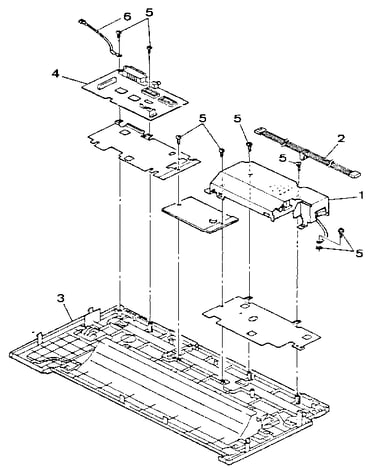

Figure 8-10. 2381 printer assembly 5 diagram

Main logic card (u.s and canada)

Part #79F4767

The manufacturer no longer makes this part, and there's no substitute part

Carrier Unit 79F4820
#1

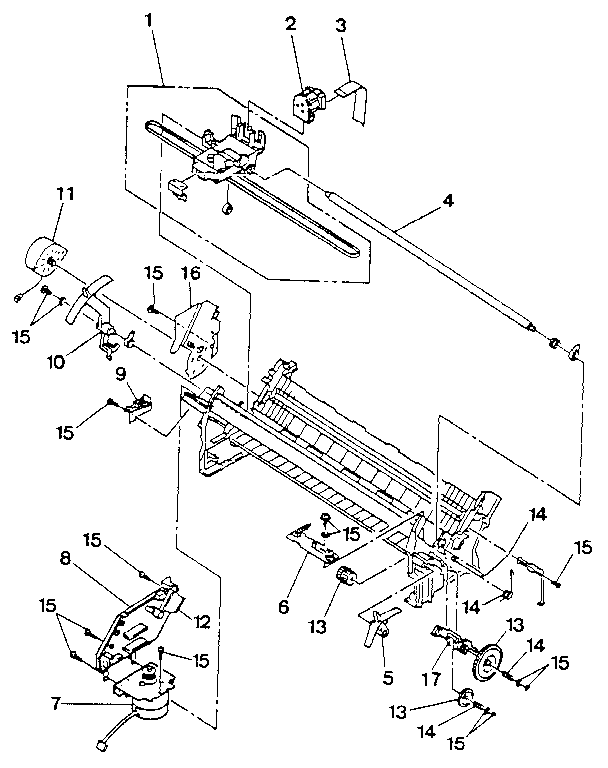

Figure 8-8. 2381 printer assembly 3 diagram

Carrier unit

Part #79F4820

The manufacturer no longer makes this part, and there's no substitute part

Cover (l) 95F6881
#13

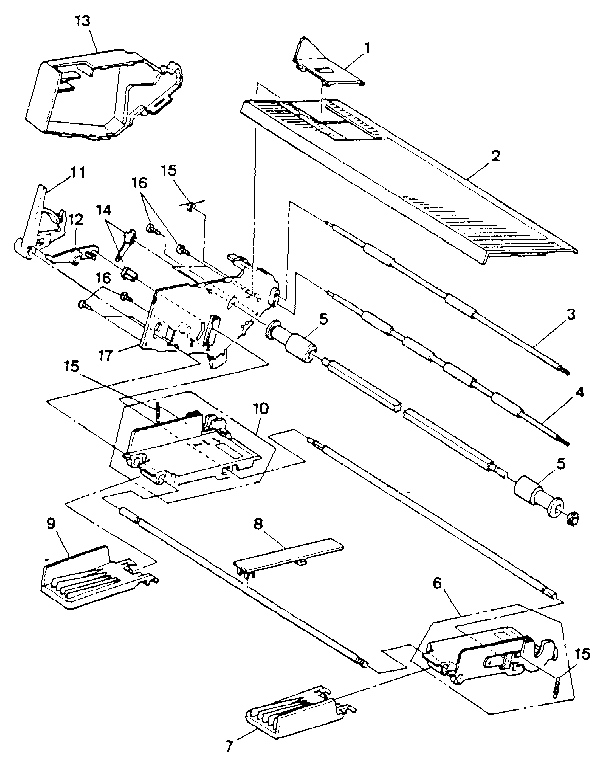

Figure 8-11. asf assembly 1 diagram

Cover (l)

Part #95F6881

The manufacturer no longer makes this part, and there's no substitute part

Bottom Cover (u.s. Canada And Afe (lv)) 79F4777
#3

Figure 8-10. 2381 printer assembly 5 diagram

Bottom cover (u.s. canada and afe (lv))

Part #79F4777

The manufacturer no longer makes this part, and there's no substitute part

Gears And Bushings 79F4810
Gears and bushings

Part #79F4810

The manufacturer no longer makes this part, and there's no substitute part
