Whirlpool
Side-By-Side Refrigerator

Model # WRS322FNAE02 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRS322FNAE02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

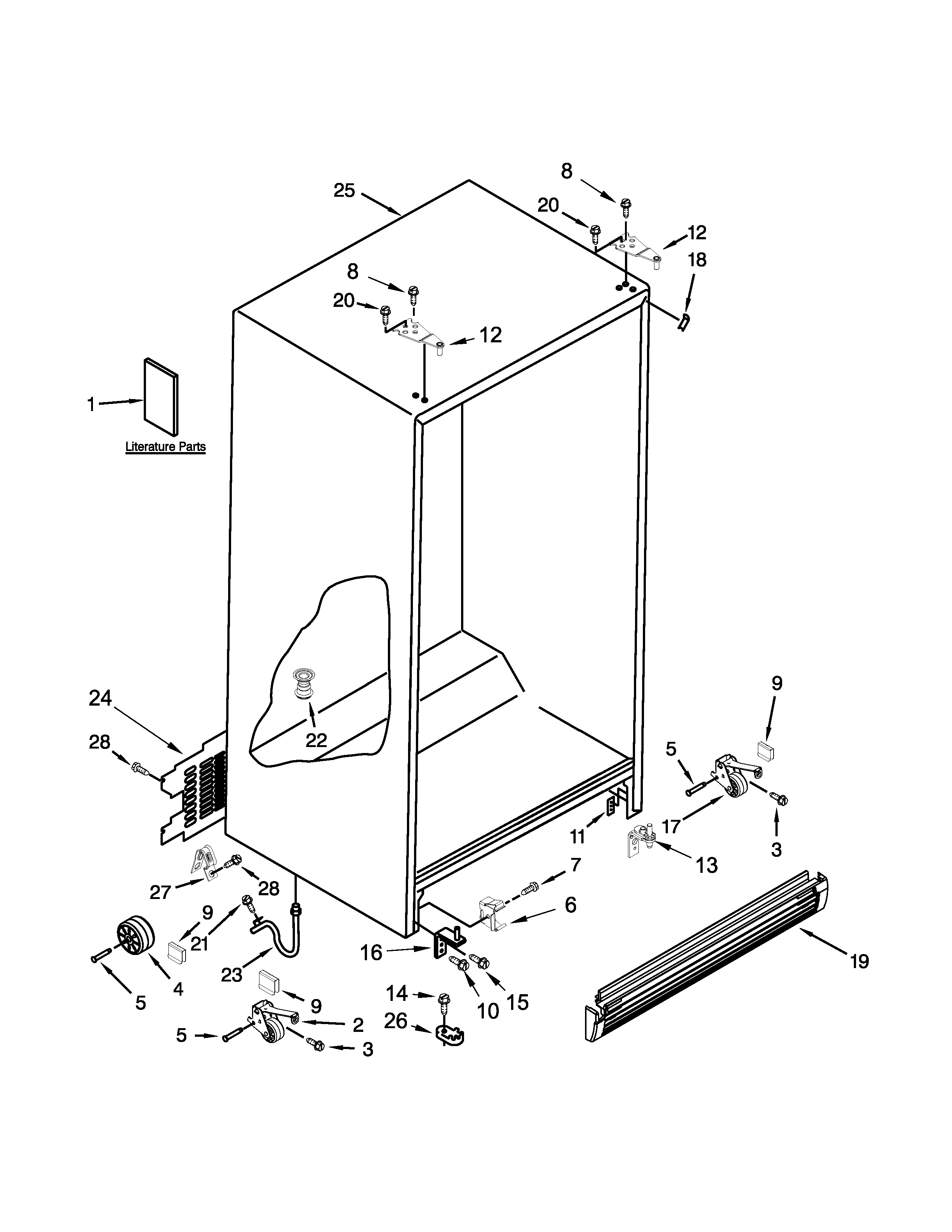

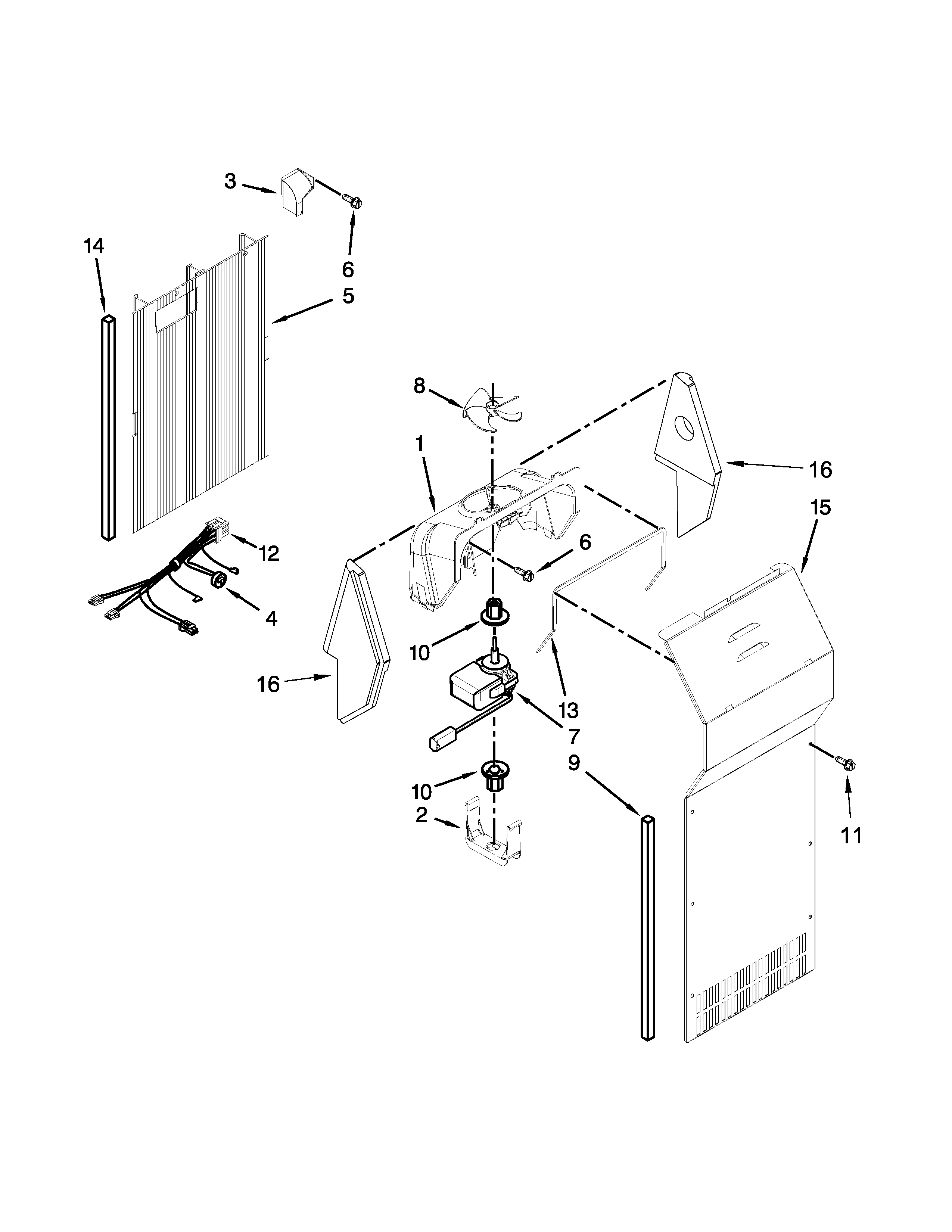

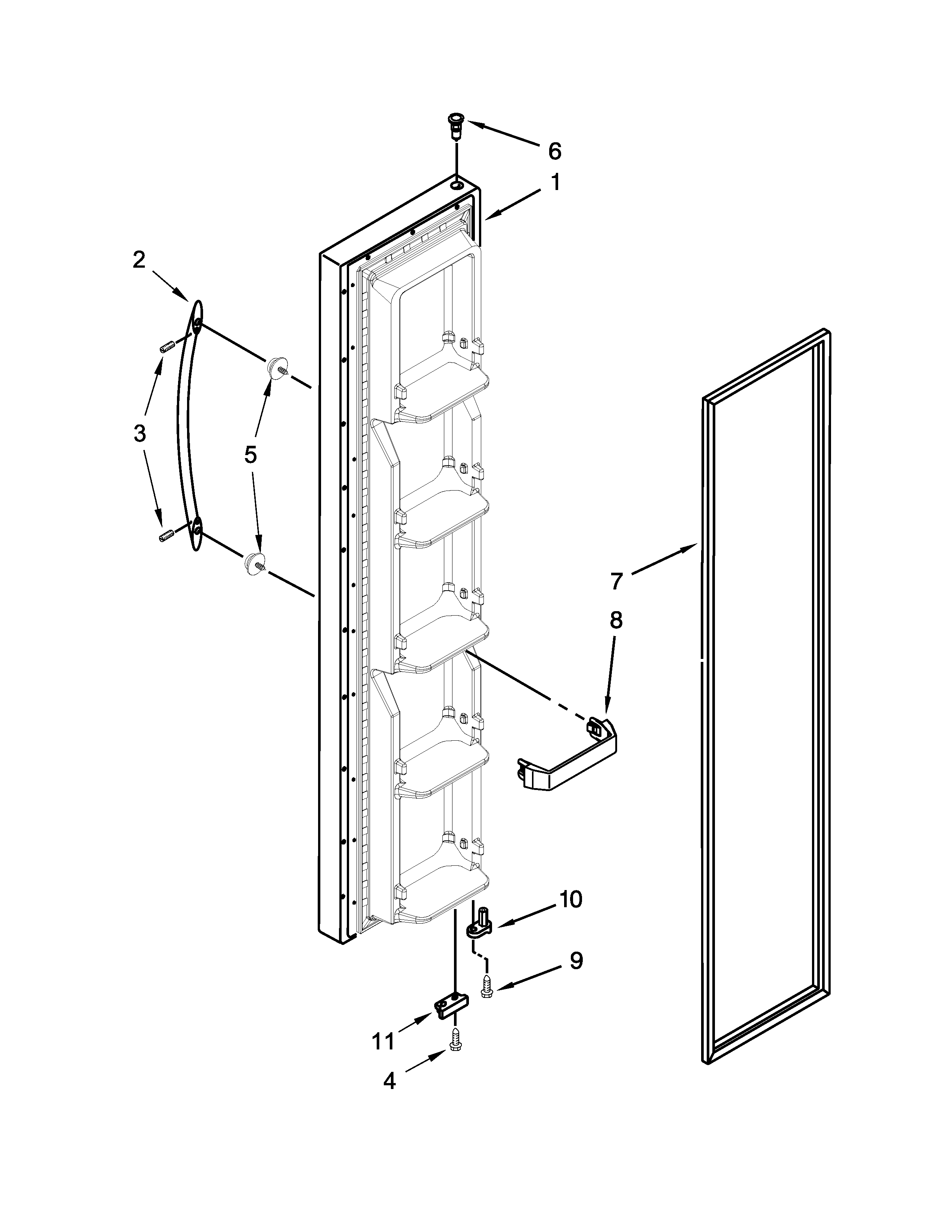

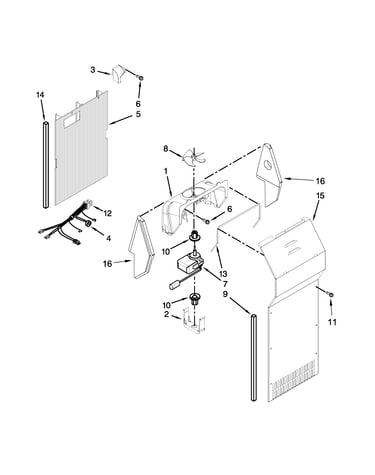

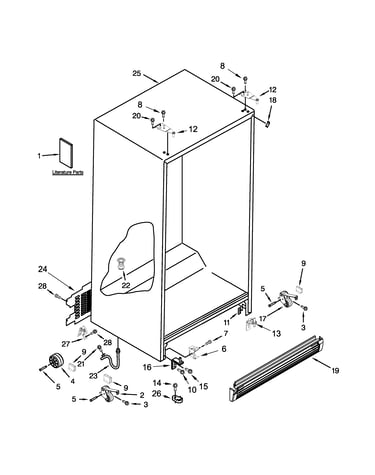

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Drier Tube W10177049
#27

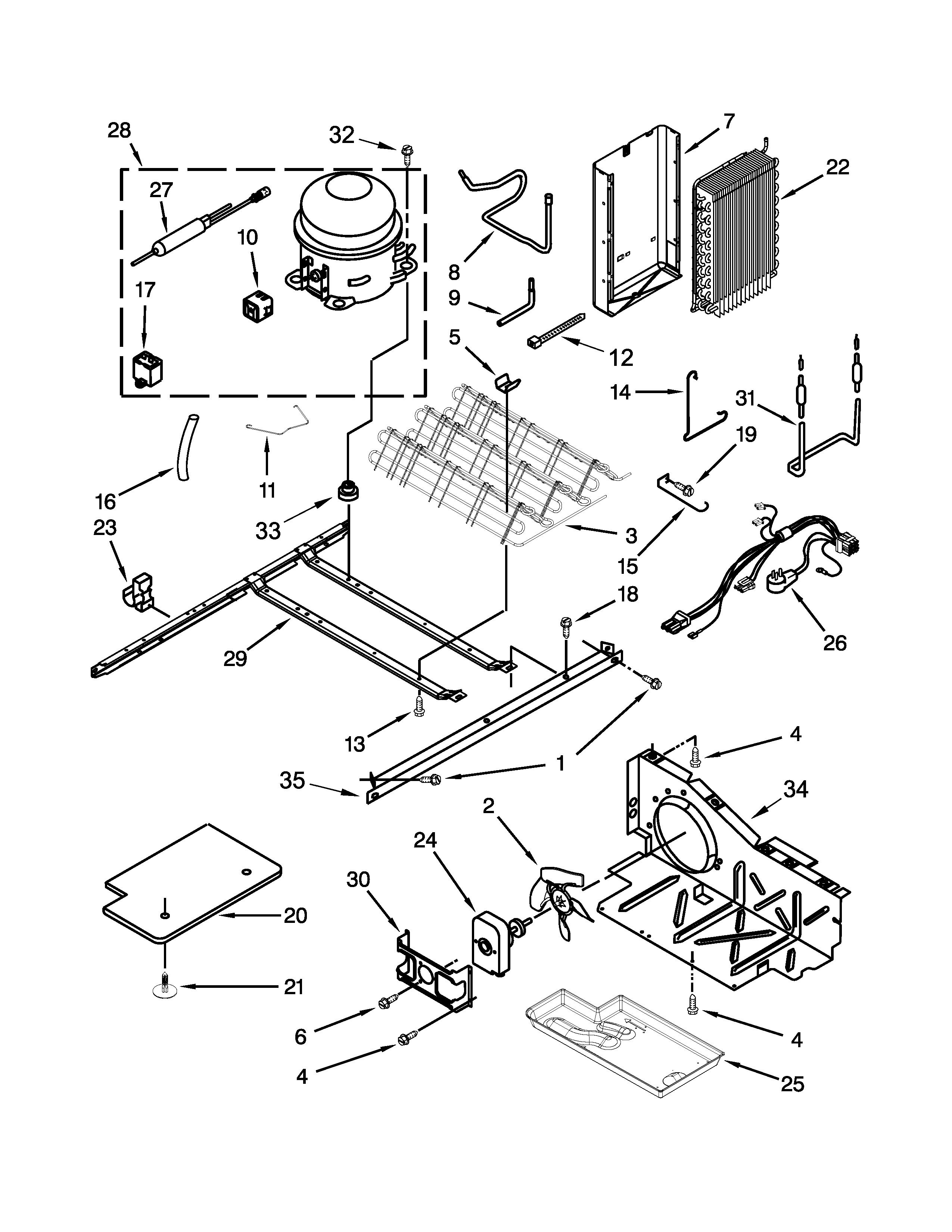

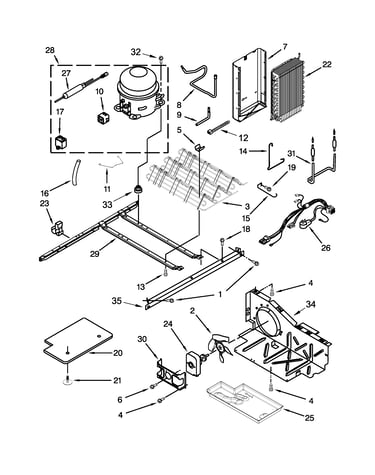

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Board W10515058
#5

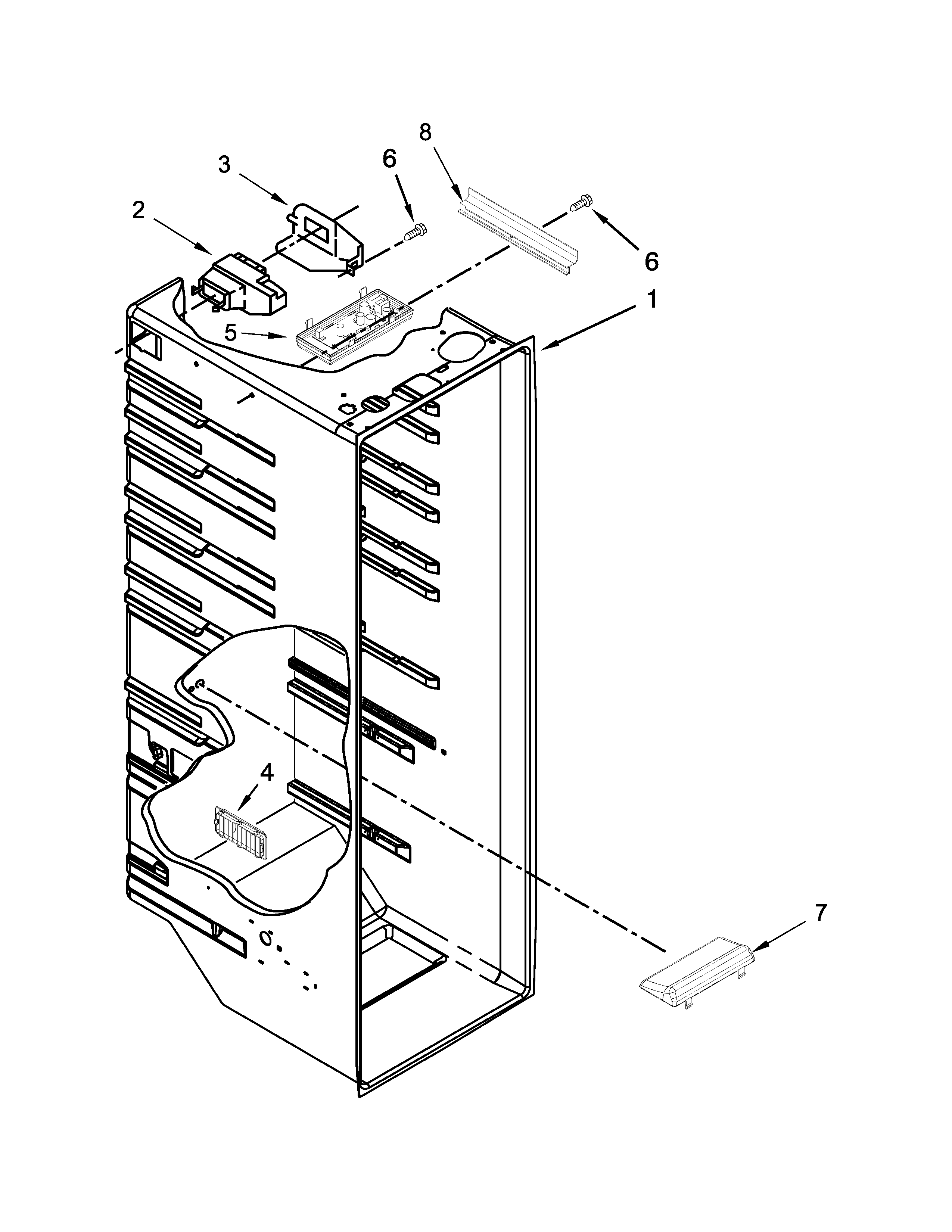

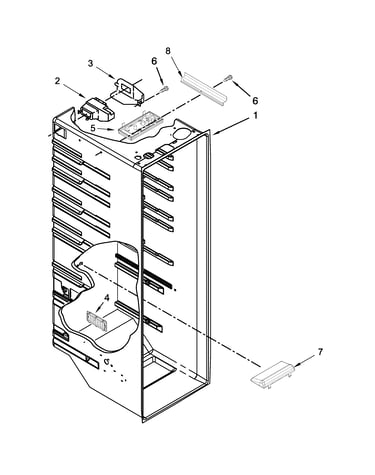

Refrigerator liner parts diagram

Refrigerator light board

Part #W10515058

Replaced by #WPW10515058

?
Manufacturer substitution
This part replaces W10515058. Substitute parts can look different from the original.
BEST SELLER
$145.00 |
8% OFF Phone Price : $157.00
In Stock
Refrigerator Light Board W10515057
#7

Refrigerator liner parts diagram

Refrigerator light board

Part #W10515057

Replaced by #WPW10515057

?
Manufacturer substitution
This part replaces W10515057. Substitute parts can look different from the original.
BEST SELLER
$86.75 |
6% OFF Phone Price : $92.75
In Stock

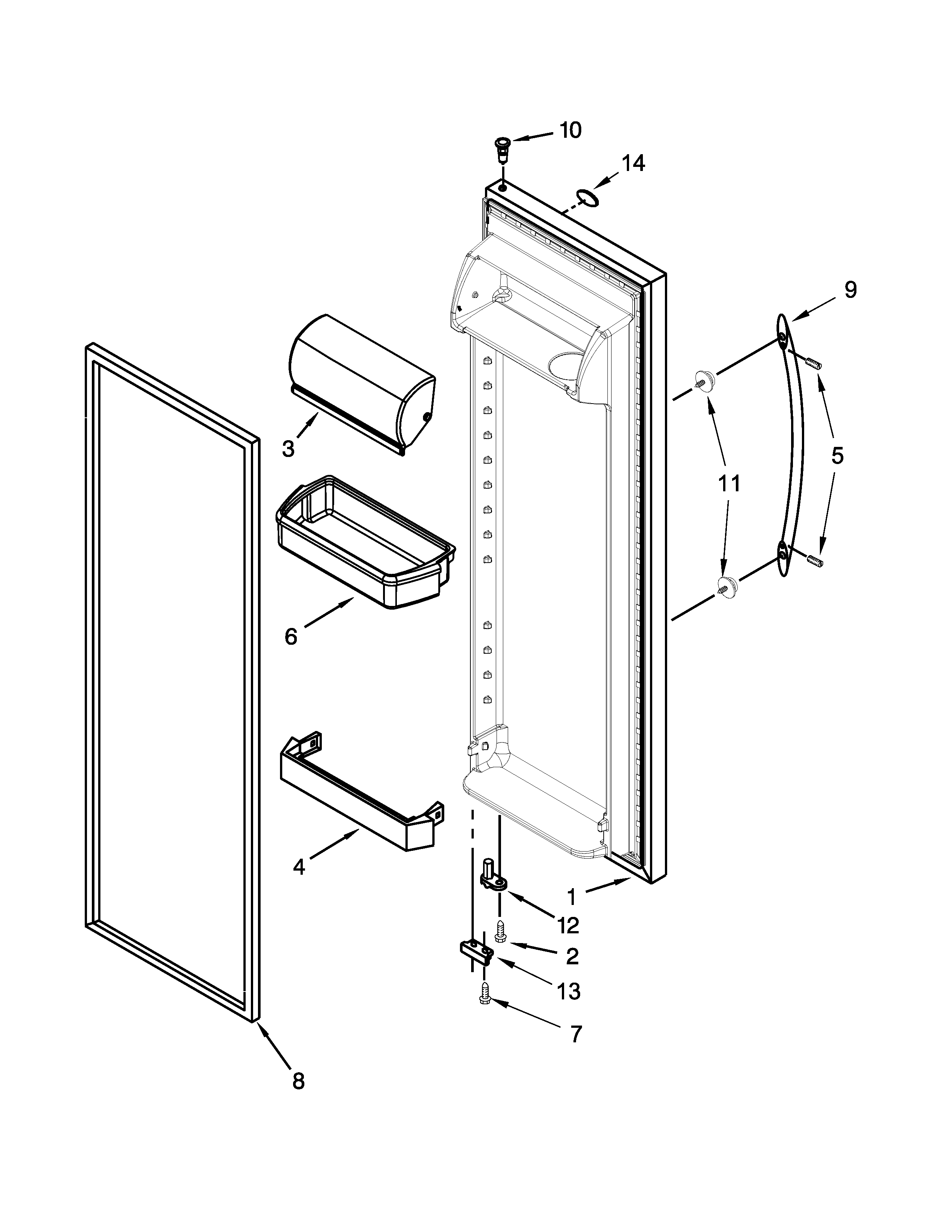

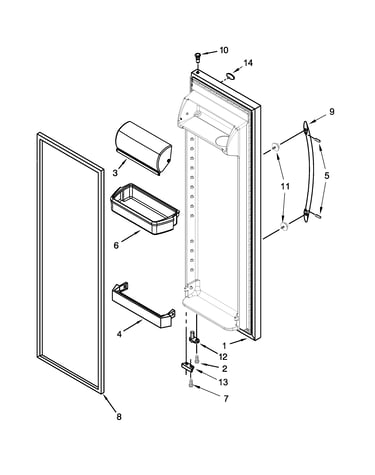

Refrigerator Door Cam (black) 2182178
Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Meat Pan 2188654
#12

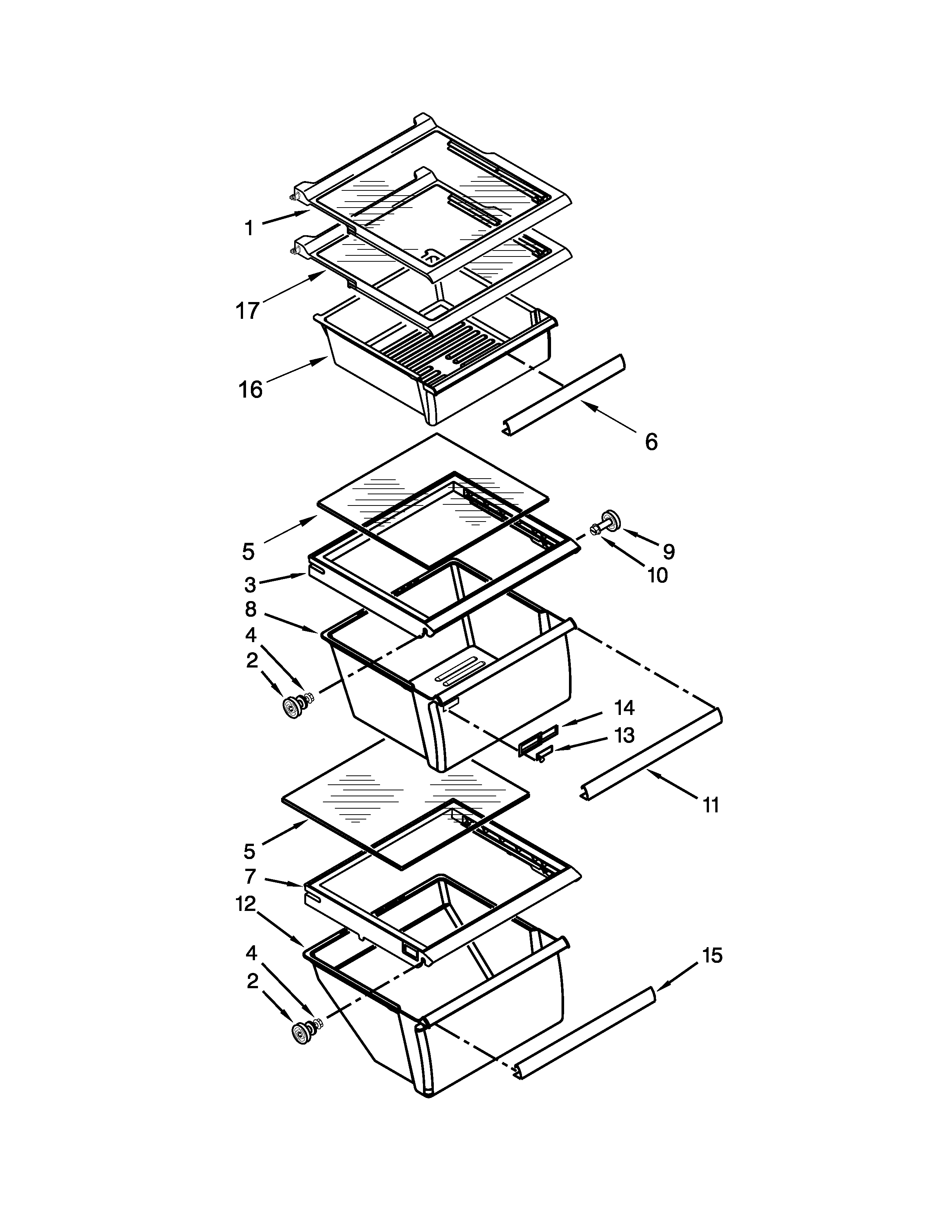

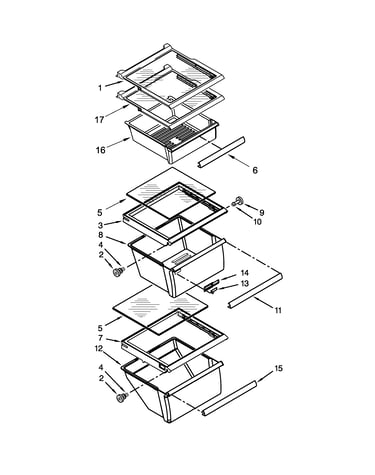

Refrigerator shelf parts diagram

Refrigerator meat pan

Part #2188654

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Light Switch 1118894
#15

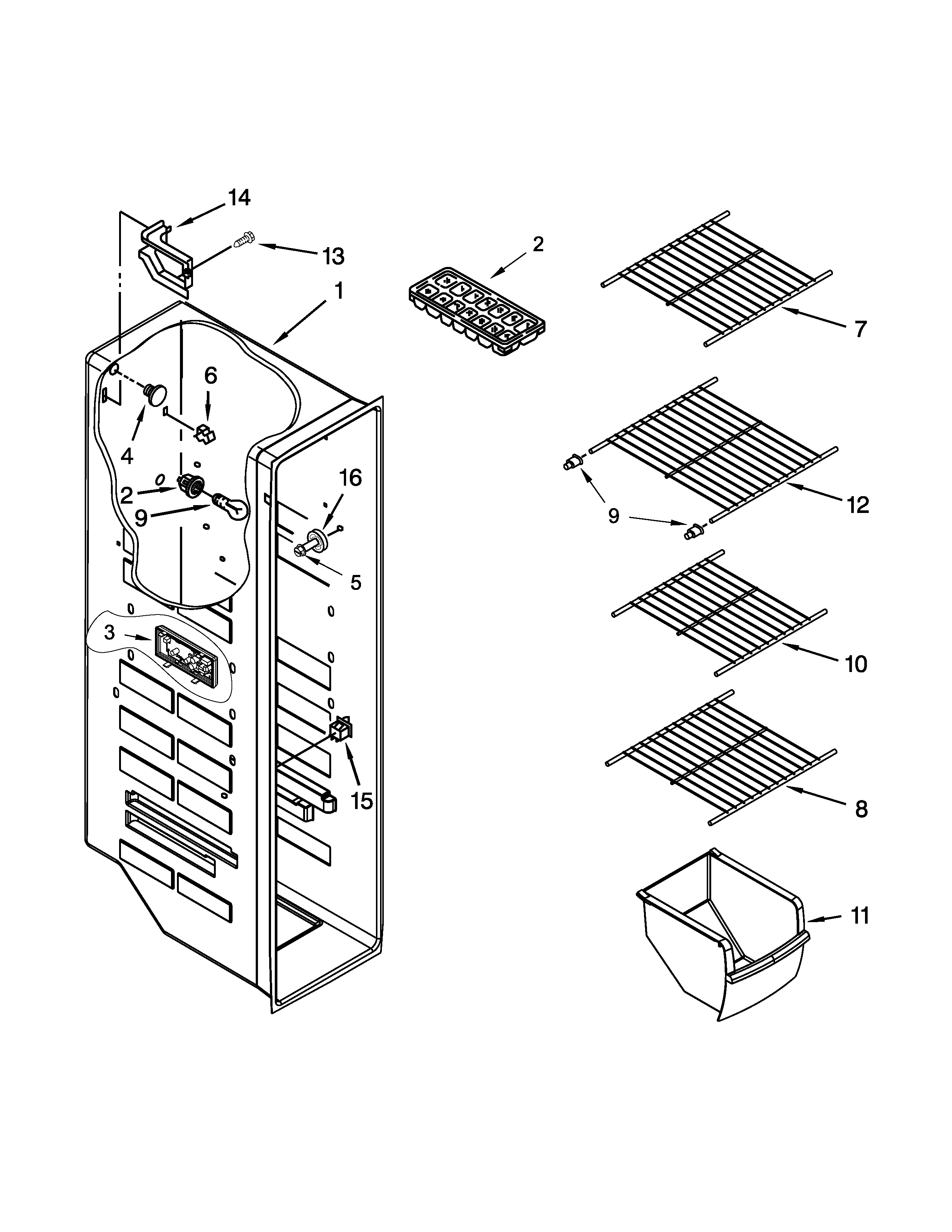

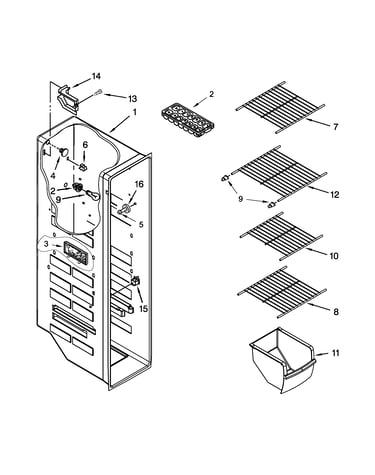

Freezer liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Electronic Control Board W10366605
#6

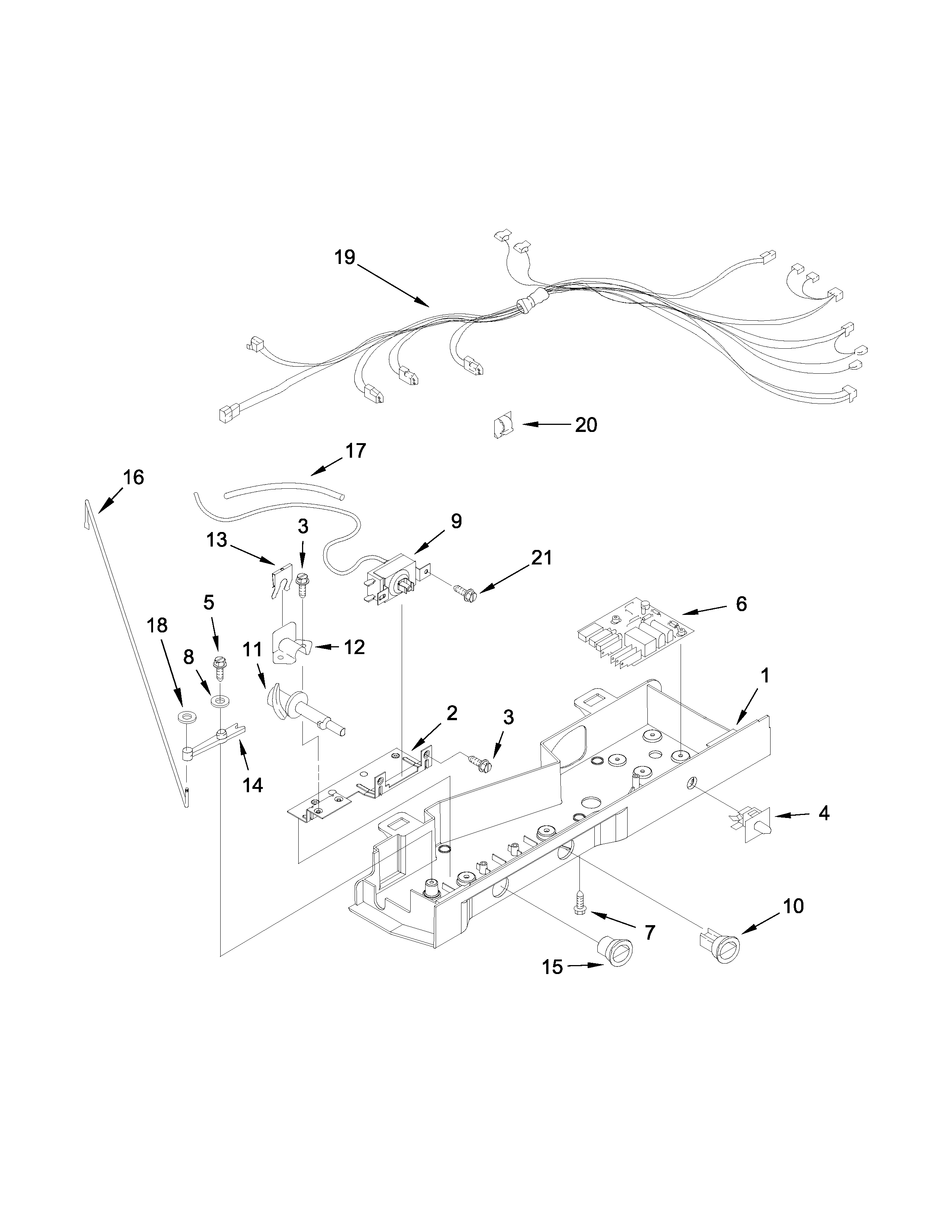

Control box parts diagram

Refrigerator electronic control board

Part #W10366605

Replaced by #WPW10366605

?
Manufacturer substitution
This part replaces W10366605. Substitute parts can look different from the original.
BEST SELLER
$212.82 |
5% OFF Phone Price : $224.82
In Stock
Refrigerator Spill-safe Shelf W10276348
#1

Refrigerator shelf parts diagram

Refrigerator spill-safe shelf

Part #W10276348

Replaced by #WPW10276348

?
Manufacturer substitution
This part replaces W10276348. Substitute parts can look different from the original.
BEST SELLER
$142.76 |
8% OFF Phone Price : $154.76
In Stock
Refrigerator Crisper Drawer W10178772
#8

Refrigerator shelf parts diagram

Refrigerator crisper drawer

Part #W10178772

Replaced by #WPW10178772

?
Manufacturer substitution
This part replaces W10178772. Substitute parts can look different from the original.
BEST SELLER
$90.59 |
6% OFF Phone Price : $96.59
In Stock
Refrigerator Glass Shelf W10276341
#17

Refrigerator shelf parts diagram

Refrigerator glass shelf

Part #W10276341

Replaced by #WPW10276341

?
Manufacturer substitution
This part replaces W10276341. Substitute parts can look different from the original.
BEST SELLER
$160.37 |
7% OFF Phone Price : $172.37
In Stock
