Kenmore Elite
Washer

Model # 11047892701 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11047892701 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

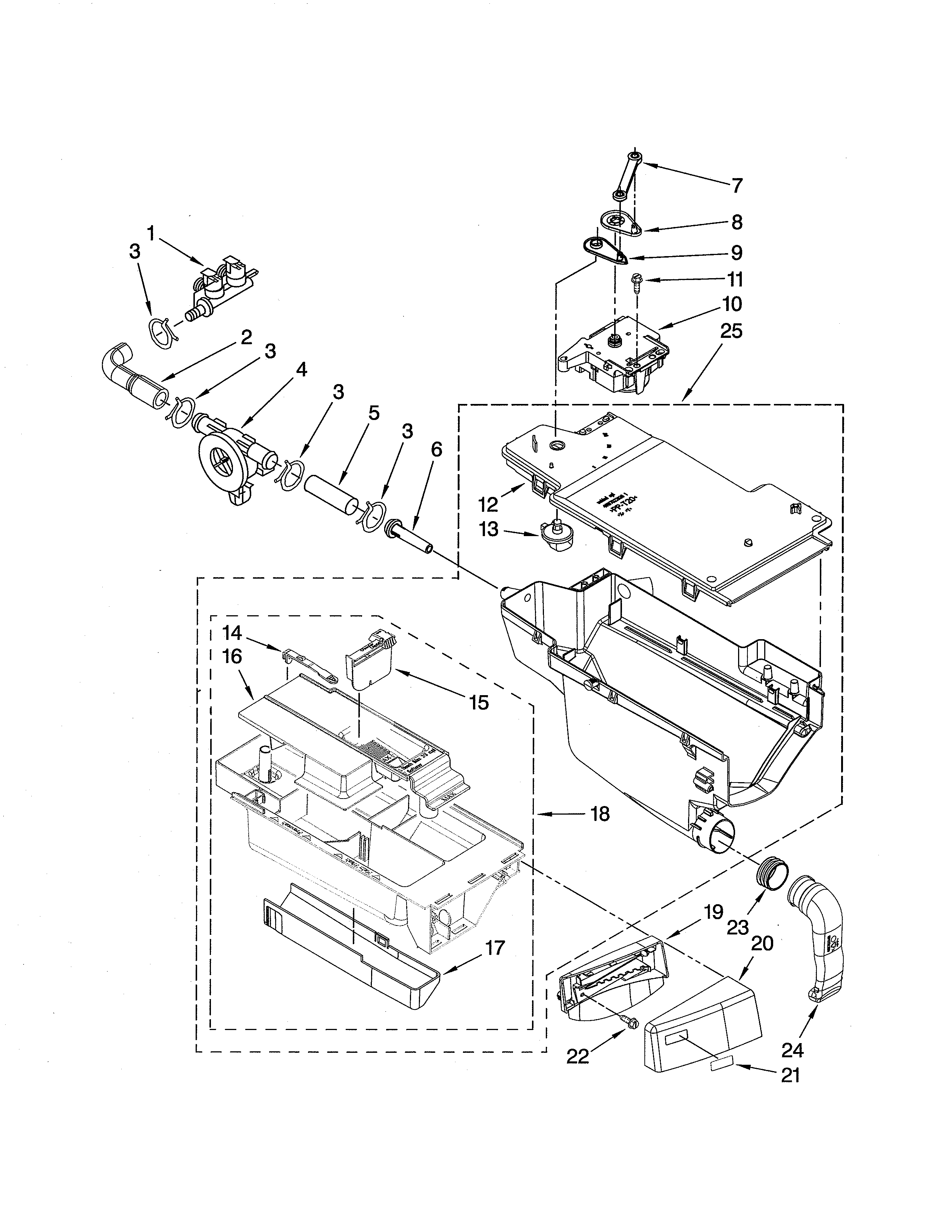

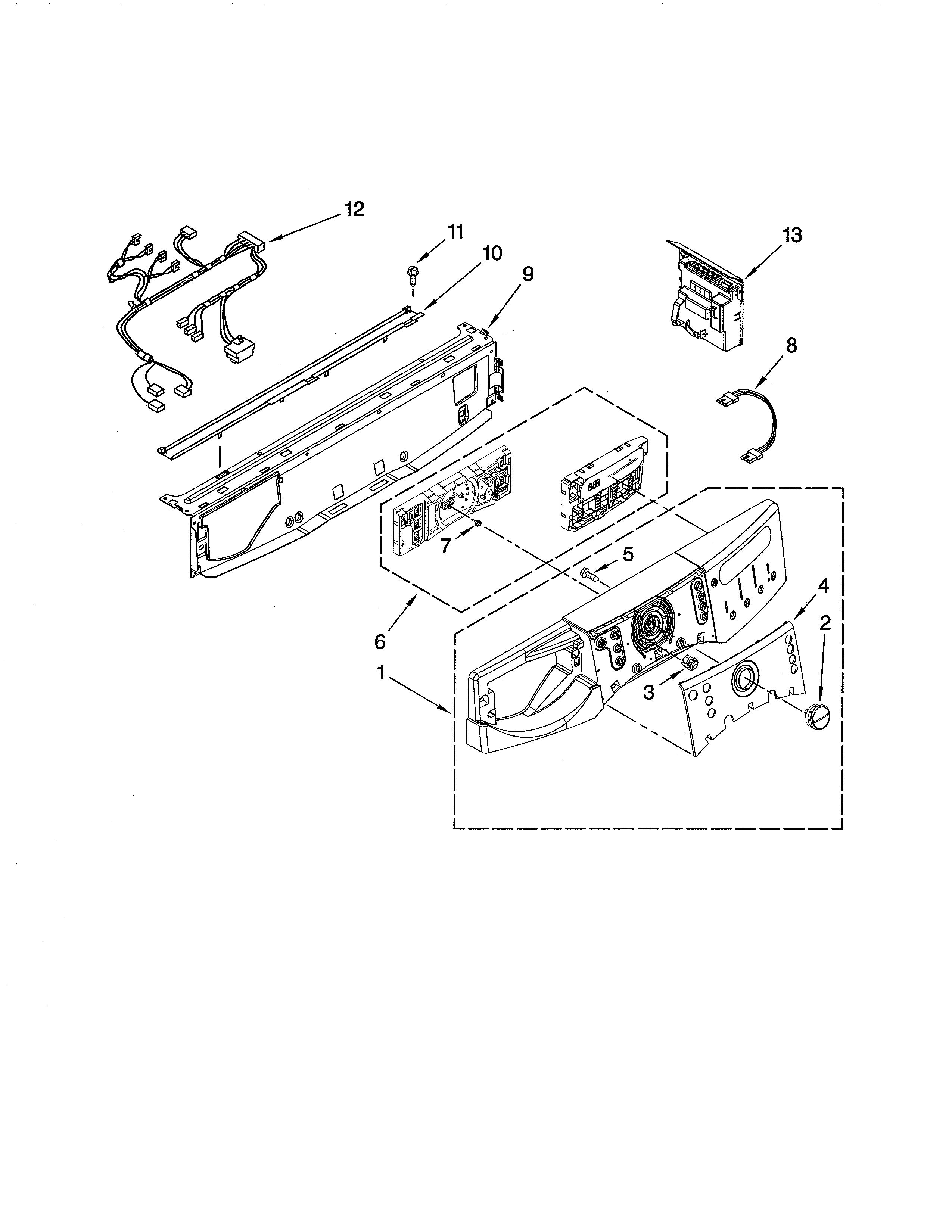

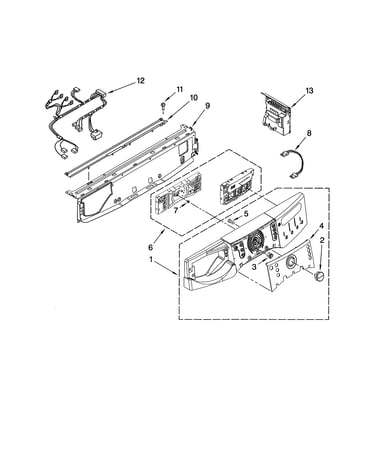

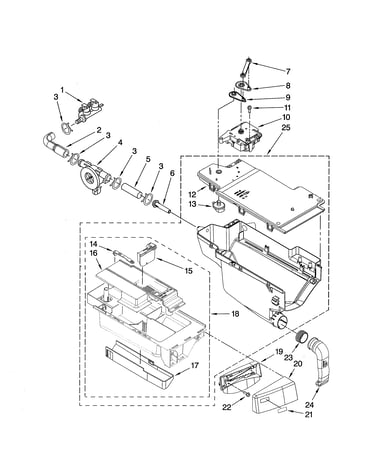

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Pump 8182821
#7

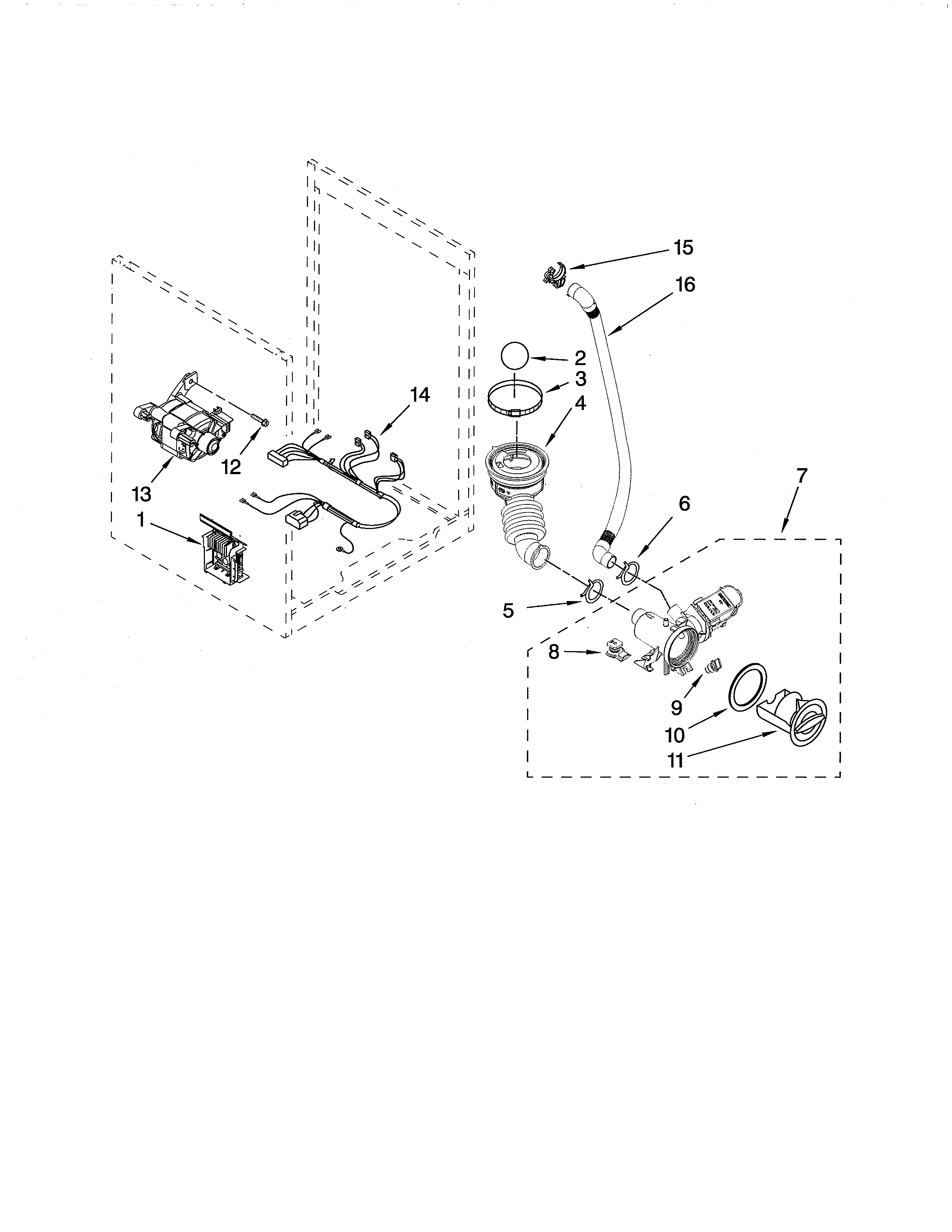

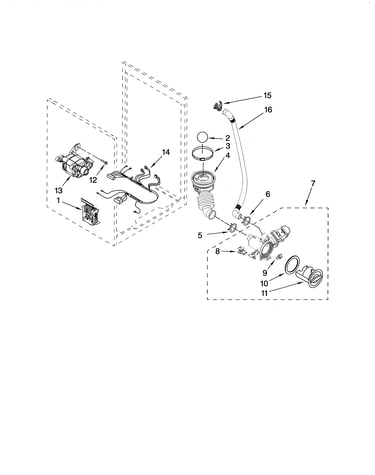

Pump & motor diagram

Pump

Part #8182821

Replaced by #280187

?
Manufacturer substitution
This part replaces 8182821. Substitute parts can look different from the original.
BEST SELLER
$123.44 |
9% OFF Phone Price : $135.44
In Stock
Washer Door Boot 8182119
#2

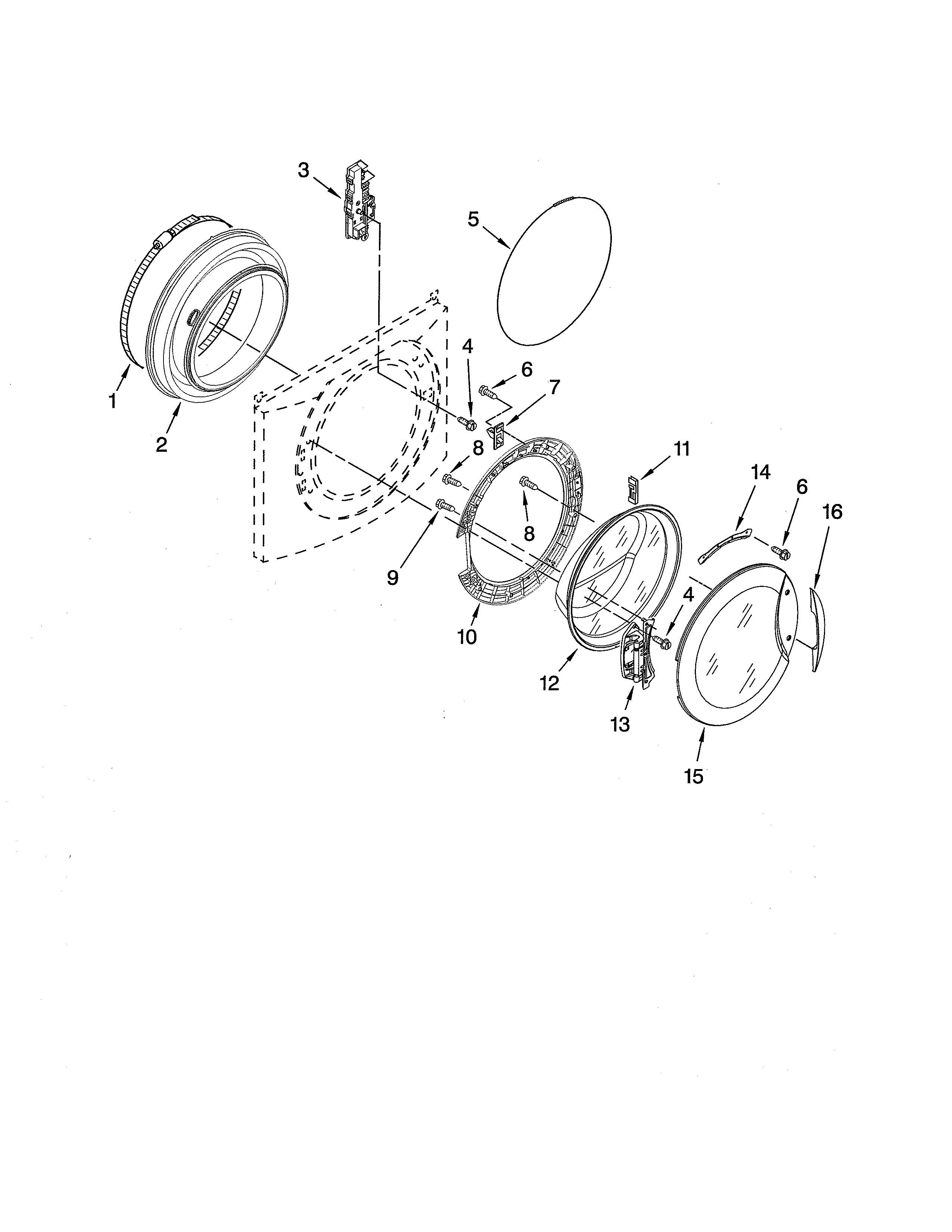

Door & latch diagram

Washer door boot

Part #8182119

Replaced by #WP8182119

?
Manufacturer substitution
This part replaces 8182119. Substitute parts can look different from the original.
BEST SELLER
$143.65 |
8% OFF Was : $156.14
In Stock
Washer Shock Absorber 8182812
#25

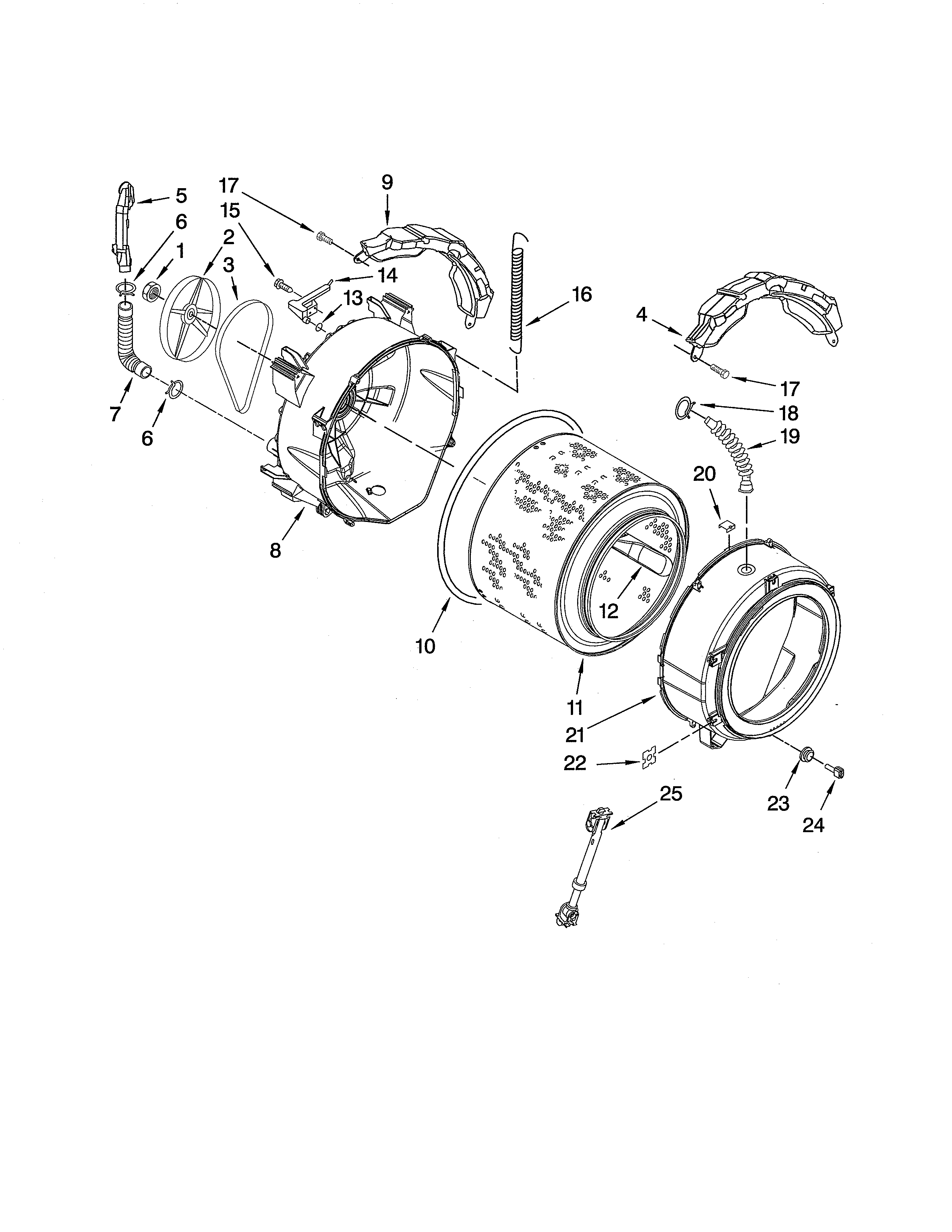

Tub & basket diagram

Washer shock absorber

Part #8182812

Replaced by #W10822553

?
Manufacturer substitution
This part replaces 8182812. Substitute parts can look different from the original.
BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Washer Door Boot Spring Clamp 8182211
#5

Door & latch diagram

Washer door boot spring clamp

Part #8182211

Replaced by #W10902779

?
Manufacturer substitution
This part replaces 8182211. Substitute parts can look different from the original.
BEST SELLER
$20.55 |
23% OFF Phone Price : $26.55
In Stock
Belt 8183269
#3

Tub & basket diagram

Belt

Part #8183269

Replaced by #WPW10388414

?
Manufacturer substitution
This part replaces 8183269. Substitute parts can look different from the original.
BEST SELLER
$32.15 |
16% OFF Phone Price : $38.15
In Stock
Washer Water-level Pressure Switch 8181695
#38

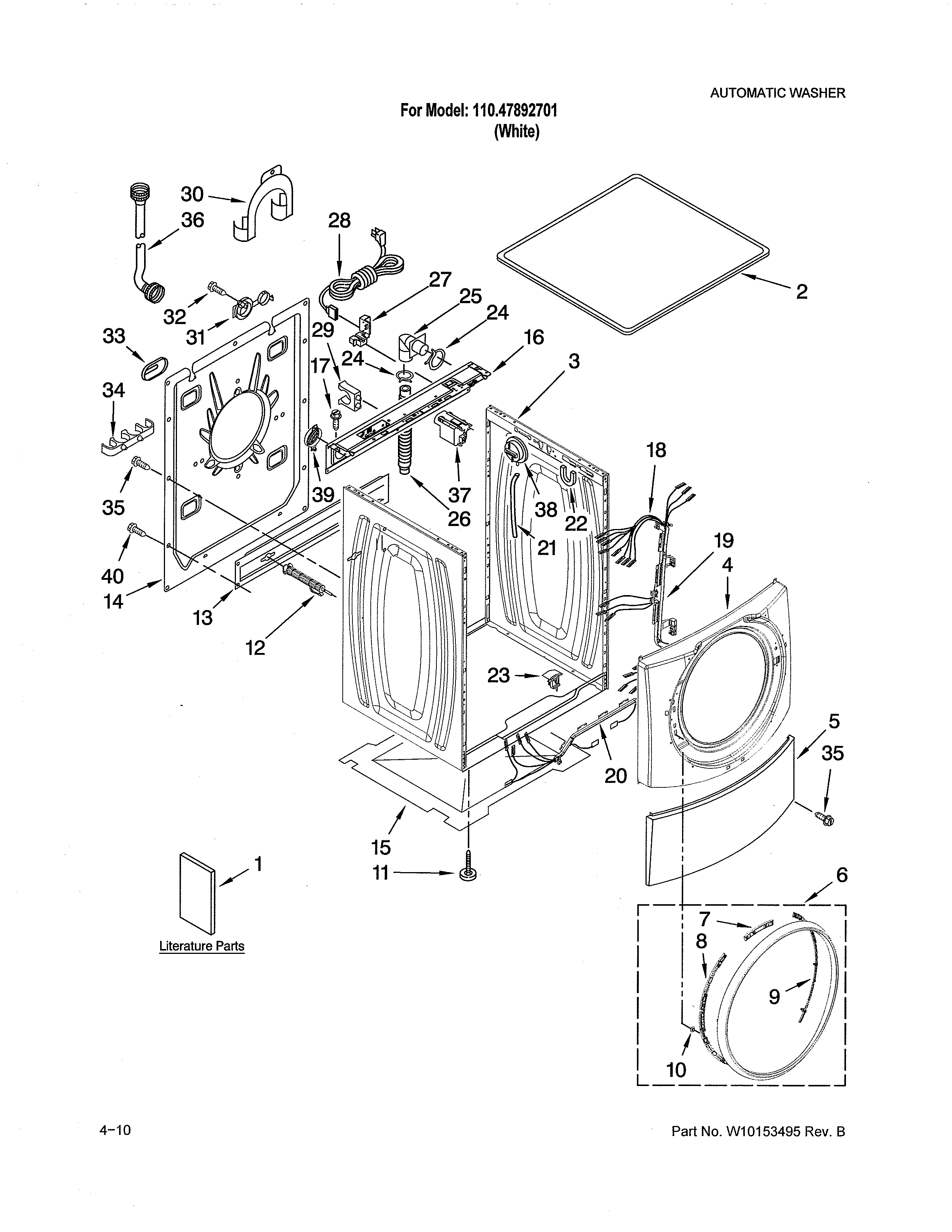

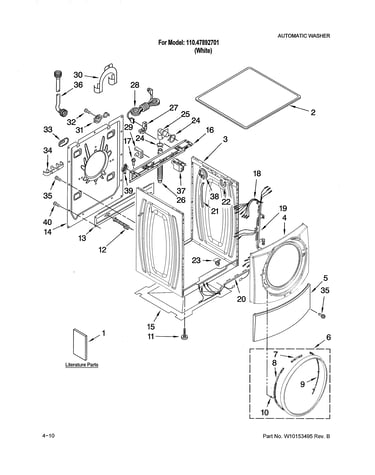

Top & cabinet diagram

Washer water-level pressure switch

Part #8181695

Replaced by #WPW10514214

?
Manufacturer substitution
This part replaces 8181695. Substitute parts can look different from the original.
BEST SELLER
$70.88 |
8% OFF Phone Price : $76.88
In Stock
Washer Motor Control Board 8183196
#1

Pump & motor diagram

Washer motor control board

Part #8183196

Replaced by #WP8183196

?
Manufacturer substitution
This part replaces 8183196. Substitute parts can look different from the original.
BEST SELLER
$275.00 |
$12.00 OFF Phone Price : $287.00
Back Order
Hose 8181739
#21

Top & cabinet diagram

Hose

Part #8181739

Replaced by #WPW10004260

?
Manufacturer substitution
This part replaces 8181739. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI01

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Fill Hose (blue) 8182795
#36

Top & cabinet diagram

Fill hose (blue)

Part #8182795

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8182795. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Read more
