KitchenAid
Microwave/Hood Combo

Model # KHMC107EBT2 Official KitchenAid microwave/hood combo

Here are the diagrams and repair parts for Official KitchenAid KHMC107EBT2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

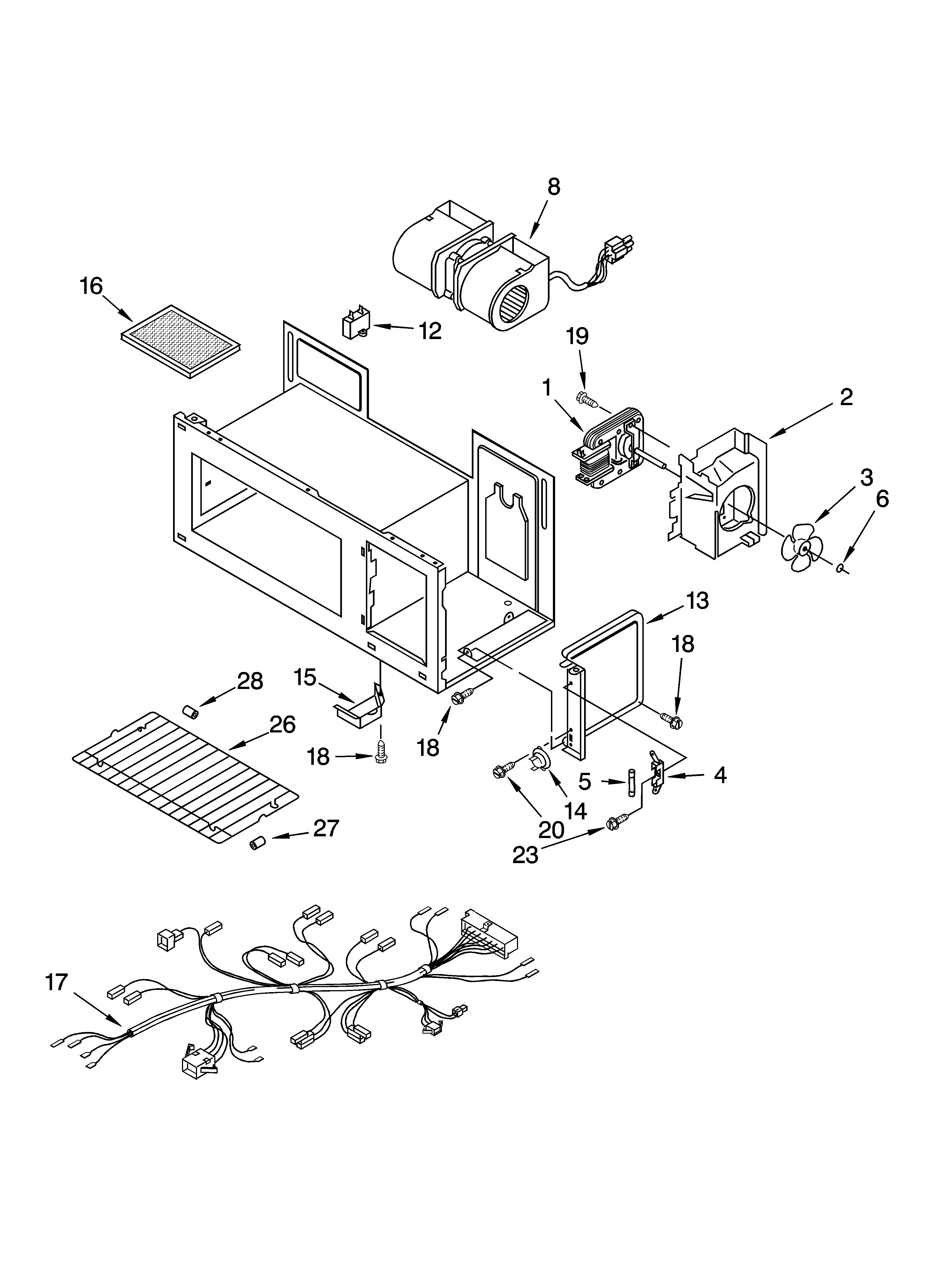

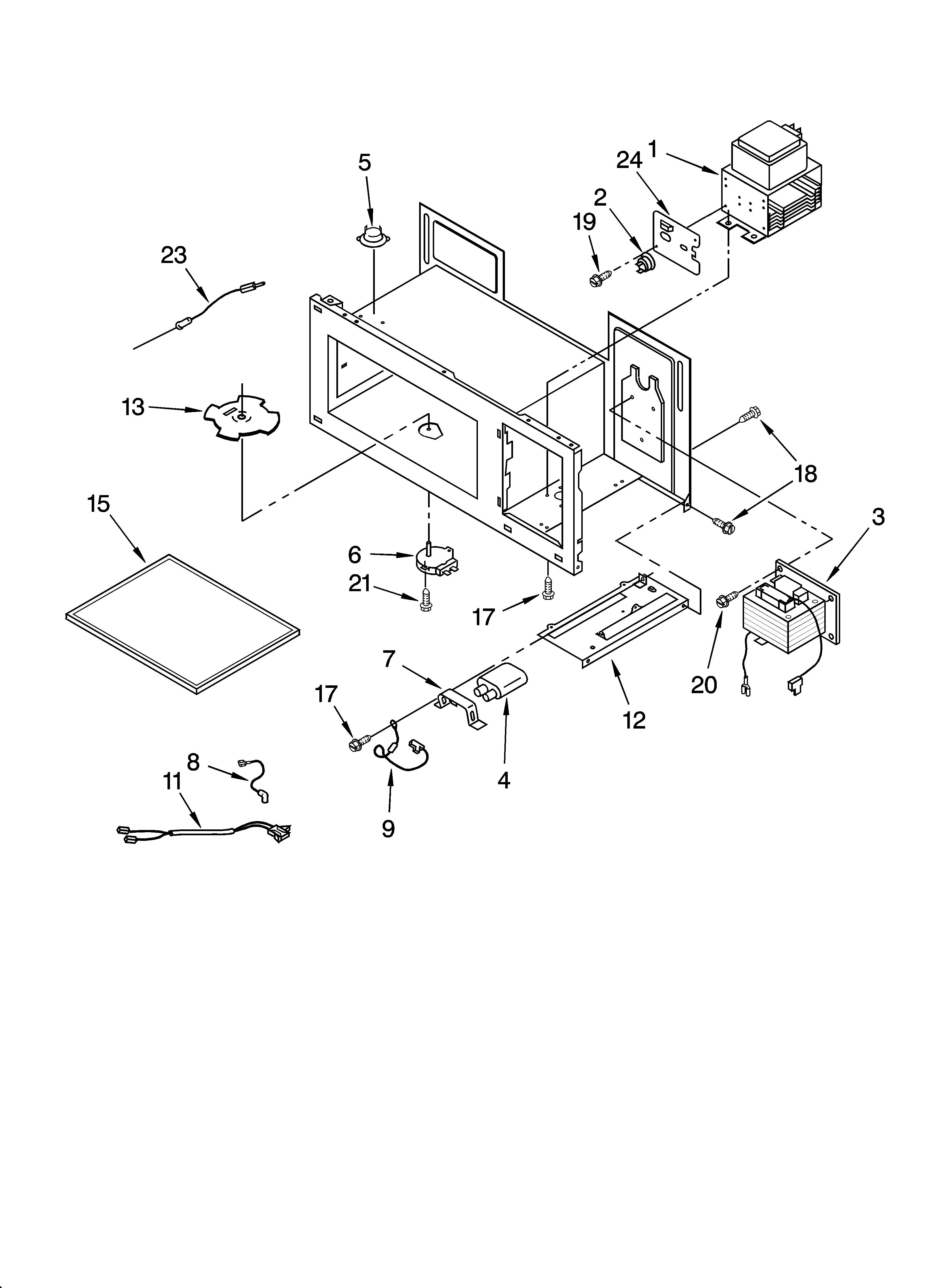

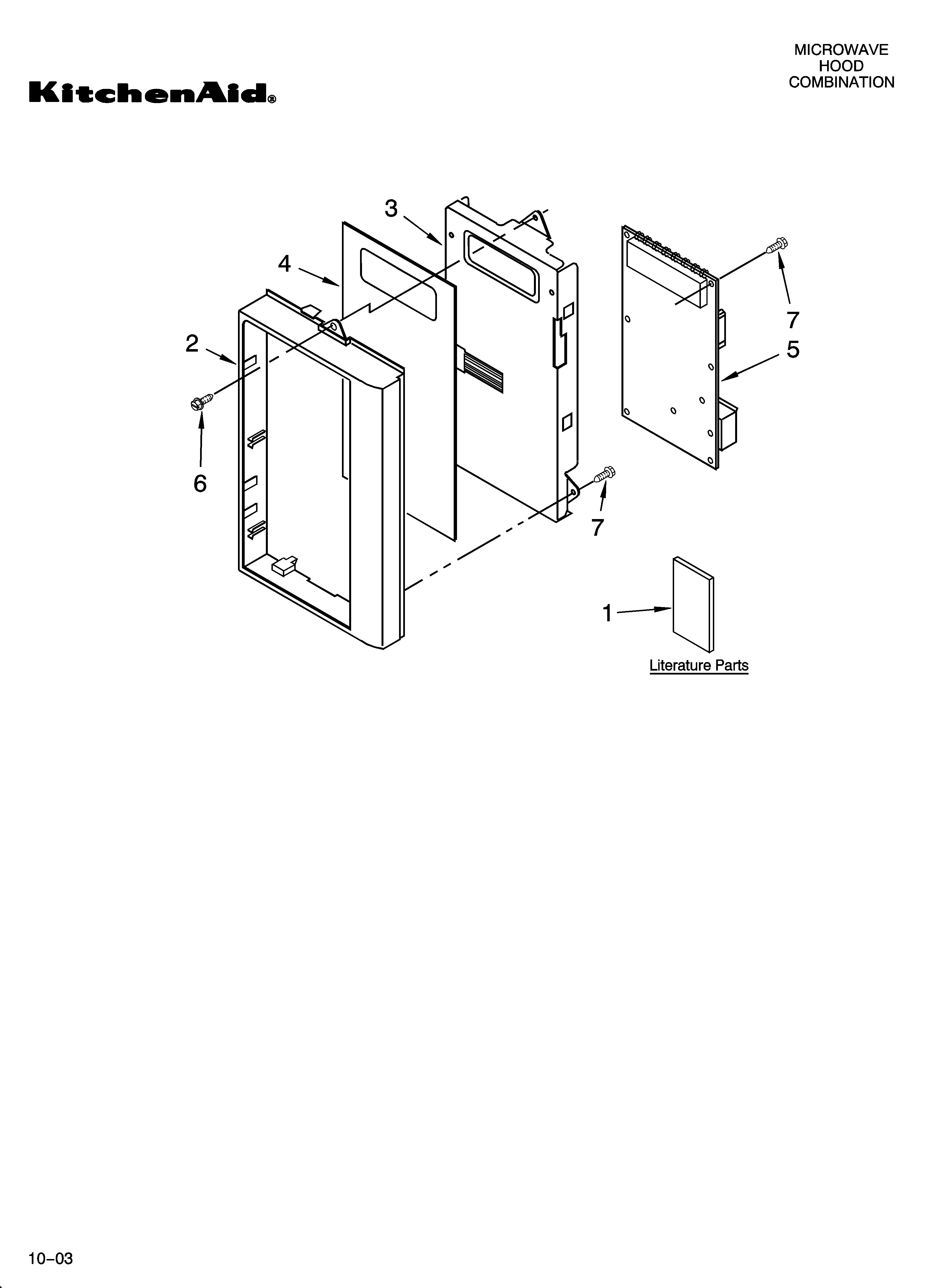

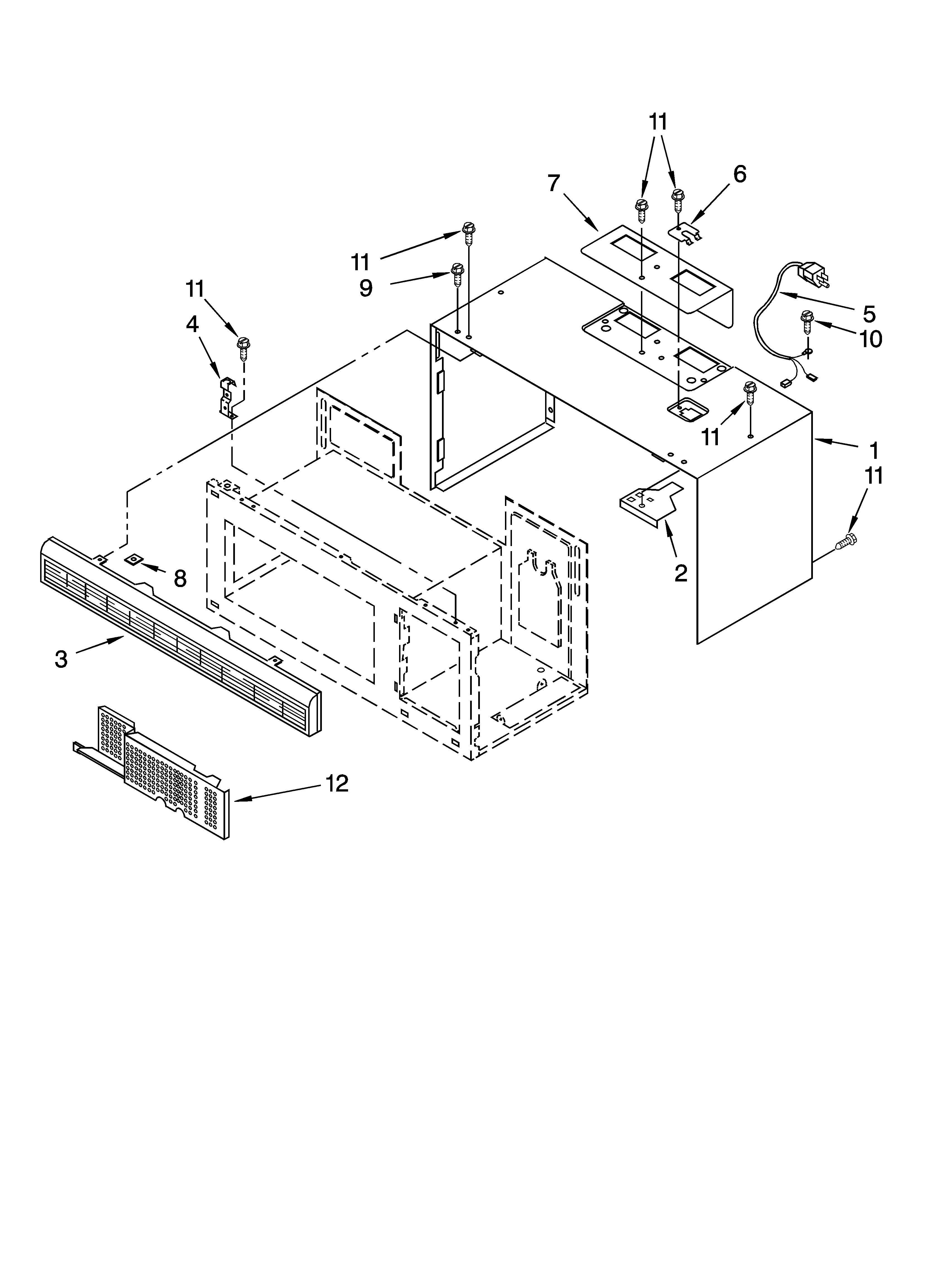

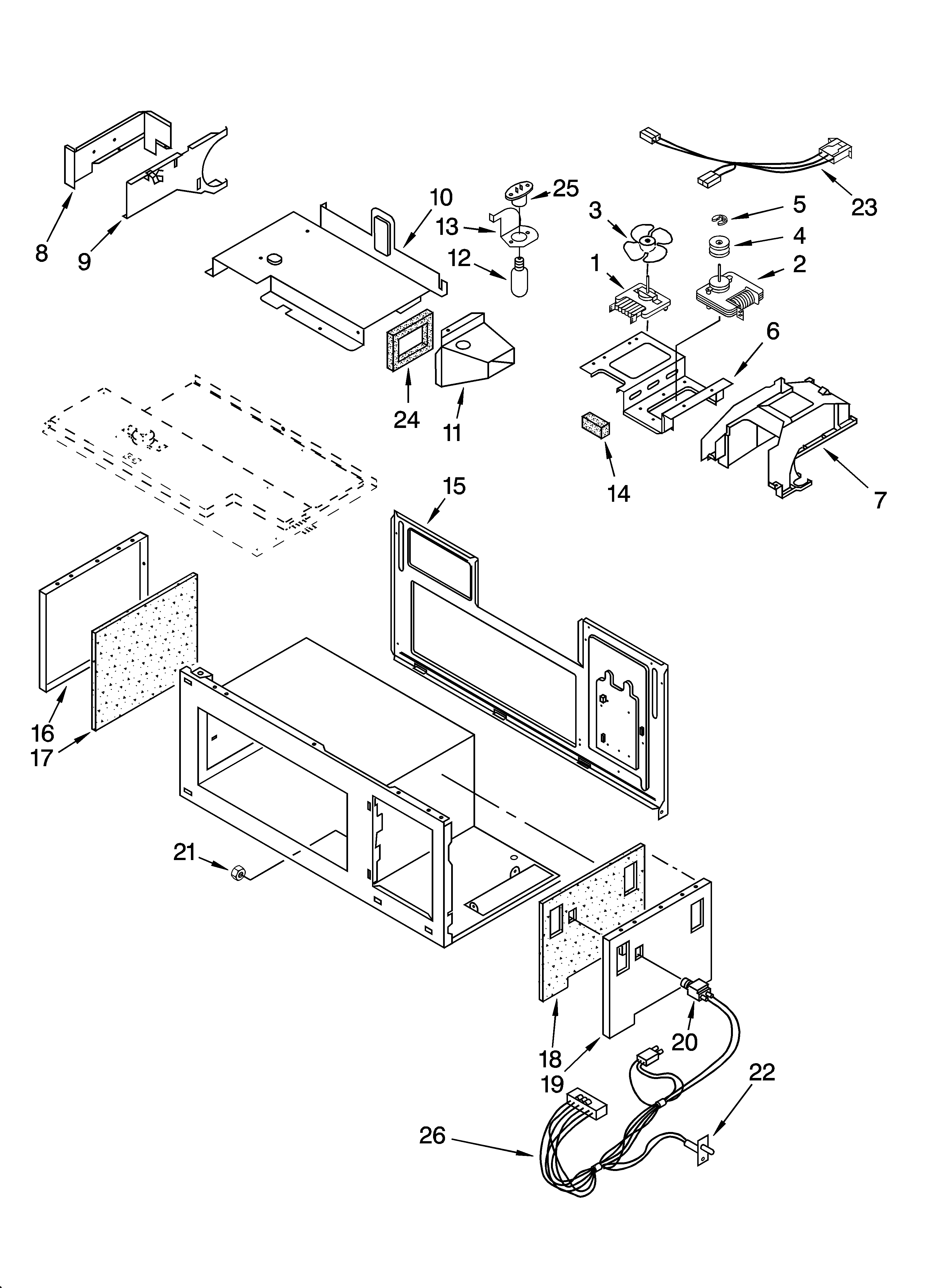

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Light Bulb 4158344
#7

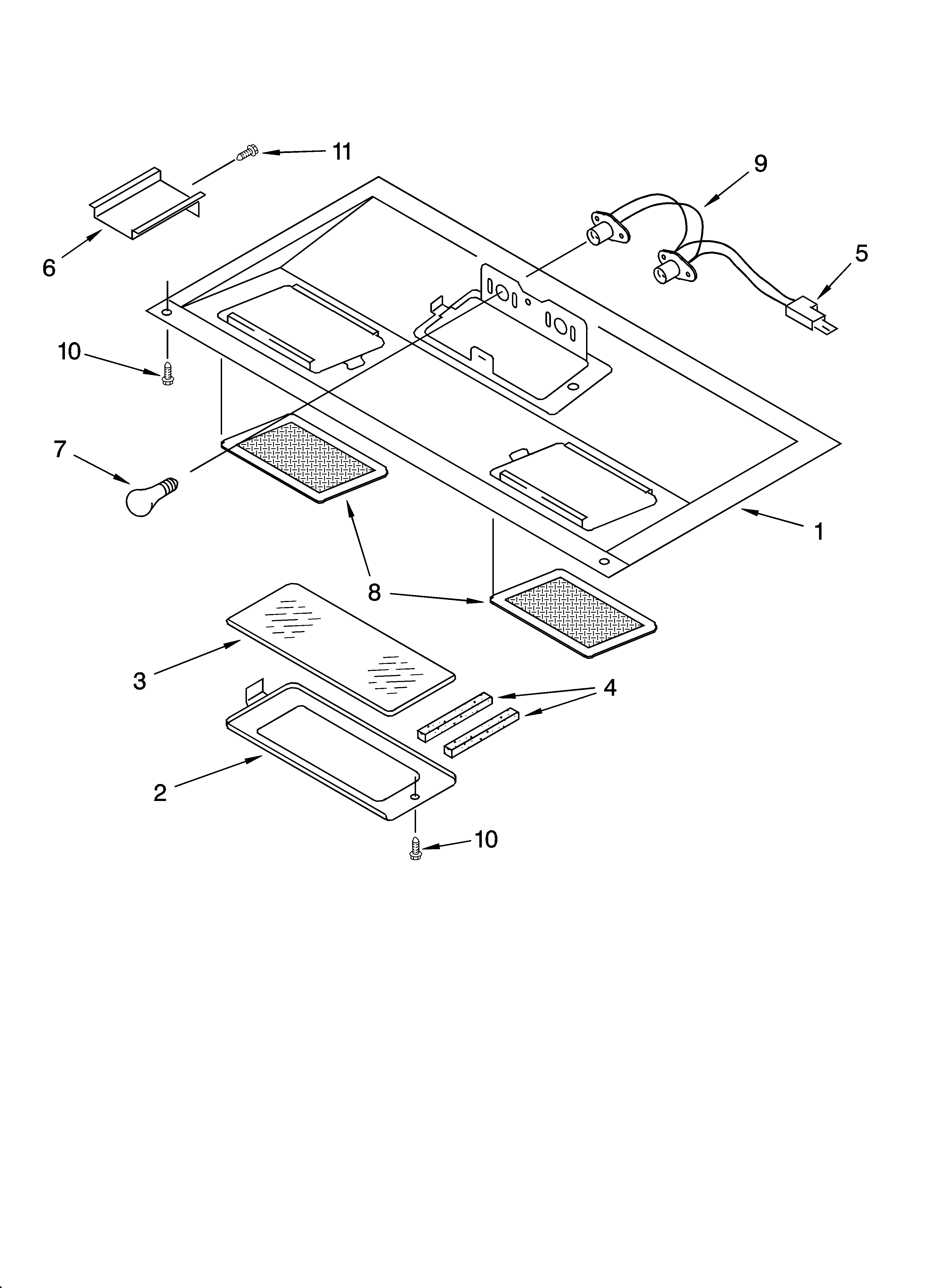

Ventilation parts diagram

Light bulb

Part #4158344

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158344. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Switch 4158941
#4

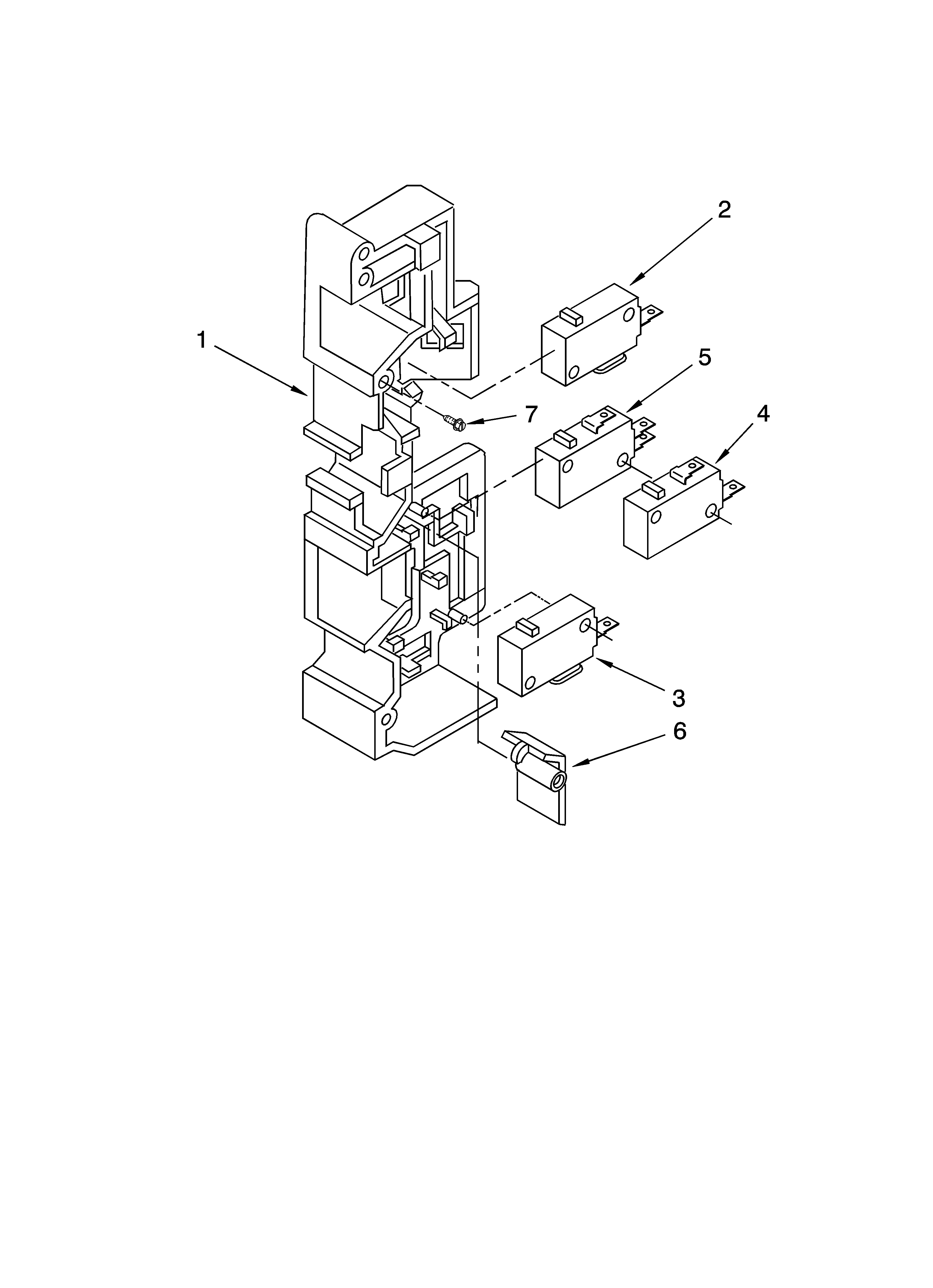

Latch board parts diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4158940
#2

Latch board parts diagram

Switch

Part #4158940

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158940. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4358269
#3

Latch board parts diagram

Switch

Part #4358269

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4358269. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4358268
#5

Latch board parts diagram

Switch

Part #4358268

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4358268. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4358045
#2

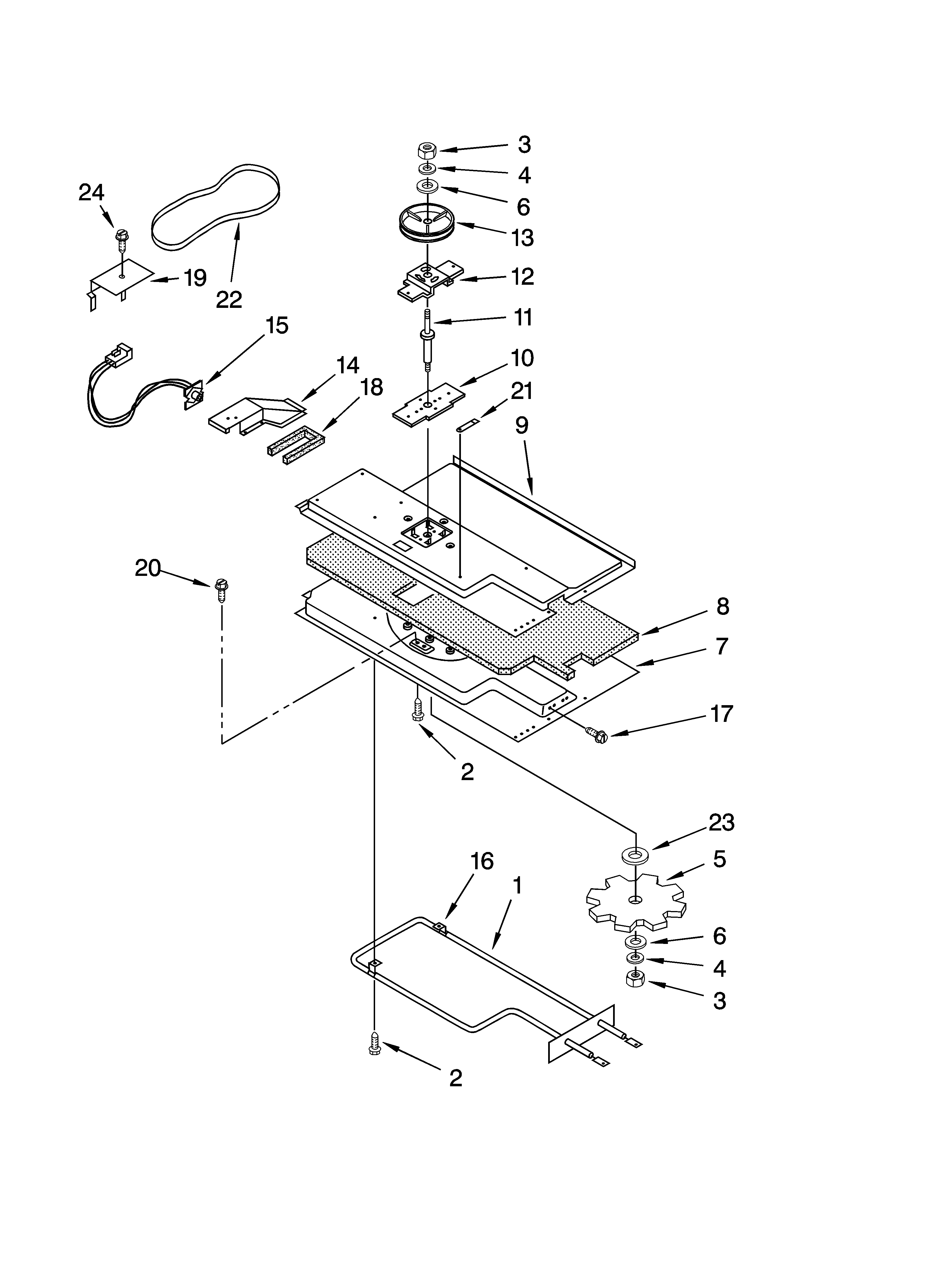

Plate chamber assembly diagram

Screw

Part #4358045

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 4358045. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 4358010
#15

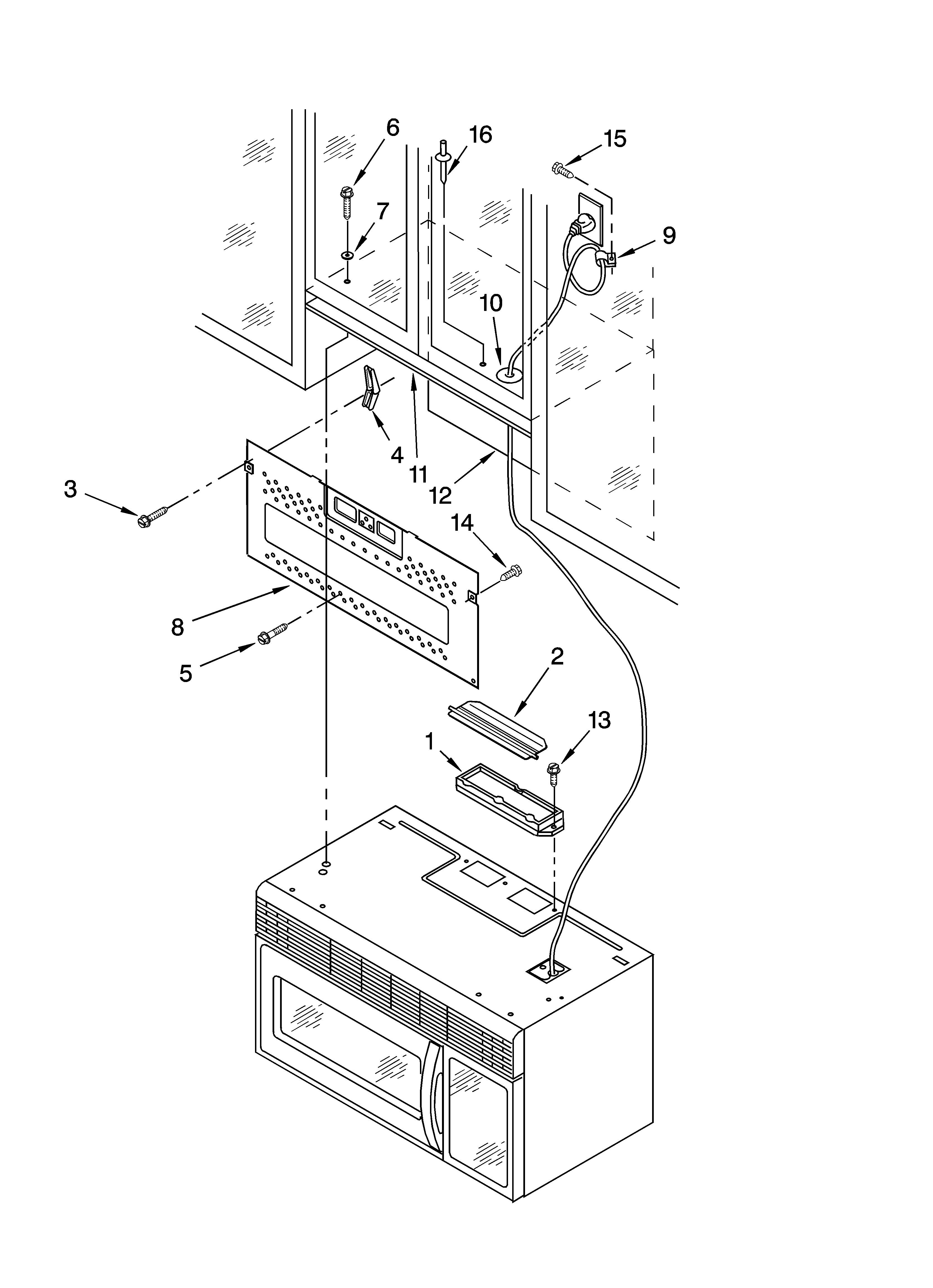

Installation parts diagram

Screw

Part #4358010

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 4358010. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 4358479
#13

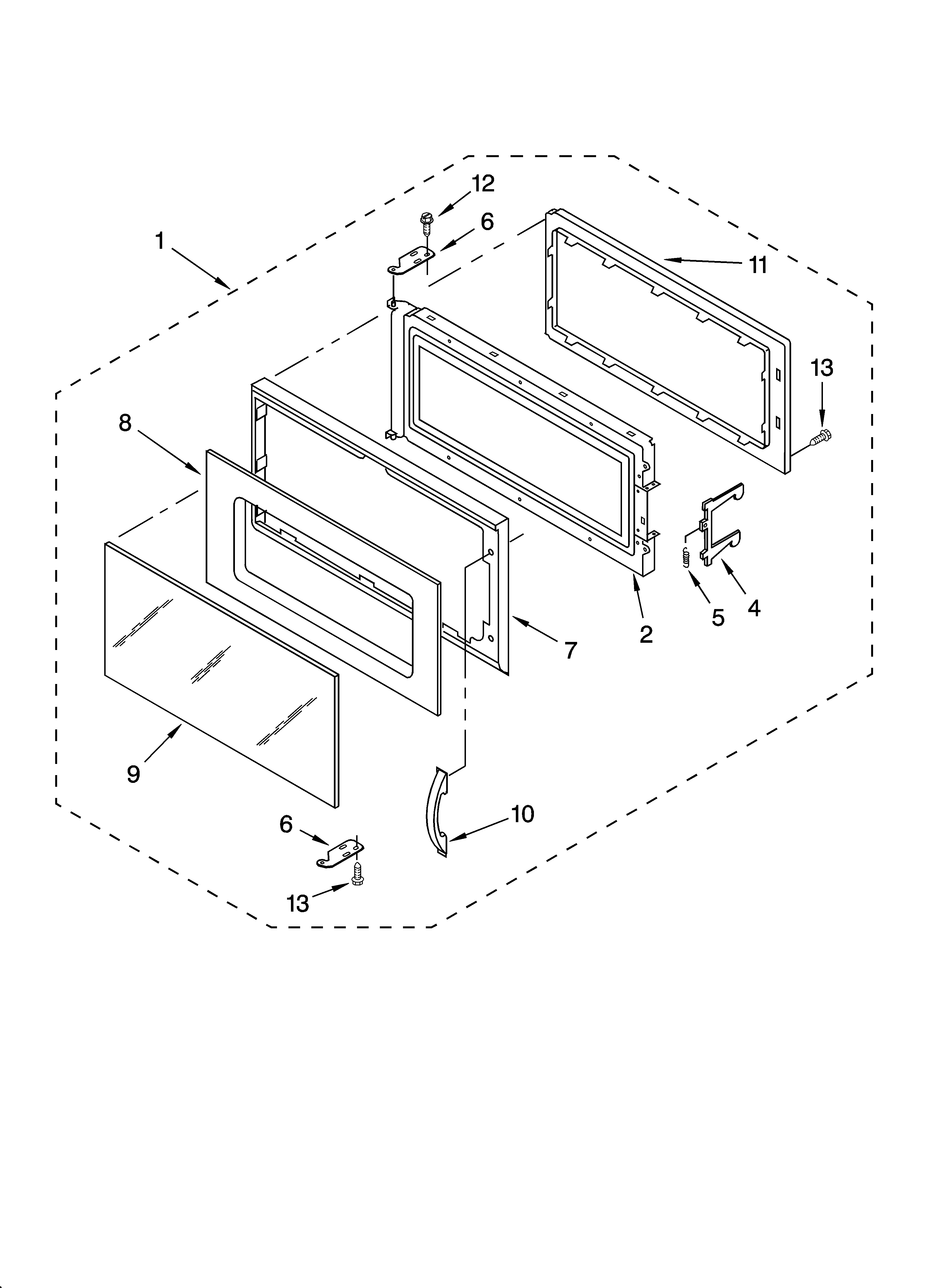

Door parts diagram

Screw

Part #4358479

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4358479. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Microwave Screw 4358380
#10

Ventilation parts diagram

Microwave screw

Part #4358380

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358380. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw 4358192
Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
