Kenmore
Electric Range

Model # 79061751100 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79061751100 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

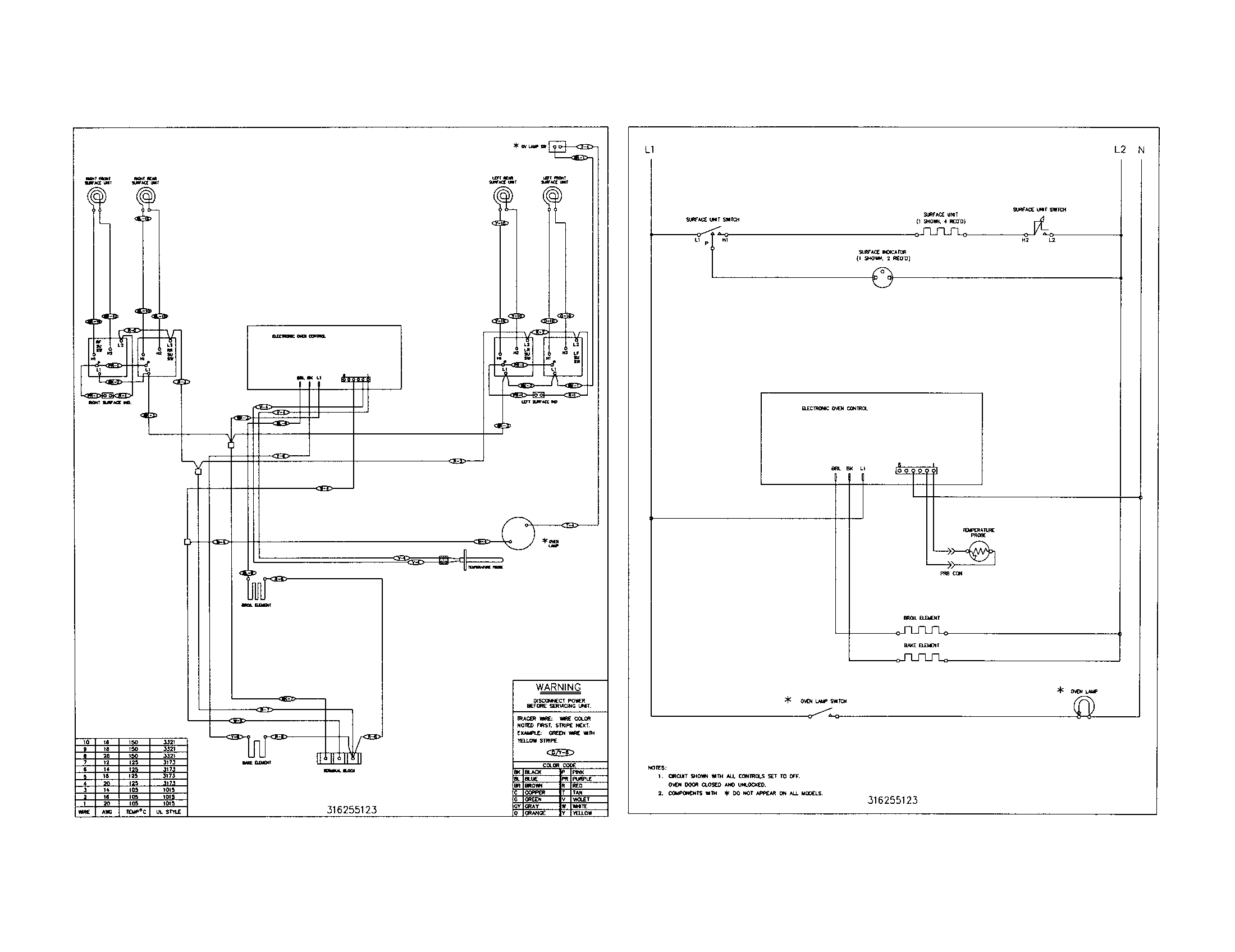

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Range Surface Element Control Switch 316021501
#54A

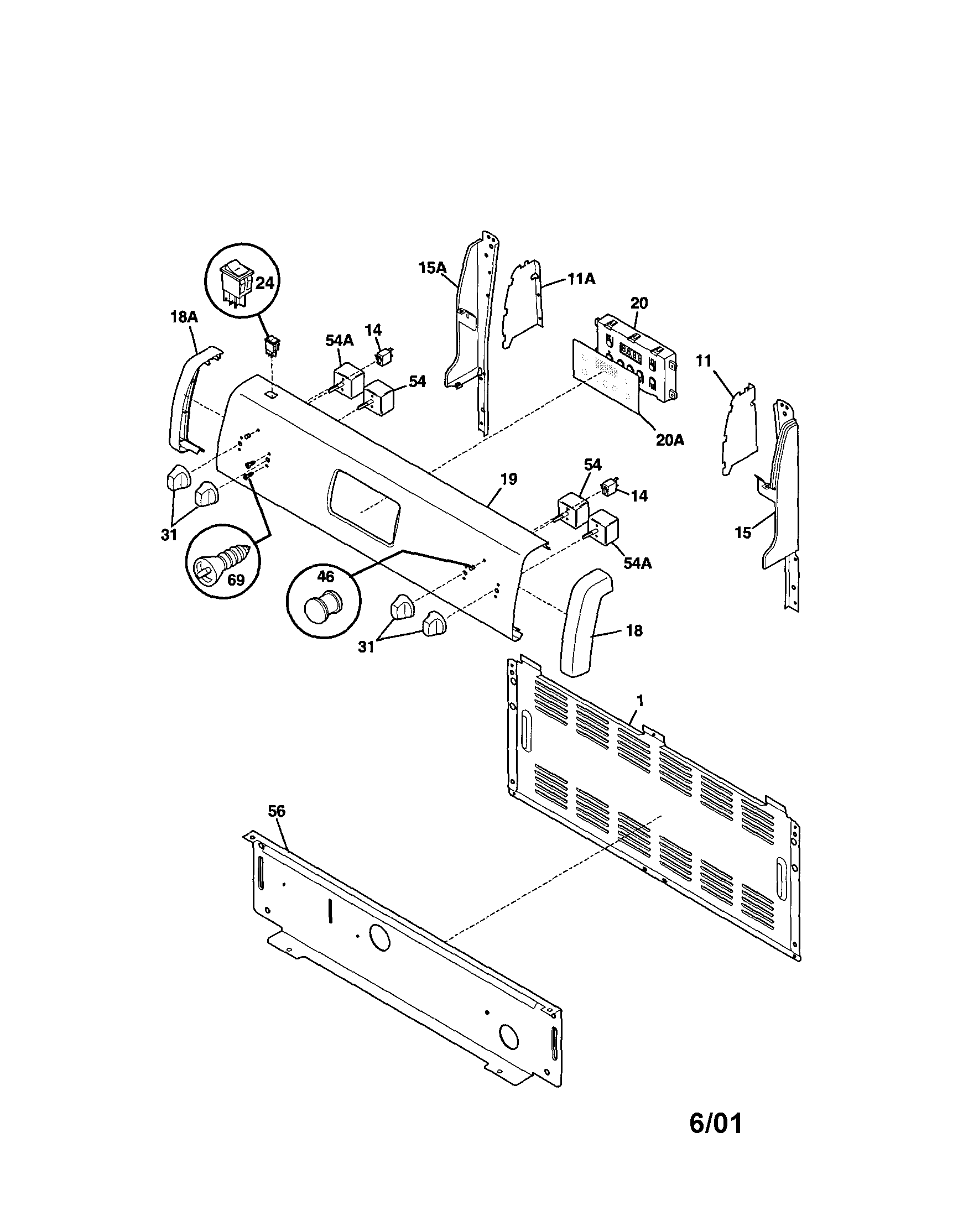

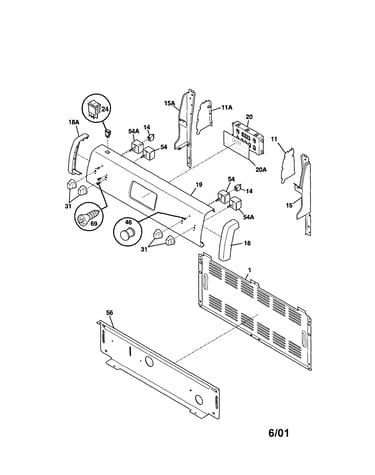

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
BEST SELLER
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Range Surface Element, 8-in 5303012223
#15

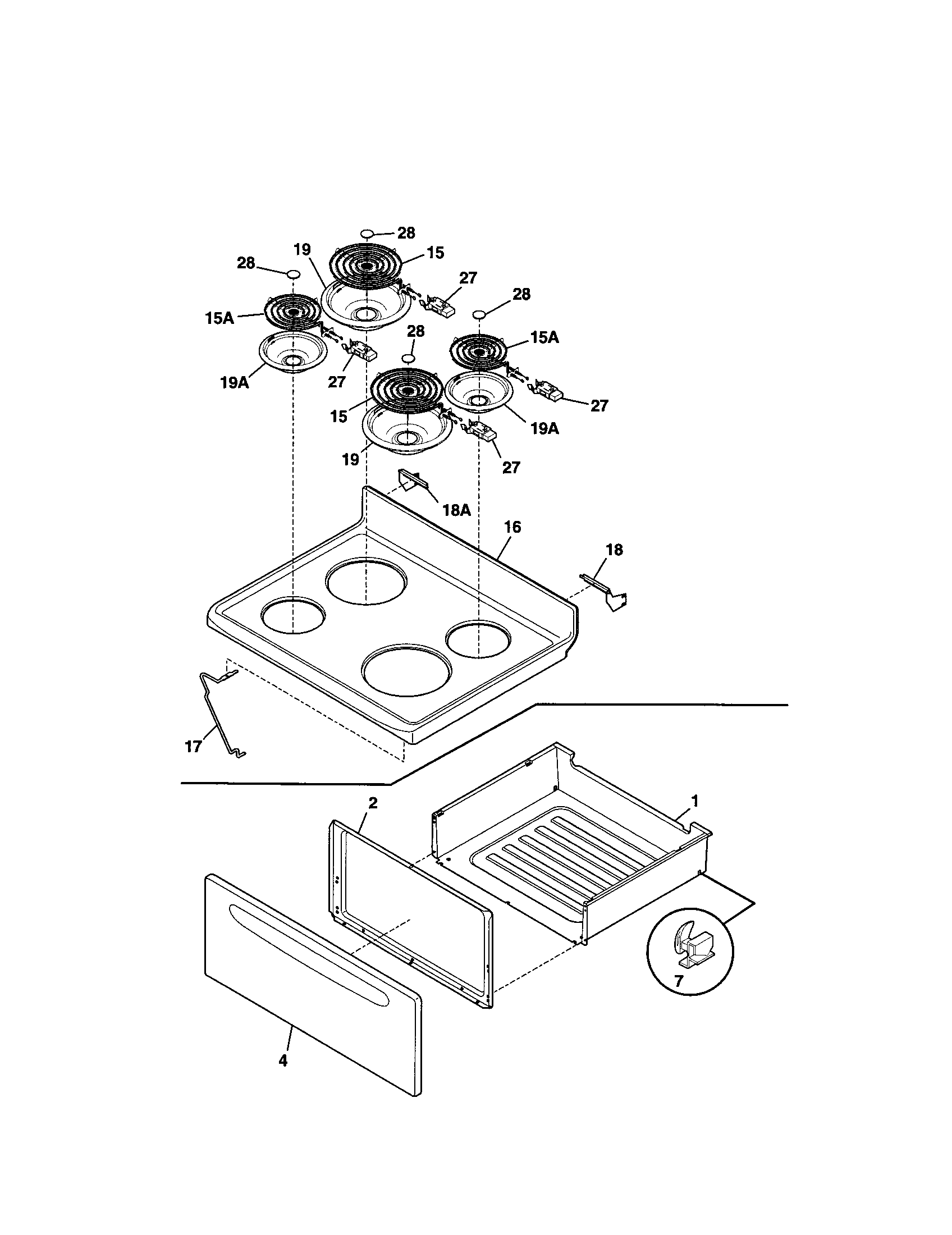

Top/drawer diagram

Range surface element, 8-in

Part #5303012223

Replaced by #316442301

?
Manufacturer substitution
This part replaces 5303012223. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Range Oven Light Bulb 5303013071
#15

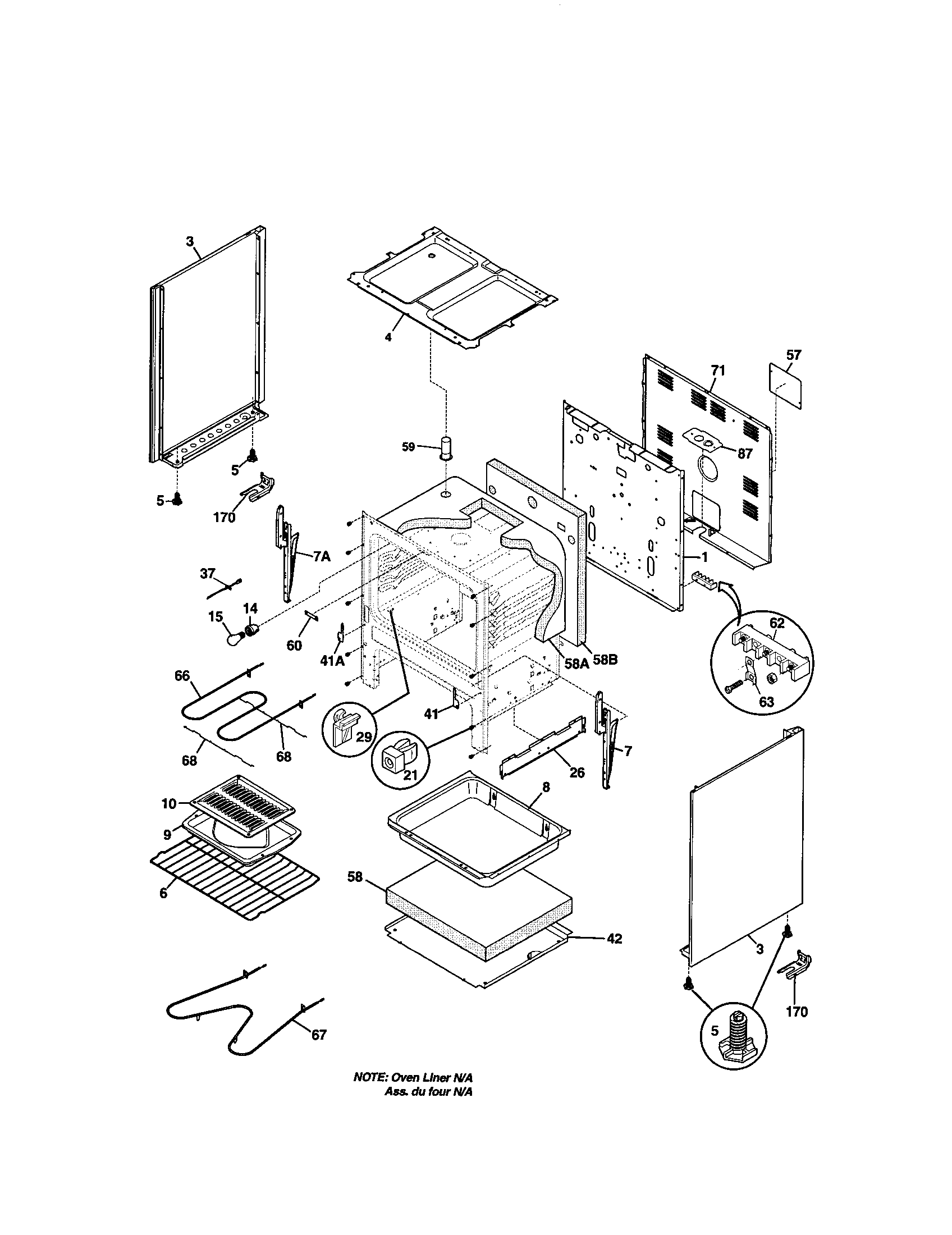

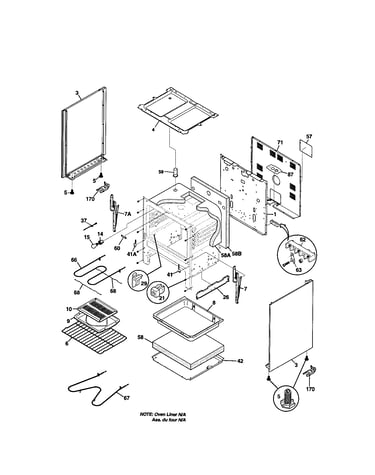

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Cooktop Surface Element 08067762
#15A

Top/drawer diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Clock Overlay 316220708
#20A

Backguard diagram

Clock overlay

Part #316220708

Replaced by #316220729

?
Manufacturer substitution
This part replaces 316220708. Substitute parts can look different from the original.
BEST SELLER
$33.92 |
15% OFF Phone Price : $39.92
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Clock Overlay 316220707
#20AA

Backguard diagram

Clock overlay

Part #316220707

Replaced by #316220728

?
Manufacturer substitution
This part replaces 316220707. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$31.73 |
16% OFF Phone Price : $37.73
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

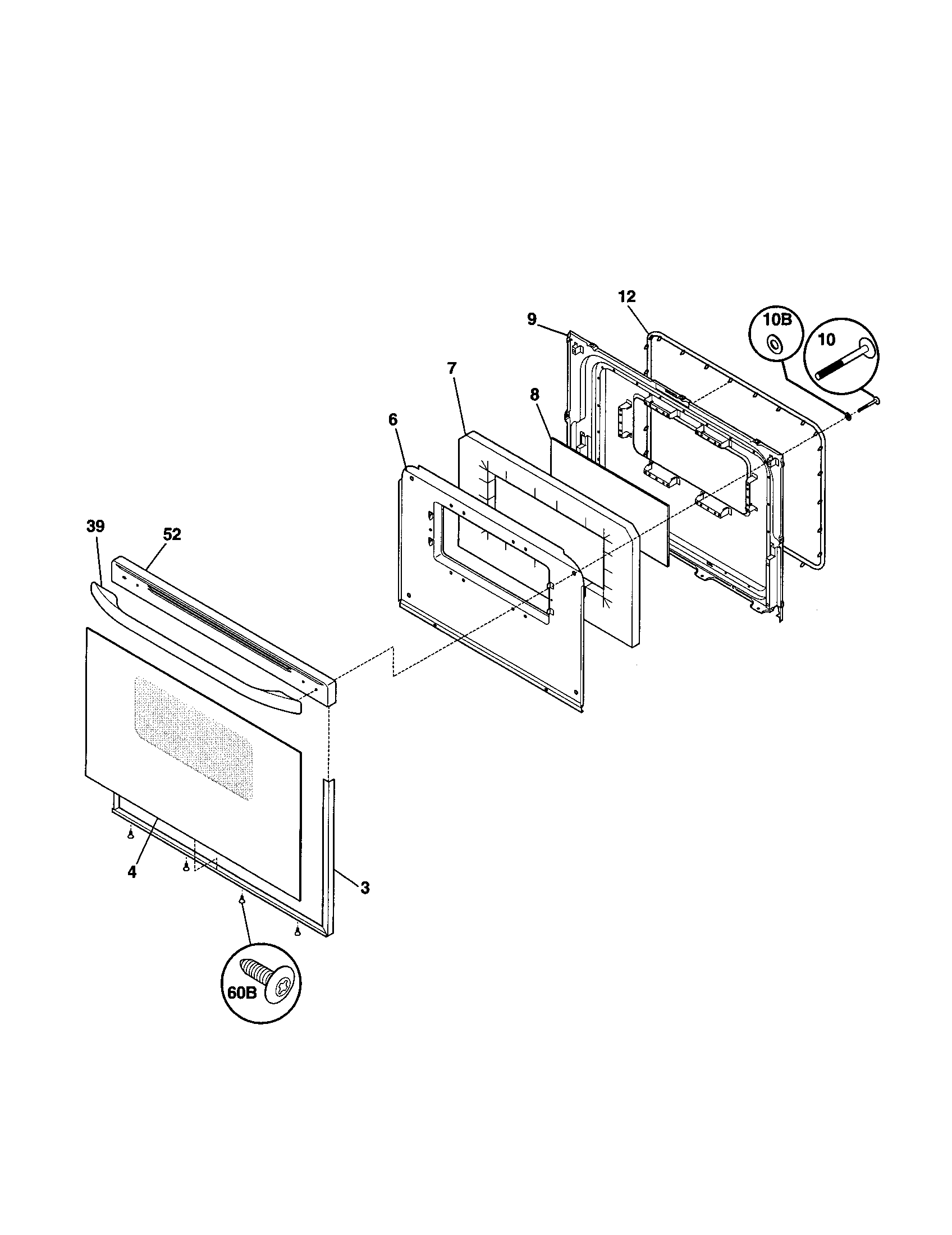

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
