Model # WRT771RWYM01 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool WRT771RWYM01 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

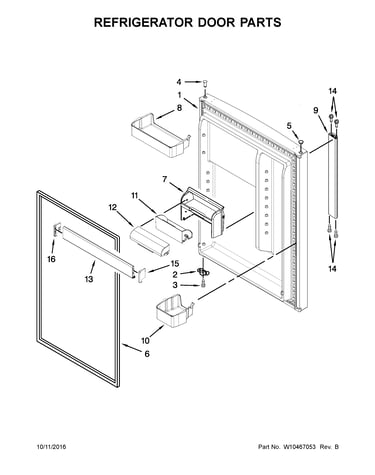

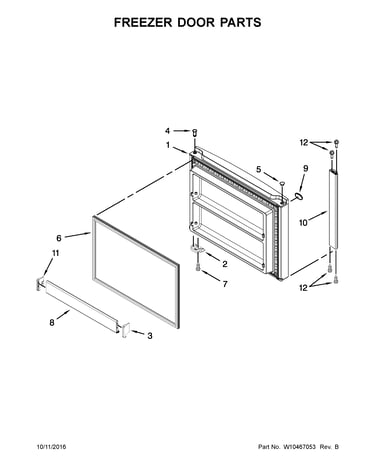

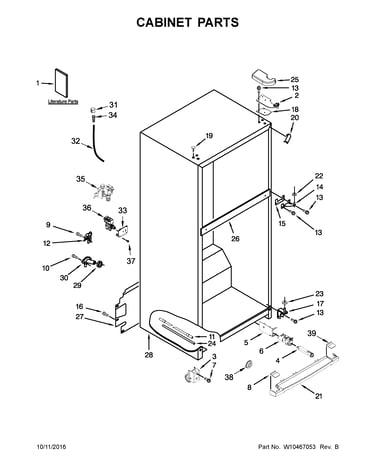

SELECT DIAGRAM
Browse Parts for
WRT771RWYM01 Refrigerators
#46

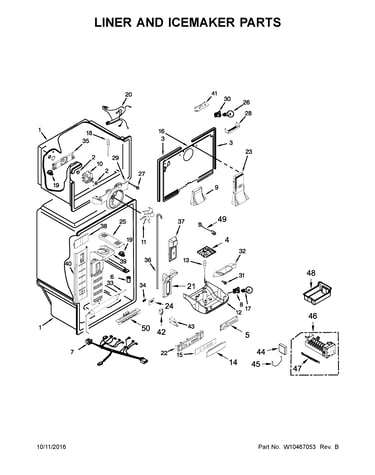

Liner and icemaker parts diagram
Refrigerator ice maker assembly
Part #W10632400
Replaced by #4317943
?
Manufacturer substitution
This part replaces W10632400. Substitute parts can look different from the original.
$96.71
In Stock
#10
Liner and icemaker parts diagram
Refrigerator evaporator fan motor
Part #2315539
Replaced by #WP2315539
?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
$45.62 |
20% OFF Phone Price : $56.80
In Stock
#19
Liner and icemaker parts diagram
Refrigerator light switch
Part #1118894
Replaced by #W11384469
?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
$21.70 |
29% OFF Phone Price : $30.42
In Stock
#13
Liner and icemaker parts diagram
Refrigerator thermistor
Part #W10384183
The manufacturer no longer makes this part, and there's no substitute part
#24

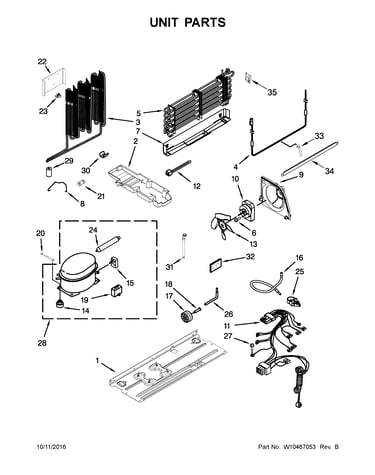

Unit parts diagram
Refrigerator drier assembly
Part #W10669573
Replaced by #W10843121
?
Manufacturer substitution
This part replaces W10669573. Substitute parts can look different from the original.
$30.82 |
16% OFF Phone Price : $36.82
In Stock
#19
Unit parts diagram
Refrigerator capacitor
Part #W10590083
Replaced by #WPW10662129
?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
$44.35 |
19% OFF Phone Price : $54.85
In Stock
#15
Unit parts diagram
Refrigerator start relay
Part #W10197428
Replaced by #WPW10197428
?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
$43.48 |
12% OFF Phone Price : $49.48
In Stock
#18
Liner and icemaker parts diagram
Refrigerator thermistor
Part #W10383615
Replaced by #WPW10383615
?
Manufacturer substitution
This part replaces W10383615. Substitute parts can look different from the original.
$31.37 |
12% OFF Phone Price : $35.80
In Stock
#14

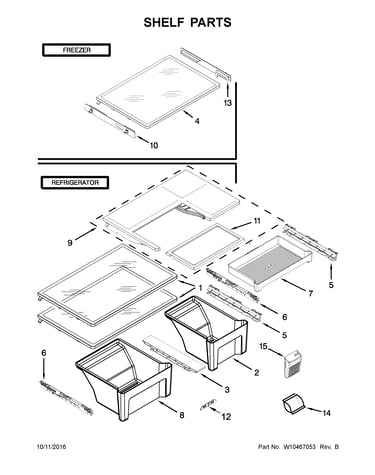

Shelf parts diagram
Refrigerator preserver
Part #W10346771
Replaced by #W10346771A
?
Manufacturer substitution
This part replaces W10346771. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$20.89 |
22% OFF Phone Price : $26.89
In Stock
#4
Unit parts diagram
Refrigerator defrost heater
Part #W10316428
Replaced by #WPW10316428
?
Manufacturer substitution
This part replaces W10316428. Substitute parts can look different from the original.
$114.22 |
5% OFF Phone Price : $120.51
In Stock
