Model # 153339372 Official Kenmore water heater
Here are the diagrams and repair parts for Official Kenmore 153339372 water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153339372 Water Heaters
#9

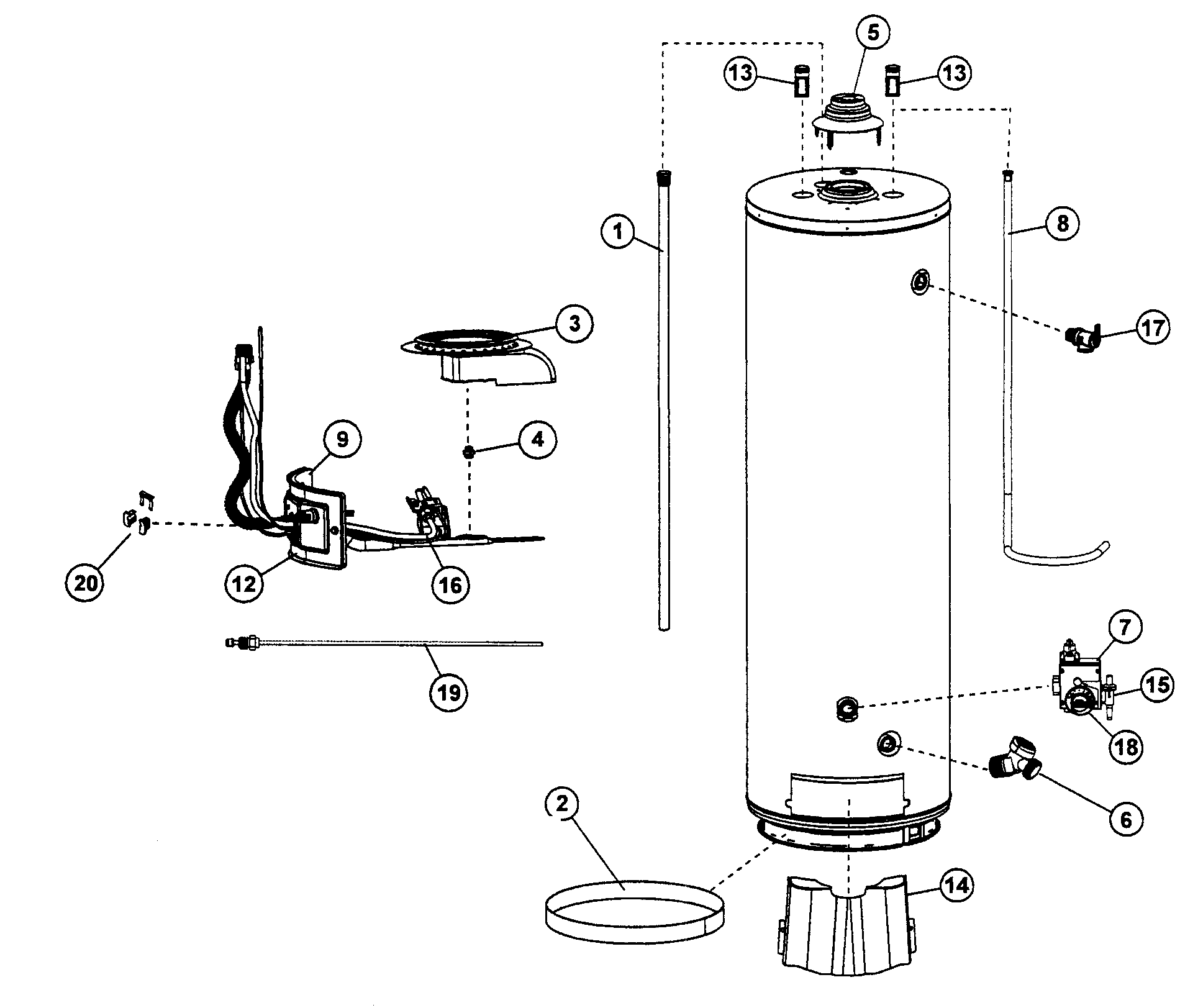

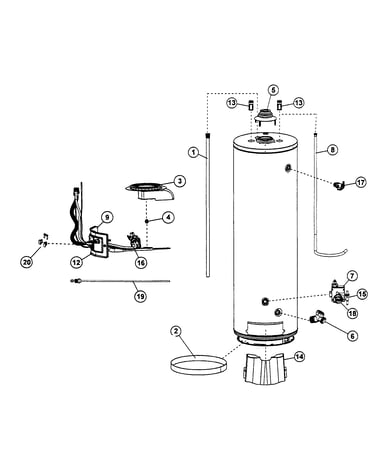

Water heater diagram
Water heater manifold door gasket
Part #9006141
This item is not returnable
$25.47 |
19% OFF Phone Price : $31.47
Back Order
#7
Water heater diagram
Gas valve
Part #F145-1555
The manufacturer no longer makes this part, and there's no substitute part
#3
Water heater diagram
Water heater burner
Part #9006136
$23.89 |
20% OFF Phone Price : $29.89
In Stock
#5
Water heater diagram
Water heater vent draft hood (replaces 185917-002, 700795-020)
Part #9006647
Replaced by #100111362
?
Manufacturer substitution
This part replaces 9006647. Substitute parts can look different from the original.
$34.44
In Stock
#NI
Water heater diagram
Mag erad
Part #23600
Replaced by #23600
?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
#18
Water heater diagram
Water heater gas control valve knob
Part #F145-1280
The manufacturer no longer makes this part, and there's no substitute part
#2
Water heater diagram
Water heater air intake screen
Part #9006616
Replaced by #100111332
?
Manufacturer substitution
This part replaces 9006616. Substitute parts can look different from the original.
$33.33
In Stock
#20
Water heater diagram
Water heater manifold wire connector
Part #9006449
Replaced by #100093865
?
Manufacturer substitution
This part replaces 9006449. Substitute parts can look different from the original.
$27.78
In Stock
#14
Water heater diagram
Water heater burner access door
Part #9006649
Replaced by #100111364
?
Manufacturer substitution
This part replaces 9006649. Substitute parts can look different from the original.
$37.78
In Stock
#12
Water heater diagram
Water heater burner assembly
Part #9006907
Replaced by #100111591
?
Manufacturer substitution
This part replaces 9006907. Substitute parts can look different from the original.
$193.00
In Stock
