Model # 9114532191 Official Kenmore electric drop-in range

Here are the diagrams and repair parts for Official Kenmore 9114532191 electric drop-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

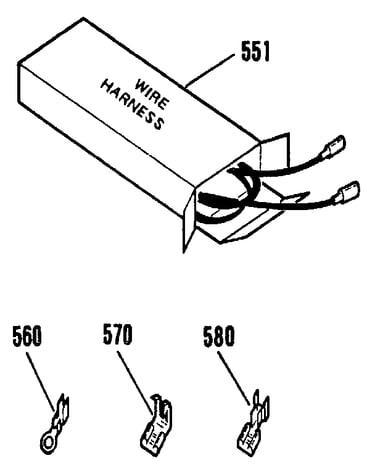

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
40a15 Bulb STD372401
#257

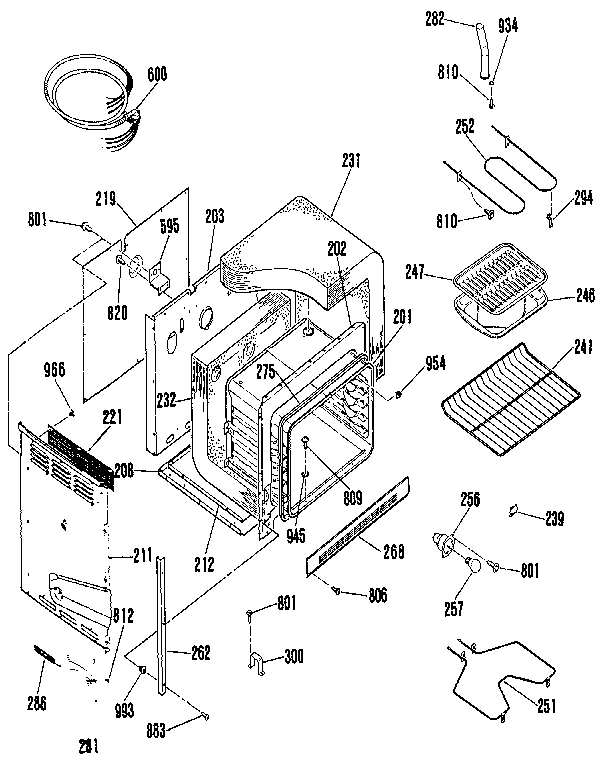

Body section diagram

40a15 bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 10 WB01M0001
Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Control WB23M0024
#19A

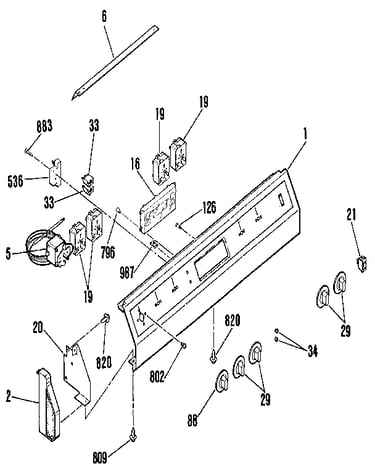

Control section diagram

Control

Part #WB23M0024

Replaced by #WB23M24

?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06 |
7% OFF Phone Price : $91.06
In Stock

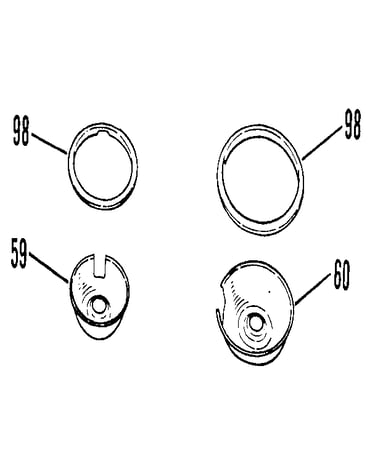

Brnr Bowl 6" WB31M0001
#59

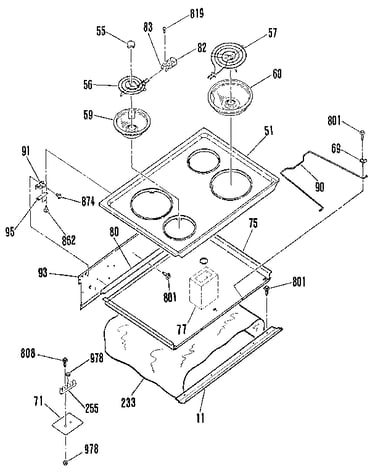

Main top section diagram

Brnr bowl 6"

Part #WB31M0001

Replaced by #WB31M1

?
Manufacturer substitution
This part replaces WB31M0001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Light Lens WB25X0094
#34

Control section diagram

Light lens

Part #WB25X0094

Replaced by #WB25T10042

?
Manufacturer substitution
This part replaces WB25X0094. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grid Broil WB49X0627
#247

Body section diagram

Grid broil

Part #WB49X0627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X0627. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Element Control WB23K5027
#19

Control section diagram

Element control

Part #WB23K5027

$54.09
In Stock
Screw WB01K5116
#796

Control section diagram

Screw

Part #WB01K5116

Replaced by #WB1K5116

?
Manufacturer substitution
This part replaces WB01K5116. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Outer Glass (black) WB56X1902
#121

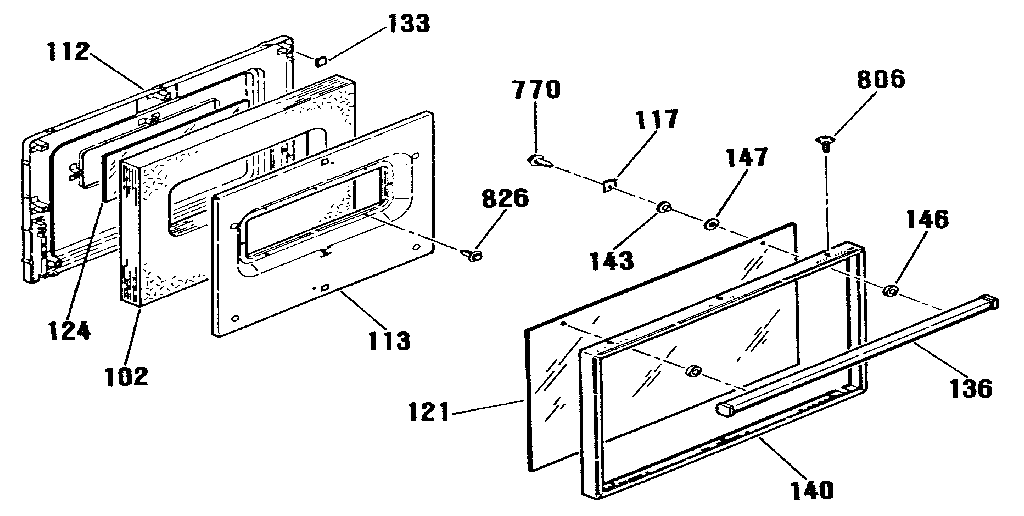

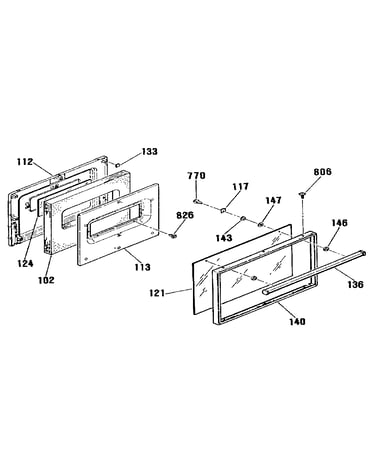

Oven door section diagram

Outer glass (black)

Part #WB56X1902

Replaced by #WB56X1902

?
Manufacturer substitution
This part replaces WB56X1902. Substitute parts can look different from the original.
$215.34 |
5% OFF Phone Price : $227.34
In Stock
Screw WB01X1116
#808

Main top section diagram

Screw

Part #WB01X1116

Replaced by #WB1X1116

?
Manufacturer substitution
This part replaces WB01X1116. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
