Model # SHE8PT55UC/01 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE8PT55UC-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

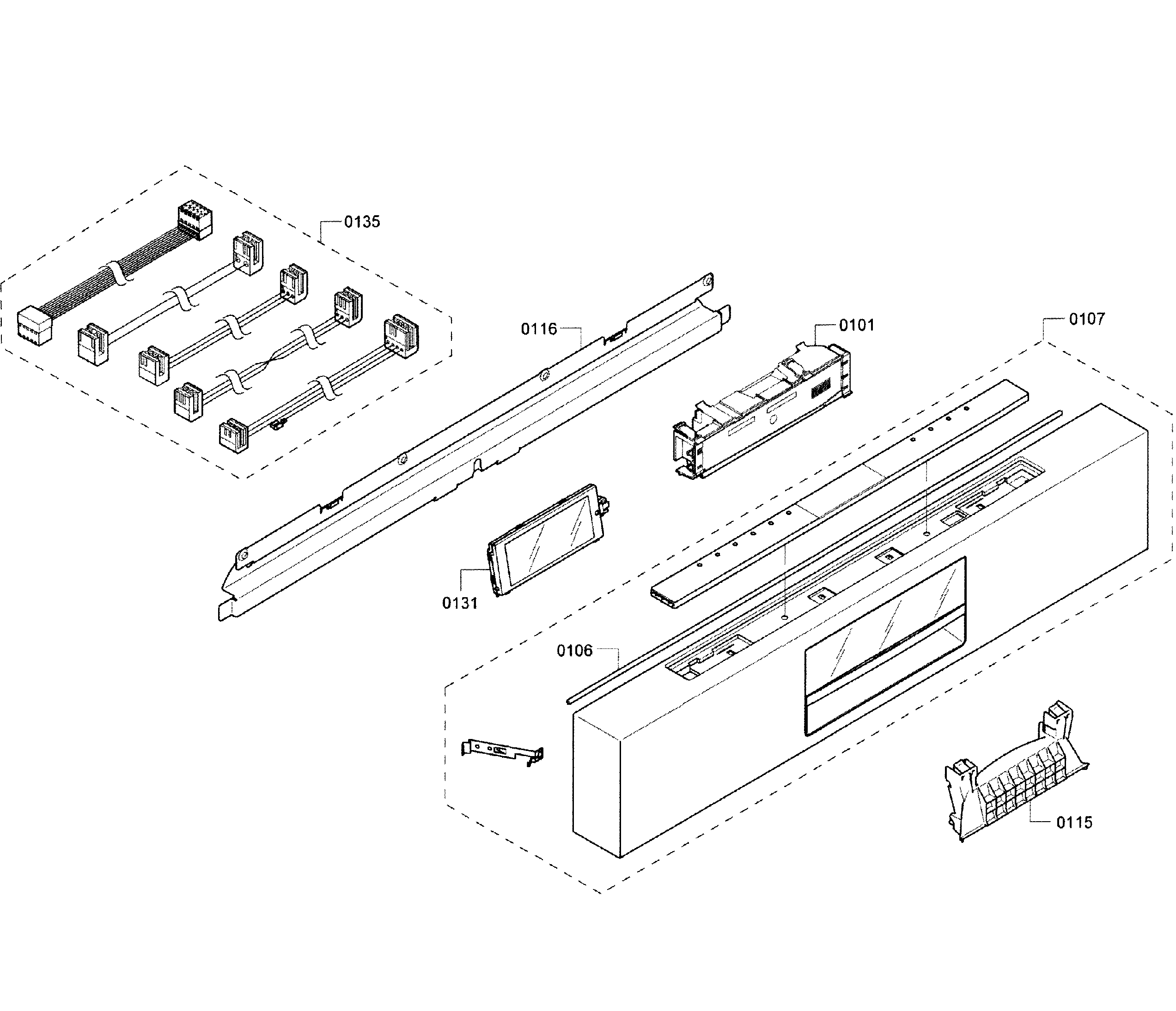

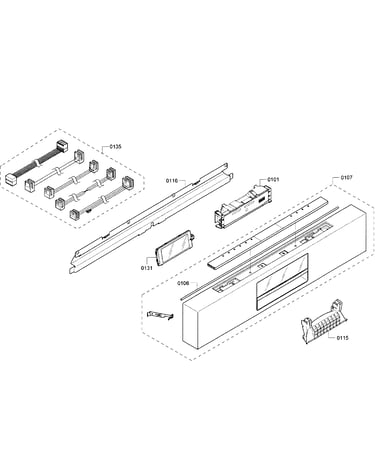

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#521

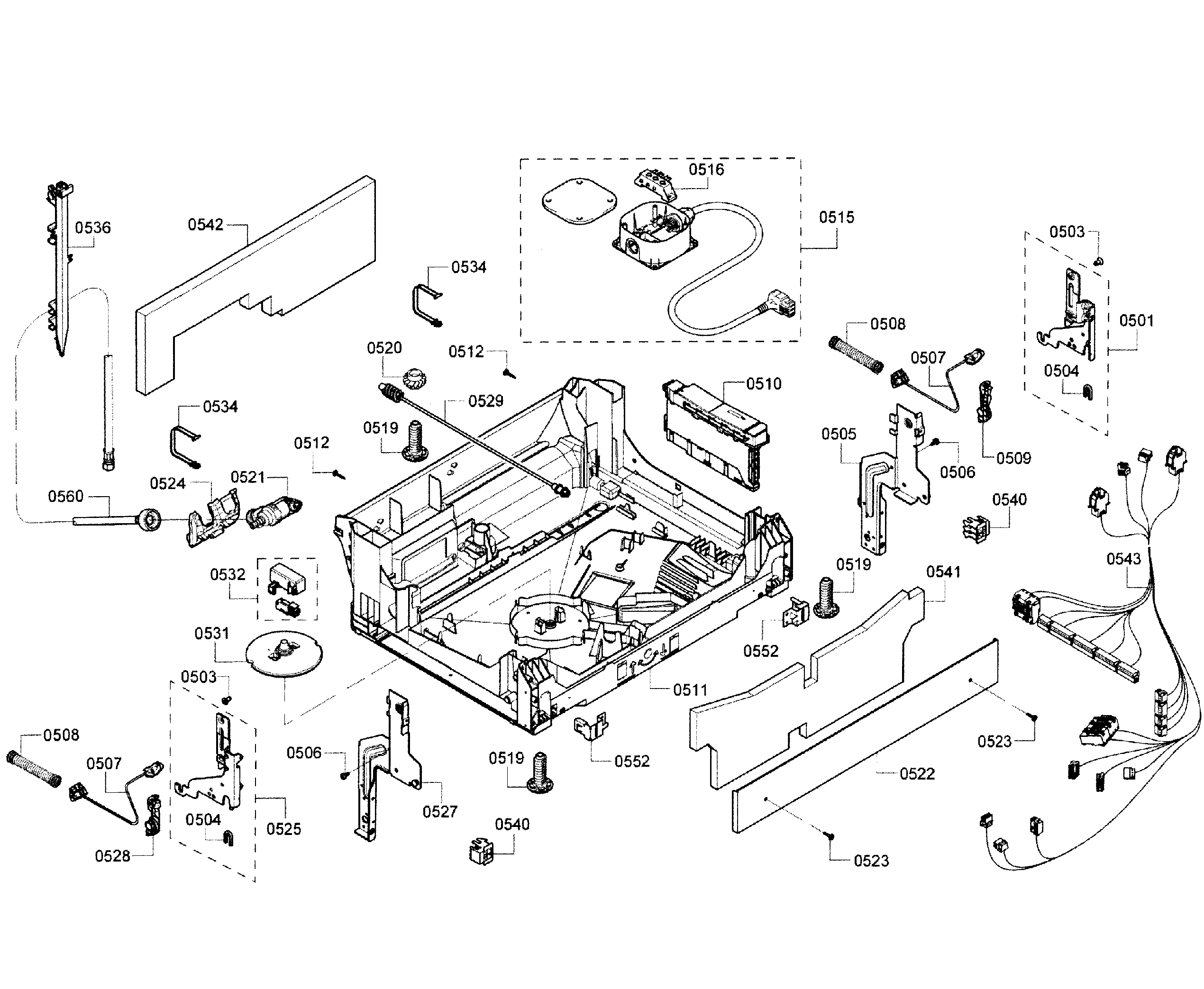

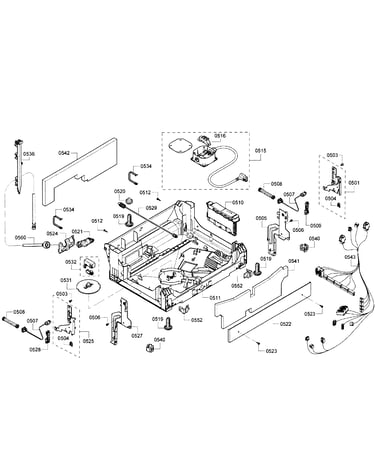

Base assy diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$25.67 |
19% OFF Phone Price : $31.67
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#406

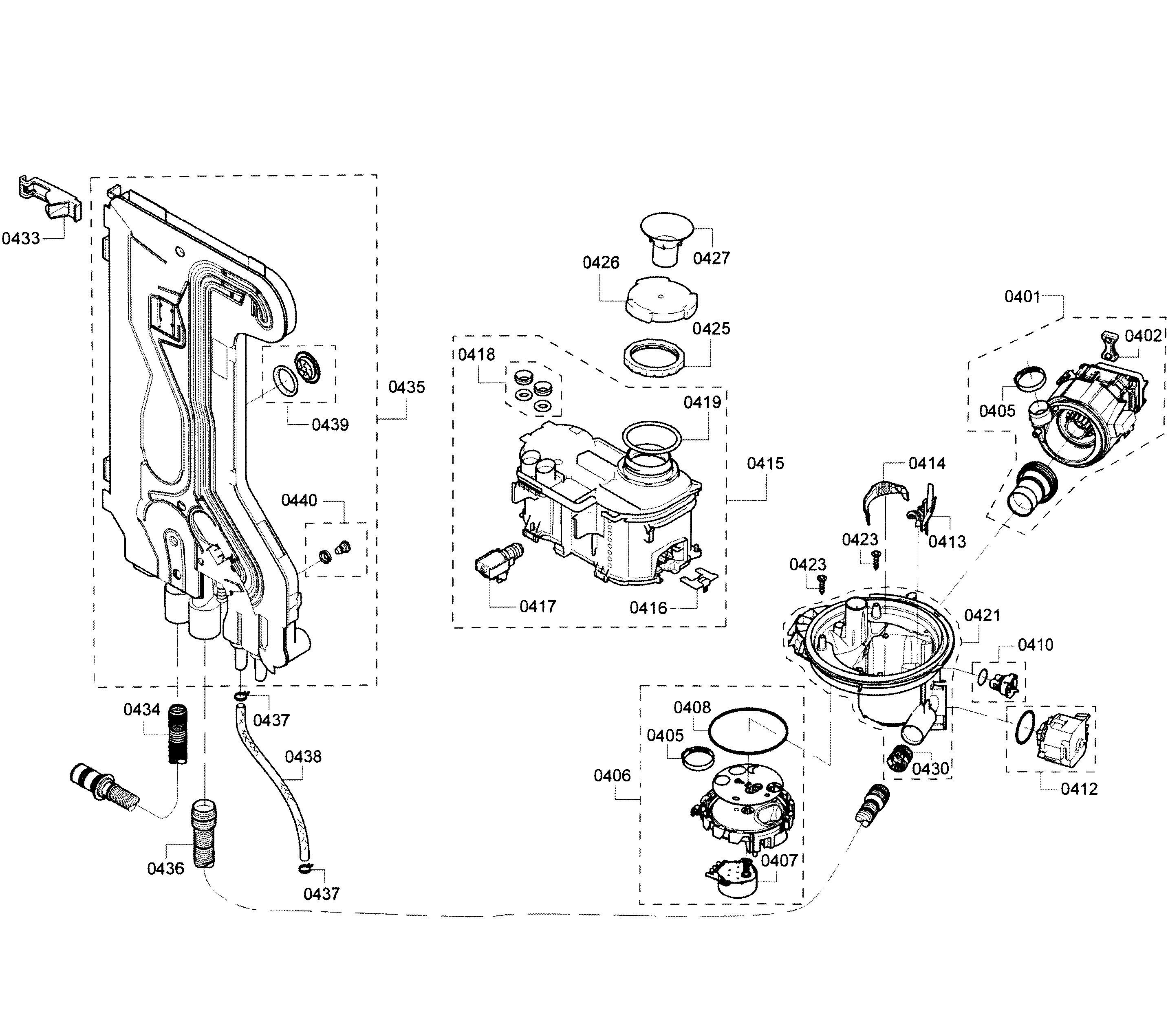

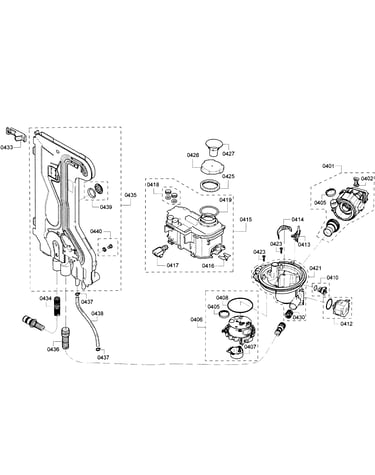

Pump assy diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82 |
11% OFF Phone Price : $55.82
In Stock
Dishwasher Door Cable 00628833
#507

Base assy diagram

Dishwasher door cable

Part #00628833

Replaced by #00754866

?
Manufacturer substitution
This part replaces 00628833. Substitute parts can look different from the original.
BEST SELLER
$35.12 |
15% OFF Phone Price : $41.12
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#307

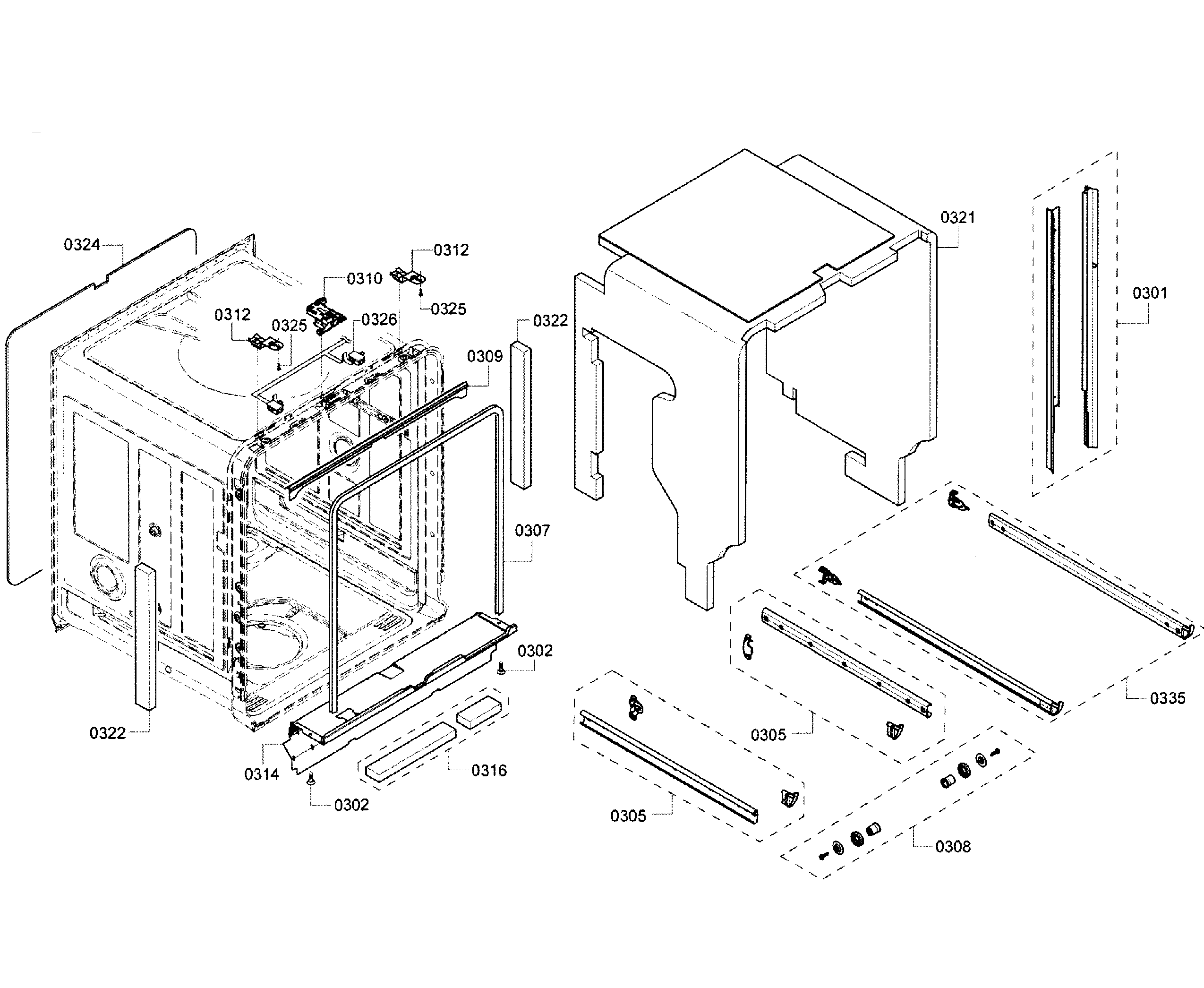

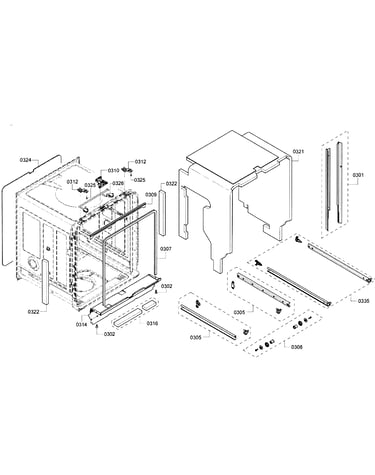

Cabinet diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$31.53 |
16% OFF Phone Price : $37.53
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#405

Pump assy diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

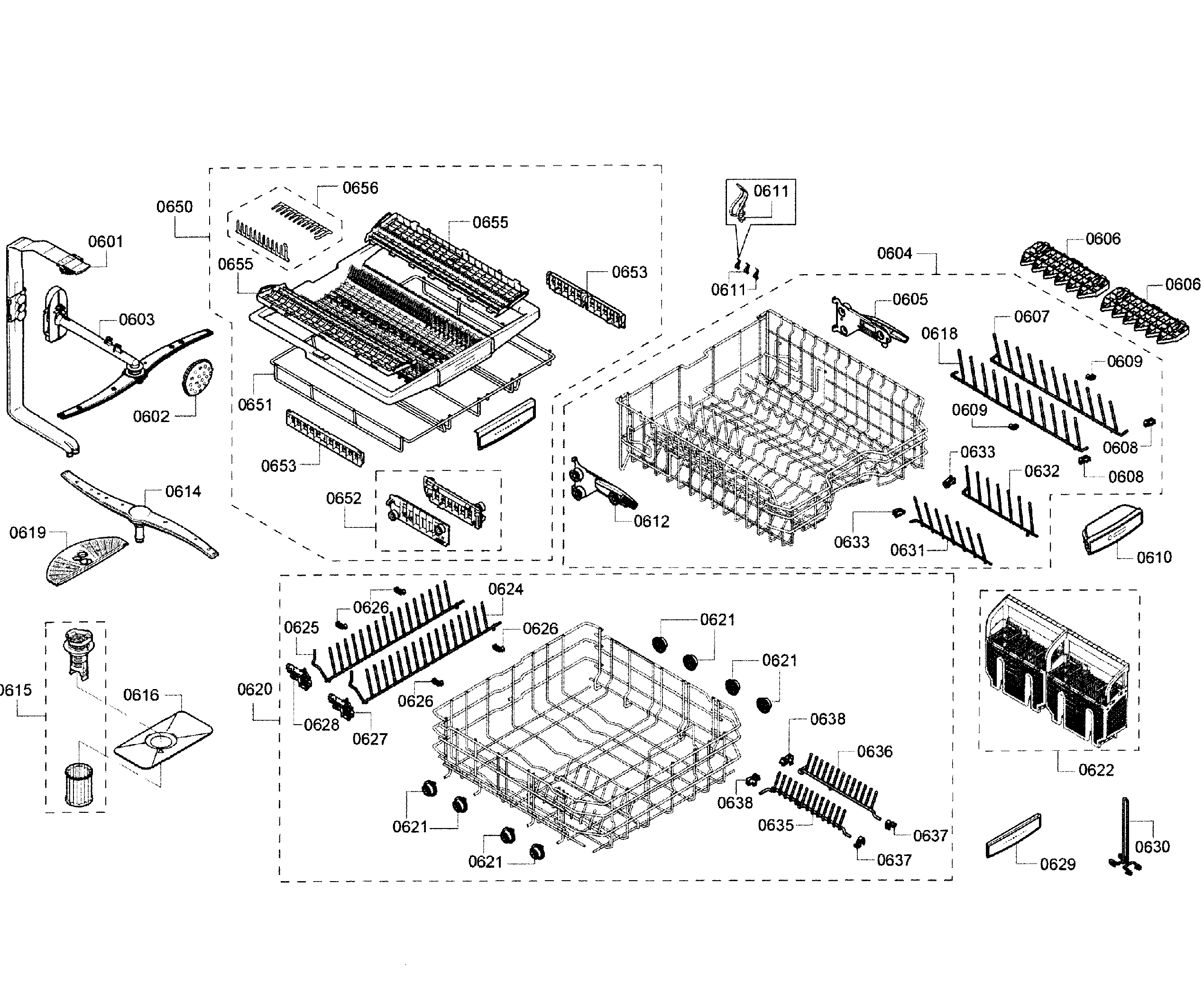

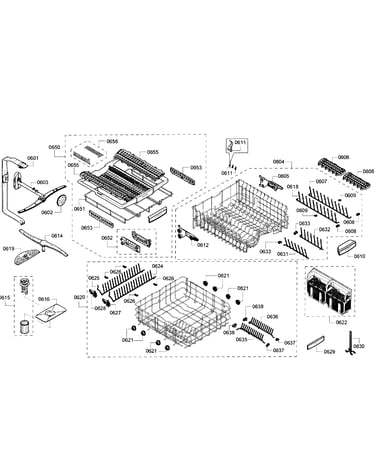

Baskets diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$28.34 |
17% OFF Phone Price : $34.34
In Stock
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#532

Base assy diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

BEST SELLER
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Door Lock Kit (replaces 630784) 00630784
Dishwasher door lock kit (replaces 630784)

Part #00630784

BEST SELLER
This item is not returnable
$23.49 |
20% OFF Phone Price : $29.49
In Stock
Dishwasher Detergent Dispenser Assembly (replaces 645208) 00645208
#215

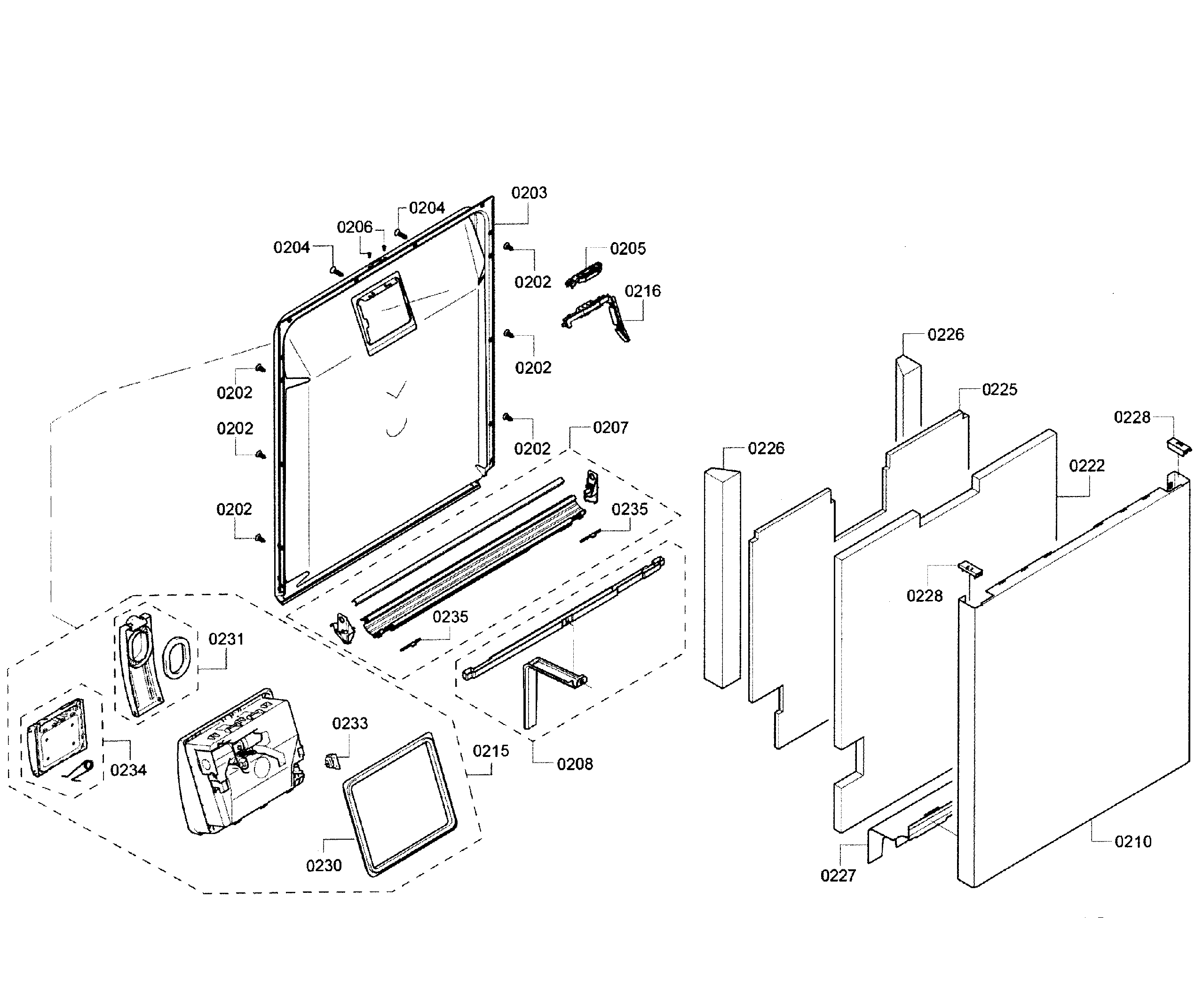

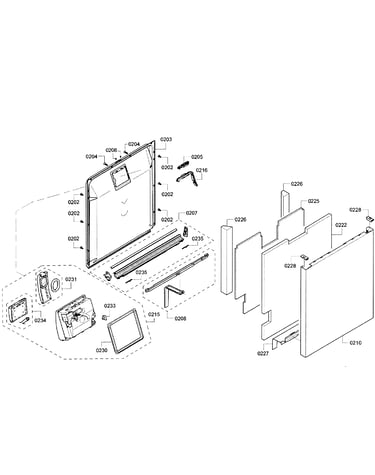

Door assy diagram

Dishwasher detergent dispenser assembly (replaces 645208)

Part #00645208

BEST SELLER
$80.03 |
7% OFF Phone Price : $86.03
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

Baskets diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
