Model # 106175550 Official Craftsman twin-cylinder tank-type air compressor

Here are the diagrams and repair parts for Official Craftsman 106175550 twin-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Plug ST-220
#24

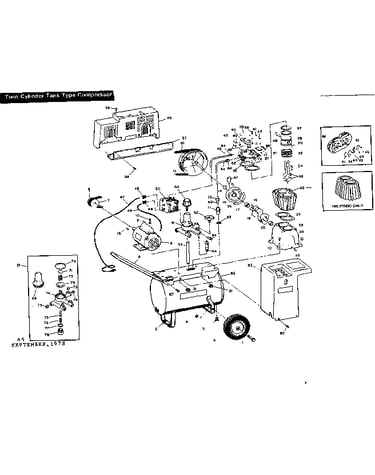

Unit diagram

Plug

Part #ST-220

The manufacturer no longer makes this part, and there's no substitute part

Drain Cock ST-301
#3

Unit diagram

Drain cock

Part #ST-301

The manufacturer no longer makes this part, and there's no substitute part

Compress Blk VT-2294

#NI

All parts diagram

Compress blk

Part #VT-2294

The manufacturer no longer makes this part, and there's no substitute part

Comp Blk Asm VT-2400

#NI

All parts diagram

Comp blk asm

Part #VT-2400

The manufacturer no longer makes this part, and there's no substitute part

Bolt ST-160
#10

Unit diagram

Bolt

Part #ST-160

The manufacturer no longer makes this part, and there's no substitute part

Comp Ring PX-16
#27A

Unit diagram

Comp ring

Part #PX-16

The manufacturer no longer makes this part, and there's no substitute part

Piston VT-55
#29

Unit diagram

Piston

Part #VT-55

The manufacturer no longer makes this part, and there's no substitute part

Comp Fitt ST-183
#62

Unit diagram

Comp fitt

Part #ST-183

The manufacturer no longer makes this part, and there's no substitute part

Valve V-2036
#54B

Unit diagram

Valve

Part #V-2036

The manufacturer no longer makes this part, and there's no substitute part

Bolt ST-334
#1

Unit diagram

Bolt

Part #ST-334

The manufacturer no longer makes this part, and there's no substitute part
