Model # 625347030 Official Kenmore home drinking water system

Here are the diagrams and repair parts for Official Kenmore 625347030 home drinking water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Whirlpool Water Softener Clip 7088033
#22

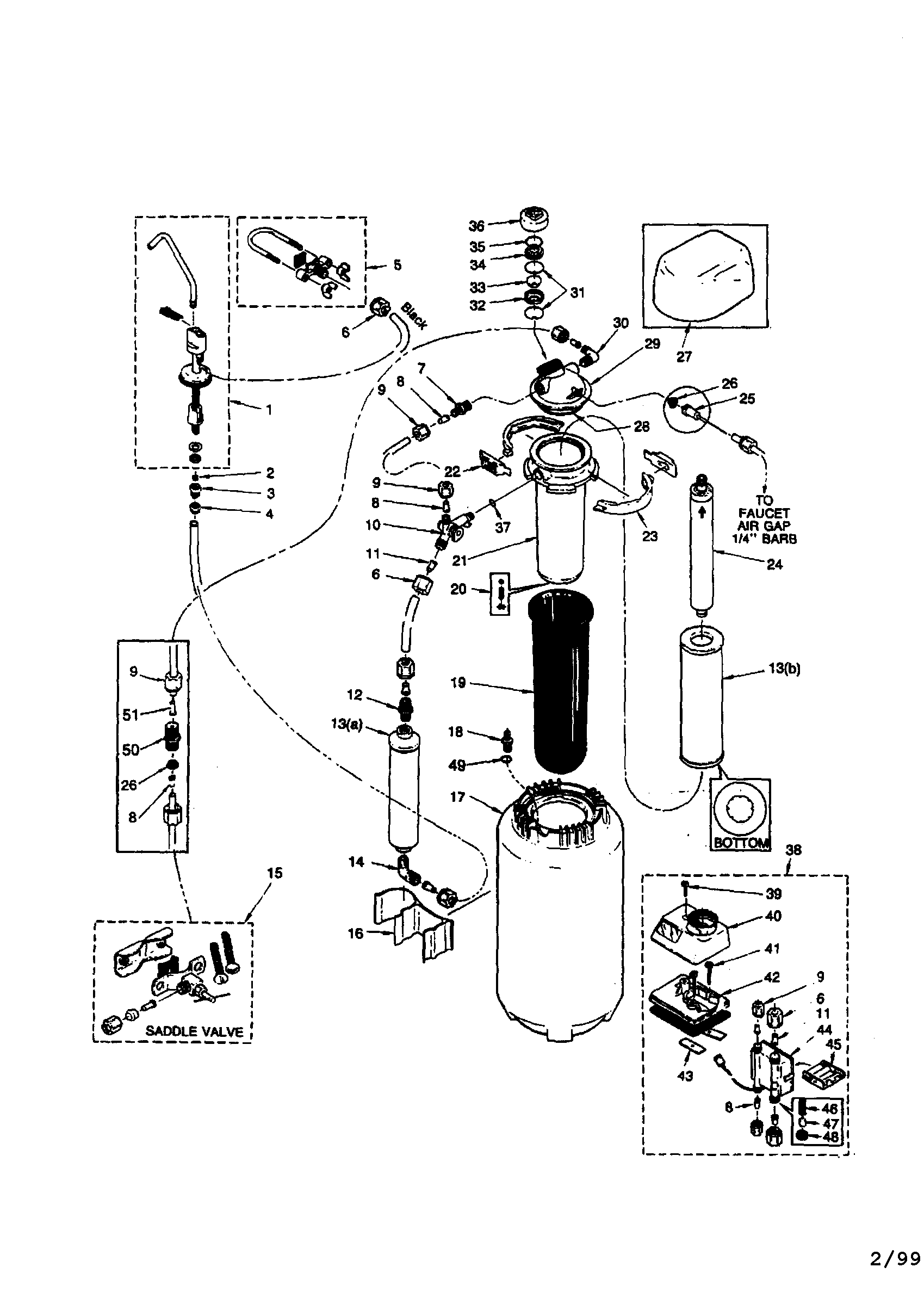

Sears home drinking water system diagram

Whirlpool water softener clip

Part #7088033

This item is not returnable
In Stock
Waterworks O-ring (black) 7115610
#28

Sears home drinking water system diagram

Waterworks o-ring (black)

Part #7115610

This item is not returnable
In Stock
Waterworks Reverse Osmosis System Storage Tank Bladder 7109910
#19

Sears home drinking water system diagram

Waterworks reverse osmosis system storage tank bladder

Part #7109910

In Stock
Waterworks Extender Cable 7126506

#NI

All parts diagram

Waterworks extender cable

Part #7126506

In Stock
Clamp (white) 7079791
#5

Sears home drinking water system diagram

Clamp (white)

Part #7079791

In Stock
Waterworks Nut (white) 9003203
#6

Sears home drinking water system diagram

Waterworks nut (white)

Part #9003203

$8.89
10% OFF Phone Price : $9.89
In Stock
Waterworks Washer (white) 1260600
#2

Sears home drinking water system diagram

Waterworks washer (white)

Part #1260600

In Stock
Insert 9038700
#51

Sears home drinking water system diagram

Insert

Part #9038700

This item is not returnable
In Stock
Waterworks Elbow (white) 9004502
#14

Sears home drinking water system diagram

Waterworks elbow (white)

Part #9004502

This item is not returnable
In Stock
Waterworks Elbow 7124986
#30

Sears home drinking water system diagram

Waterworks elbow

Part #7124986

In Stock
