Kenmore
Mechanical Sewing Machine

Model # 15813033 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15813033 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

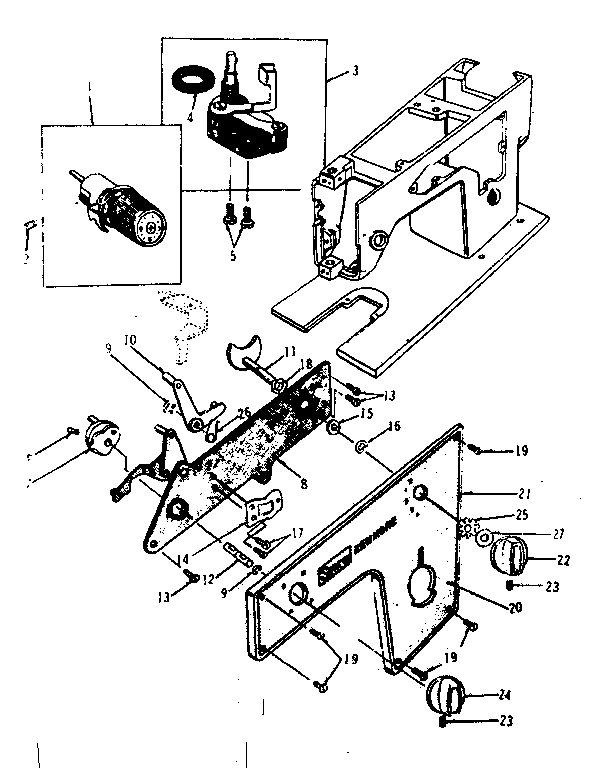

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |
Feed Bar 31030
#24

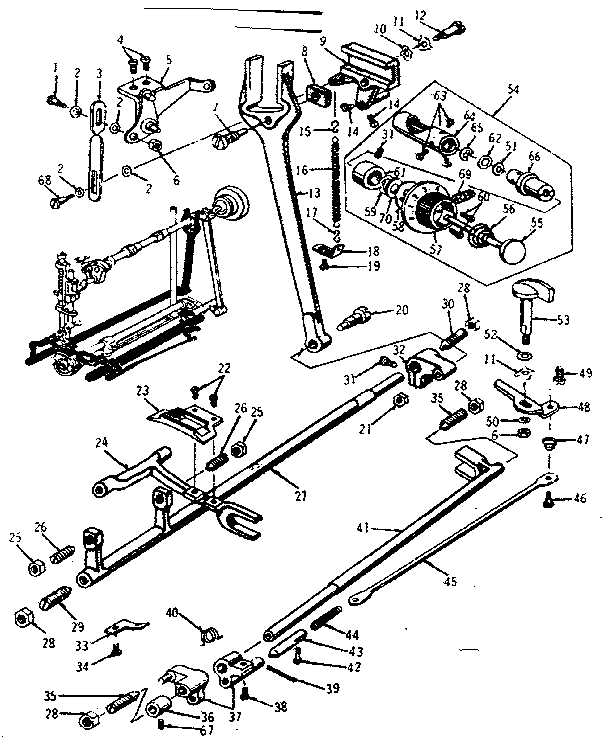

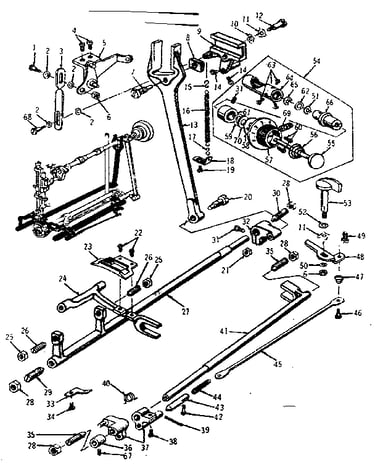

Feed regulator assembly diagram

Feed bar

Part #31030

The manufacturer no longer makes this part, and there's no substitute part

Washer 9073
#2

Feed regulator assembly diagram

Washer

Part #9073

The manufacturer no longer makes this part, and there's no substitute part

Link Assembly 32454
#5

Feed regulator assembly diagram

Link assembly

Part #32454

The manufacturer no longer makes this part, and there's no substitute part

Worm Gear 30869
#21

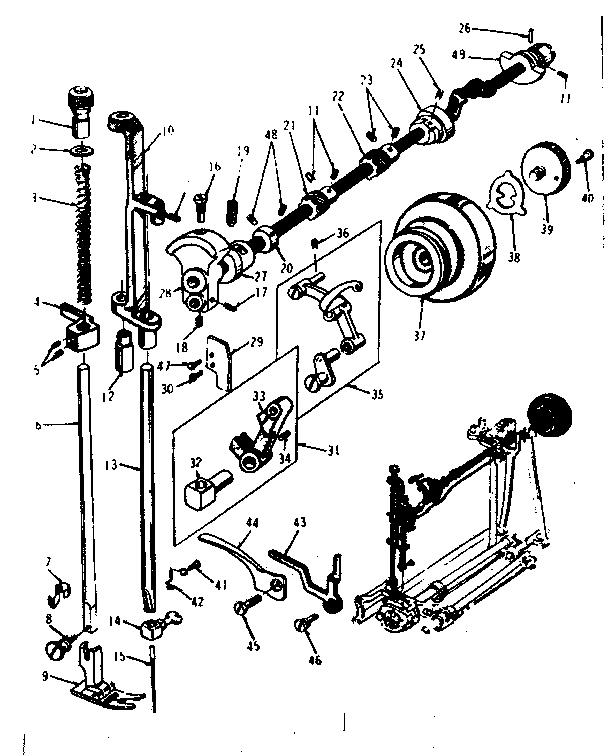

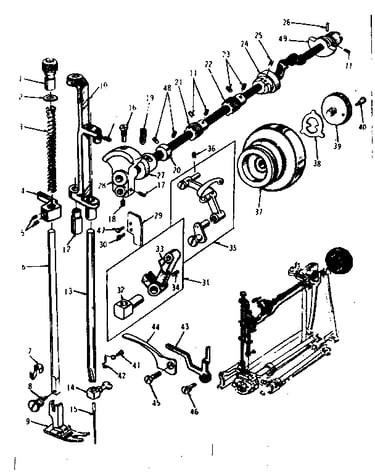

Presser bar assembly diagram

Worm gear

Part #30869

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 32710
#6

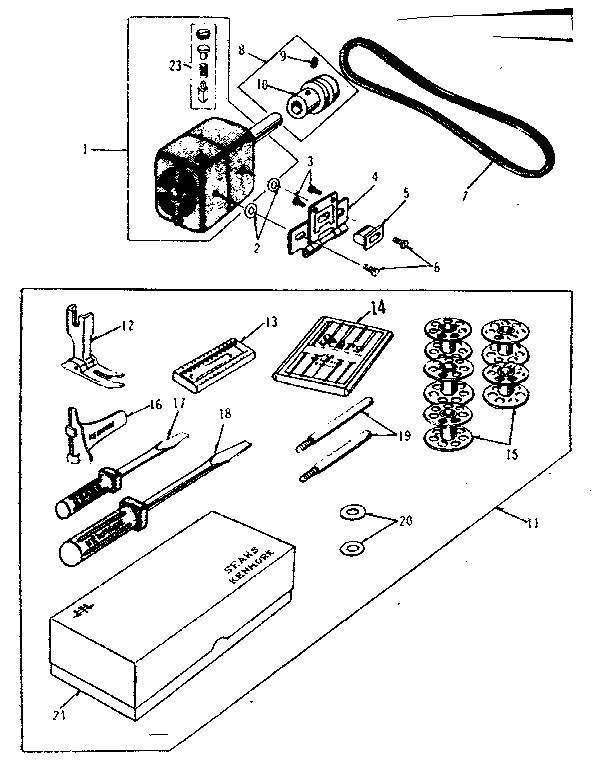

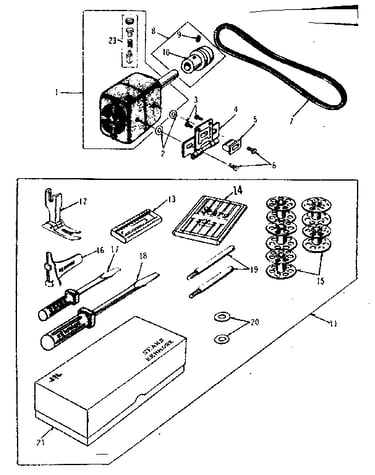

Motor and attachment parts diagram

Set screw

Part #32710

The manufacturer no longer makes this part, and there's no substitute part

Lamp Plate 2987
#42

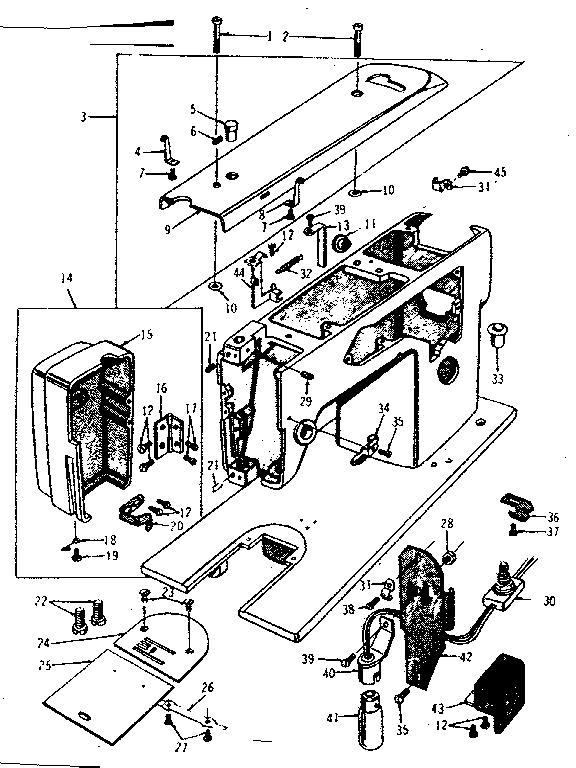

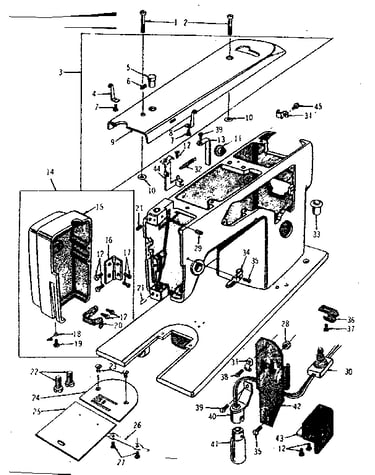

Base assembly diagram

Lamp plate

Part #2987

The manufacturer no longer makes this part, and there's no substitute part

Worm Gear 3712
#22

Presser bar assembly diagram

Worm gear

Part #3712

The manufacturer no longer makes this part, and there's no substitute part

Hook 8700
#15

Feed regulator assembly diagram

Hook

Part #8700

The manufacturer no longer makes this part, and there's no substitute part

Guide Bar 31034
#17

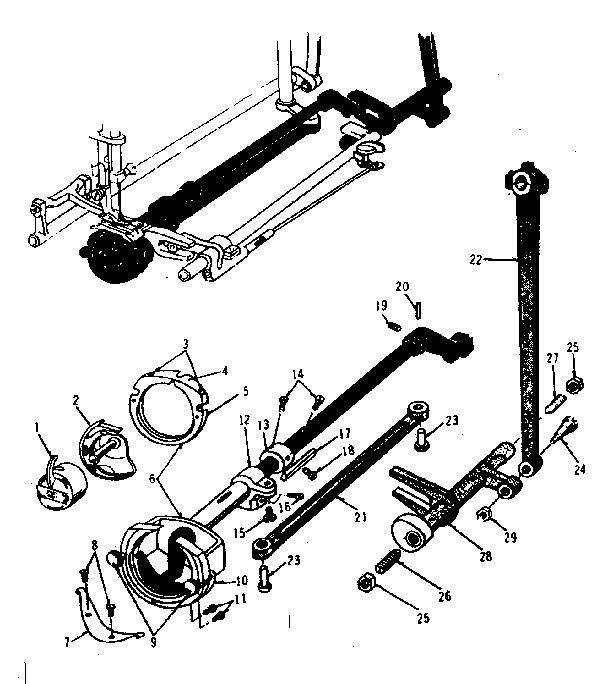

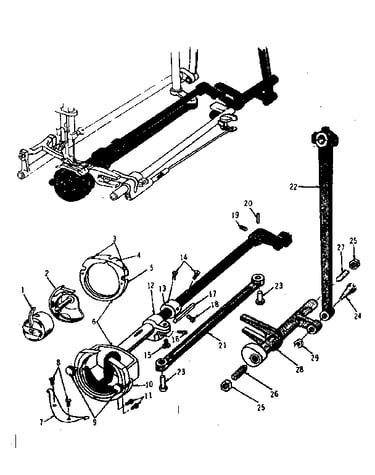

Shuttle assembly diagram

Guide bar

Part #31034

The manufacturer no longer makes this part, and there's no substitute part

Spacer 8138
#27

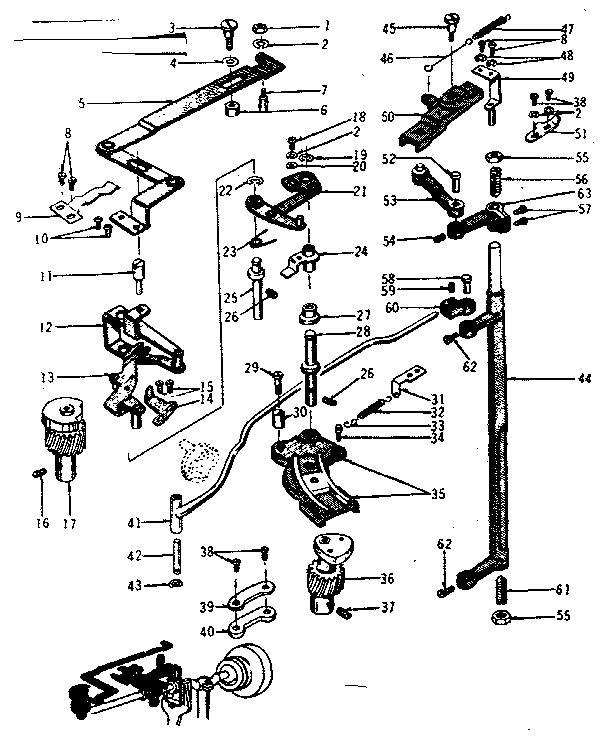

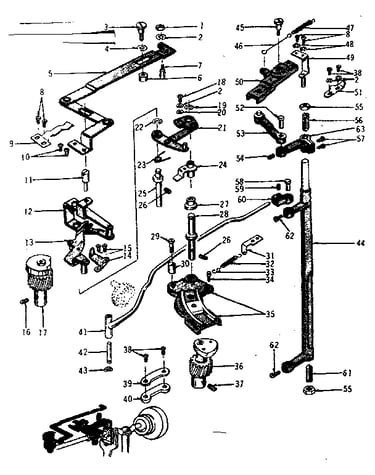

Zigzag guide assembly diagram

Spacer

Part #8138

The manufacturer no longer makes this part, and there's no substitute part
