Frigidaire
Top-Mount Refrigerator

Model # PLHT19WEB7 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire PLHT19WEB7 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

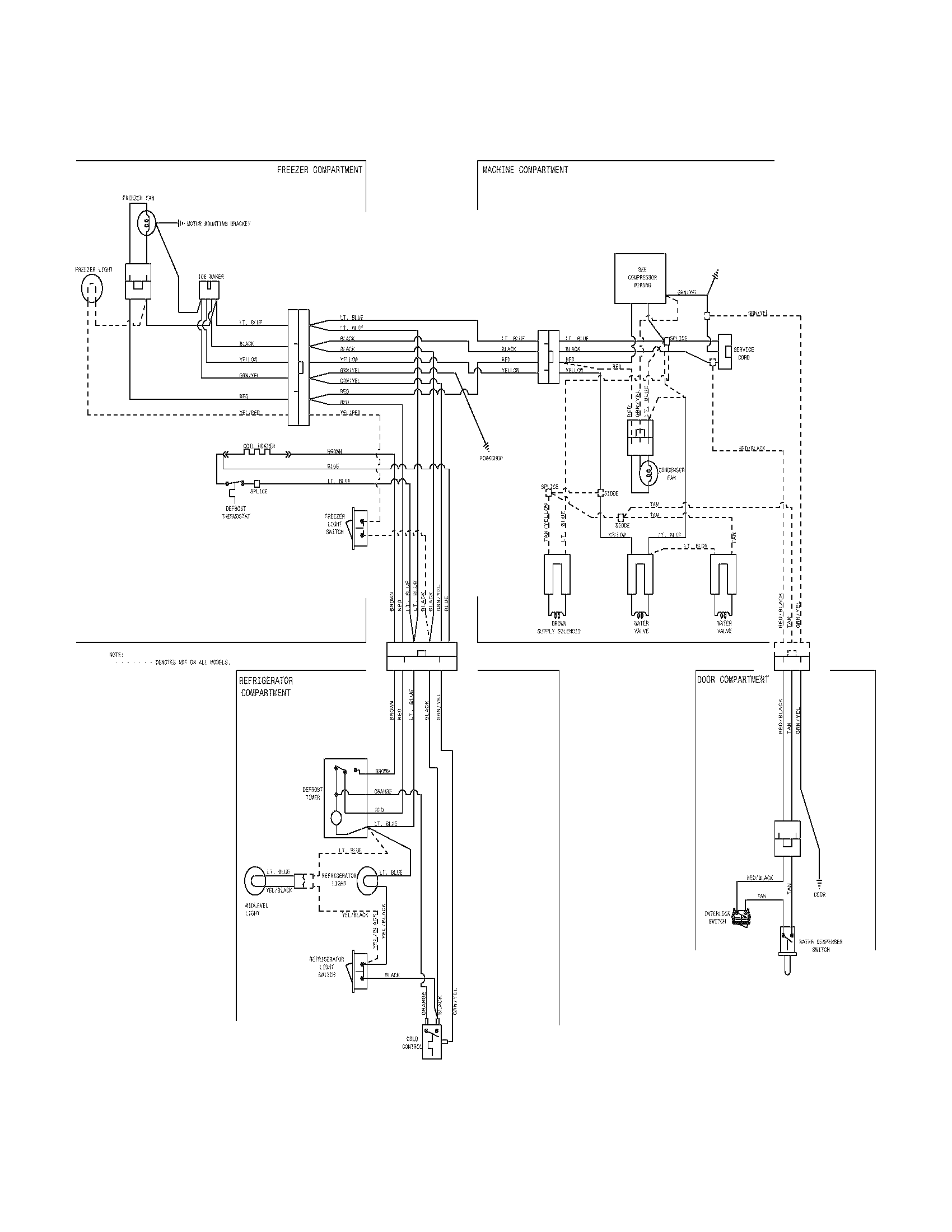

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Refrigerator Filter Drier 218944001
#4

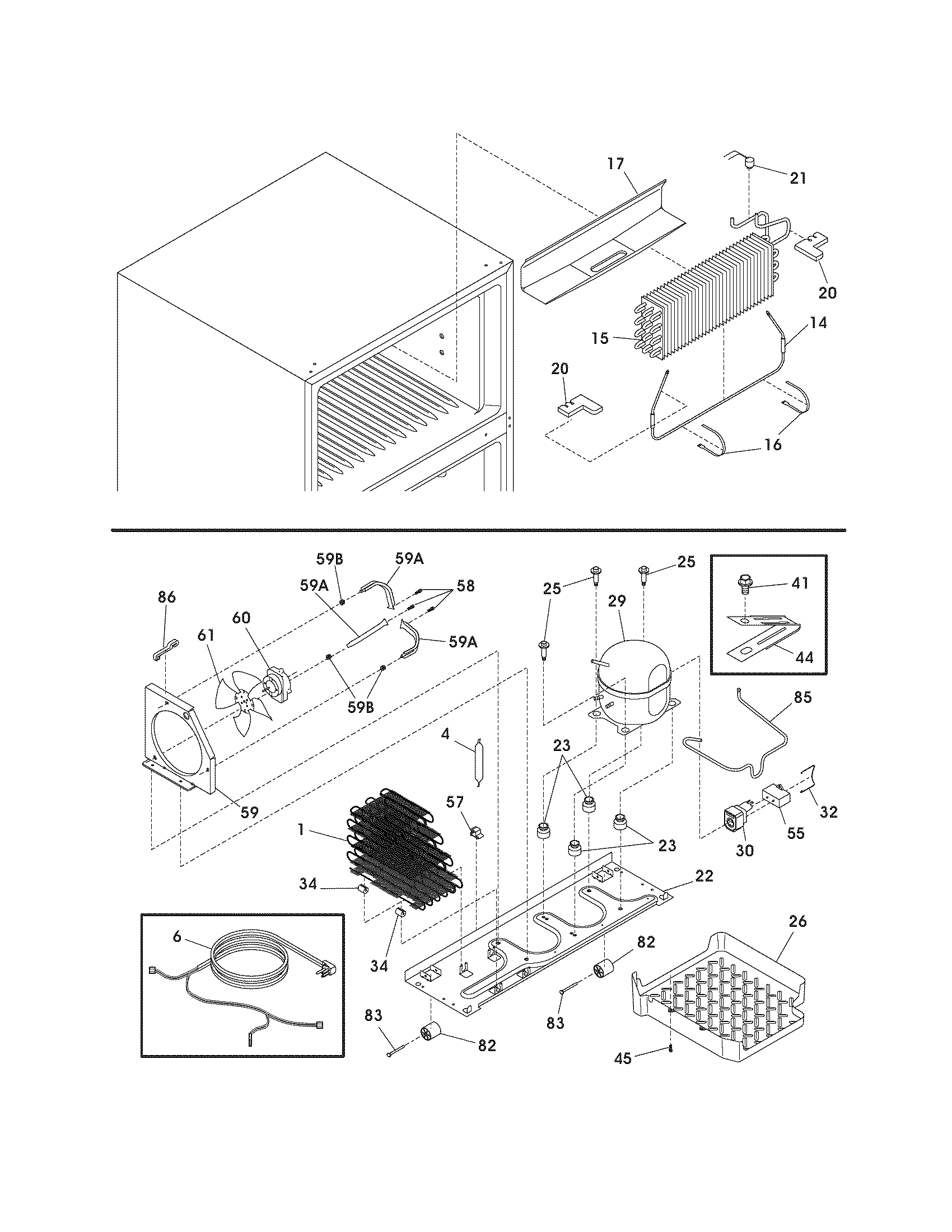

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly 240531101
#55

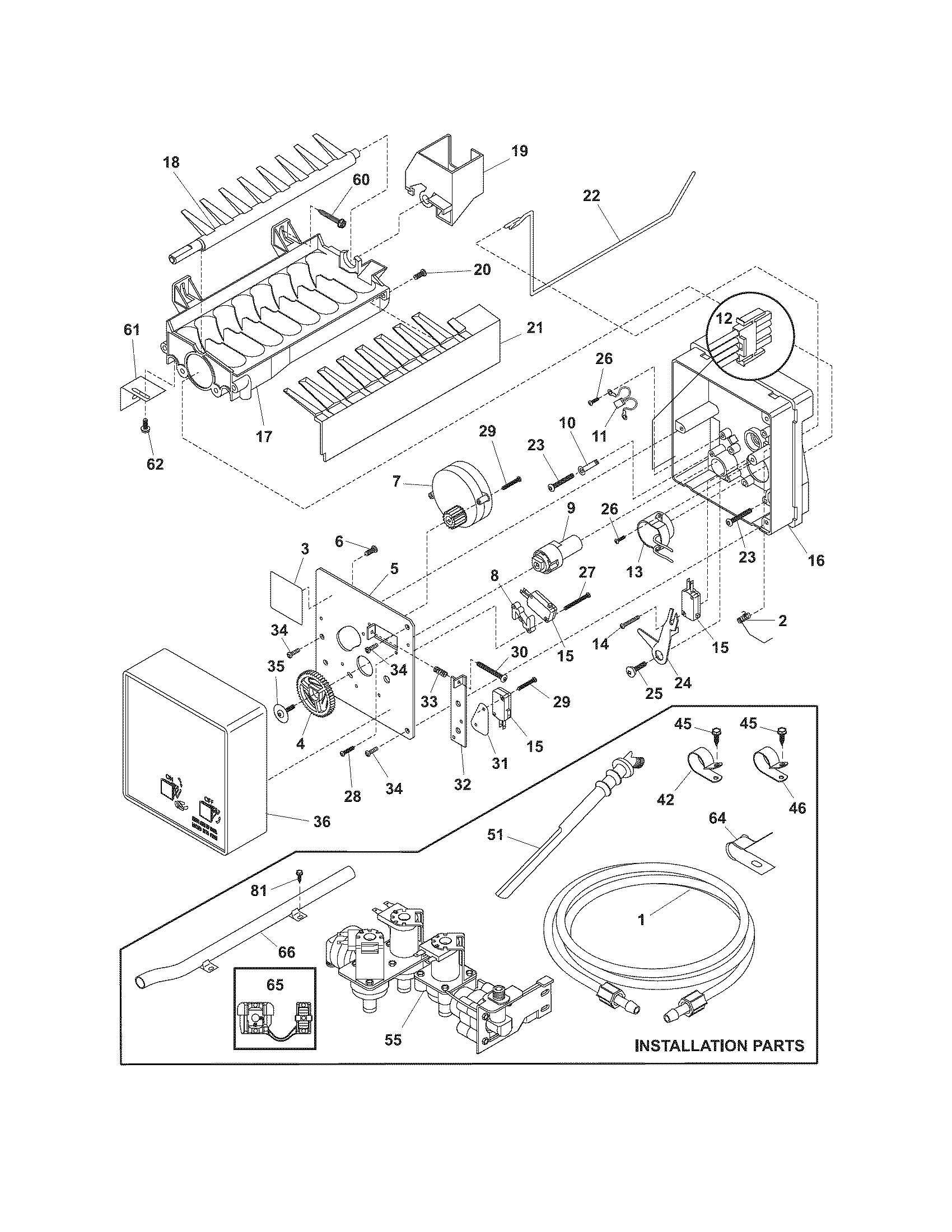

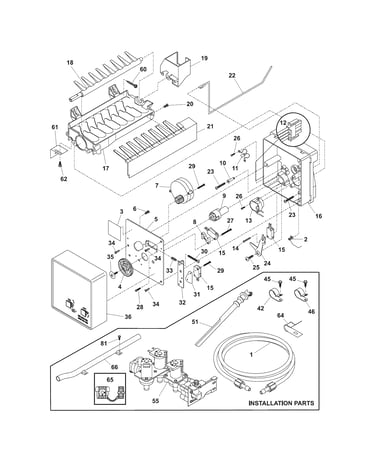

Ice maker diagram

Refrigerator water inlet valve assembly

Part #240531101

Replaced by #242252702

?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
BEST SELLER
$76.44 |
7% OFF Phone Price : $82.44
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

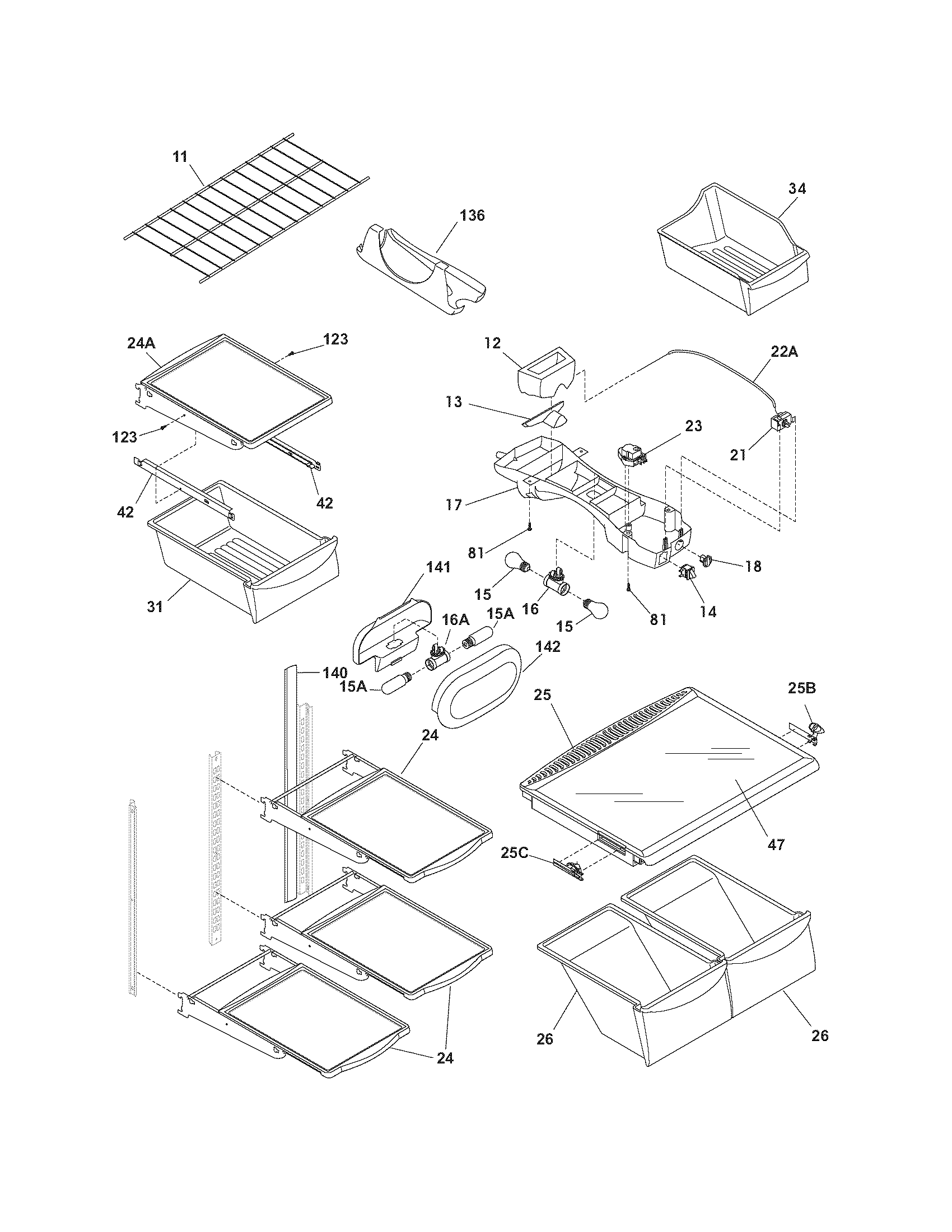

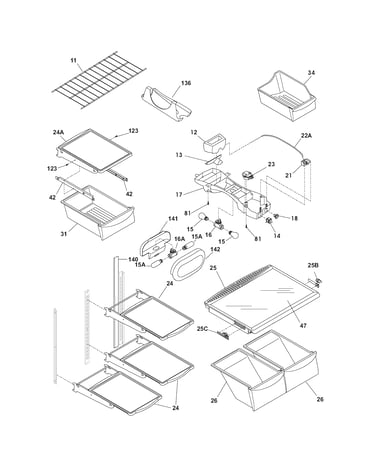

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Chest Freezer Run Capacitor 218909915
#55

System diagram

Chest freezer run capacitor

Part #218909915

Replaced by #297286803

?
Manufacturer substitution
This part replaces 218909915. Substitute parts can look different from the original.
BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Filter 240394501
#137

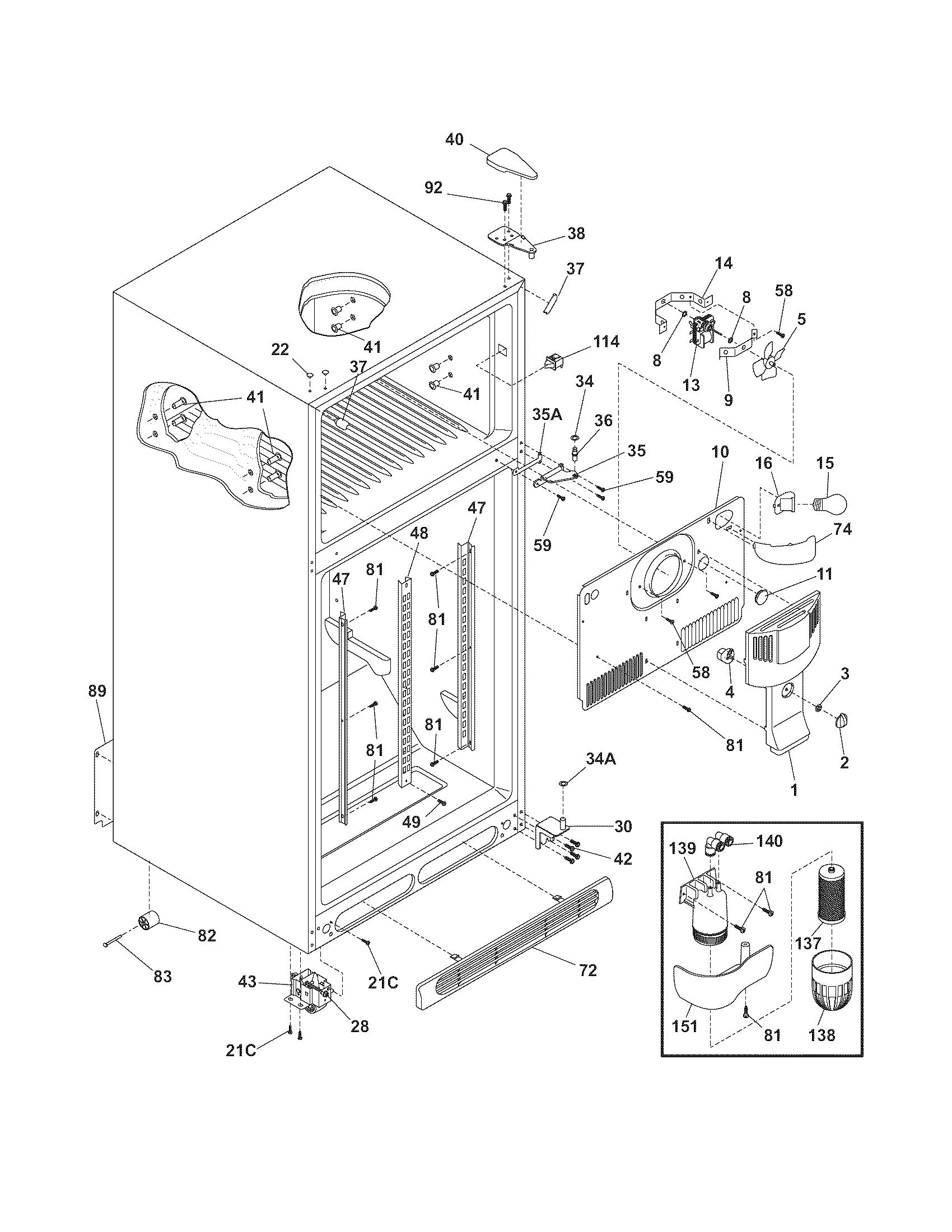

Cabinet diagram

Refrigerator filter

Part #240394501

Replaced by #WFCB

?
Manufacturer substitution
This part replaces 240394501. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$34.98
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

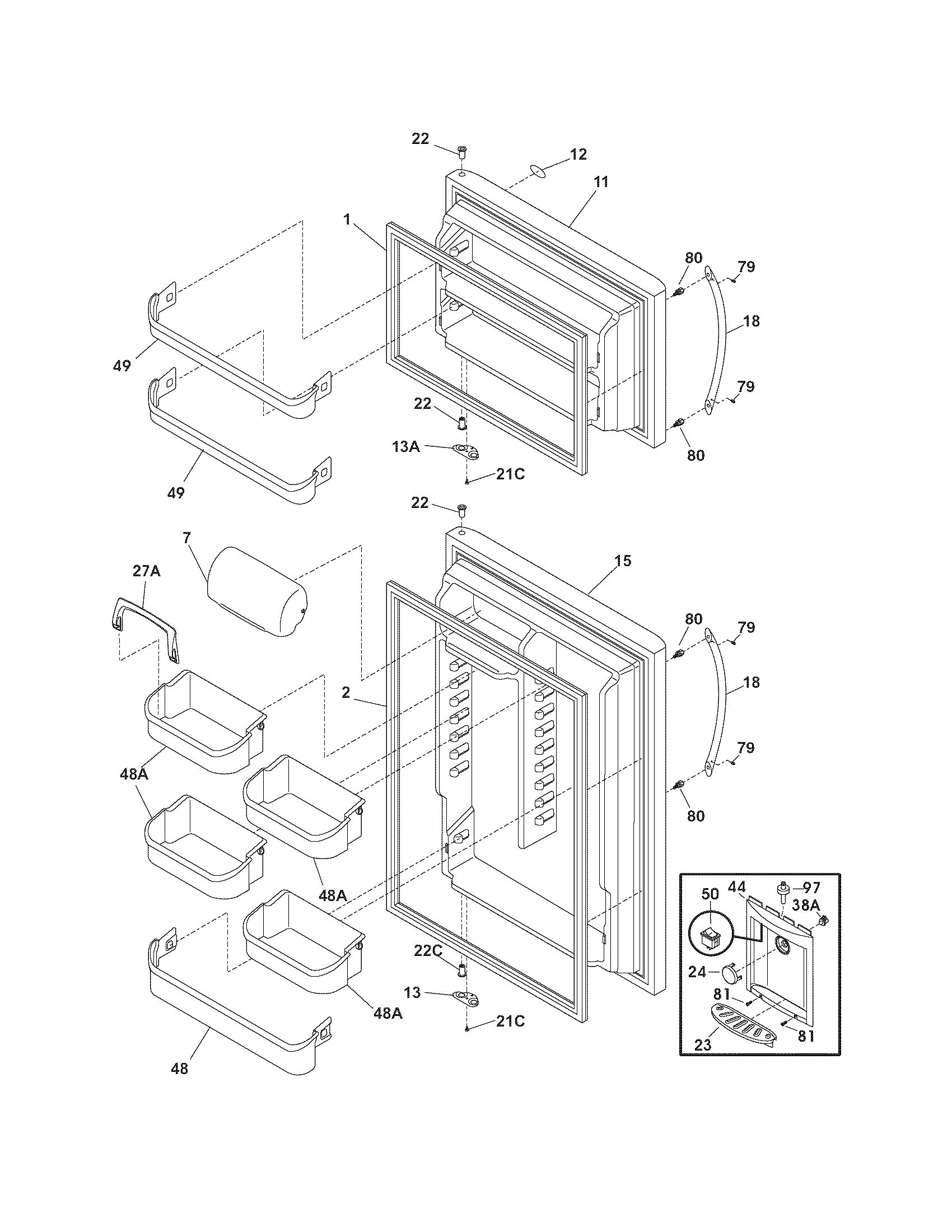

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$51.20 |
10% OFF Phone Price : $57.20
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Evaporator (replaces 5303918250, 5303918431) 5303918274
#15

System diagram

Refrigerator evaporator (replaces 5303918250, 5303918431)

Part #5303918274

BEST SELLER
$300.95 |
$12.00 OFF Phone Price : $312.95
In Stock
Refrigerator Deli Drawer Hanger, Right 240356501
#42

Shelves diagram

Refrigerator deli drawer hanger, right

Part #240356501

BEST SELLER
$41.78 |
13% OFF Phone Price : $47.78
In Stock
Ice Maker 240352409
#NI

Ice maker diagram

Ice maker

Part #240352409

Replaced by #5304458371

?
Manufacturer substitution
This part replaces 240352409. Substitute parts can look different from the original.
BEST SELLER
$122.02 |
9% OFF Phone Price : $134.02
In Stock
