Frigidaire
Gas Cooktop

Model # FGC26C3AUB Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FGC26C3AUB cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

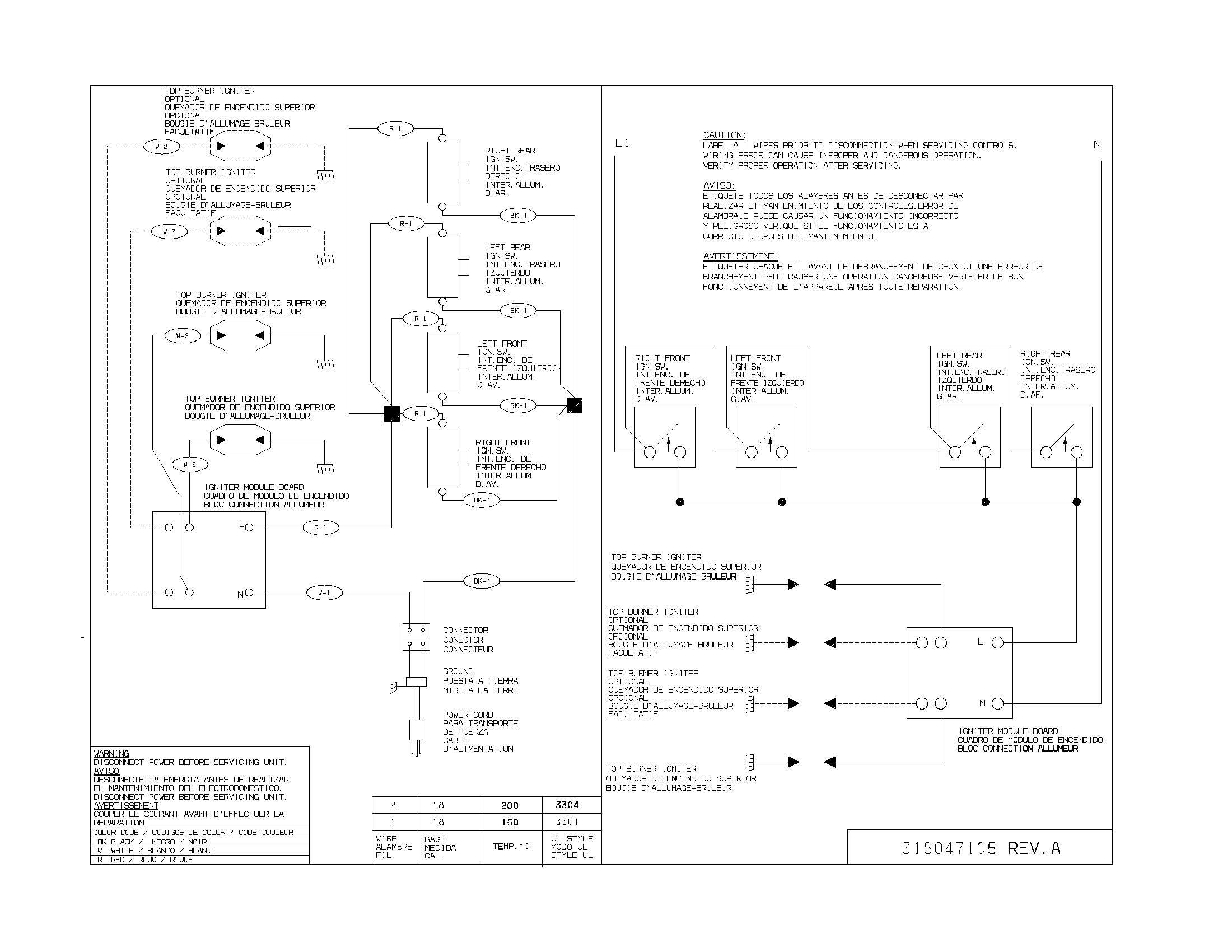

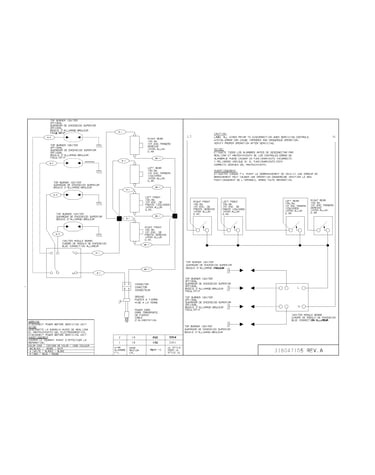

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Range Screw 5303300265
#97

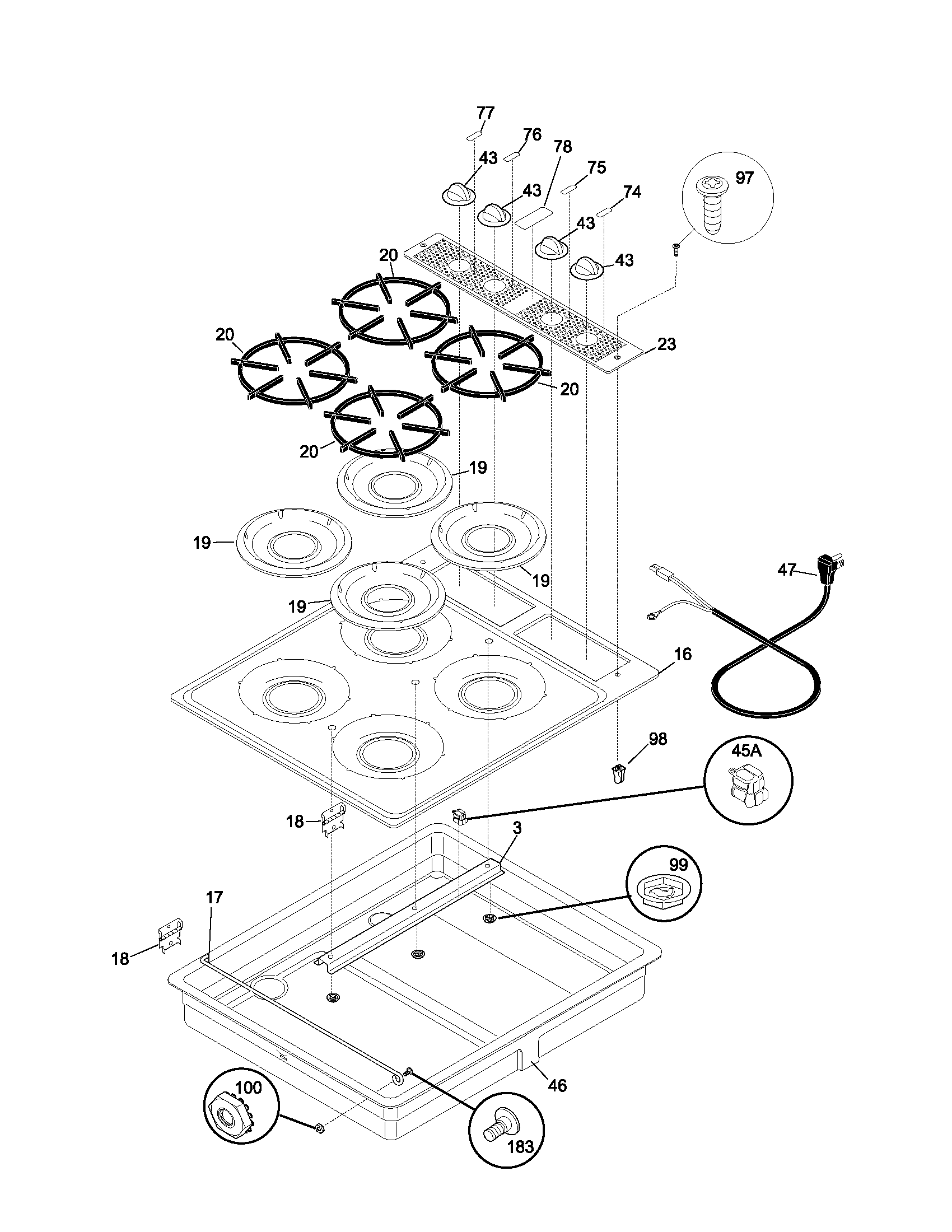

Main top diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Range Pressure Regulator 5308007974
#14

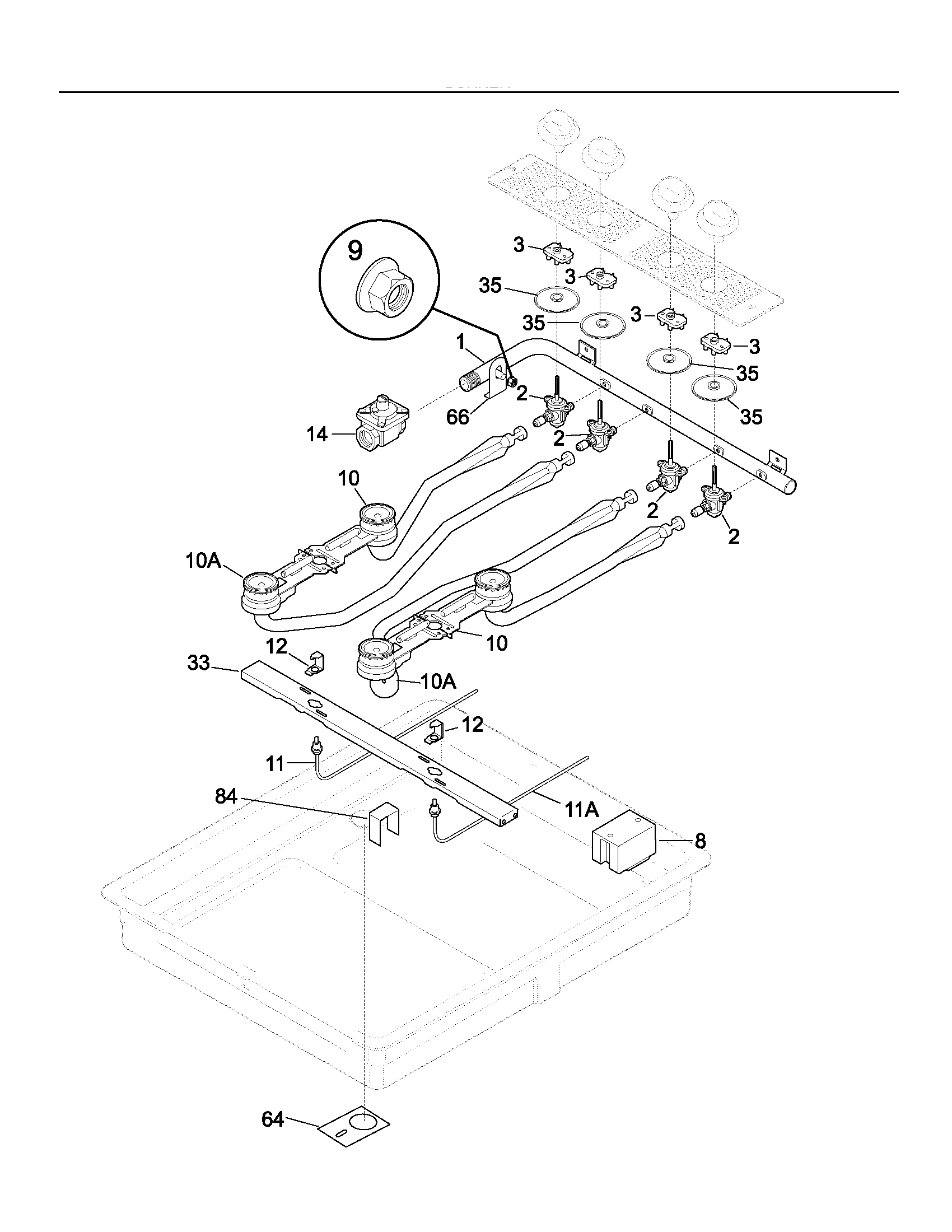

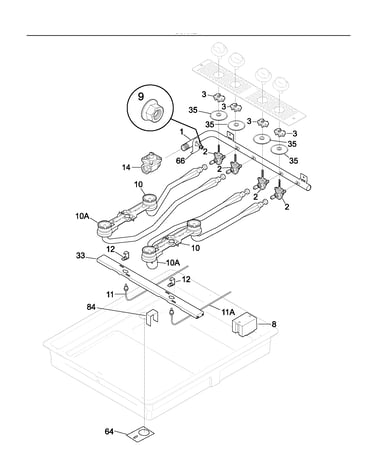

Burner diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Range Spark Module 316135700
#8

Burner diagram

Range spark module

Part #316135700

Replaced by #5304518635

?
Manufacturer substitution
This part replaces 316135700. Substitute parts can look different from the original.
$89.49 |
6% OFF Phone Price : $95.49
In Stock
Grate 316040807
#20

Main top diagram

Grate

Part #316040807

Replaced by #316055800

?
Manufacturer substitution
This part replaces 316040807. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Range Surface Burner Igniter Retainer 3016993
#12

Burner diagram

Range surface burner igniter retainer

Part #3016993

$63.18
In Stock
Cooking Appliance Power Cord Strain Relief 3201437
#45A

Main top diagram

Cooking appliance power cord strain relief

Part #3201437

Replaced by #5304513507

?
Manufacturer substitution
This part replaces 3201437. Substitute parts can look different from the original.
$9.97
In Stock
Screw 5303311306
#NI

Burner diagram

Screw

Part #5303311306

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303311306. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Cooktop Screw 5303311532
#NI

Main top diagram

Cooktop screw

Part #5303311532

Replaced by #316524400

?
Manufacturer substitution
This part replaces 5303311532. Substitute parts can look different from the original.
This item is not returnable
$12.60
In Stock
Screw 5304410665
#183

Main top diagram

Screw

Part #5304410665

The manufacturer no longer makes this part, and there's no substitute part

Plate 318101510
#76

Main top diagram

Plate

Part #318101510

The manufacturer no longer makes this part, and there's no substitute part
