Tappan
Upright Freezer

Model # TFU09M4EW0 Official Tappan upright freezer - 5995279626

Here are the diagrams and repair parts for Official Tappan TFU09M4EW0 upright freezer - 5995279626, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Filter Drier 216099900
#4

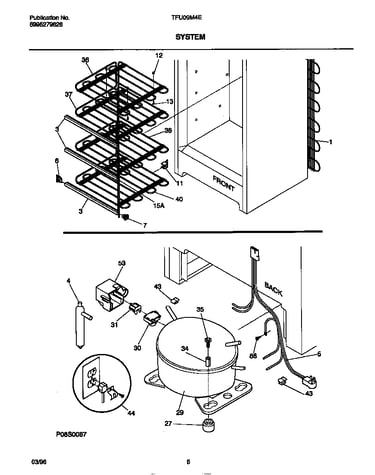

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

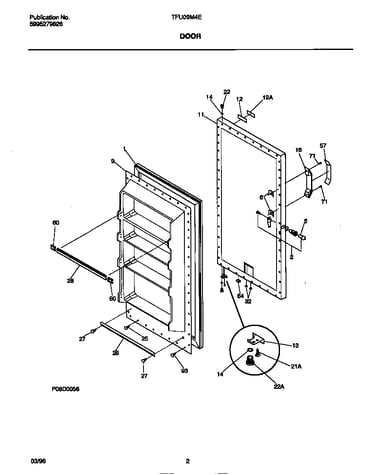

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Refrigerator Door Handle (white) (replaces 5303288185) 216446900
#18

Door diagram

Refrigerator door handle (white) (replaces 5303288185)

Part #216446900

BEST SELLER
$41.47 |
13% OFF Phone Price : $47.47
In Stock
Plug 216297600
#3

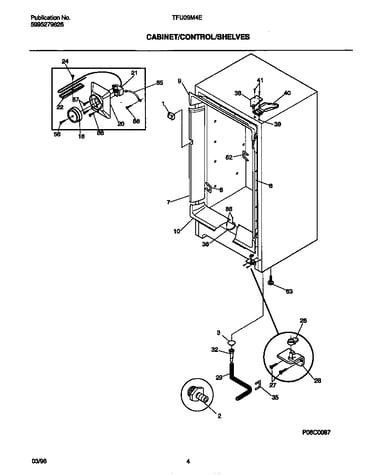

Cabinet/control/shelves diagram

Plug

Part #216297600

Replaced by #216502600

?
Manufacturer substitution
This part replaces 216297600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Freezer Drain Hose Adapter 5308005500
#32

Cabinet/control/shelves diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Support 3091418
#6

System diagram

Support

Part #3091418

Replaced by #297001600

?
Manufacturer substitution
This part replaces 3091418. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Support 08037928
#7

System diagram

Support

Part #08037928

Replaced by #297001500

?
Manufacturer substitution
This part replaces 08037928. Substitute parts can look different from the original.
This item is not returnable
$18.32 |
10% OFF Phone Price : $20.32
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet/control/shelves diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

$20.04 |
23% OFF Phone Price : $26.04
In Stock
