Model # JCTP17WW2WW Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JCTP17WW2WW electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

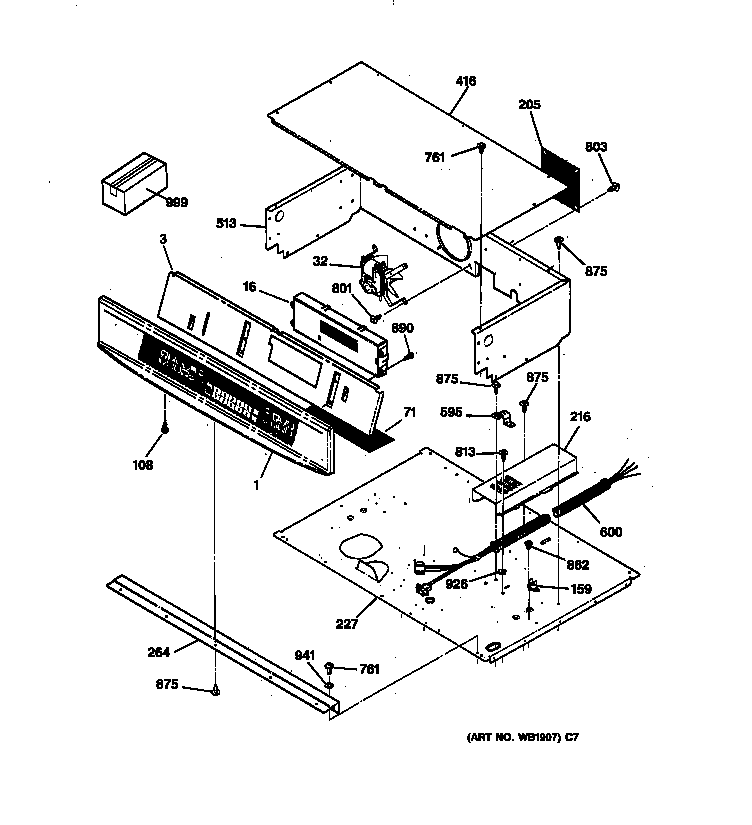

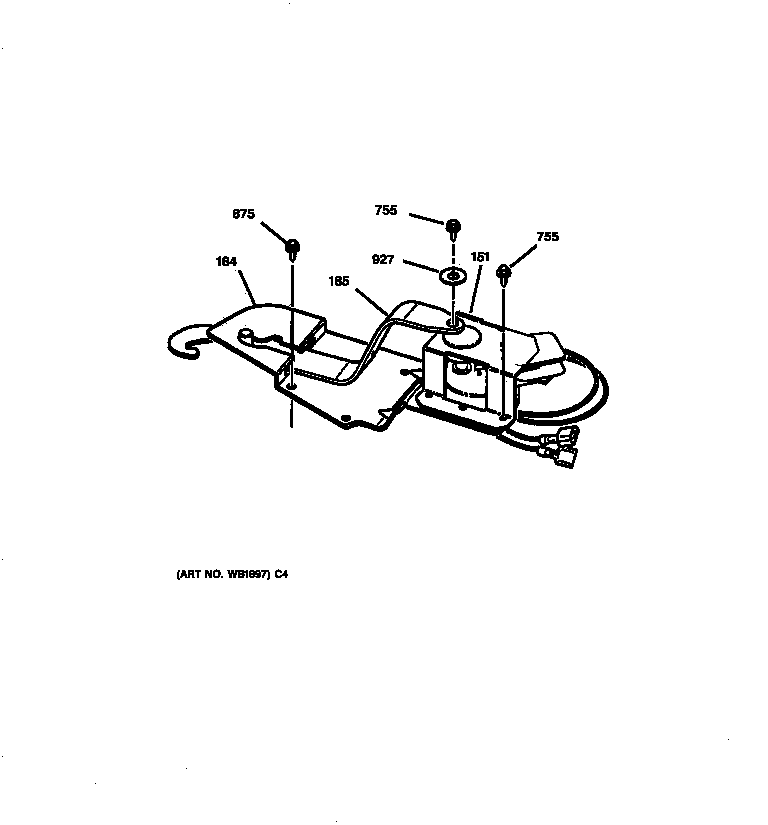

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Wall Oven Temperature Sensor WB23T10002
#253

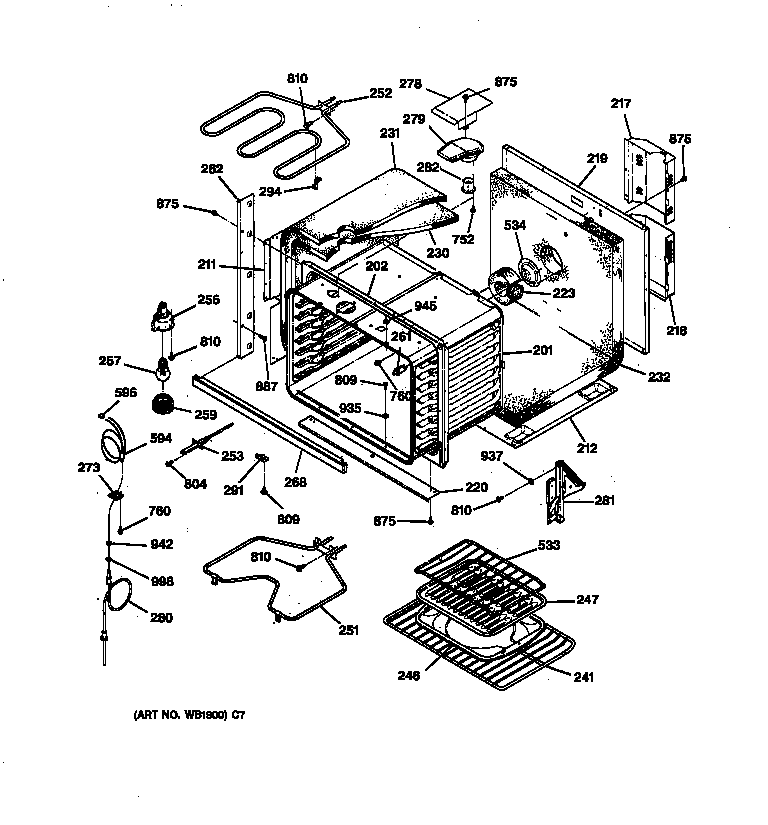

Oven body diagram

Wall oven temperature sensor

Part #WB23T10002

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB23T10002. Substitute parts can look different from the original.
BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Range Bake Element WB44K5018
#251

Oven body diagram

Range bake element

Part #WB44K5018

BEST SELLER
$63.62 |
9% OFF Phone Price : $69.62
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Oven body diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Convex Element WB44T10001
#298

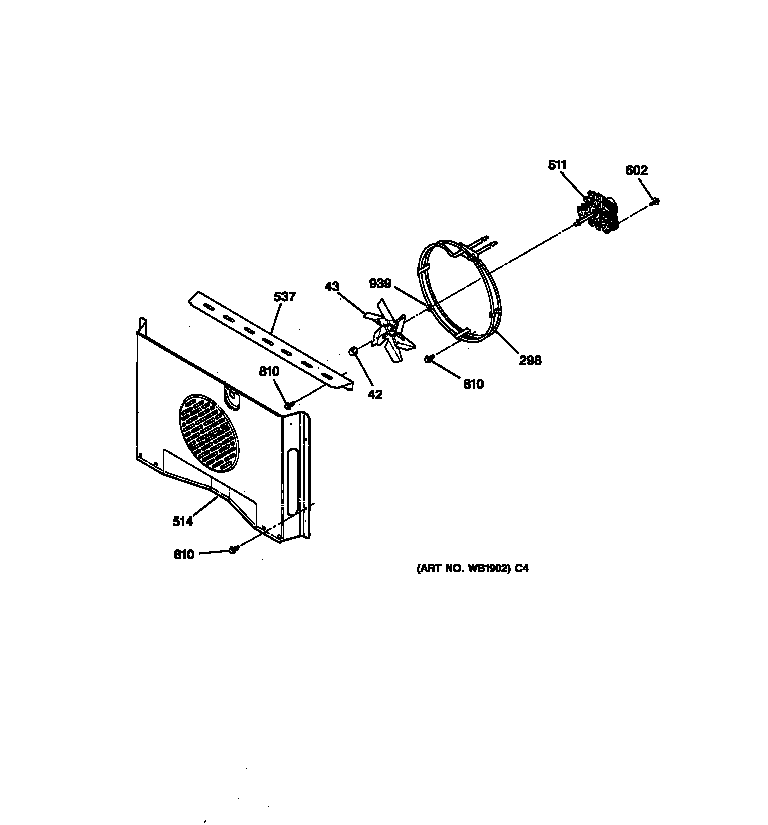

Convection blower diagram

Convex element

Part #WB44T10001

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10001. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Range Screw (replaces Wb01x1293, Wb1k50) WB1X1293
#856

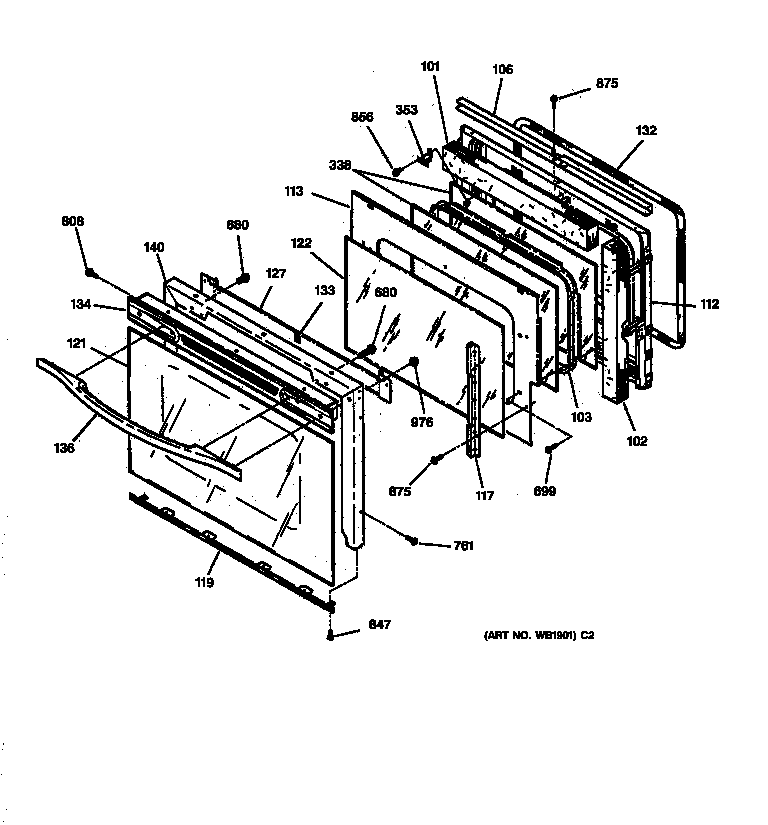

Oven door diagram

Range screw (replaces wb01x1293, wb1k50)

Part #WB1X1293

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Oven door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Range Convection Fan Blade WB2X8351
#43

Convection blower diagram

Range convection fan blade

Part #WB2X8351

This item is not returnable
$24.28 |
20% OFF Phone Price : $30.28
In Stock
Range Convection Fan (replaces Wb26x5113) WB26K5069
#511

Convection blower diagram

Range convection fan (replaces wb26x5113)

Part #WB26K5069

$108.43 |
10% OFF Phone Price : $120.43
In Stock
Range Screw WB1X1137
#809

Oven body diagram

Range screw

Part #WB1X1137

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1K5028
#760

Oven body diagram

Screw

Part #WB1K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
