Model # 2581385110 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581385110 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

3/8 Washer Y-12851
#67

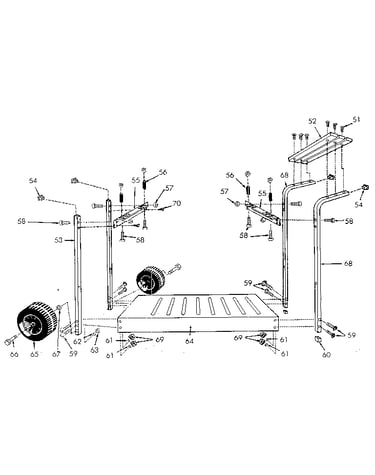

Main frame diagram

3/8 washer

Part #Y-12851

The manufacturer no longer makes this part, and there's no substitute part

Wheel 10892-21
#65

Main frame diagram

Wheel

Part #10892-21

The manufacturer no longer makes this part, and there's no substitute part

Leg Cap Y-12651
#54

Main frame diagram

Leg cap

Part #Y-12651

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-12285
#63

Main frame diagram

Hex nut

Part #Y-12285

The manufacturer no longer makes this part, and there's no substitute part

Bolt Casting 10909-217-1
#2

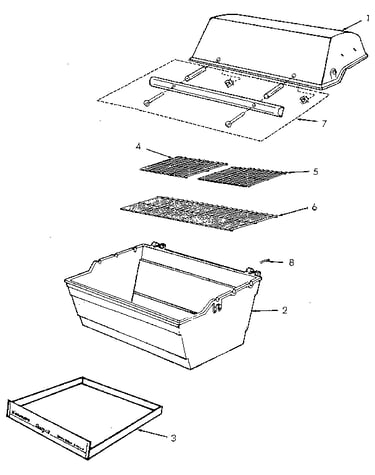

Grill diagram

Bolt casting

Part #10909-217-1

The manufacturer no longer makes this part, and there's no substitute part

Washer Y-12386
#61

Main frame diagram

Washer

Part #Y-12386

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Y-13049
#58

Main frame diagram

Cap screw

Part #Y-13049

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin Y-12523
#8

Grill diagram

Cotter pin

Part #Y-12523

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-13044
#70

Main frame diagram

Screw

Part #Y-13044

The manufacturer no longer makes this part, and there's no substitute part

Shelf Board 10711-155-1
#64

Main frame diagram

Shelf board

Part #10711-155-1

The manufacturer no longer makes this part, and there's no substitute part
