Kenmore
Room Air Conditioner

Model # 25372156200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25372156200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

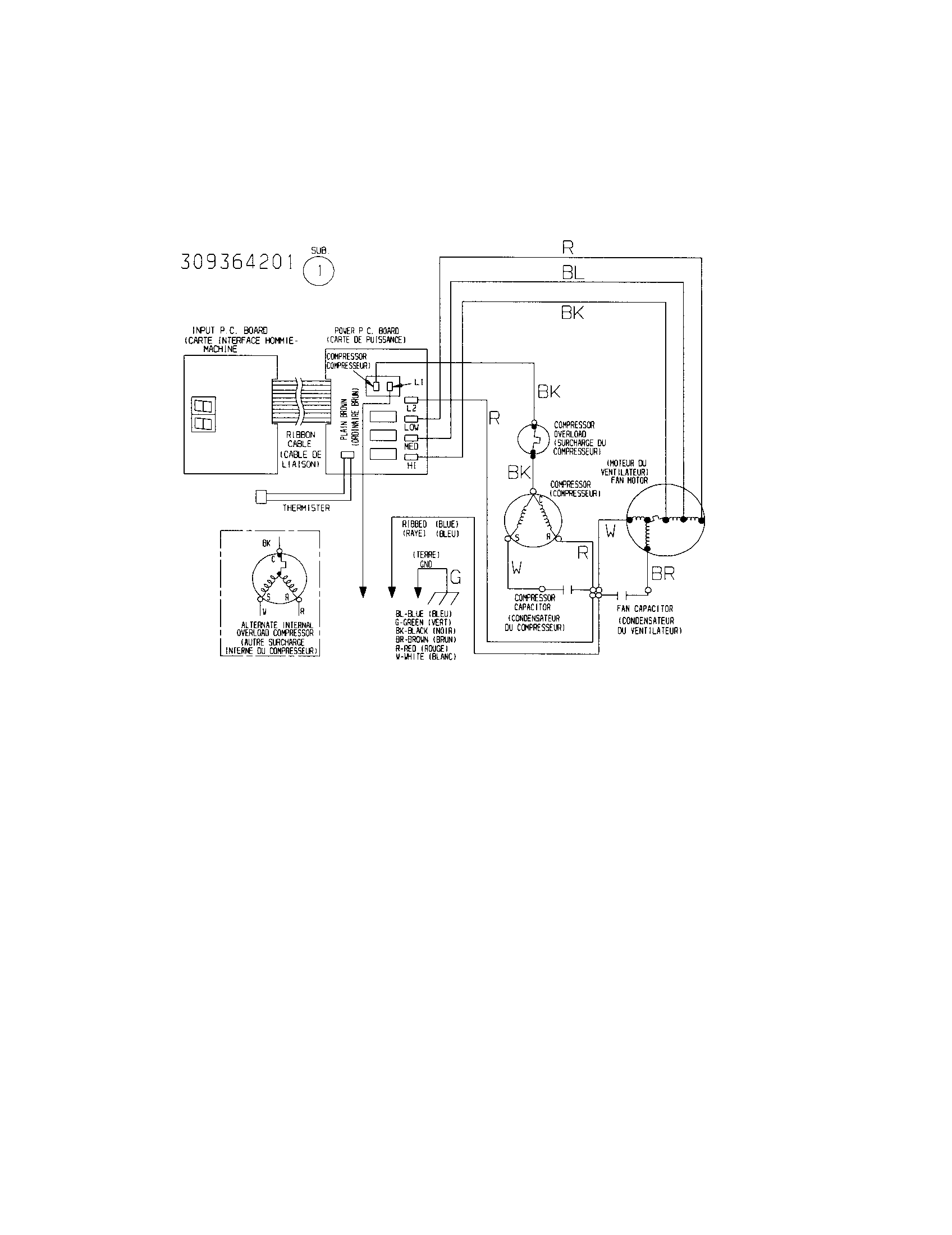

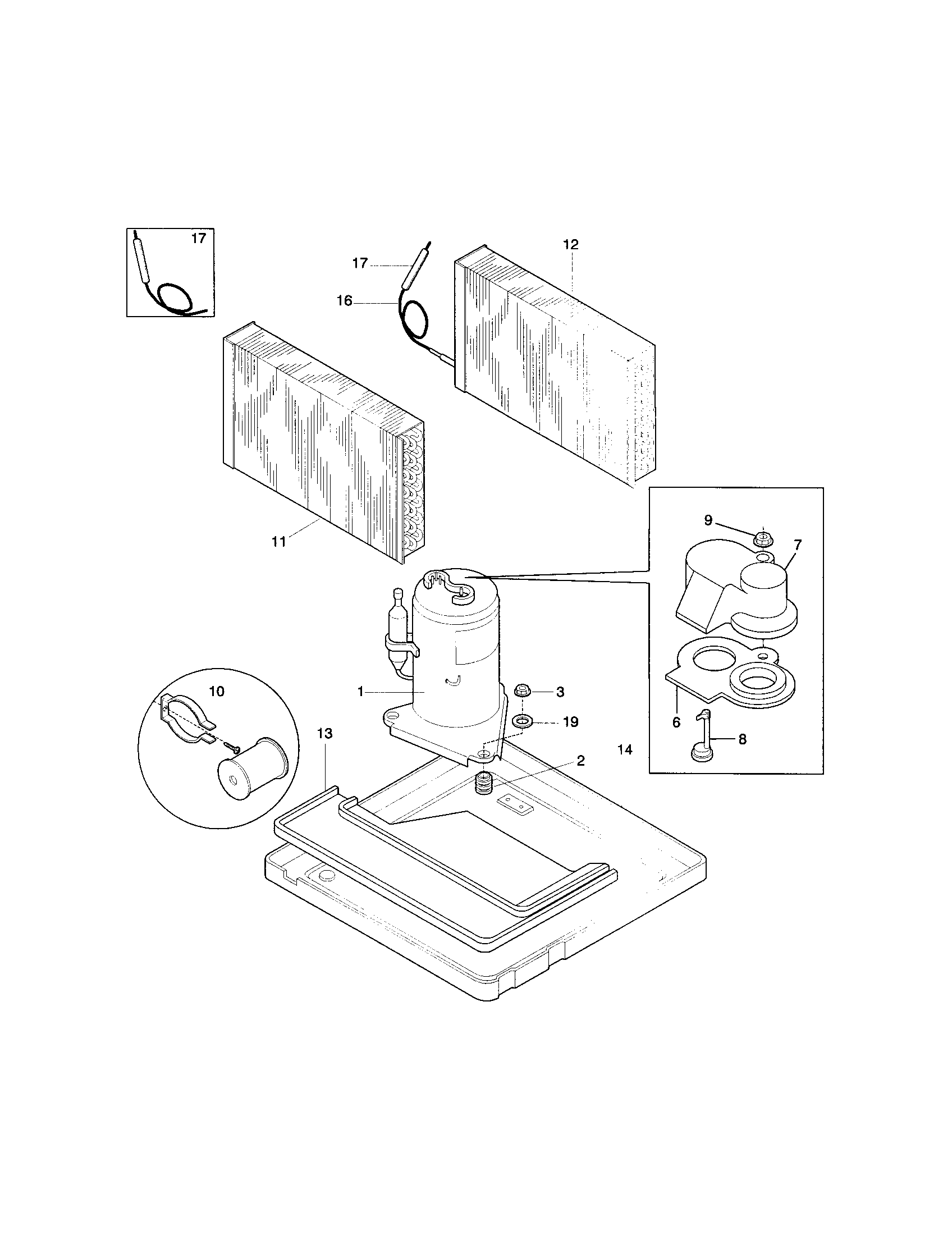

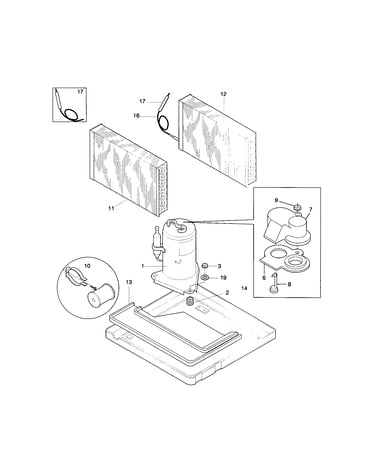

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Room Air Conditioner Screw 5303015427
#7

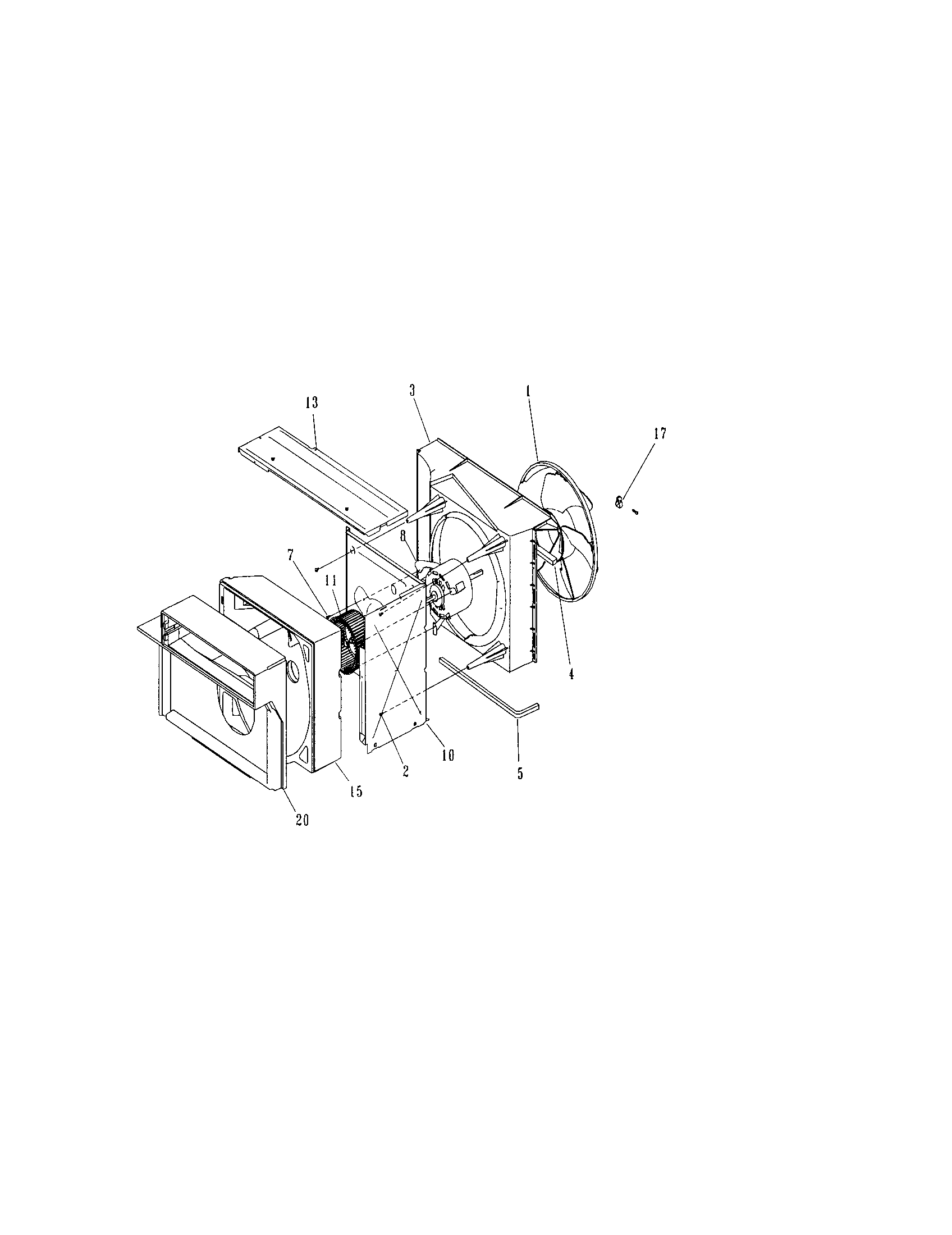

Air handling diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Screw 5303303691
#14

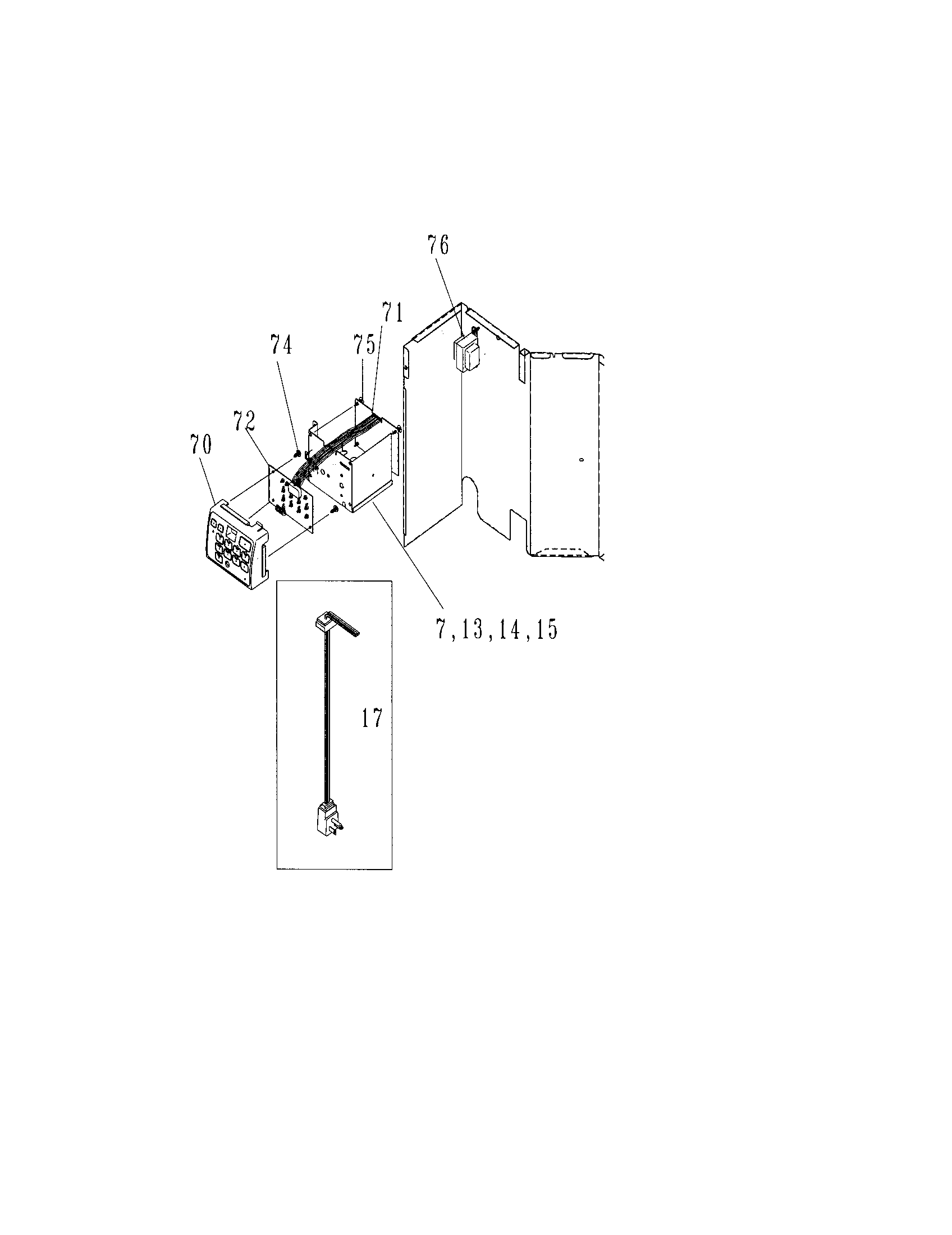

Control diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Sleeve 309630301
#13

Air handling diagram

Sleeve

Part #309630301

$9.99
In Stock
Foam Strip 5304407729
#1

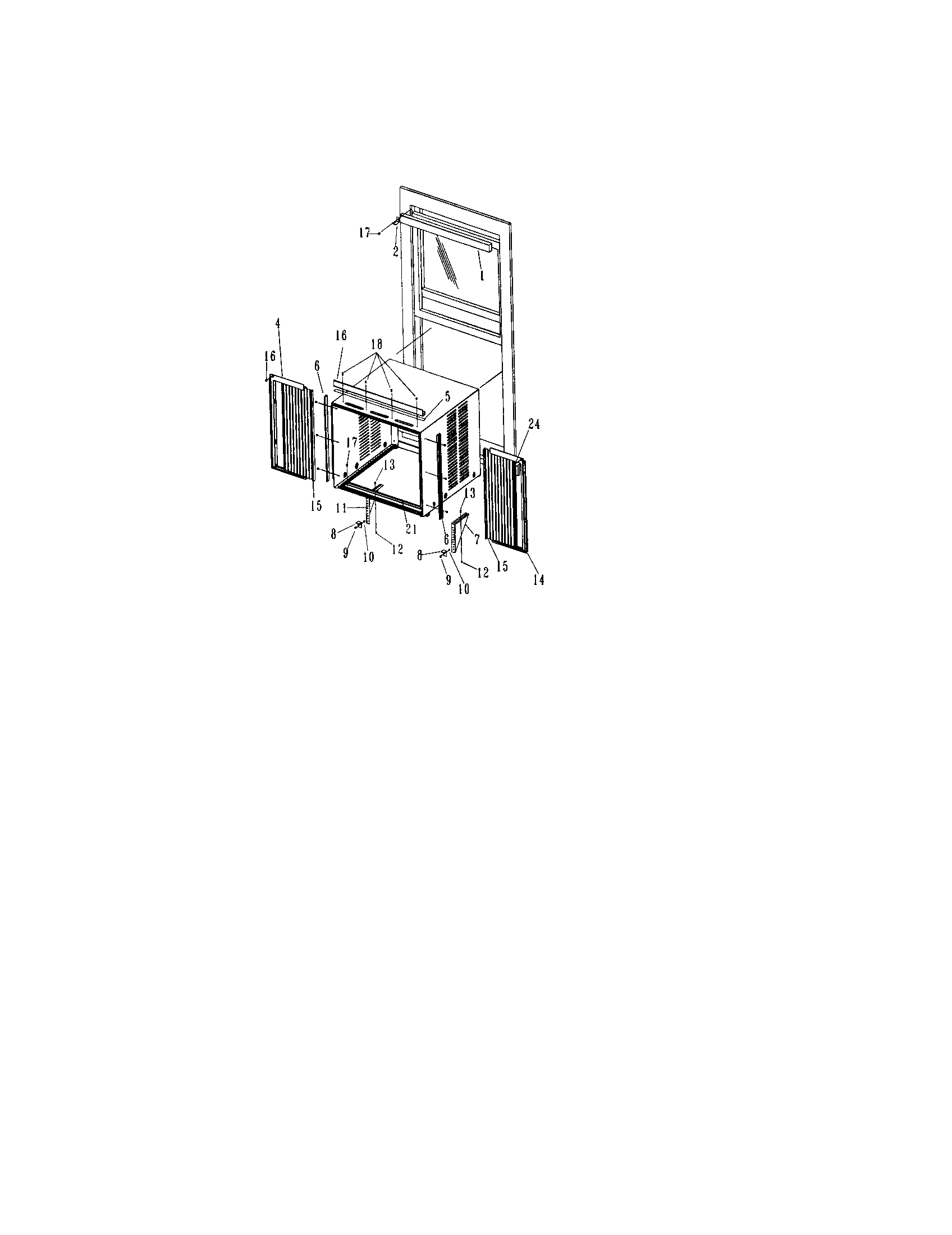

Window mounting diagram

Foam strip

Part #5304407729

$25.17
In Stock
Nut-hex 3017023
#12

Window mounting diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 3202975
#2

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Capacitor 5303318963
#13

Control diagram

Capacitor

Part #5303318963

Replaced by #5303291523

?
Manufacturer substitution
This part replaces 5303318963. Substitute parts can look different from the original.
$123.82
In Stock
Room Air Conditioner Louver Vertical Vane 309631004
#9

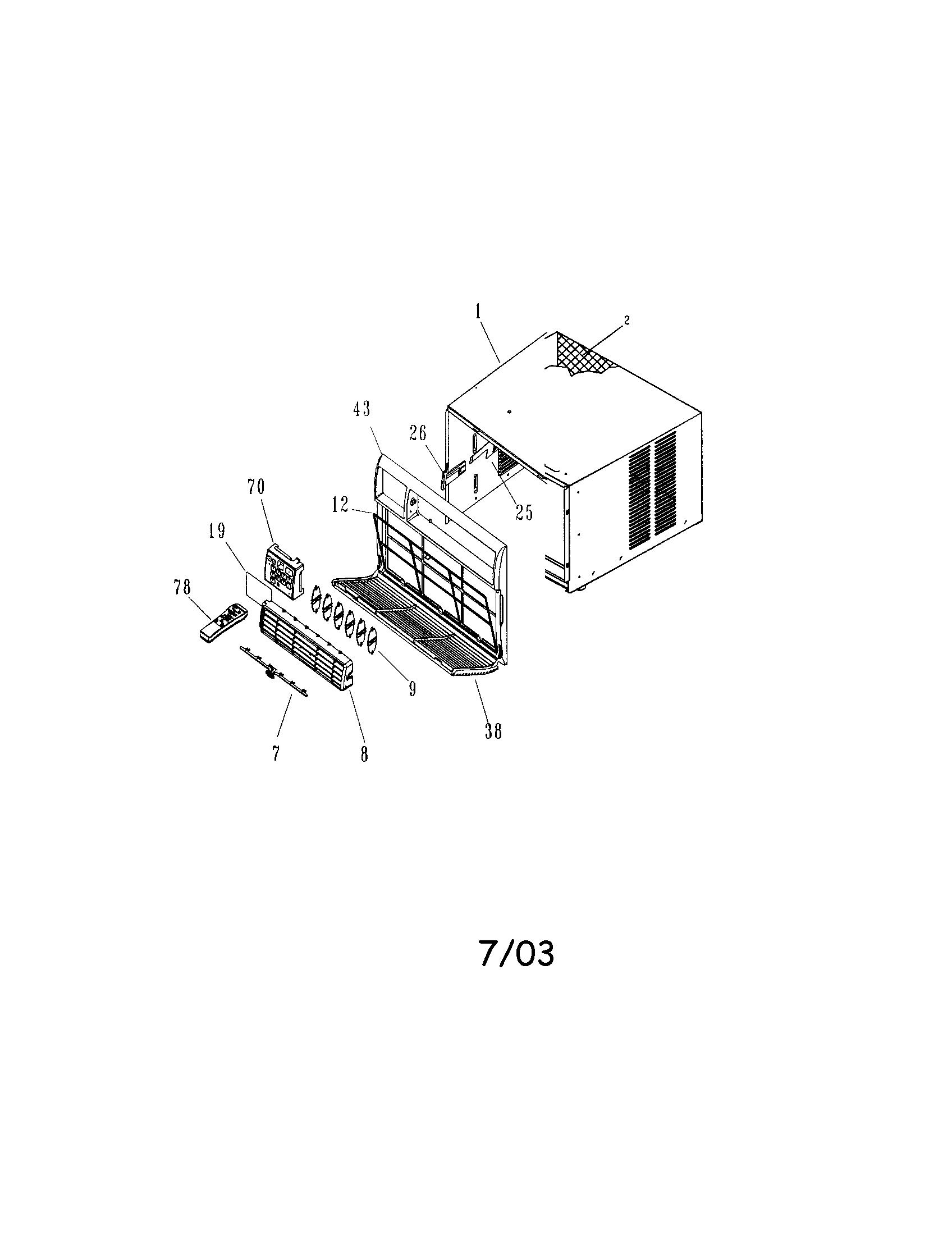

Cabinet front and wrapper diagram

Room air conditioner louver vertical vane

Part #309631004

The manufacturer no longer makes this part, and there's no substitute part

Pc Board 309350407
#72

Control diagram

Pc board

Part #309350407

The manufacturer no longer makes this part, and there's no substitute part

Silver Seal 309632704
#1

Cabinet front and wrapper diagram

Silver seal

Part #309632704

The manufacturer no longer makes this part, and there's no substitute part
