Model # PUY-A24NHA-BS Official Mitsubishi split-system outdoor unit

Here are the diagrams and repair parts for Official Mitsubishi PUY-A24NHA-BS split-system outdoor unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Valve Ball R01E01411
#10

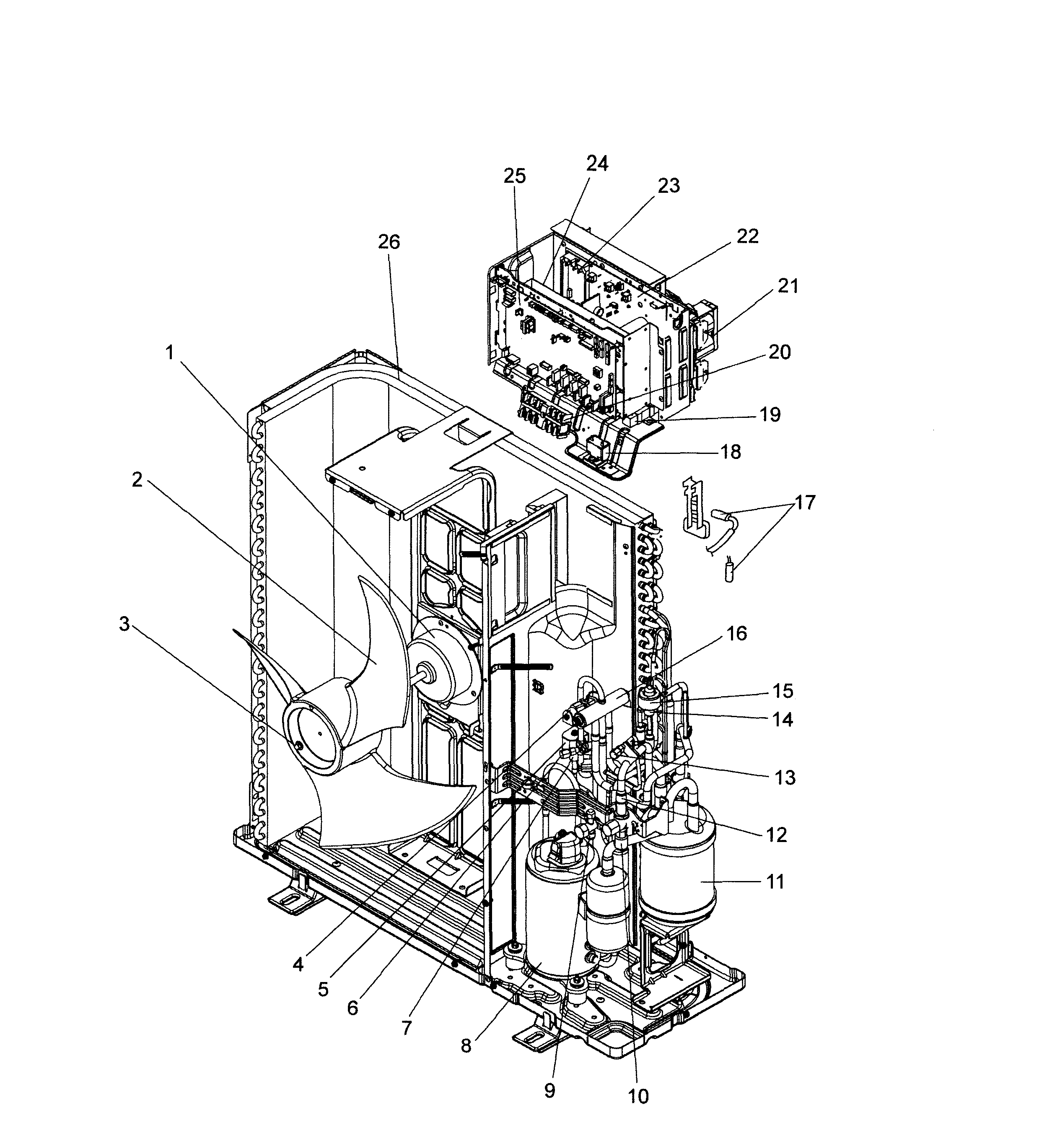

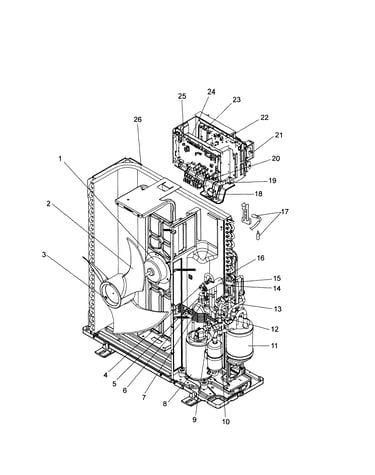

Functional parts diagram

Valve ball

Part #R01E01411

The manufacturer no longer makes this part, and there's no substitute part

Conduit Pl T7WE01617
#NI

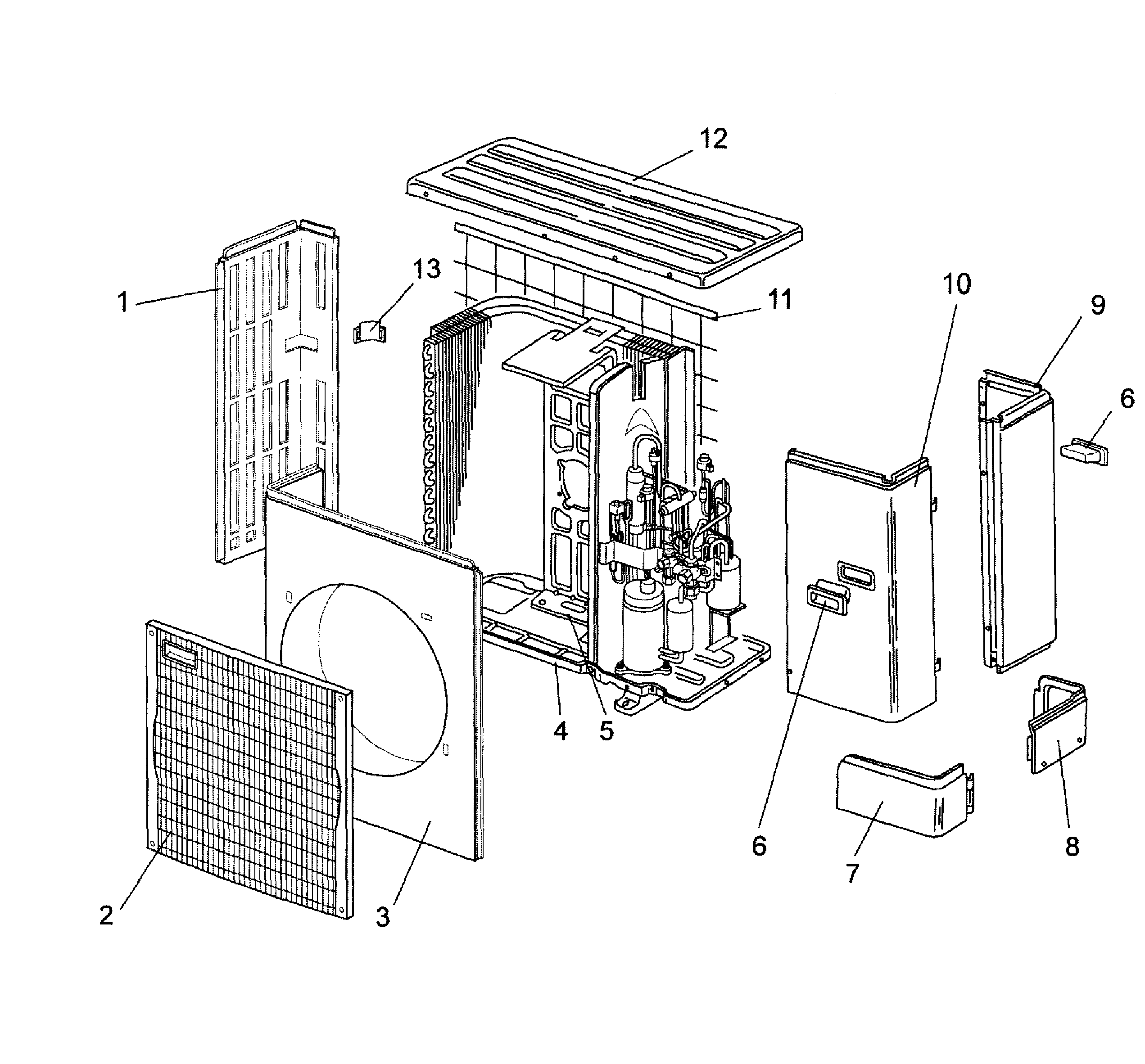

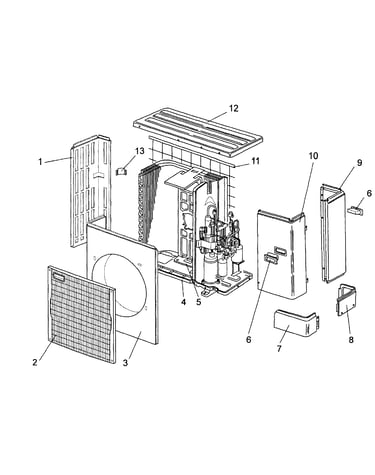

Cabinet parts diagram

Conduit pl

Part #T7WE01617

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block T7WE26716
#20

Functional parts diagram

Terminal block

Part #T7WE26716

The manufacturer no longer makes this part, and there's no substitute part

Fan Propel R01E01115
#2

Functional parts diagram

Fan propel

Part #R01E01115

The manufacturer no longer makes this part, and there's no substitute part

Accumulato R01E30440
#11

Functional parts diagram

Accumulato

Part #R01E30440

The manufacturer no longer makes this part, and there's no substitute part

Side Panel R01E03661
#9

Cabinet parts diagram

Side panel

Part #R01E03661

The manufacturer no longer makes this part, and there's no substitute part

Reactor R01E17259
#NI

Functional parts diagram

Reactor

Part #R01E17259

The manufacturer no longer makes this part, and there's no substitute part

Cover Panel R01E12658
#7

Cabinet parts diagram

Cover panel

Part #R01E12658

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor T7WE28763
#1

Functional parts diagram

Central air conditioner condenser fan motor

Part #T7WE28763

The manufacturer no longer makes this part, and there's no substitute part

Handle R0130L655
#6

Cabinet parts diagram

Handle

Part #R0130L655

The manufacturer no longer makes this part, and there's no substitute part
