Model # 2120 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover 2120 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

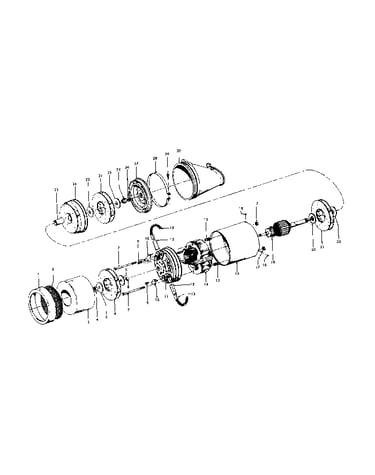

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Vacuum Hose Grip Lock Ring 36153009
#45

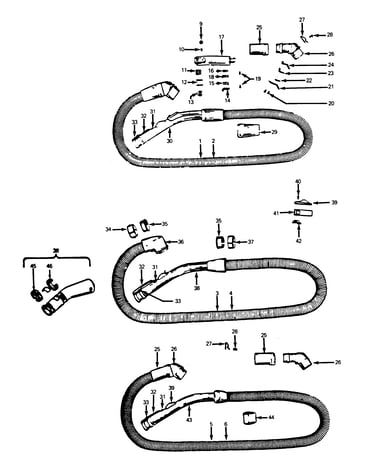

Hose diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type J, 4-pack 4010010J
#14

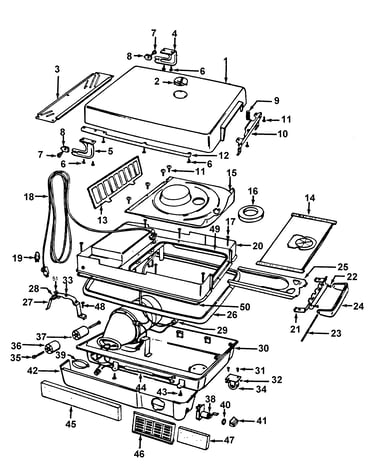

Mainhousing diagram

Hoover vacuum bag, type j, 4-pack

Part #4010010J

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#33A

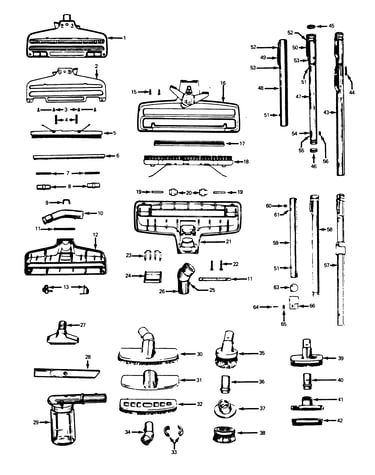

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 048969--
Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#28

Cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Brush 43414064
#35A

Cleaningtools diagram

Kenmore vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
#43A

Cleaningtools diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Upholstery Nozzle 43414057
#27

Cleaningtools diagram

Kenmore vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Screw/doze 21772501
#31

Mainhousing diagram

Screw/doze

Part #21772501

The manufacturer no longer makes this part, and there's no substitute part
