Speed Queen
Dryer

Model # SDE907LF1724 Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen SDE907LF1724 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Dryer Blower Fan 510139P
#11

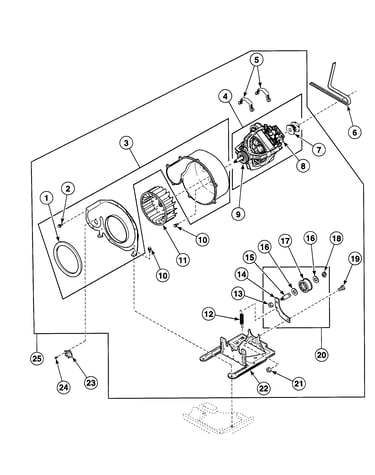

Motor assy diagram

Dryer blower fan

Part #510139P

The manufacturer no longer makes this part, and there's no substitute part

Dryer Heating Element 61928
#9B

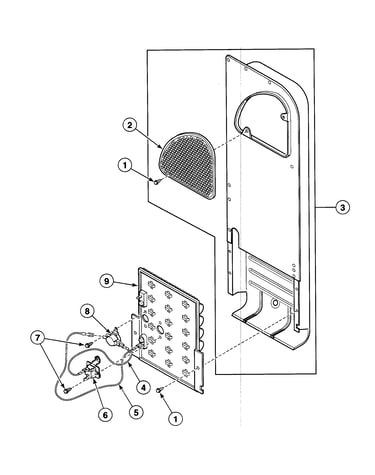

Heater assy diagram

Dryer heating element

Part #61928

The manufacturer no longer makes this part, and there's no substitute part

Dryer High-limit Thermostat 510701
#8

Heater assy diagram

Dryer high-limit thermostat

Part #510701

The manufacturer no longer makes this part, and there's no substitute part

Dryer Heating Element 510329P
#9A

Heater assy diagram

Dryer heating element

Part #510329P

The manufacturer no longer makes this part, and there's no substitute part

Washer 52549
#16

Motor assy diagram

Washer

Part #52549

The manufacturer no longer makes this part, and there's no substitute part

Ring 23748
#18

Motor assy diagram

Ring

Part #23748

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drum Support Roller 510708P
#12

Roller assy diagram

Dryer drum support roller

Part #510708P

The manufacturer no longer makes this part, and there's no substitute part

Screw 500824
#19

Motor assy diagram

Screw

Part #500824

The manufacturer no longer makes this part, and there's no substitute part

Screw 61199
#7

Roller assy diagram

Screw

Part #61199

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 61199. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Thermal Fuse 511412
#6

Heater assy diagram

Thermal fuse

Part #511412

The manufacturer no longer makes this part, and there's no substitute part
