Model # HVTEC16ABS Official Haier wine cellar

Here are the diagrams and repair parts for Official Haier HVTEC16ABS wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 6 of 6 parts  |
Front Fan Gr WR01X28134
#8

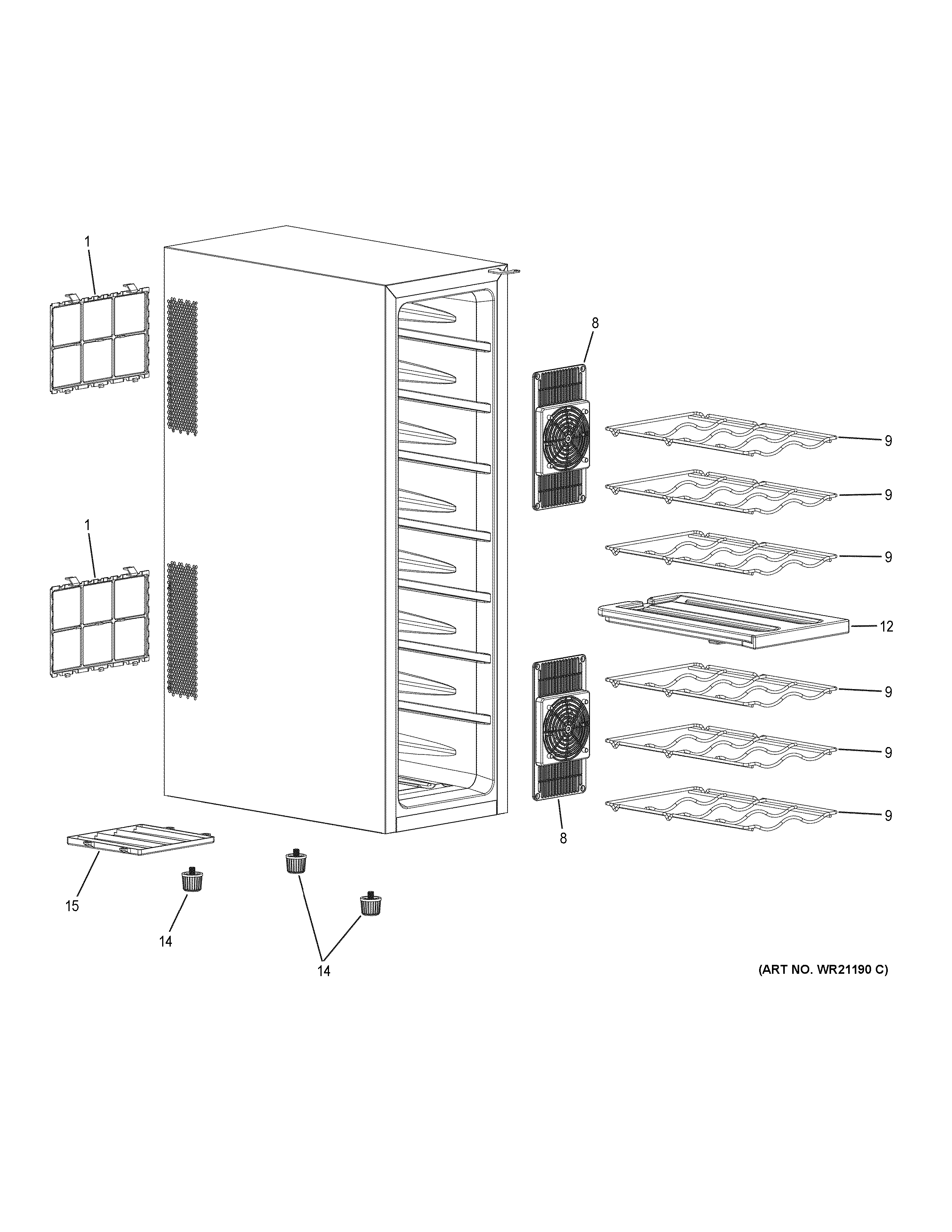

Wine chiller diagram

Front fan gr

Part #WR01X28134

$12.57
In Stock
Divider Shel WR71X28154
#12

Wine chiller diagram

Divider shel

Part #WR71X28154

$57.62
In Stock
Wine Cooler Fan Filter WR14X28121
#1

Wine chiller diagram

Wine cooler fan filter

Part #WR14X28121

$11.57
In Stock
Refrigerator Leveling Leg WR01X28118
#14

Wine chiller diagram

Refrigerator leveling leg

Part #WR01X28118

$10.94
In Stock
Refrigerator Drain Tray WR14X28115
#15

Wine chiller diagram

Refrigerator drain tray

Part #WR14X28115

This item is not returnable
$4.35
In Stock
Haier Refrigerator Shelf Wire WR71X28168
#9

Wine chiller diagram

Haier refrigerator shelf wire

Part #WR71X28168

$57.62
In Stock
