KitchenAid
Stand Mixer

Model # 5KSM60SPXBBM0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid 5KSM60SPXBBM0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

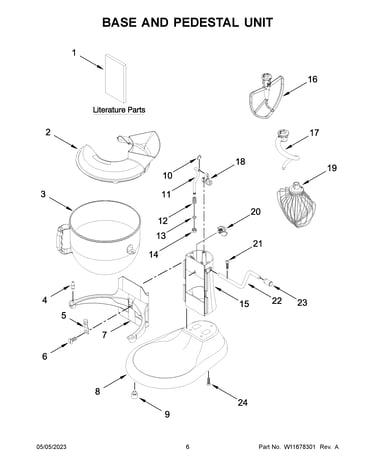

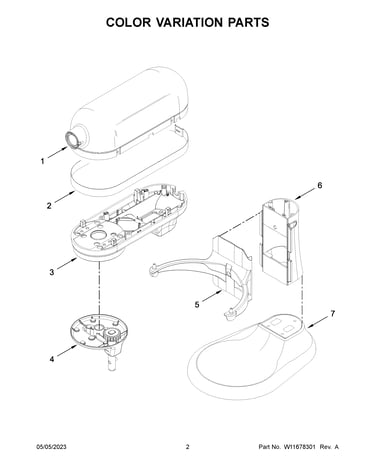

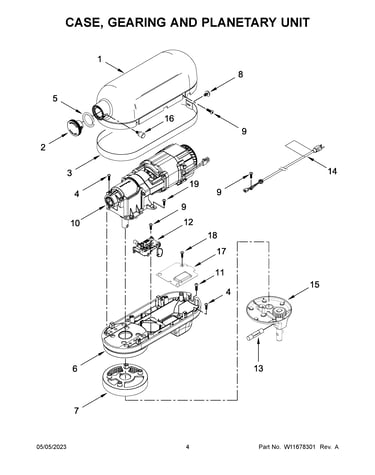

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Pin-bowl 240185
Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove W10234531
Pin-groove

Part #W10234531

Replaced by #WPW10234531

?
Manufacturer substitution
This part replaces W10234531. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Motor, 230 Volt Assembly W11480076
Motor, 230 volt assembly

Part #W11480076

Replaced by #W11649201

?
Manufacturer substitution
This part replaces W11480076. Substitute parts can look different from the original.
$131.50
In Stock
Wire Whip 9703491
Wire whip

Part #9703491

Replaced by #WP9703491

?
Manufacturer substitution
This part replaces 9703491. Substitute parts can look different from the original.
$25.56 |
19% OFF Phone Price : $31.56
In Stock
Lower Gearcase (empire Red) W11520142
Lower gearcase (empire red)

Part #W11520142

$55.67
In Stock
Lower Gearcase (pistachio) W11520137
Lower gearcase (pistachio)

Part #W11520137

$52.36
In Stock
Stand Mixer Bowl Support Lift Arm (replaces W10598835) W11376364
Stand mixer bowl support lift arm (replaces w10598835)

Part #W11376364

$20.25
In Stock
Bowl Support & Pins (pistachio) W11417635
Bowl support & pins (pistachio)

Part #W11417635

$57.85
In Stock
Control Assembly, 220/230 Volt W11512562
Control assembly, 220/230 volt

Part #W11512562

$80.22
In Stock
