Washer

Model # NA3812L33638 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen NA3812L33638 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

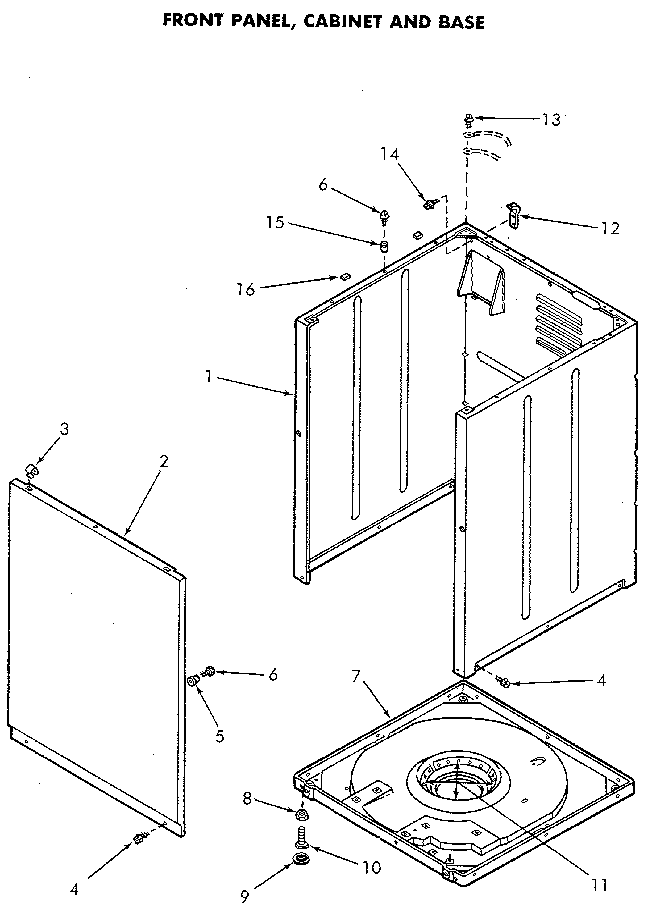

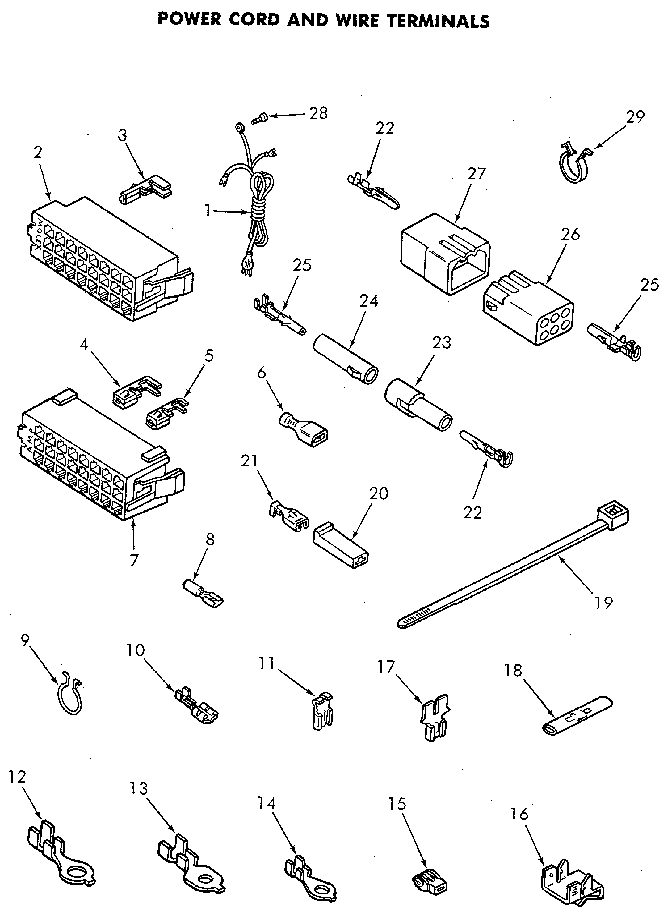

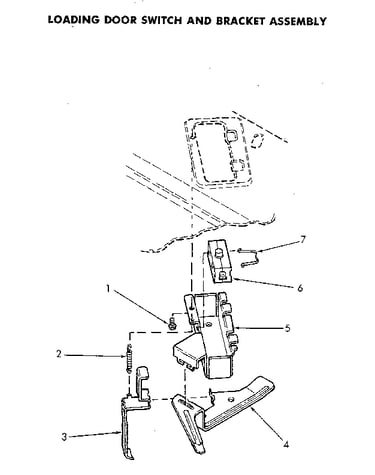

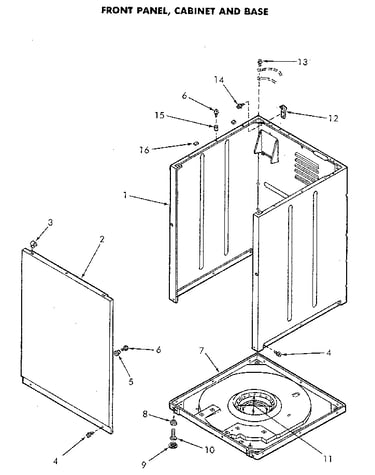

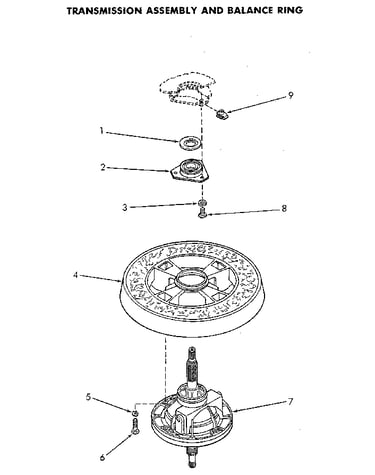

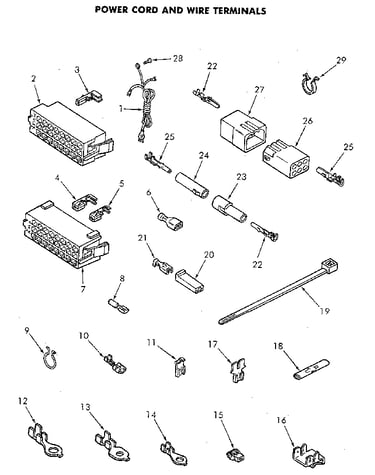

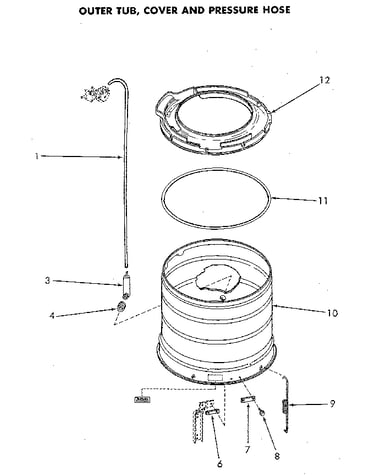

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Speed Queen Washer 26509
#9

Bearing housing and brake diagram

Speed queen washer

Part #26509

$10.00
In Stock
Speed Queen Hex Nut 52566
#27

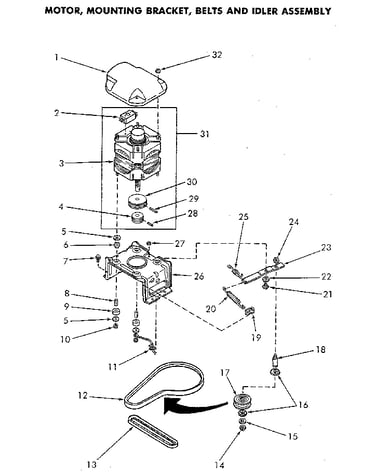

Motor, belts and idler asem diagram

Speed queen hex nut

Part #52566

This item is not returnable
$3.49
In Stock
Speed Queen Screw 27220
#10

Bearing housing and brake diagram

Speed queen screw

Part #27220

$10.71
In Stock
Bearing 28944R
#16

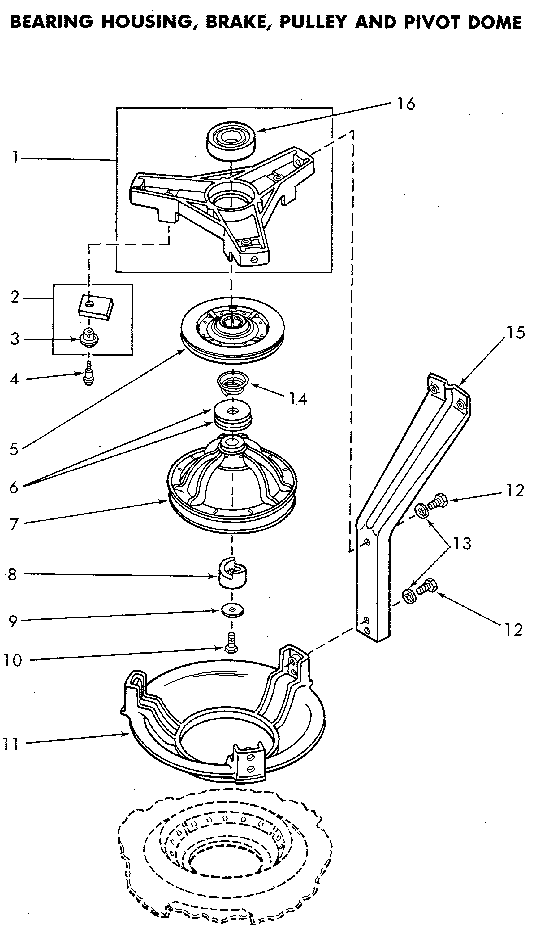

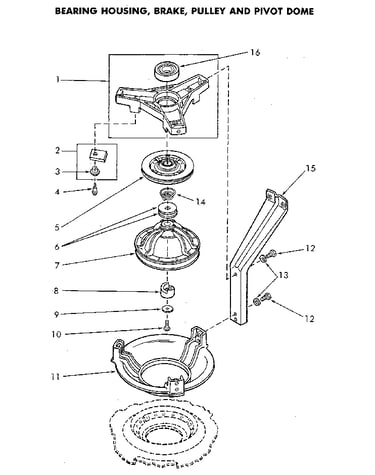

Bearing housing and brake diagram

Bearing

Part #28944R

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces 28944R. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock
Speed Queen Seal Kit 495P3
#10

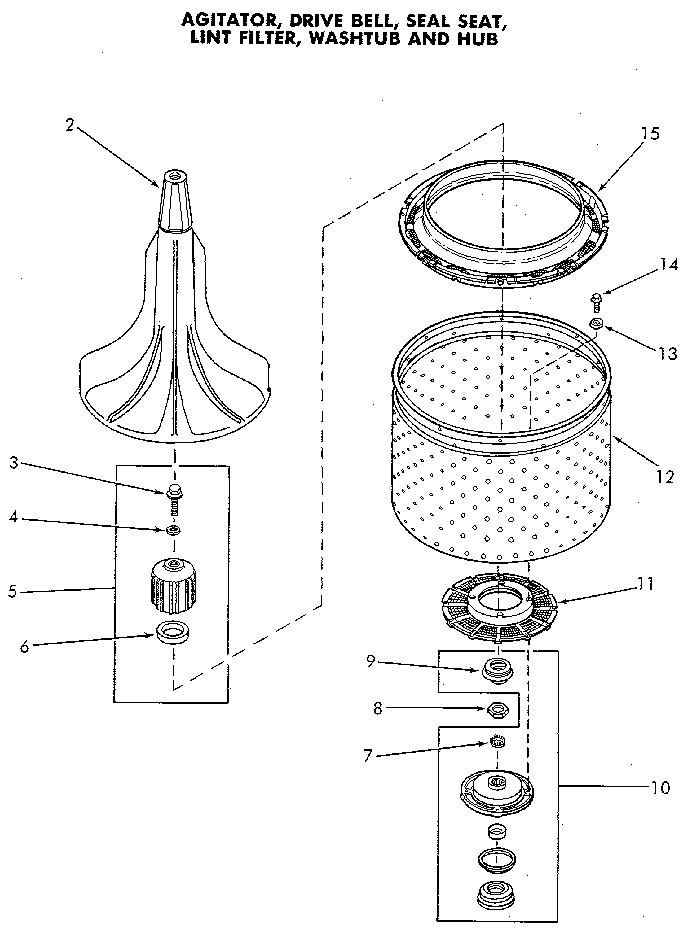

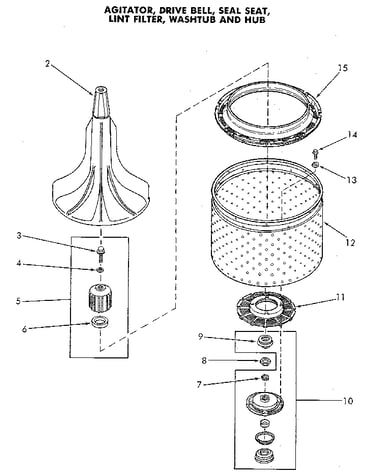

Basket and agitator diagram

Speed queen seal kit

Part #495P3

$216.91
In Stock
Bracket 28791
#26

Motor, belts and idler asem diagram

Bracket

Part #28791

$20.29
In Stock
Speed Queen Hose Clamp 29210
#10

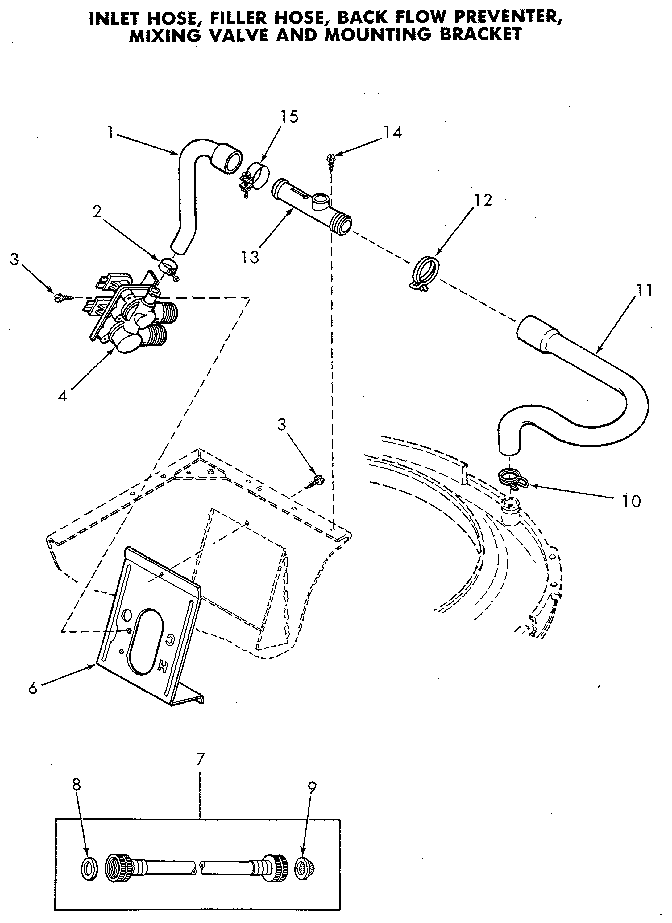

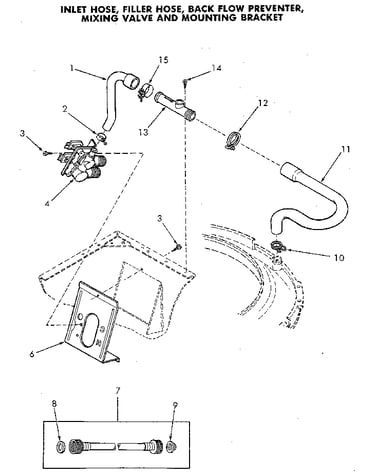

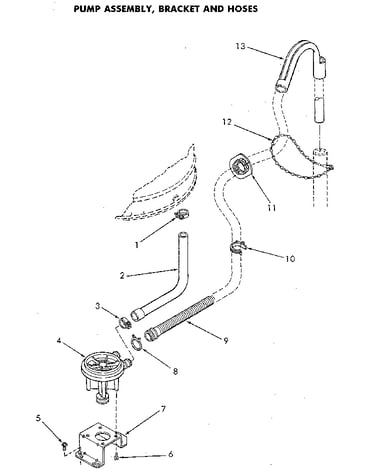

Water system diagram

Speed queen hose clamp

Part #29210

This item is not returnable
$4.14
In Stock
Speed Queen Bumper 21685
#12

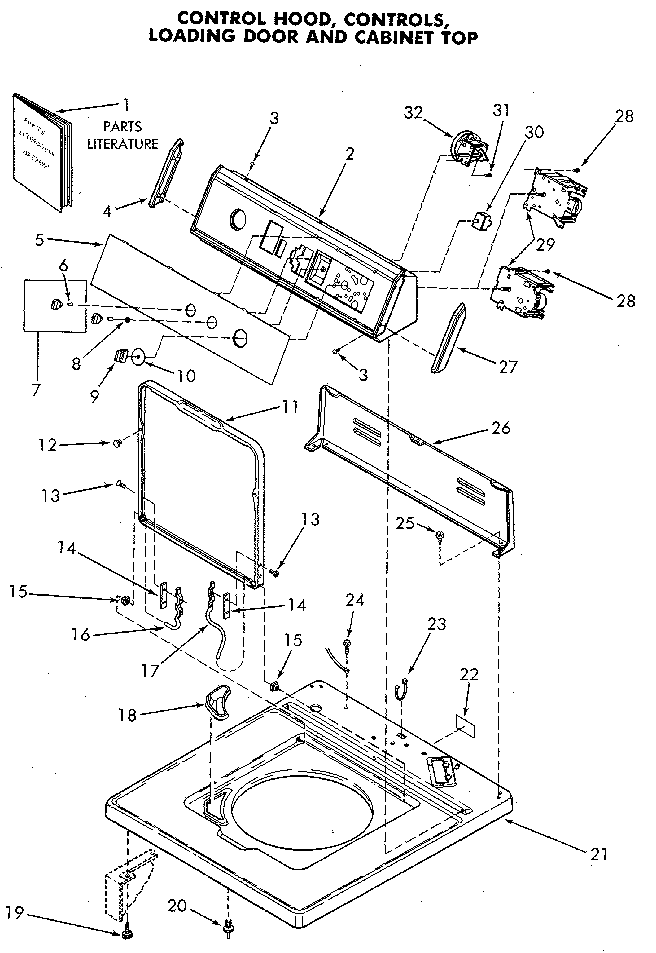

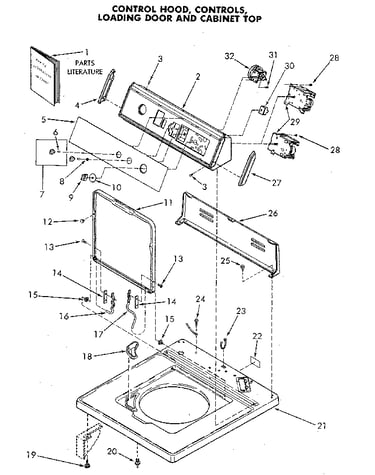

Control panel and top diagram

Speed queen bumper

Part #21685

$9.71
In Stock
Nut 28803
#24

Motor, belts and idler asem diagram

Nut

Part #28803

This item is not returnable
$3.86
In Stock
Speed Queen Clip 28849
#19

Motor, belts and idler asem diagram

Speed queen clip

Part #28849

$7.77
In Stock
