Model # WGD560LHW3 Official Whirlpool laundry, residential, gas dryer

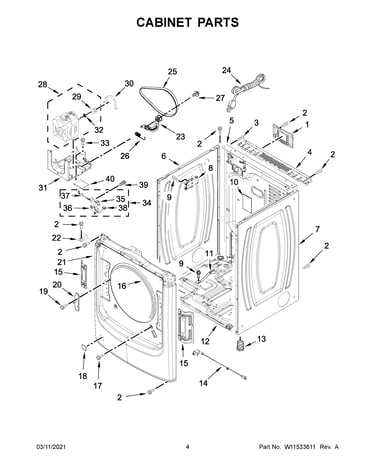

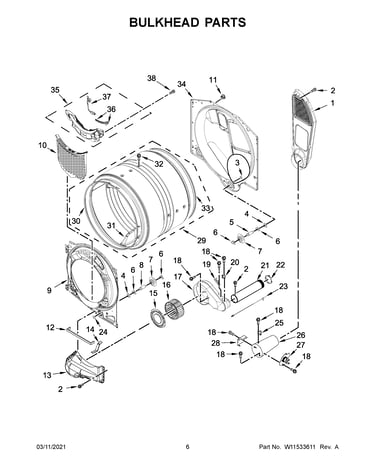

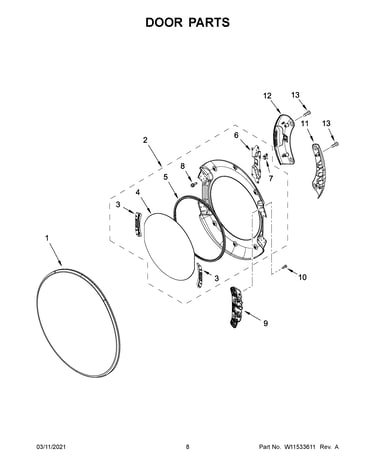

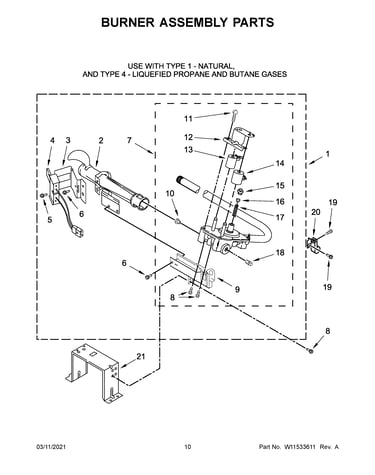

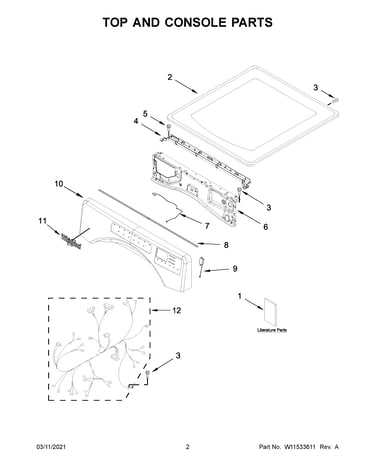

Here are the diagrams and repair parts for Official Whirlpool WGD560LHW3 laundry, residential, gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Dryer Drum Support Roller W10314171
Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Gas Valve Coil Kit 694539
Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Dryer Valve Coil Kit 694540
Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Dryer Thermistor 8577274
Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$31.84 |
16% OFF Phone Price : $37.84
In Stock
Dryer Repair Kit 80047
Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Igniter 686590
Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Dryer Drive Belt 3387610
Dryer drive belt

Part #3387610

Replaced by #661570V

?
Manufacturer substitution
This part replaces 3387610. Substitute parts can look different from the original.
BEST SELLER
$19.95 |
9% OFF Phone Price : $21.95
In Stock
Thermal Fuse W10693363
Thermal fuse

Part #W10693363

Replaced by #W10909685

?
Manufacturer substitution
This part replaces W10693363. Substitute parts can look different from the original.
BEST SELLER
$45.43 |
12% OFF Phone Price : $51.43
In Stock
Dryer Support Roller Tri-ring Washer W10512946
Dryer support roller tri-ring washer

Part #W10512946

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Dryer Moisture Sensor 3387223
Dryer moisture sensor

Part #3387223

Replaced by #WP3387223

?
Manufacturer substitution
This part replaces 3387223. Substitute parts can look different from the original.
BEST SELLER
$7.23 |
12% OFF Phone Price : $8.23
In Stock
