Model # AKED3060WW-P1131751NWW Official Amana electric counter unit

Here are the diagrams and repair parts for Official Amana AKED3060WW-P1131751NWW electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Machine Screw 0041768
#28

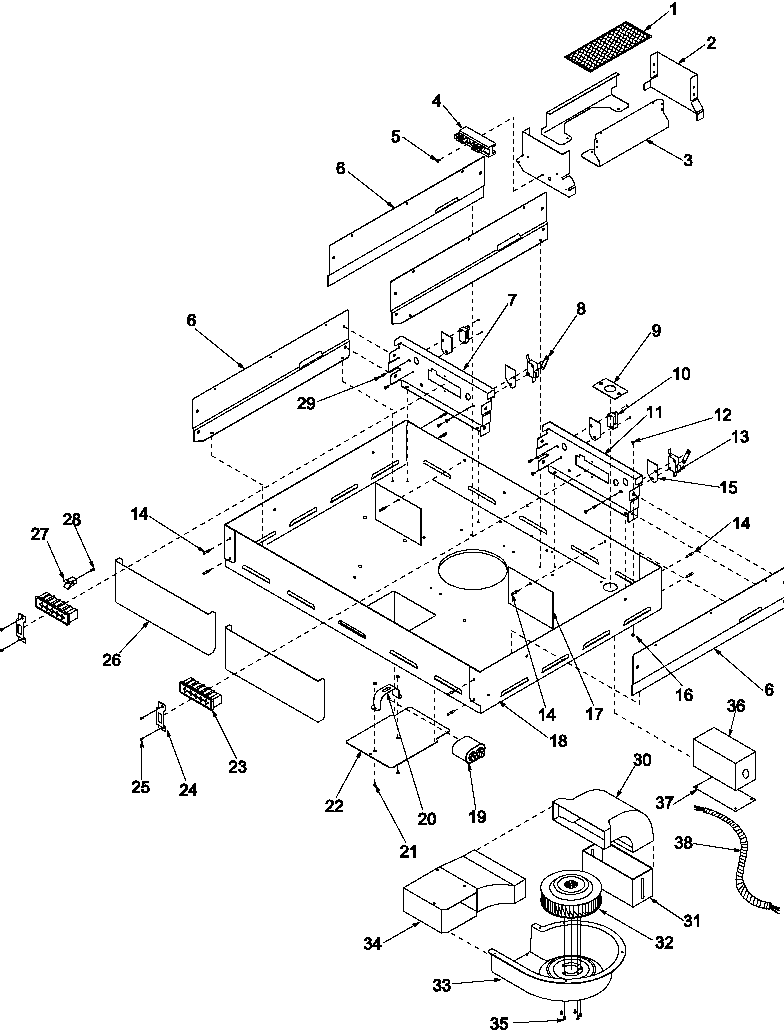

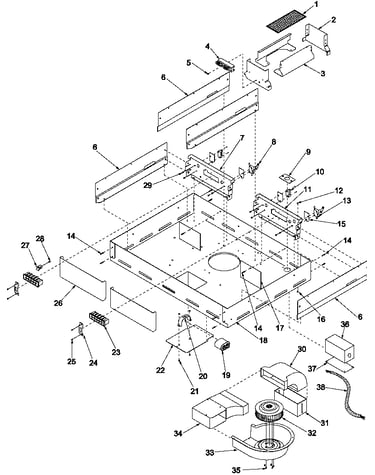

Cavity diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Infinite Switch 0315563
#17

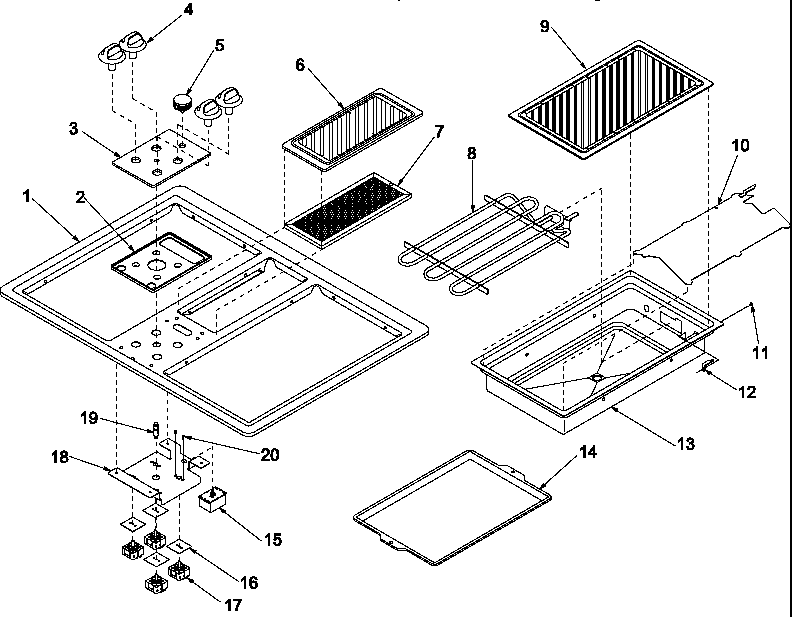

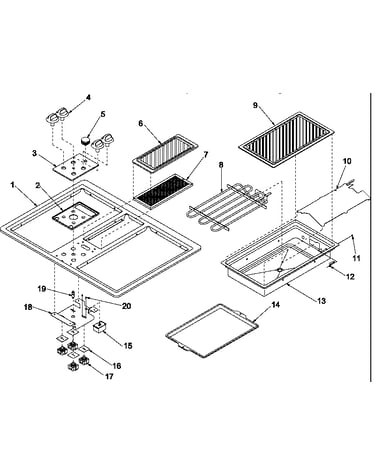

Main top diagram

Infinite switch

Part #0315563

Replaced by #WP74011243

?
Manufacturer substitution
This part replaces 0315563. Substitute parts can look different from the original.
$55.86 |
10% OFF Phone Price : $61.86
In Stock
Screw M0234422
#20

Main top diagram

Screw

Part #M0234422

This item is not returnable
$4.22
In Stock
Screw, #8-18 0041829
#5

Cavity diagram

Screw, #8-18

Part #0041829

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 0041829. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Grease Pan 0042724
#14

Main top diagram

Grease pan

Part #0042724

The manufacturer no longer makes this part, and there's no substitute part

Smoke Switch 31724201
#10

Cavity diagram

Smoke switch

Part #31724201

The manufacturer no longer makes this part, and there's no substitute part

Bushing, Ant 0317104
#9999

Cavity diagram

Bushing, ant

Part #0317104

The manufacturer no longer makes this part, and there's no substitute part

Insulation 0091523
#15

Cavity diagram

Insulation

Part #0091523

The manufacturer no longer makes this part, and there's no substitute part

Plenum 0315710
#3

Cavity diagram

Plenum

Part #0315710

The manufacturer no longer makes this part, and there's no substitute part

J-box, Motor 0316911
#36

Cavity diagram

J-box, motor

Part #0316911

The manufacturer no longer makes this part, and there's no substitute part
