GE
Gas Range

Model # JGBP30AEV2AA Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP30AEV2AA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

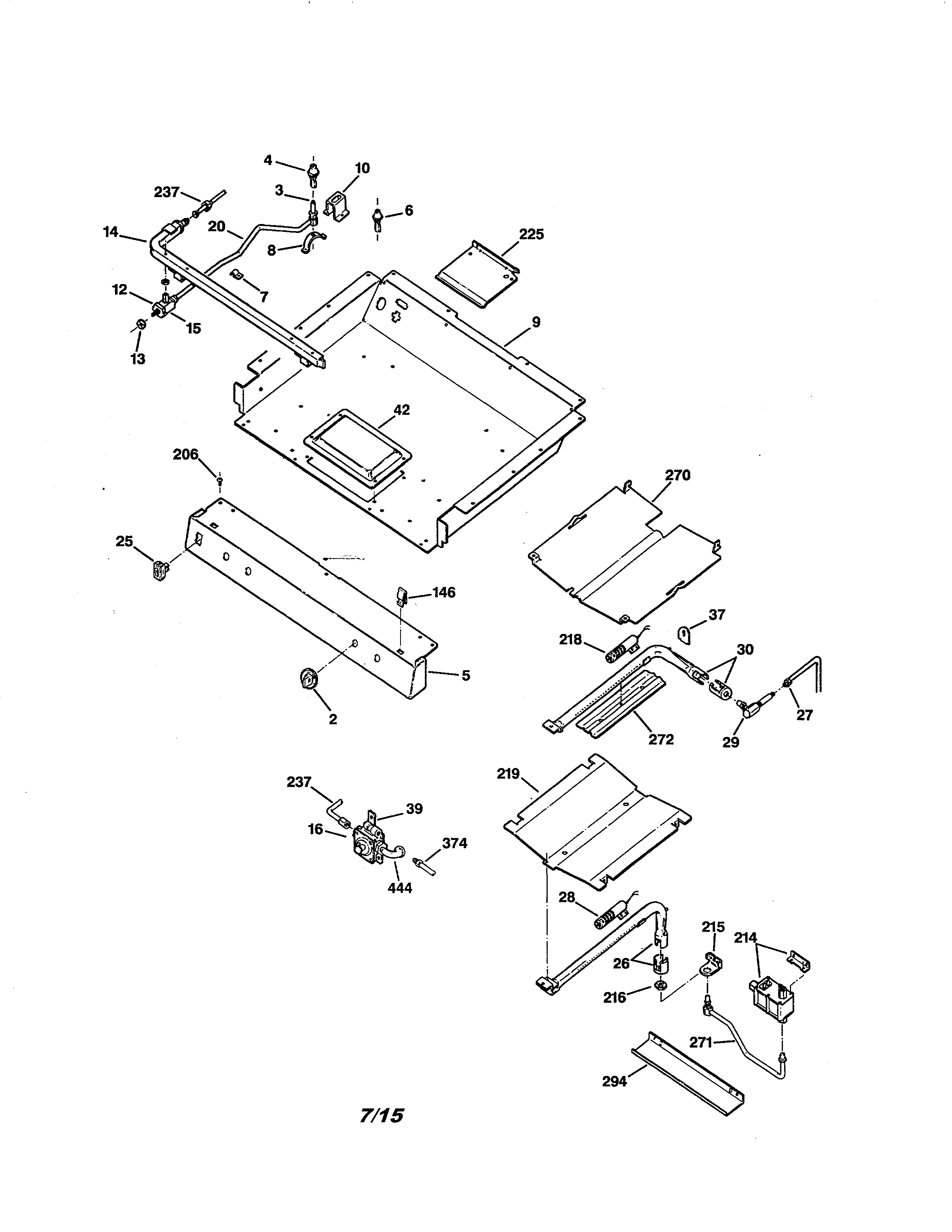

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |
G.e. Kenmore Range Oven Burner Igniter (replaces Wb02x9154, Wb13k10027, Wb13k3) WB2X9154
G.e. kenmore range oven burner igniter (replaces wb02x9154, wb13k10027, wb13k3)

Part #WB2X9154

BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

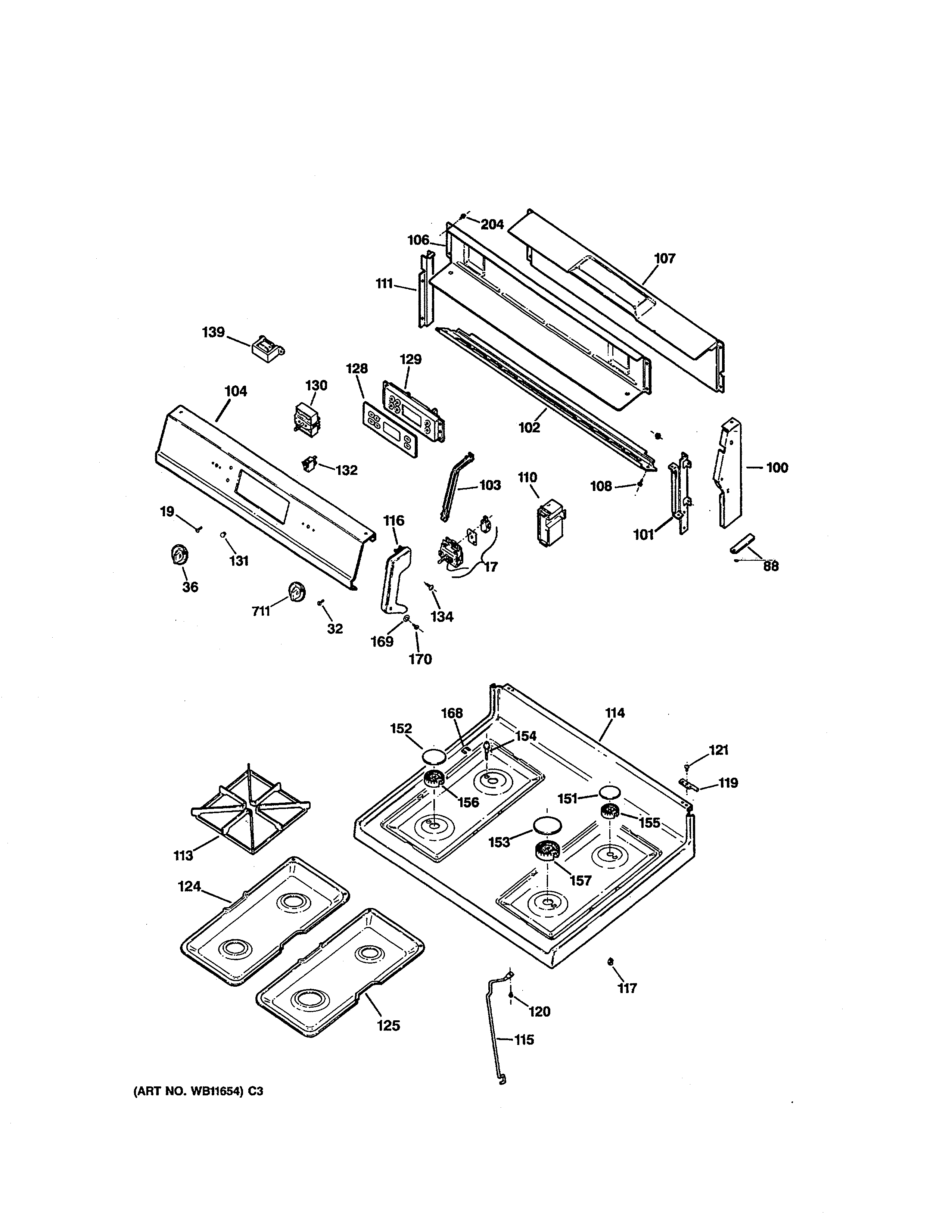

Cooktop diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$32.63 |
16% OFF Phone Price : $38.63
In Stock
Range Light Socket WB08T10004
#230

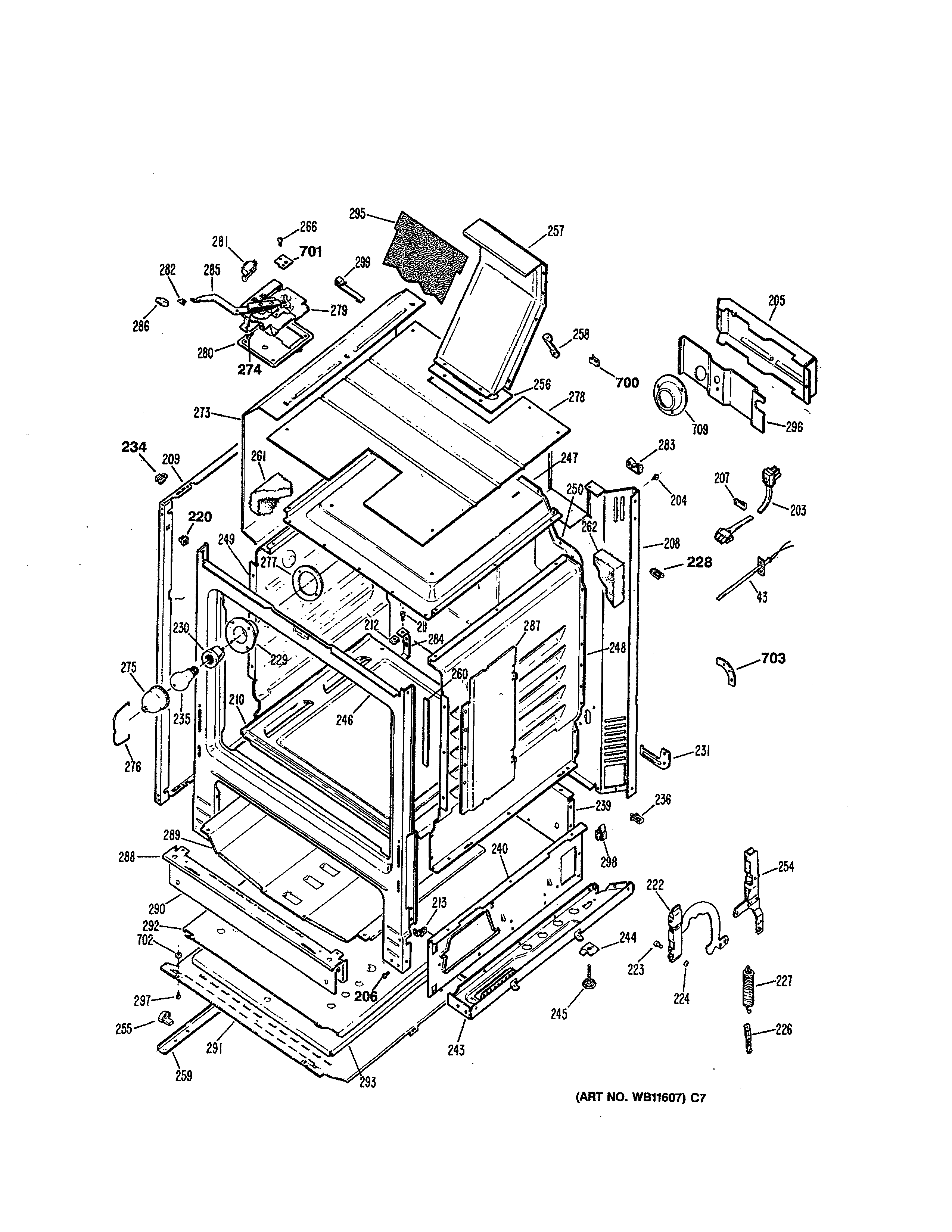

Body diagram

Range light socket

Part #WB08T10004

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#275

Body diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Oven Rack (replaces Wb48k5019) WB48T10095
#200

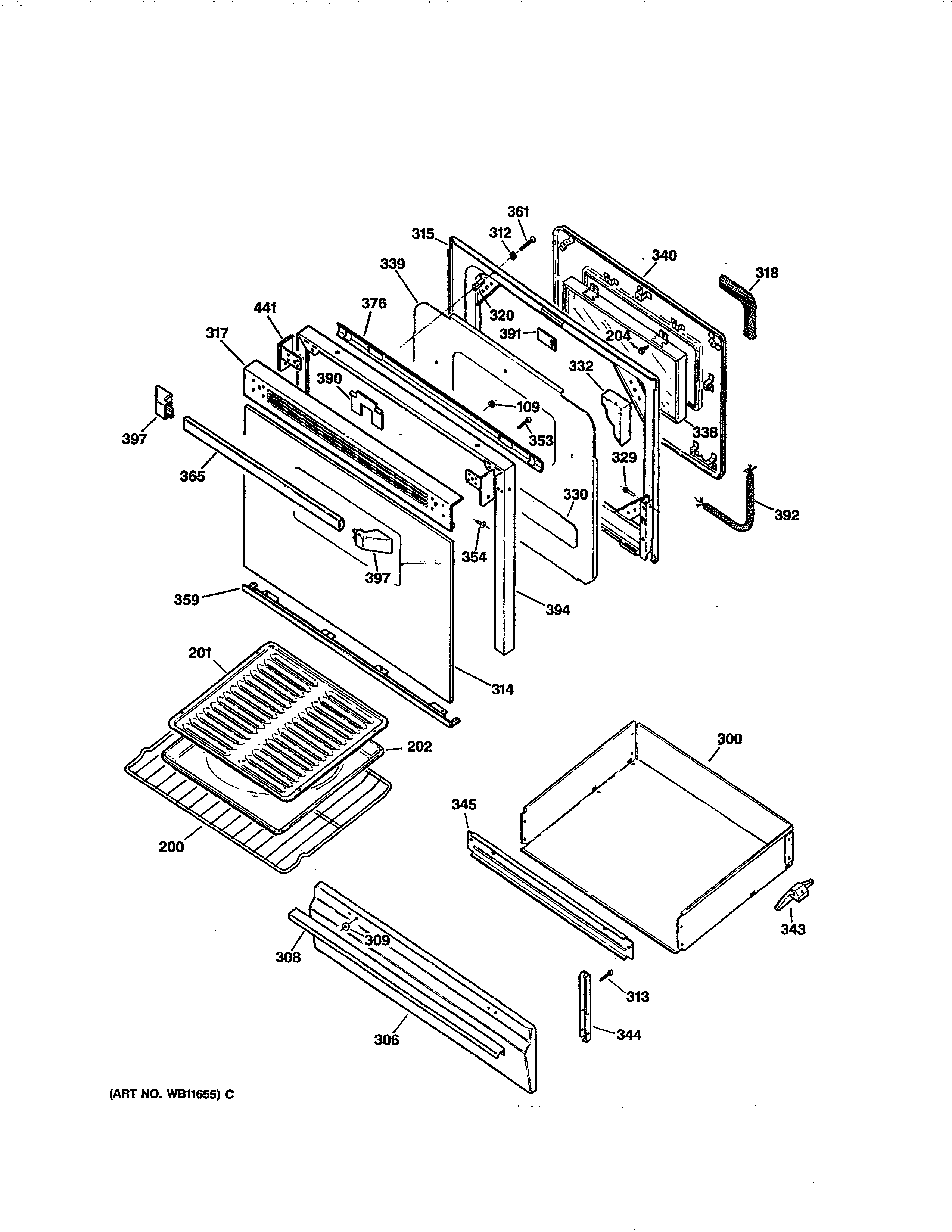

Door & drawer diagram
